Wideband RF Voltage Gain Amplifier Module 10MHz-3GHz
69.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake
This compact Wideband Voltage Controlled Gain Amplifier Module measures 50mm by 40mm and operates from 10MHz to 3GHz, perfect for RF applications. It features a +5V supply with a maximum current of 220mA, providing up to 22dBm output power and a gain range adjustable from -34dB to +22dB with a linear control of 20mV/dB. Both input and output impedance are 50 ohms, with an output noise floor of -150 dBm/Hz at 900MHz. The module includes built-in balun coupling for single-ended or differential operation and a control voltage range of 0–1.4V, adjustable via onboard potentiometer or external digital control, making it ideal for versatile RF signal processing.
In stock
This this Wideband Voltage Gain Amplifier Module

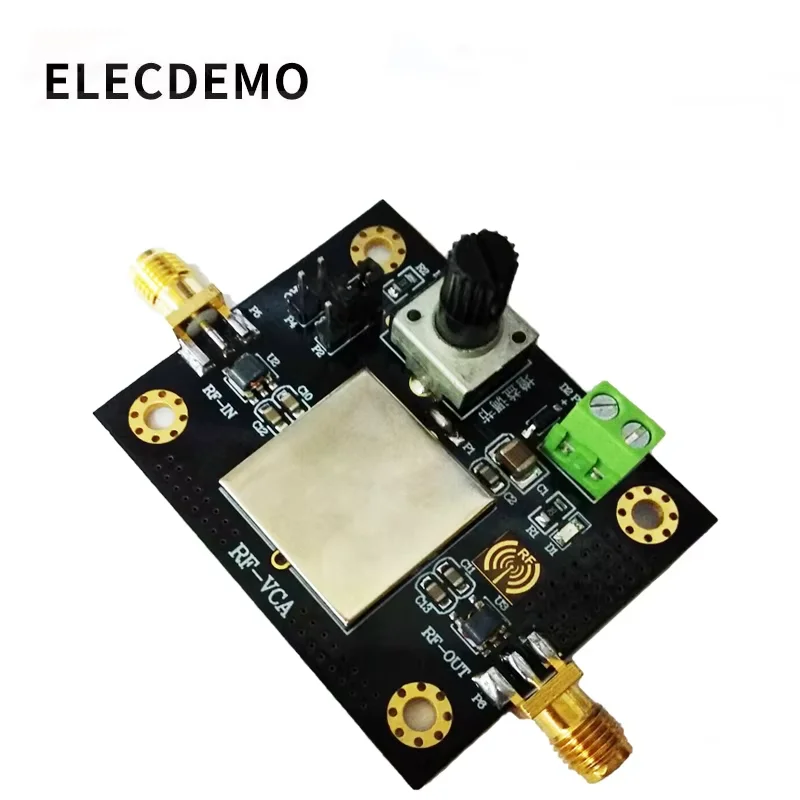

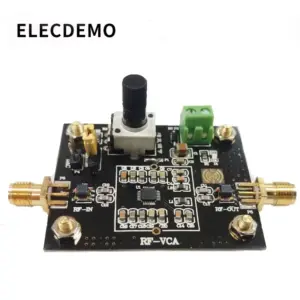

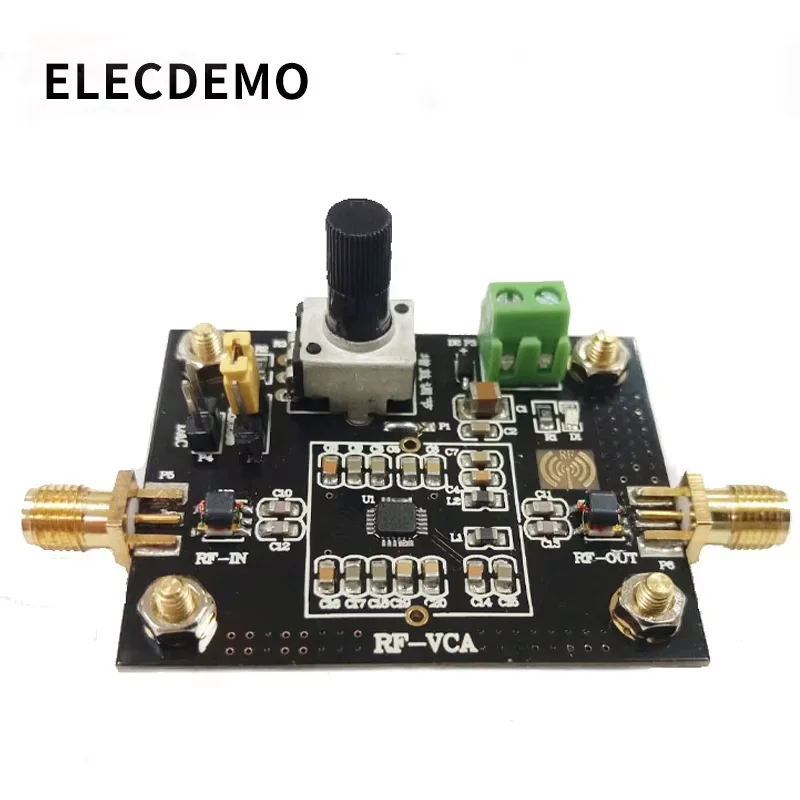

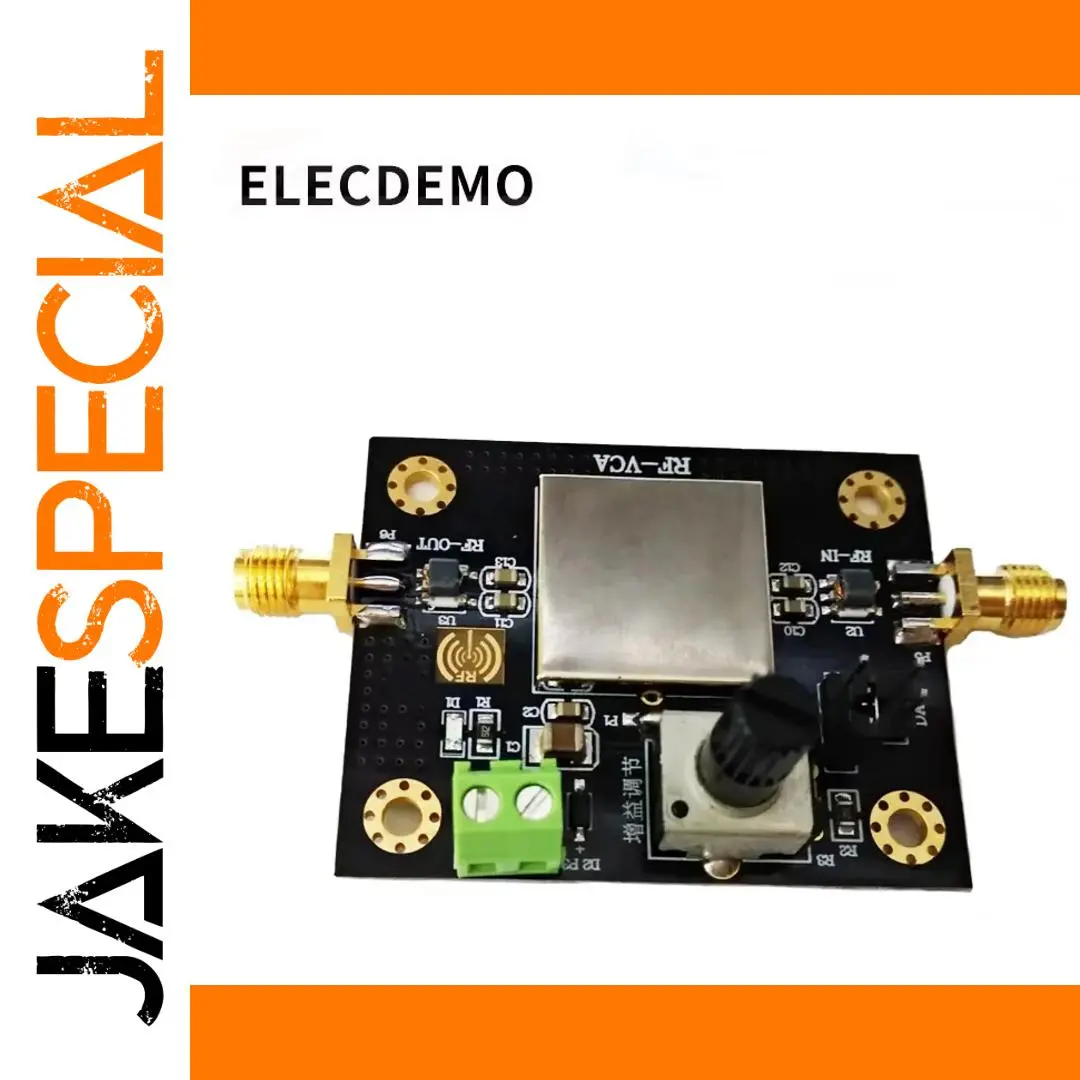

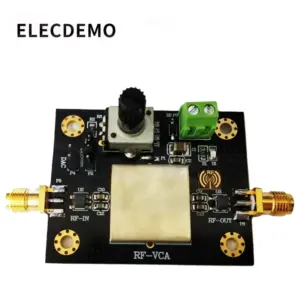

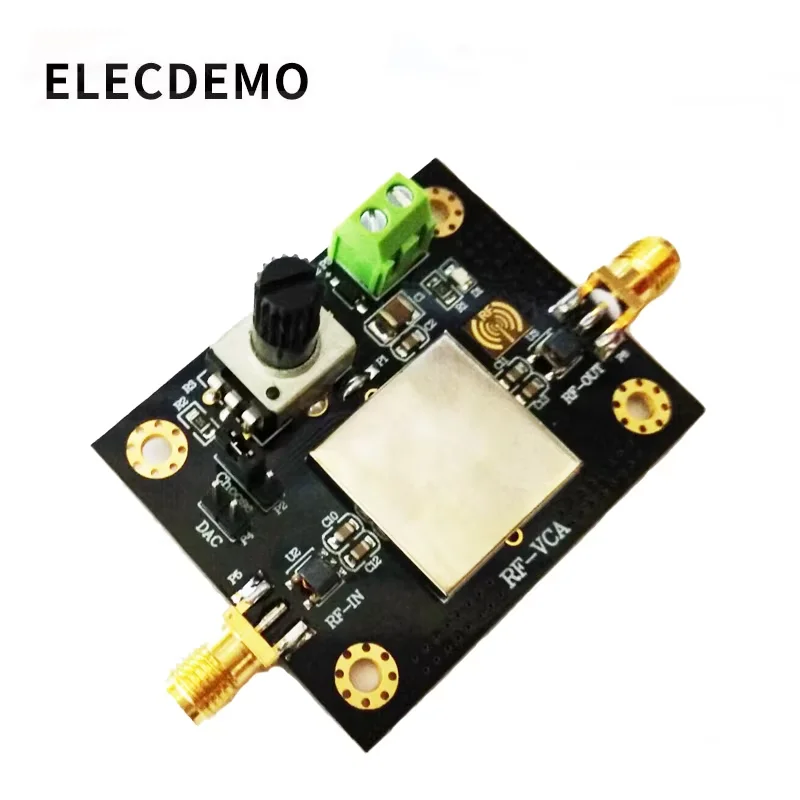

Experience precise RF signal control with this high-performance Wideband Voltage Gain Amplifier Module. Spanning from 10 MHz to 3 GHz, it features a compact 50mm x 40mm design with a sleek matte black PCB. Gold SMA connectors on each side facilitate high-frequency RF input and output, ensuring minimal signal loss and durability. The central metallic shield not only protects sensitive circuitry but also adds a refined, professional aesthetic to your setup. An intuitive black control knob allows fine calibration, while the green terminal block offers easy power and control signal connections. Its well-organized layout combines modern minimalism with functional clarity, making it ideal for advanced RF testing, research, and development applications.
Keys features of the this Wideband Voltage Gain Amplifier Module
- Operates from 10 MHz to 3 GHz with a compact size of 50mm x 40mm, perfect for space-constrained RF systems and high-frequency testing environments.
- Includes gold SMA connectors on each side (labeled RF-OUT and RF-IN), enabling high-frequency stability and secure connections for RF signals up to +22 dBm output power.
- Features an internal metallic shield for electromagnetic protection and heat dissipation, with a neatly arranged PCB of surface-mount components delivering high linearity and reliability.
- Adjustable gain from -34 dB to +22 dB controlled via a sensitive 20 mV/dB linear control or external digital interface, offering flexible signal strength management.
- Input and output impedances both at 50 ohms, with a noise floor of -150 dBm/Hz at 900 MHz, ensuring clean signal amplification over a broad frequency spectrum.
- Powered by +5V DC with a maximum current of 220 mA, supported by a green terminal for easy connections and a sturdy black control knob for precise tuning.
- Supports single-ended or differential operation thanks to built-in balun couplings, making it adaptable for various RF circuit configurations with high linearity (OIP3 +31 dBm at 900 MHz).
This this Wideband Voltage Gain Amplifier Module—Order Now
Transform your RF projects with confidence by integrating this reliable, high-linearity module into your system. Whether for testing, research, or professional communication setups, it delivers excellent performance and flexibility, allowing you to fine-tune your signal gain precisely. Feel free to reach out if you need guidance — this is the perfect addition to enhance your RF capabilities. Enjoy the journey toward clearer, more controlled RF signals today!
