Ultra-High Sensitivity Transimpedance Amplifier Module
Price range: 63.99 € through 66.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake

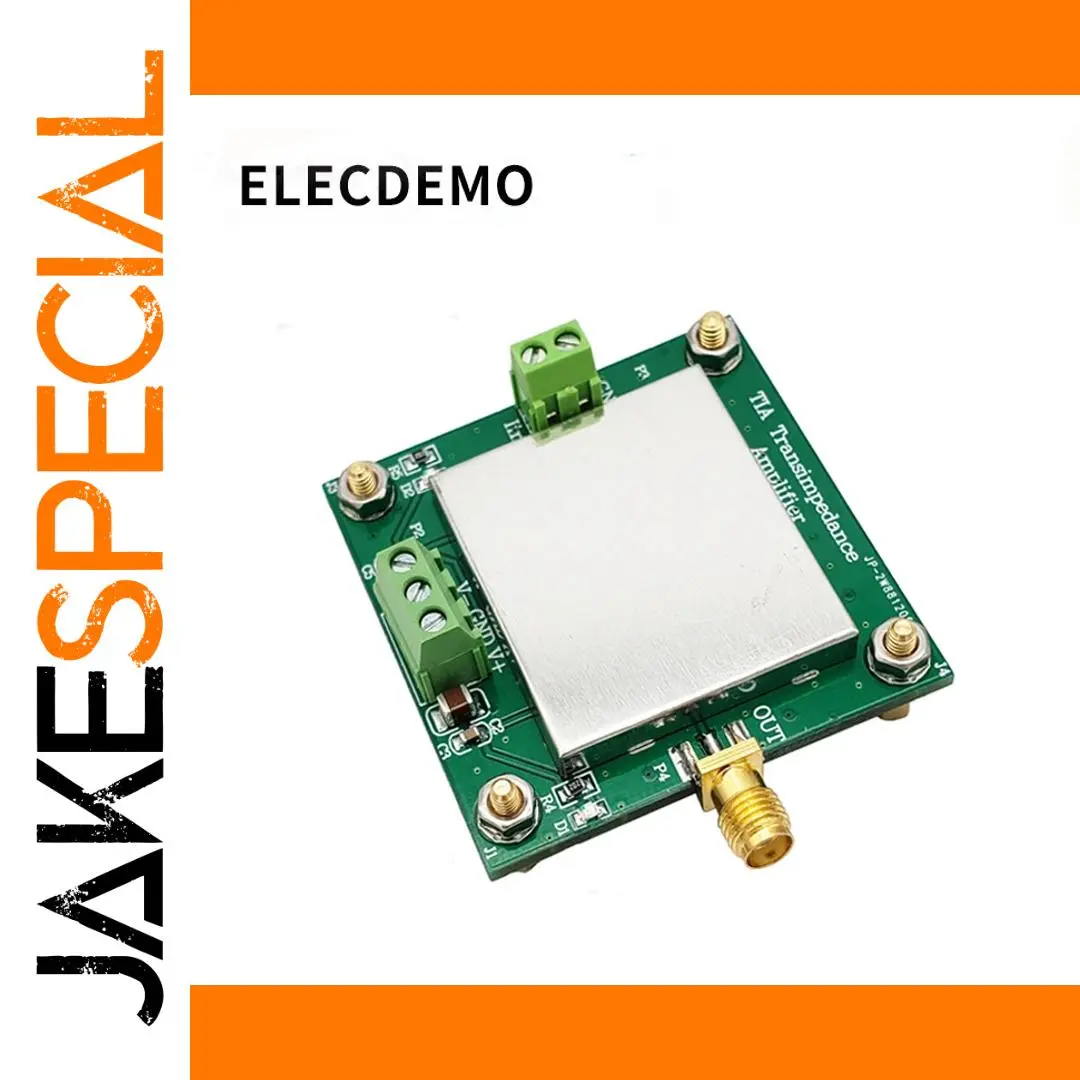

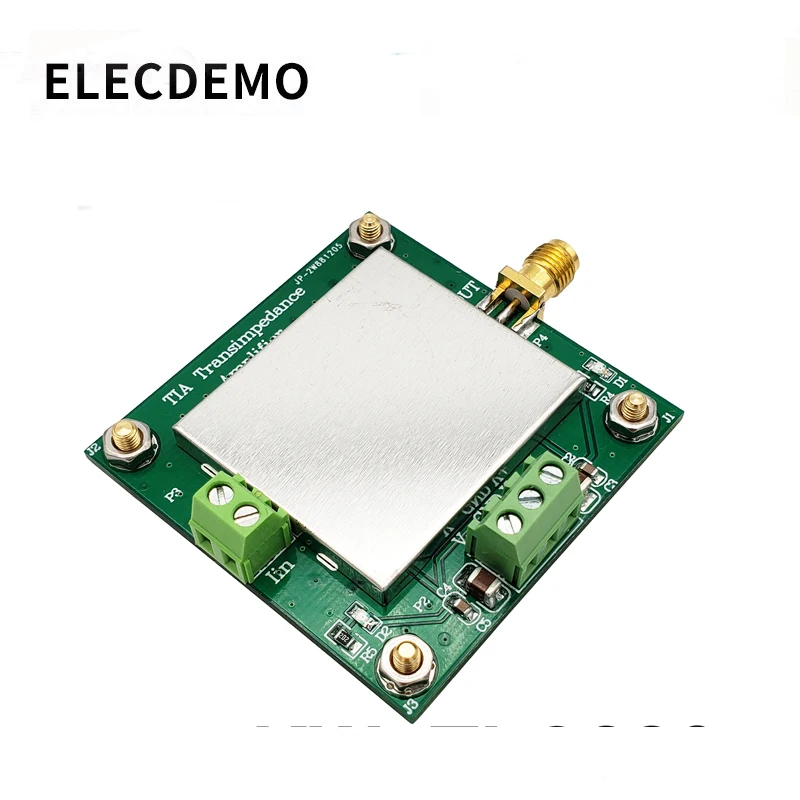

This precision transimpedance amplifier module features a compact 50mm x 50mm PCB with M3 mounting holes spaced 4mm from the edges, designed for ultra-sensitive weak current measurement. Powered by ±5V, it boasts an input current range from 1 pA to 3.3 nA (with a 1 GΩ resistor) and an output voltage range of ±3.3V. The module’s main chip provides bias currents at the picoampere level, offering an input impedance higher than top-gate JFET devices, ensuring exceptional low-noise performance. Its relationship of Vout = I × R1 (default R1 = 1 GΩ) allows a resolution up to 1 pA, making it ideal for high-precision low-level signal applications.
This Precision Transimpedance Amplifier Module
Experience highly accurate weak current measurement with this precision transimpedance amplifier module. Designed for high sensitivity, it features a robust design with a main chip that operates with ultra-low bias current at the picoampere level. Powered by a stable ±5V supply, this module transforms input current signals ranging from 1pA to 3.3nA into precise voltage outputs within ±3.3V. Its compact 50mm x 50mm PCB layout includes secure M3 mounting holes spaced 4mm from edges, and high-quality gold terminal blocks for reliable external connections. The module’s high input impedance and low noise performance make it ideal for delicate, low-level signal conditioning in advanced electronic applications, ensuring both stability and precision in your measurements.
Keys features of the precision transimpedance amplifier module
- Equipped with a high-precision chip with bias current at picoampere levels, ensuring ultra-low noise and high sensitivity for weak current signals.
- Powered by a dual ±5V power supply, which guarantees stable operation and minimal signal distortion for accurate results.
- Input current range from 1pA to 3.3nA using a 1 GΩ resistor, with an output voltage range of ±3.3V for wide measurement capabilities.
- Compact PCB measuring 50mm x 50mm, featuring four gold-colored M3 mounting holes with 4mm edge to center spacing for easy installation.
- High input impedance exceeding that of top-gate JFET devices, combined with low noise, suitable for sensitive applications requiring excellent dynamic range.

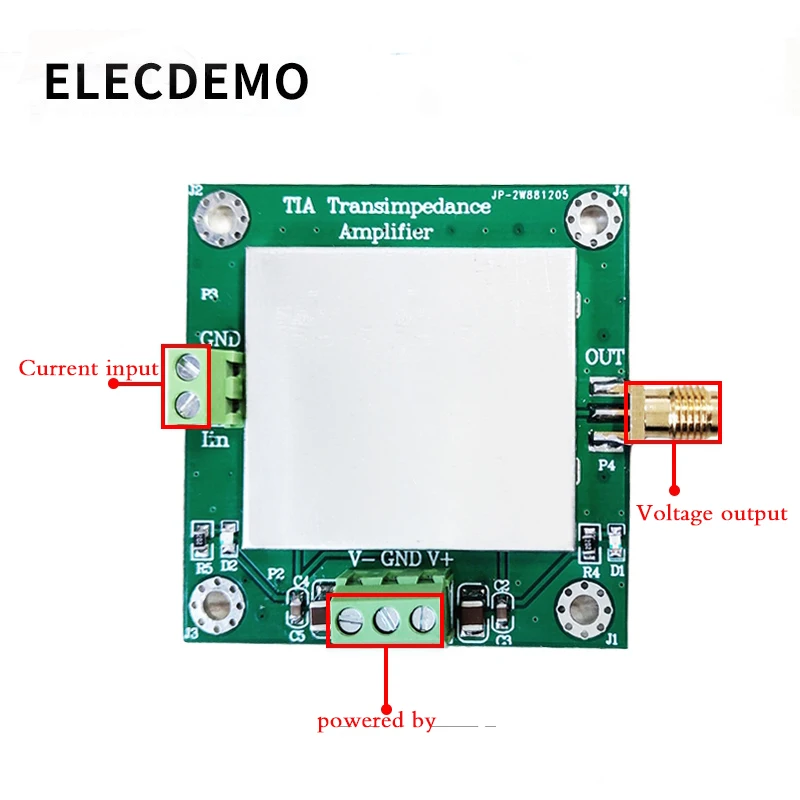

- Includes high-quality terminal blocks and RF connectors for versatile external wiring, supporting precise high-frequency and analog signal integration.
Order today and enhance your measurement accuracy!
This innovative transimpedance amplifier module offers unmatched precision for low-level current measurements. Whether you’re conducting scientific experiments, sensor interfacing, or delicate electronics testing, this device provides the reliability and performance you need. Its thoughtful design and advanced specifications ensure you can trust the measurement results and integrate it seamlessly into your projects. Take your electronic testing to the next level by adding this premium module to your toolkit today. With its stable operation and high sensitivity, you’ll appreciate the quality and precision it brings to your work.
| Color | 100MV, 10MV, 1GV, customize |
|---|---|
| Condition | New |
| Warehouse | HK Warehouse – Hong Kong |
