TLC14 Butterworth Low-Pass Filter Module
50.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake
The TLC14 Butterworth low-pass switched capacitor filter module offers precise frequency control with an adjustable cutoff range from 20Hz to 35kHz, driven by a 3.5MHz clock with less than ±1% error ratio. Operating on a dual ±5V power supply with a 7mA current draw, it features a compact 50mm x 36mm x 15mm design weighing 12.5g and functions efficiently within 0-75°C. This fourth-order low-pass filter has single-ended SMA input/output connectors and supports cascade configurations for enhanced filtering performance. Ideal for power systems, sensor signal processing, and transmitter applications, its components include replaceable capacitors for frequency tuning, making it versatile and reliable for technical projects.
In stock
This versatile TLC14 Butterworth filter module for you

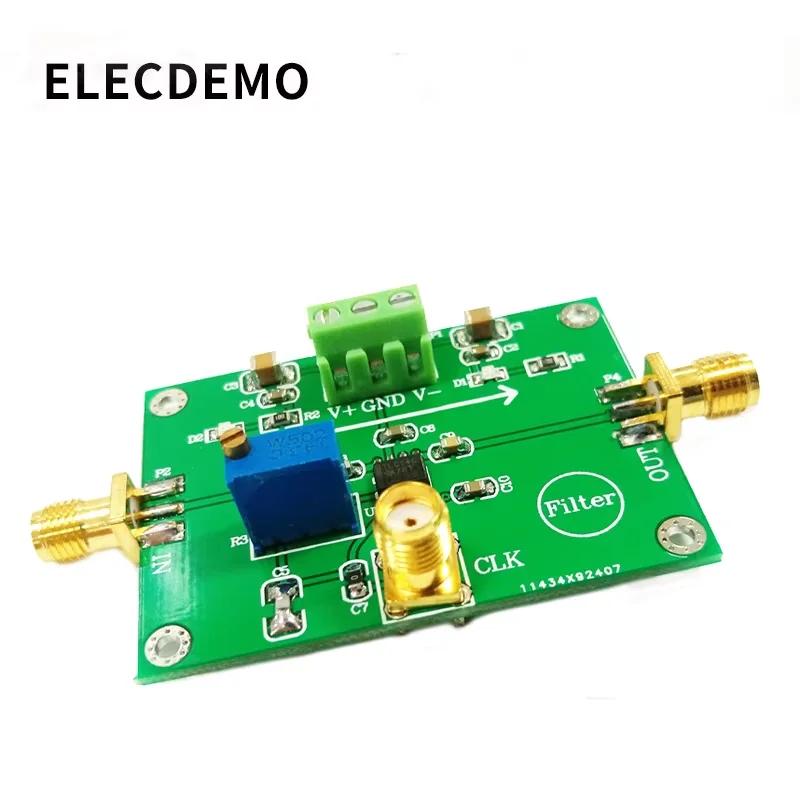

Experience precise signal filtering with this TLC14 Butterworth low-pass switched capacitor module designed for adult technical enthusiasts. With an adjustable cutoff frequency from 20Hz to 35kHz, you can tailor the filter to your specific needs, whether for power systems, sensor signal processing, or communication devices. The module’s sleek green PCB is equipped with SMA connectors for optimal signal integrity, complemented by clearly labeled connection points and a compact size of 50mm by 36mm by 15mm. Its design allows easy integration into your projects, offering stability through clock control and optional external clock input. The lightweight, high-precision component setup ensures reliable performance across a working temperature of 0-75°C, empowering your experimentation and development needs effortlessly.
Keys features of this TLC14 Butterworth filter module
- The module supports a range of 20Hz to 35kHz cutoff frequency adjustment via clock control, with a precision error ratio below ±1% for accurate filtering in your projects.
- Operates on a dual power supply of ±5V, drawing only 7mA current, with a fourth-order low-pass filter design ensuring sharp cutoff characteristics.
- Single-ended input and output interfaces via SMA connectors, supporting input signals up to 4Vpp and a frequency range from 0.1Hz to 35kHz for versatile signal processing applications.
- Includes a schematic PDF and supports cascaded operation for improved filtering effects, with an onboard RC clock and external clock input options for maximum flexibility.
- Constructed with high-quality surface-mounted resistors, capacitors, and a robust black IC, all housed on a bright green PCB with gold-plated contacts for durability and excellent conductivity.
- Physical dimensions are 50mm x 36mm x 15mm, weighing just 12.5 grams, designed for stable operation in environments between 0–75°C without reverse protection, ideal for adult electronics projects.
