RF Power Meter Module 0.1-2.5 GHz Compact
30.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake

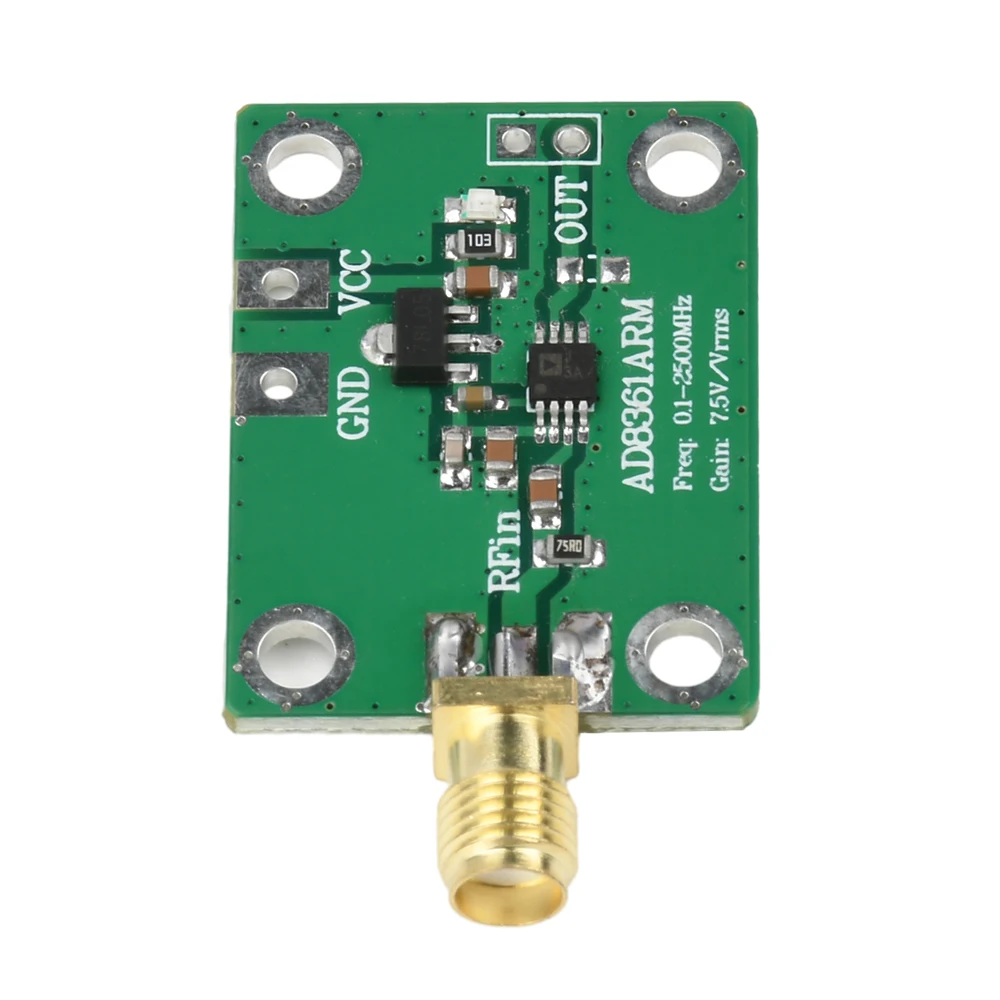

Experience precise RF signal measurement with this compact AD8361 DC RF Power Meter Module, operating from 0.1 to 2.5 GHz. Its sleek rectangular design features a green circuit board with white silkscreen markings, a black integrated circuit, and a gold SMA connector for RF input. Delivering a linear DC voltage output with a gain of 7.5 V RMS and ±0.25 dB accuracy, it supports high crest factor signals and complex waveforms. Powered by a single 2.7 to 5.5 V supply, it consumes just 3.3 mW at 3 V. The module offers three operation modes—grounded, internal, and supplied reference—making it ideal for high-frequency applications and signal analysis projects.
In stock
This compact RF Power Meter Module for Precise Measurement

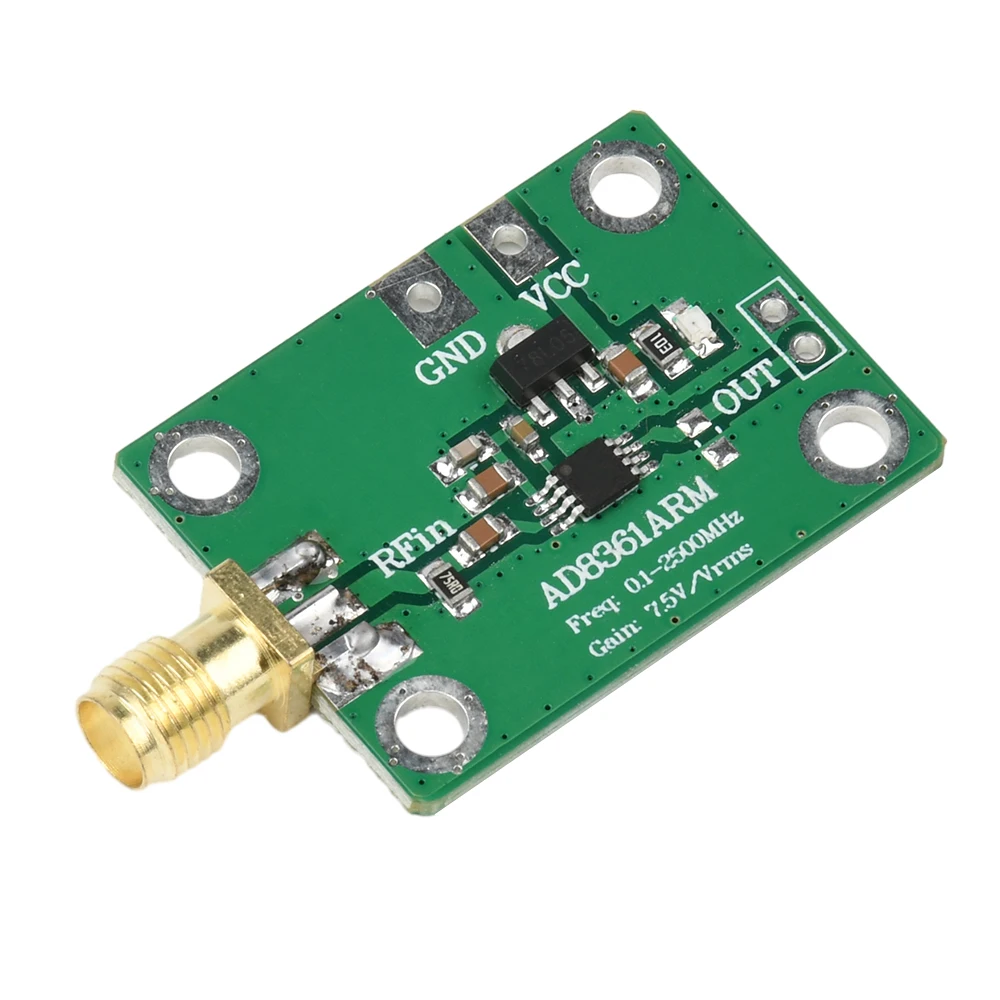

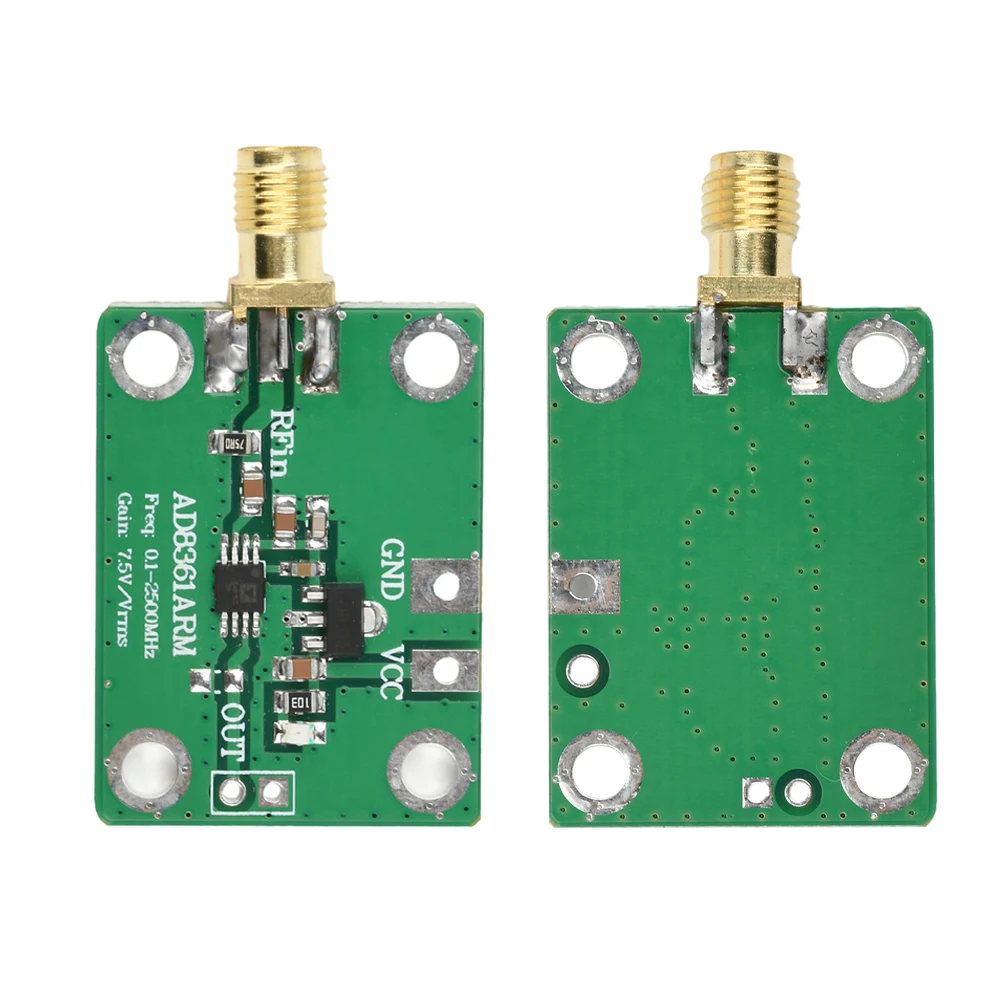

Measure high-frequency signals with confidence using this this RF power meter module, designed to operate from 0.1 to 2.5 GHz. Its sleek, rectangular profile features a green circuit board accented with clear, white silkscreen markings for easy connections. The module's organized layout showcases surface-mounted resistors, capacitors, and a central black IC with fine metallic pins, exemplifying high-frequency engineering precision. A stylish gold SMA connector extends from one end, providing secure RF signal input. Its minimalistic design emphasizes technical excellence and functional craftsmanship. Ideal for integration into advanced RF testing setups, this module offers a seamless experience for measuring signals with high crest factors and complex waveforms, all in a compact 42x24x6.7mm form factor. Elevate your RF projects and ensure accurate measurements with this sophisticated component.
Keys features of the RF Power Meter Module
- Operates within 0.1 to 2.5 GHz frequency range, perfect for high-frequency RF applications needing precise measurement. Designed for signals up to 700 mV RMS, or 10 dBm at 50 Ω impedance.
- Provides a linear DC voltage output with a gain of 7.5V RMS, enabling easy interfacing with ADCs and measurement devices for accurate signal analysis.
- Requires a single power supply between 2.7 and 5.5 V, consuming about 3.3 mW at 3 V, making it suitable for power-sensitive applications and portable devices.
- Features three operational modes: grounded reference, internal reference biased at 350 mV, and supplied reference at VS/7.5, offering versatile measurement options for complex waveforms.
- Built with high-quality components including a gold SMA RF connector, surface-mounted resistors and capacitors, and an organized PCB layout—optimized for high-frequency stability and durability.

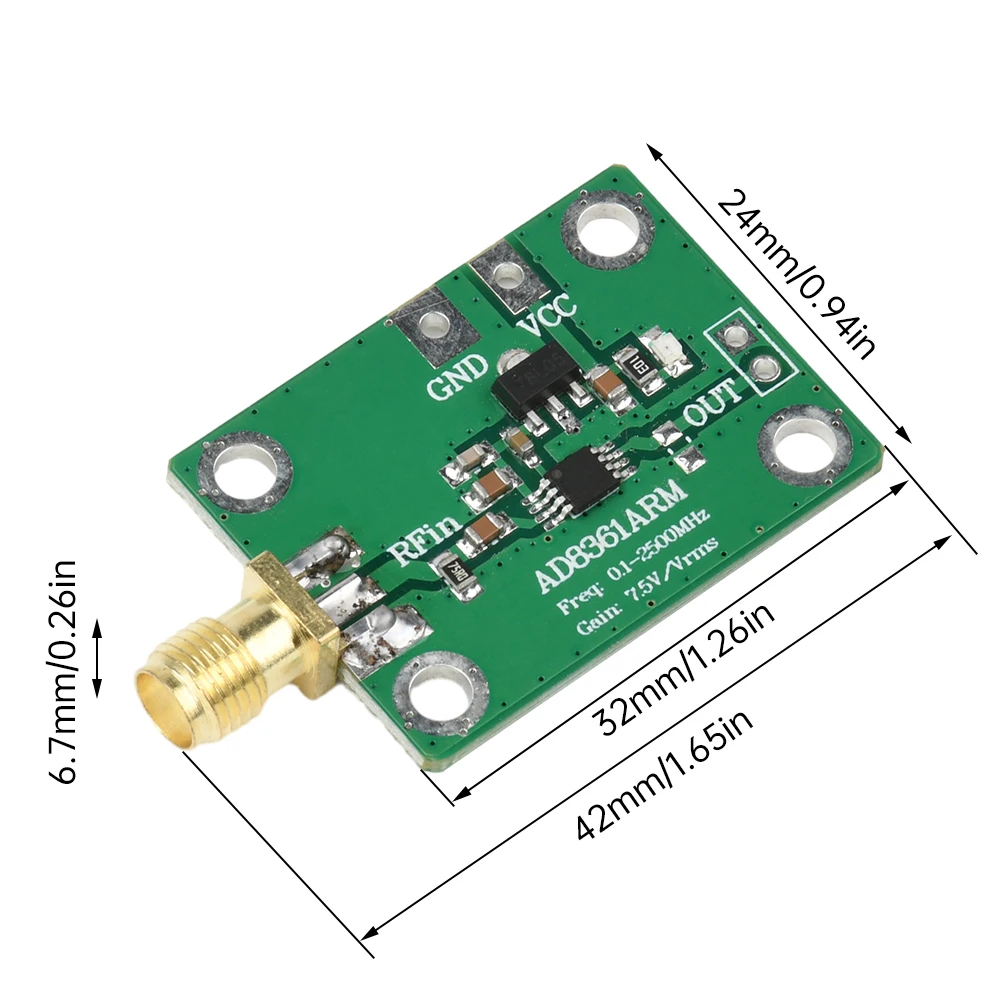

- Dimensions of 42 x 24 x 6.7 mm, with essential decoupling and input coupling capacitors included—ready for seamless integration into your RF signal chain.
Enhance your RF testing with this must-have module
Add this this RF Power Meter Module to your toolkit today and gain the confidence of precise, reliable RF signal measurement. Its sophisticated design, robust performance, and versatile operation modes make it a valuable asset for professionals and enthusiasts alike. Visualize yourself seamlessly integrating this component into your projects, ensuring accurate readings across a wide spectrum of RF applications. Don't wait – upgrade your testing setup now and experience the clarity and accuracy this module provides for your high-frequency work.
Looking to improve your RF measurement system? This RF Power Meter Module is the perfect choice for professionals seeking reliable performance in a compact package. Its technical features combined with a sleek design ensure you'll get the results you need with ease. Invest in quality and precision today—your project deserves the best.
