RF Power Detector Module 50MHz-4GHz, 50Ω
42.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake
This compact RF power detector module features a 50 MHz to 4 GHz operating range based on the ADL5501 IC, with an input impedance of 50 ohms. It offers a linear output voltage from 0.6V to 5V, a dynamic range better than 30 dB, and handles signals with a maximum of 1.25 VRMS or 15 dBm peak power. The module measures 21mm x 17.4mm x 7mm and weighs 4g, equipped with an SMA connector for RF input and 2.54mm pin headers for power and signal output. Designed for industrial environments, it operates between -40°C to +85°C, consuming just around 3.3mW, perfect for transmitter power and receiver strength testing.
In stock
This compact RF power detector module impresses

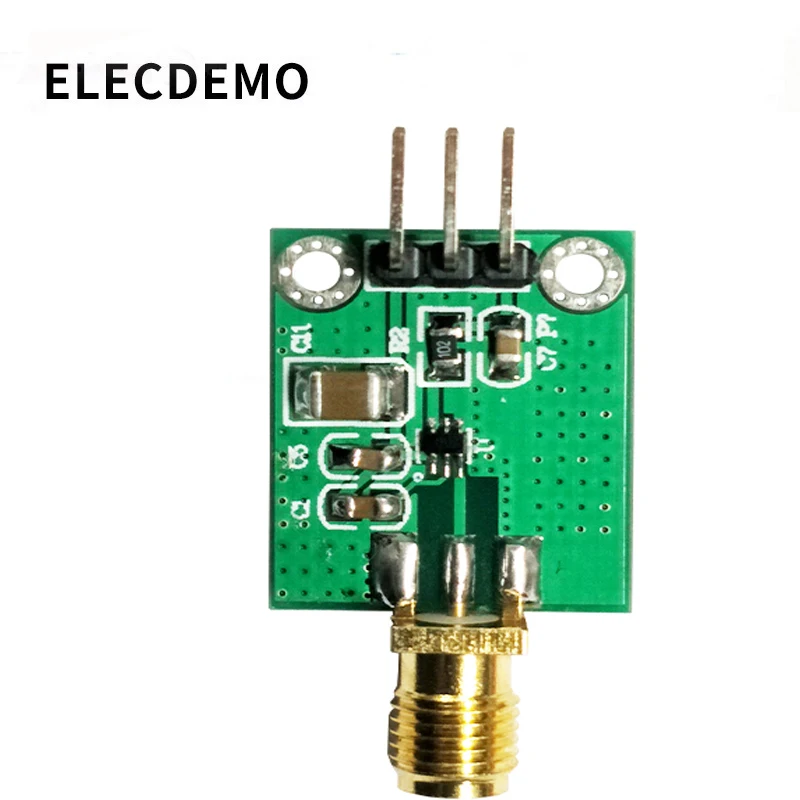

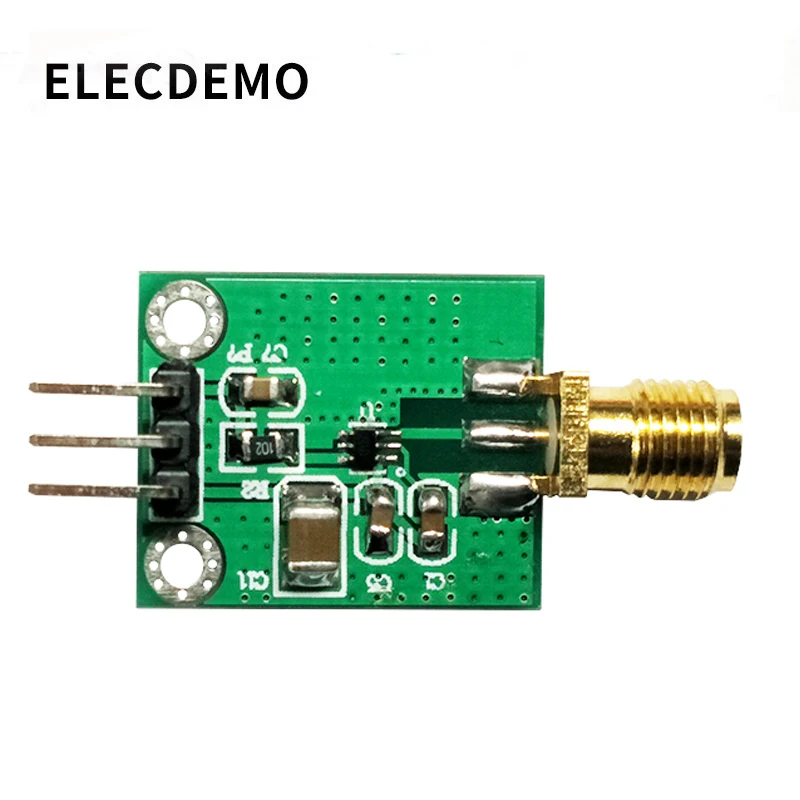

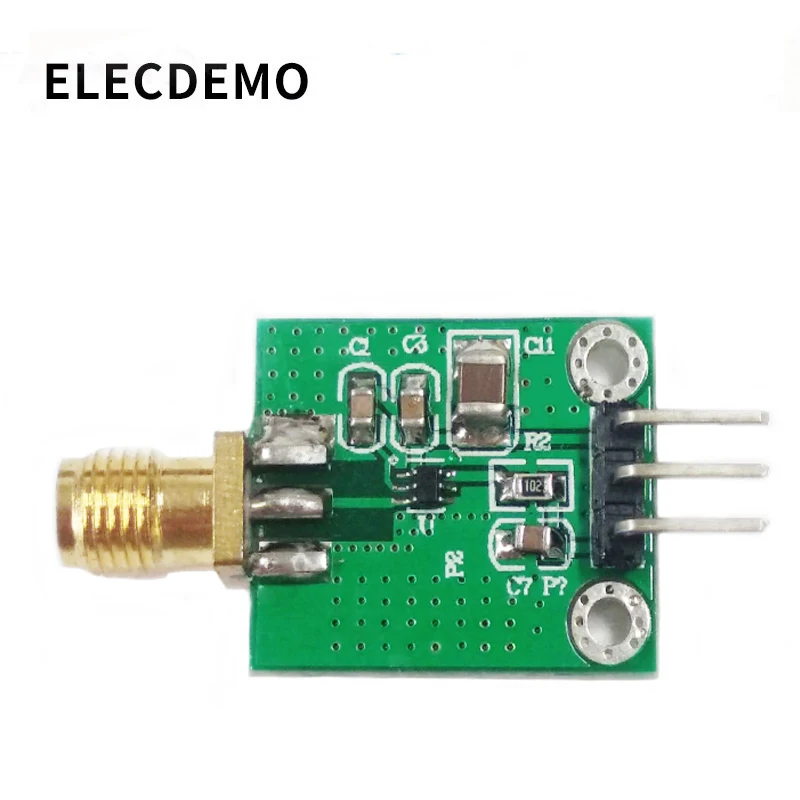

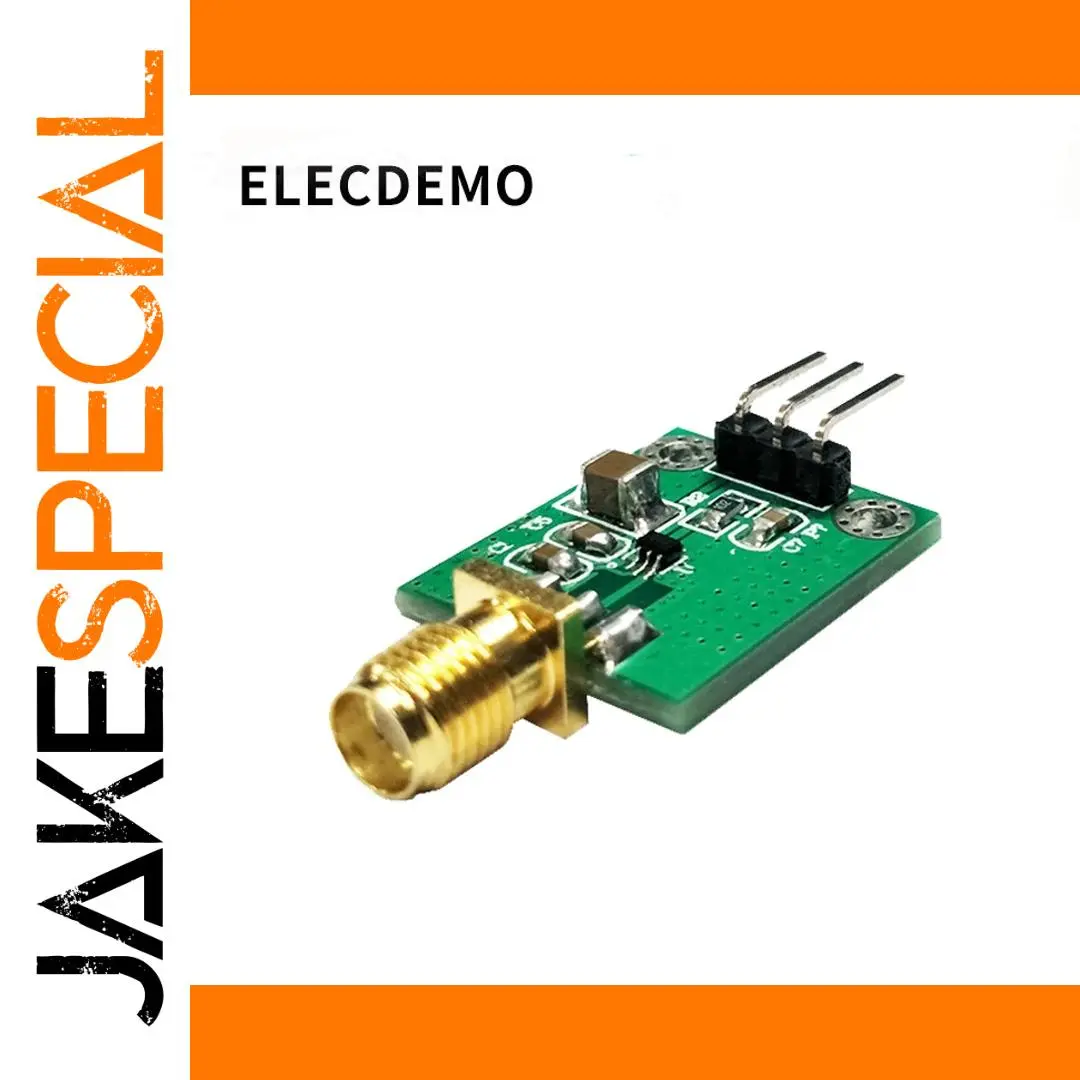

Designed for precision RF power measurement, this sleek power detector module features a small green PCB measuring just 21mm by 17.4mm and only 7mm in height, making it ideal for space-constrained settings. Its simple, low-profile design accentuates its practical nature, with a shiny gold SMA connector for RF input, blending functionality with a touch of elegance. The module's surface-mount components and organized pin headers demonstrate careful engineering aimed at ease of integration. Perfect for laboratory, industrial, and field applications, this module allows you to accurately sample signals within a wide frequency range of 50MHz to 4GHz. Its robust build and precise specifications offer reliable performance, ensuring you can confidently measure RF signals and power levels with minimal hassle and maximum accuracy.
Keys features of the RF power detector module
- Operates from 50MHz up to 4GHz with a 50Ω input impedance, ideal for diverse high-frequency RF applications requiring precise sampling across a broad range.
- Powered by a 5V DC supply with a low current of approximately 1mA, enabling energy-efficient operation and compatibility with most power systems.
- Output voltage linearly responds from 0.6V to 5V corresponding to input signal levels from -25dBm to +15dBm, supporting accurate power level measurements and waveform analysis.
- Physical dimensions of 21mm x 17.4mm and a weight of only 4 grams make it highly suitable for integration into compact and portable systems without adding bulk or weight.
- Operates effectively within a broad temperature range of -40°C to +85°C, ensuring reliable performance in industrial environments and field deployments.

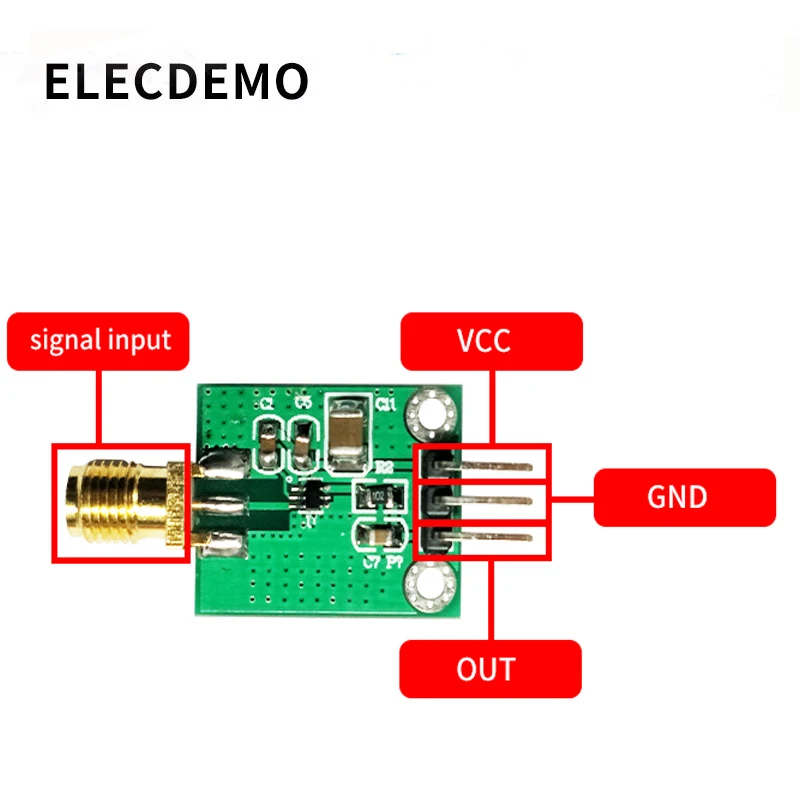

- Features include SMA RF input connector, 2.54mm pin headers for output and power, no reverse connection protection, and a dynamic range better than 30dB, with low power consumption (~3.3mW).
Enhance your setup with this RF power detector module—buy now!
Imagine seamlessly integrating this RF power detector into your testing environment, confidently measuring signals with precision and ease. Its compact size, stable performance, and easy calibration make it a must-have for professionals and enthusiasts alike. Whether you're working on transmitter power calibration or receiver strength testing, this module offers the accuracy and reliability you need, coupled with straightforward operation. Invest in this high-quality, industrial-grade device today and elevate your RF measurement capabilities with confidence and efficiency. Your projects deserve the precision this module provides.
