RF Logarithmic Detector Module 1MHz-8GHz
94.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake
Experience precise RF measurement with this high-performance logarithmic detector module, operating from 1MHz to 8GHz. Encased in a compact 37mm x 33mm cavity, it features a 5V single supply with 68mA current draw, offering ±1.0dB accuracy within a 55dB range below 5.86GHz and ±0.5dB temperature stability. Its rapid pulse response times of 10ns (down) and 12ns (up), along with an integrated temperature sensor, make it ideal for high-speed RF applications. The module’s sleek LFCSP package ensures durability and ease of integration, delivering reliable RSSI measurements with minimal power consumption (<1.5mW at 5V).
In stock
This Compact RF Logarithmic Detector Module

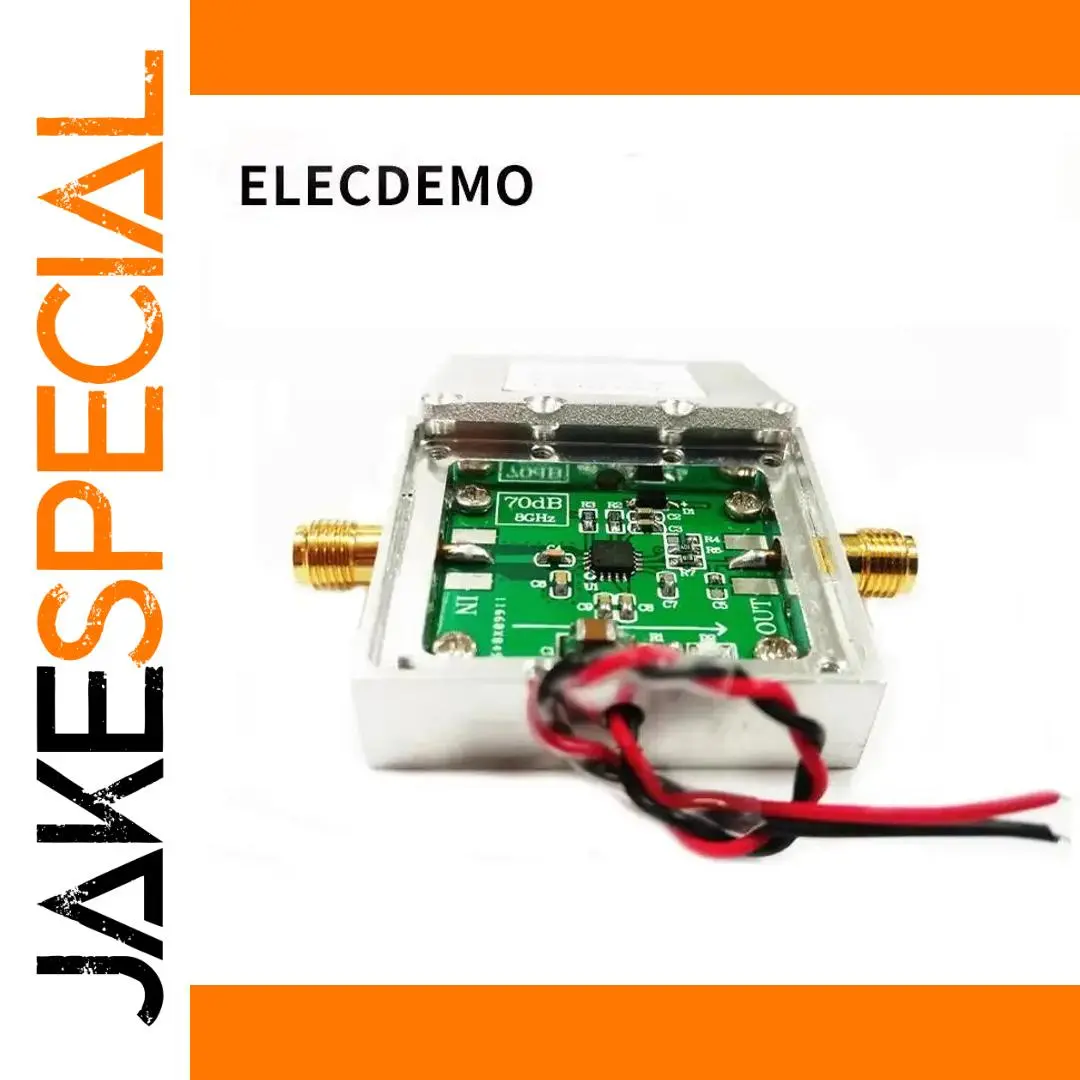

Experience precision RF measurement with this high-quality RF logarithmic detector module. Designed to operate seamlessly from 1MHz to 8GHz, it offers exceptional accuracy for RSSI and power measurements across a broad frequency spectrum. Encased in a transparent enclosure, the module showcases its sophisticated internal circuitry, making it not only functional but also visually impressive. Its compact size of 37mm x 33mm allows easy integration into your systems. With a stable power supply of 5V and low consumption of 68mA, this module ensures reliable operation. The integrated temperature sensor and excellent temperature stability of ±0.5dB make it suitable for demanding high-speed RF applications where precision is critical. Simplify your RF testing and measurement tasks with this reliable component.
Keys features of this RF logarithmic detector module
- Operates over a wide frequency range from 1MHz to 8GHz, ideal for diverse RF measurement needs.
- High measurement accuracy of ±1.0dB over a 55dB dynamic range, maintaining precision below 5.86GHz.
- Features rapid pulse response times of 10ns (down) and 12ns (up), suitable for high-speed RF signal analysis.
- Includes a built-in temperature sensor with excellent temperature stability of ±0.5dB, ensuring consistent readings in varying conditions.
- Compact 37mm x 33mm size with transparent enclosure that displays internal circuitry for high-tech aesthetic appeal.

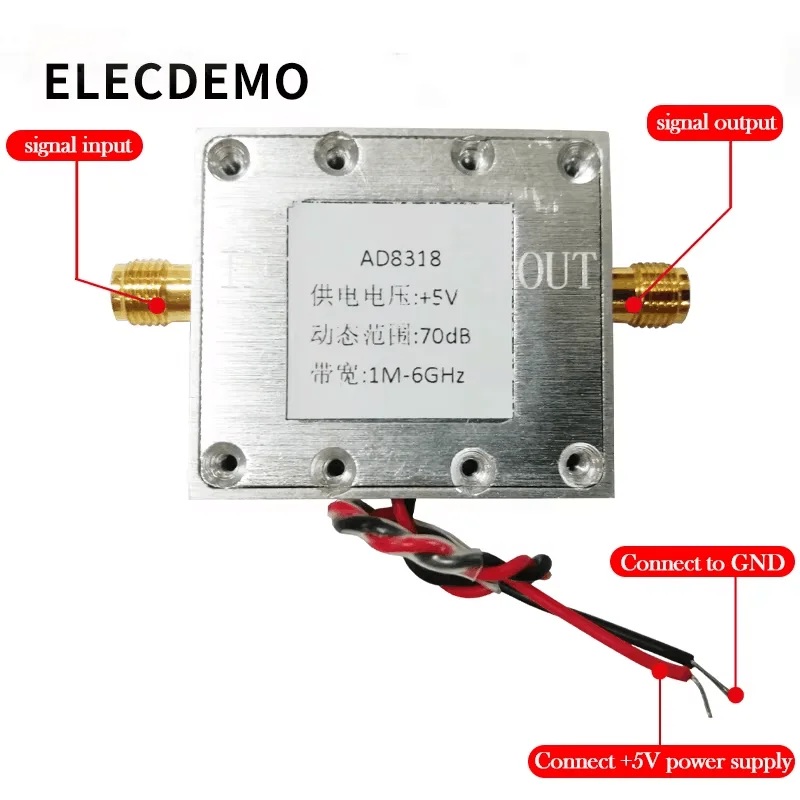

- Low power consumption with turn-off power design under 1.5mW at 5V, powered by a single 5V supply and consuming 68mA.
- Employs an LFCSP package suitable for high-speed, high-precision RF measurement applications in advanced systems.
This RF detector module is a must-have—order now and enhance your RF testing!
Engage with this high-performance RF logarithmic detector module to elevate your measurement accuracy and reliability. Whether you're developing new RF innovations or conducting routine tests, this component provides the precision and stability you need. Its robust technical specifications and compact design make it a versatile choice for professional-grade RF applications. By choosing this module, you’re investing in precise, dependable RF measurement technology that can seamlessly integrate into your projects. Enjoy improved performance and confidence in your results—make this essential tool yours today!
| Condition | New |
|---|---|
| Warehouse | HK Warehouse – Hong Kong |
