RF Detector/Controller Module 2.7GHz, 5V, Compact
43.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake
This compact RF detector and controller module operates at 5V DC with a current of 7mA, covering a frequency range from 100MHz to 2.7GHz. It features a 50-ohm input impedance, with a dynamic range better than 45dB, accepting sine wave or pulse signals (with modification). The output voltage spans 0.3V to 2.1V, providing voltage outputs V_UP and V_DN for RF signal measurement and control applications such as RSSI and TSSI in wireless devices. Measuring 31mm x 23mm x 10mm and weighing 7.7g, it includes SMA interfaces, a shield cover for EMI protection, and operates reliably within -40°C to +85°C, ensuring precision and stability in industrial and testing environments.
In stock
This compact RF detector/controller module for precision measurement

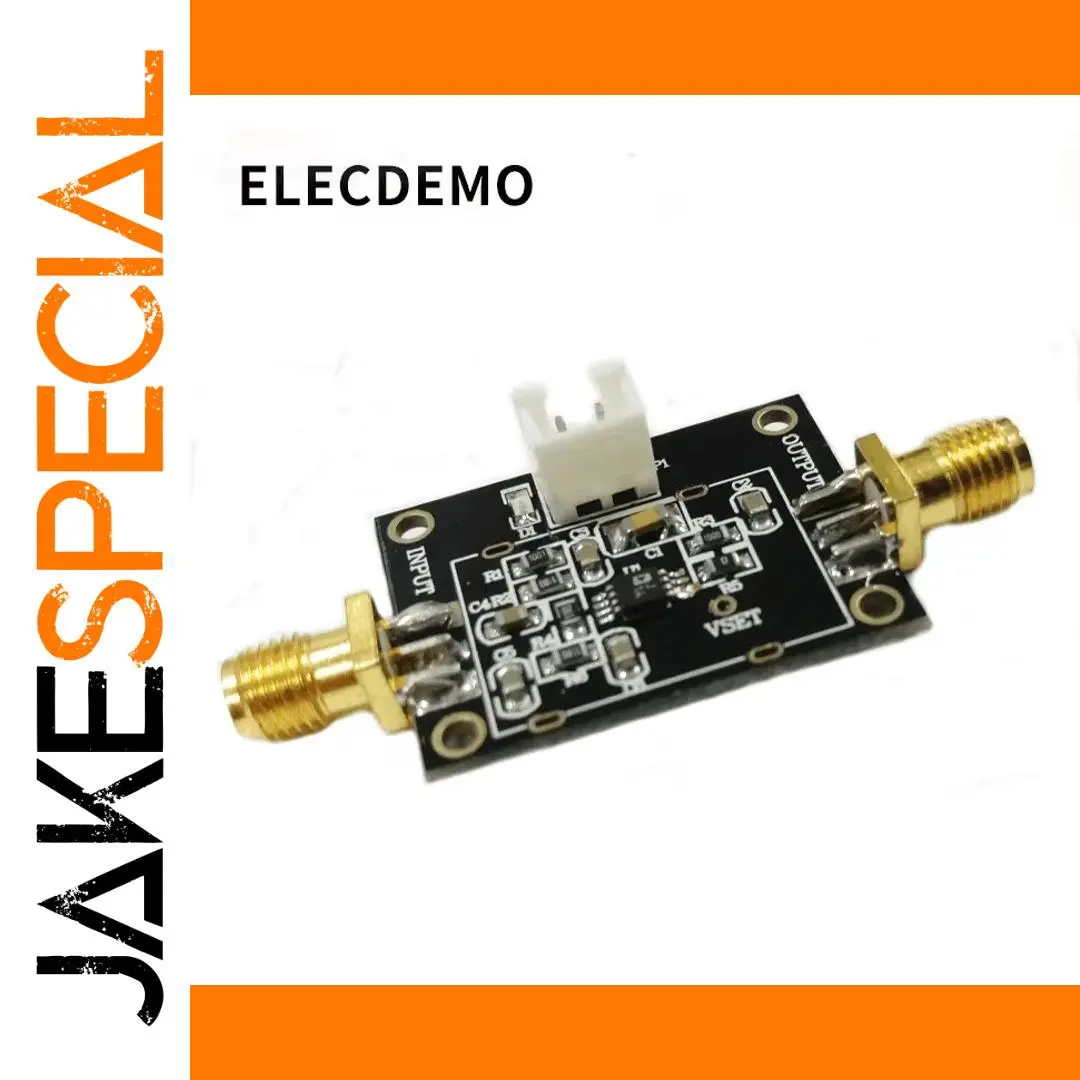

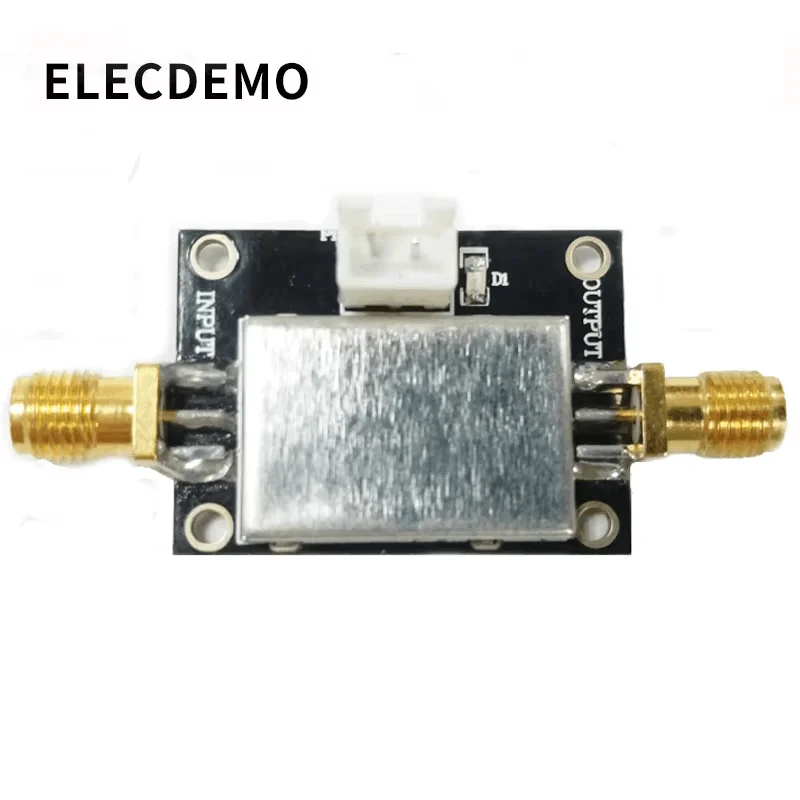

Experience accurate RF signal measurement with this sleek, compact RF detector and controller module. Designed for professionals, it operates seamlessly at a supply voltage of 5V DC and consumes only 7mA, making it energy-efficient and reliable. Its rectangular matte black PCB surface presents a modern aesthetic, with white silkscreen markings clearly indicating connection points and component positions. Featuring gold-plated SMA input and output connectors, the module ensures secure RF connections while adding a touch of sophistication. Its precise internal layout accommodates surface-mounted resistors, capacitors, and the central AD8314 chip, all enclosed under a durable metallic shield cover. With an operating temperature range of -40°C to +85°C, this module is built for industrial environments, providing fast response time and stable, linear decibel response across a broad frequency range of 100MHz to 2.7GHz. It's an ideal choice for wireless signal testing, power measurement, and signal control applications.
Keys features of this RF detector/controller module
- Operating at 5V DC with a minimal current draw of 7mA ensures low power consumption and reliable operation in various settings.
- Frequency response from 100MHz to 2.7GHz allows versatile application in wireless communication, cellular, and RF testing environments.
- Input impedance of 50 ohms with a voltage range from -50dBm to 0dBm provides precise measurement for sine wave and pulse signals.
- Dual voltage outputs: V_UP and V_DN—V_UP ranges from nearly ground to 1.2V, while V_DN is inversely proportional, suitable for measurement and control functions.
- Module dimensions are compact at 31mm x 23mm x 10mm, with SMA connectors for easy integration into existing RF setups.
- Robust build with an internal metallic shield, linear decibel response, fast response time of 70ns, and operating temperature from -40°C to +85°C, supporting industrial-grade applications.
This RF detector/controller module—order now for reliable RF testing
Transform your RF measurement setup with this high-precision, durable module. Whether you're working on wireless devices, cellular networks, or RF research, it delivers consistent, accurate results. Its sleek design and technical robustness make it a perfect addition to your toolkit. Imagine confidently running tests, knowing this module provides stable outputs and rapid response times. Secure a product that offers both sophistication and technical excellence, ensuring your projects and experiments achieve the highest accuracy. Don't wait—enhance your RF testing capabilities today with this professional-grade RF detector and controller module.
Incorporate this module into your workflow and enjoy precise RF signal measurement and control. Its compact form and reliable operation make it ideal for both laboratory and industrial environments. Trust in its technical specifications to deliver consistent results every time—your reliable partner for RF signal testing and measurement.
| Condition | New |
|---|---|
| Warehouse | HK Warehouse – Hong Kong |
