RF ADE-6 Passive Mixer Module 0.05-250MHz
49.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake
Experience precise frequency conversion with the RF ADE-6 Passive Mixer Module, measuring 50mm x 36mm and powered by a 5V supply. It supports LO and RF frequencies from 0.05MHz to 250MHz with 7dBm input power, producing mixed signals with a bandwidth of DC to 200MHz. Featuring a low typical conversion loss of 4.6dB and excellent isolation around 40dB, this compact module includes an integrated high-linearity RF amplifier to offset passive device losses. Its washable design is protected under US patent, making it ideal for applications requiring reliable up/down frequency conversion within its specified ranges.
In stock
This RF ADE-6 Passive Mixer Module for Precision

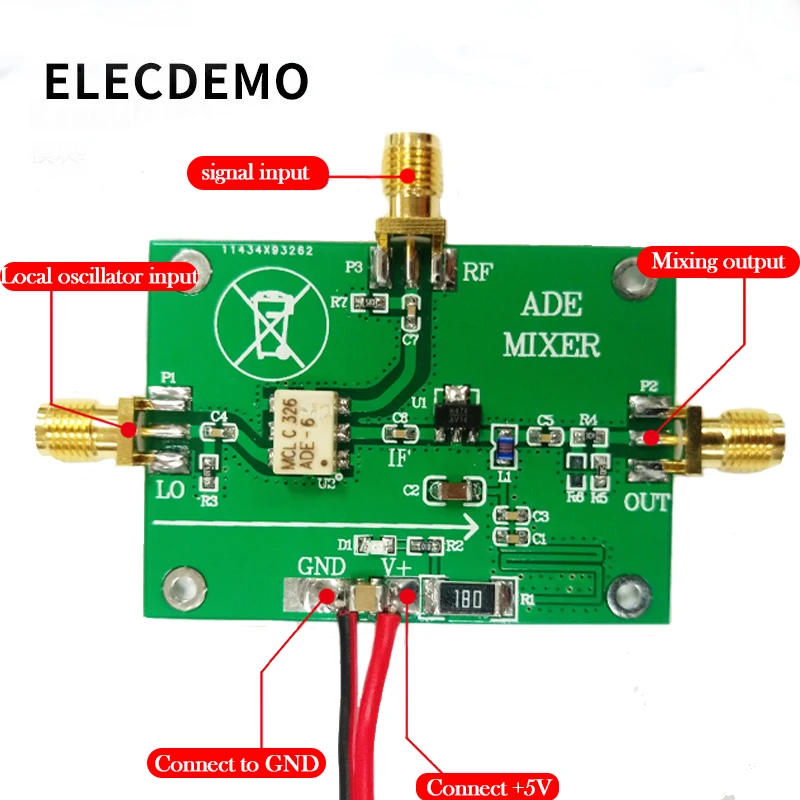

Discover the versatility of this RF ADE-6 Passive Mixer Module, an essential tool for advanced radio frequency projects. Designed with a compact 50mm x 36mm green PCB, it offers optimal integration into your electronic system. Featuring gold-plated SMA connectors, it ensures secure, reliable signal connections with a sleek metallic finish. The module's surface-mounted resistors, capacitors, and integrated chip provide precise control and high performance. Powered by a stable 5V supply, it operates seamlessly over LO and RF frequencies from 0.05MHz to 250MHz, with an output bandwidth spanning DC to 200MHz. Its innovative design incorporates a high linearity RF amplifier, compensating for typical passive device insertion losses. Trust this robust module for your frequency conversion needs in complex RF applications.
Keys features of the RF ADE-6 Passive Mixer Module
- Measuring 50mm x 36mm, this compact module easily integrates into your setup, enhancing your RF projects with its small and durable design suitable for various applications.
- Operates at LO and RF frequencies from 0.05MHz to 250MHz, with an input power of 7dBm, making it ideal for precise frequency upconversion or downconversion tasks.
- Features a low typical frequency conversion loss of 4.6dB and superb isolation around 40dB, ensuring minimal signal loss and interference during operation.
- Includes a high linearity RF amplifier to counteract the high insertion loss common in passive mixers, maintaining signal integrity across bandwidths.
- Powered by a stable 5V supply, with washable protection and a US patent, guaranteeing high quality and durability for long-term use.
- Compatible with a wide range of RF applications, with detailed schematic diagrams provided for easy integration into your system.
Get your RF ADE-6 Passive Mixer Module now — Enhance your RF functionality!
By choosing this RF ADE-6 Passive Mixer Module, you're investing in a reliable, high-performance component designed to meet demanding RF frequency conversion needs. Its compact size, excellent isolation, and integrated high linearity amplifier make it a perfect addition to professional or hobbyist projects. Whether you're working on upconversion or downconversion, this module provides the accuracy and stability you require. Experience seamless operation and trust in a device protected by a US patent—bring precision and efficiency to your RF systems today!
