PWM to Voltage Converter Module 0-10V
25.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake
This advanced PWM to Voltage Converter Module transforms PWM signals with a frequency of 1kHz-3kHz into precise 0-10V analog output, adjustable via a potentiometer for calibration, with an accuracy of ±5%. Operating between DC 12V-30V and drawing over 100mA, it accepts PWM input levels from 4.5V-10V or 12V-24V and features green screw terminal blocks for secure connections. Additionally, the Voltage to Frequency Module converts 0-10V voltage inputs into frequency signals ranging from 0 to 10KHz, with two output ports—OC-OUT (NPN) and FREQ-OUT (IC)—and user-adjustable calibration for accurate signal conversion. Ideal for industrial control and automation applications.
This Precision PWM to Voltage Converter Module

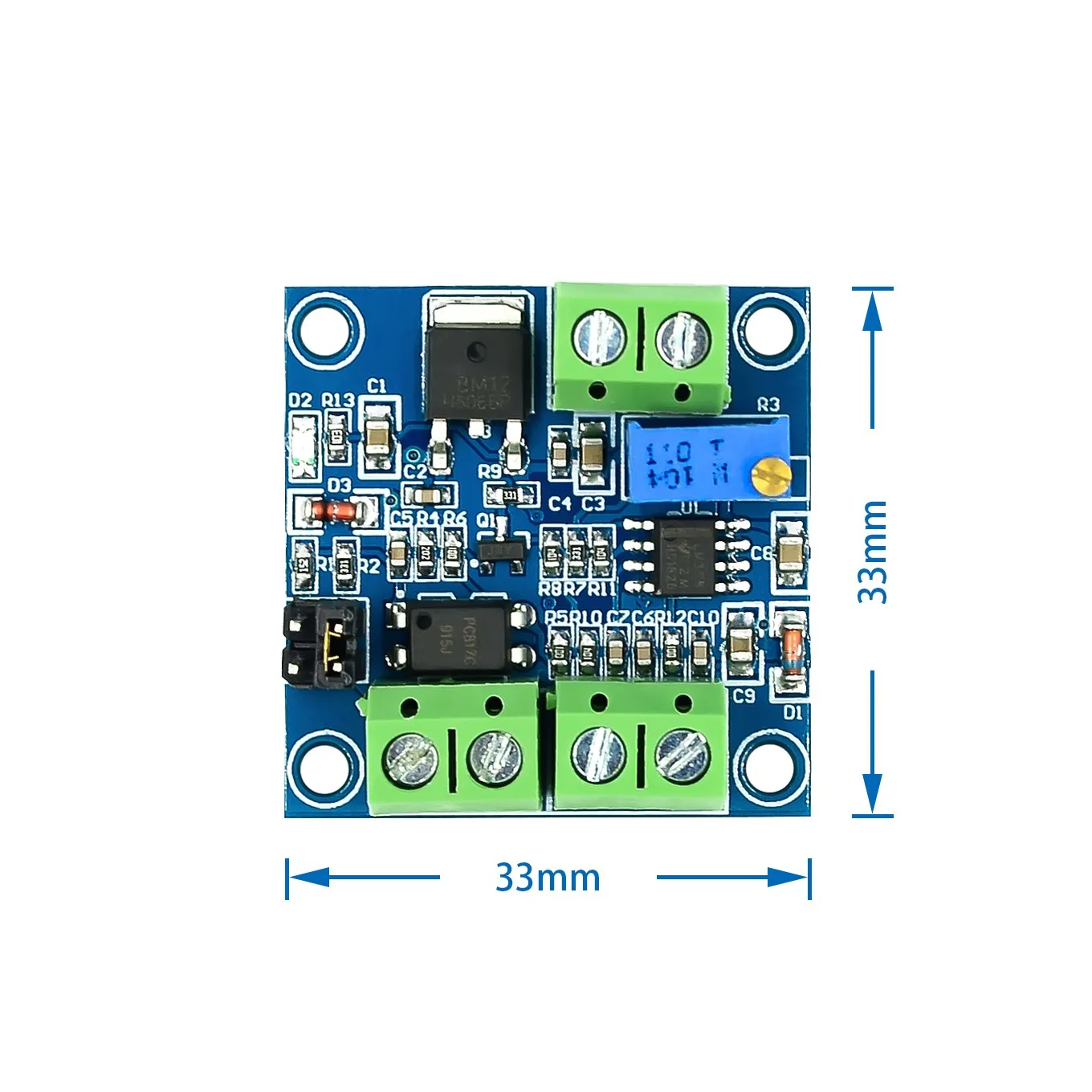

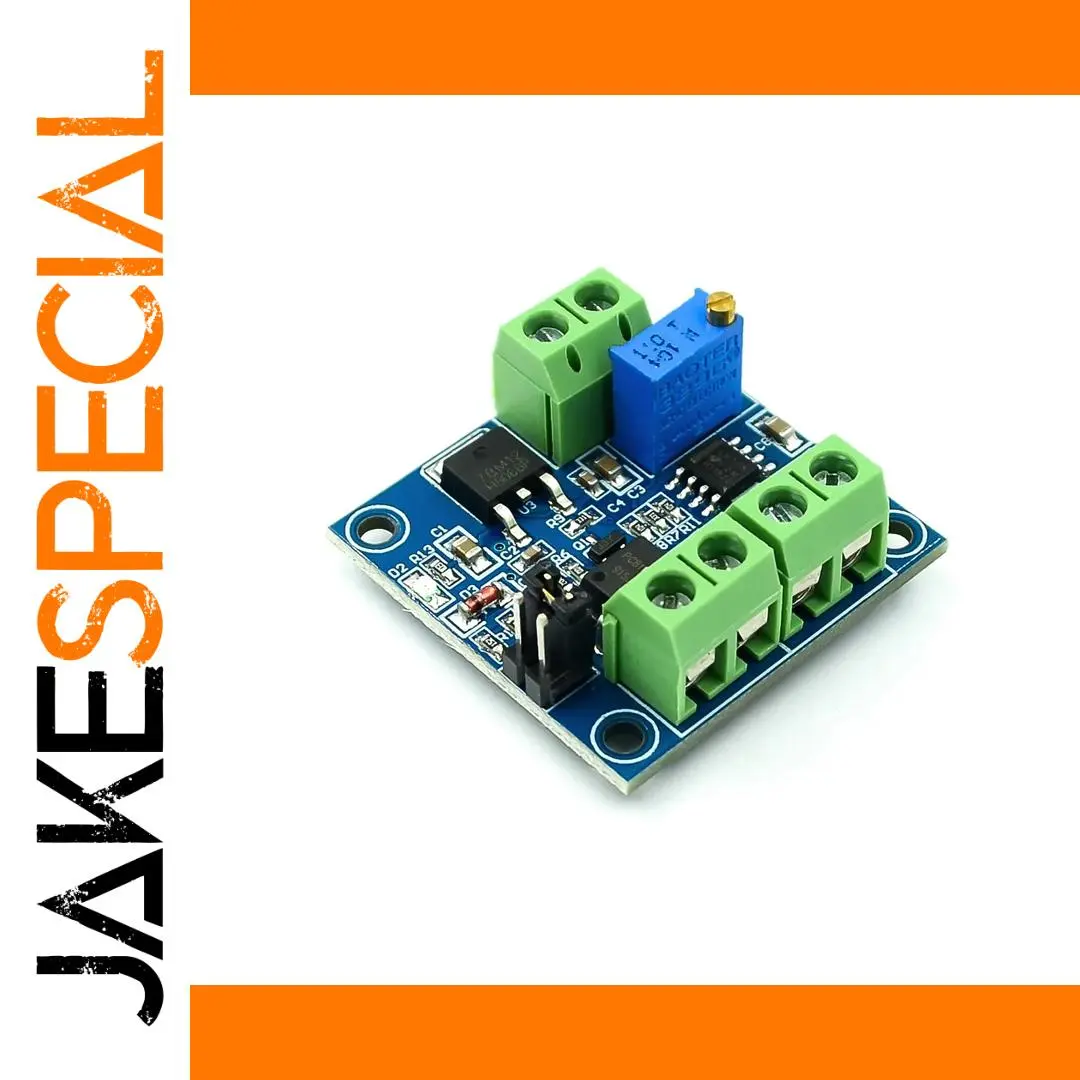

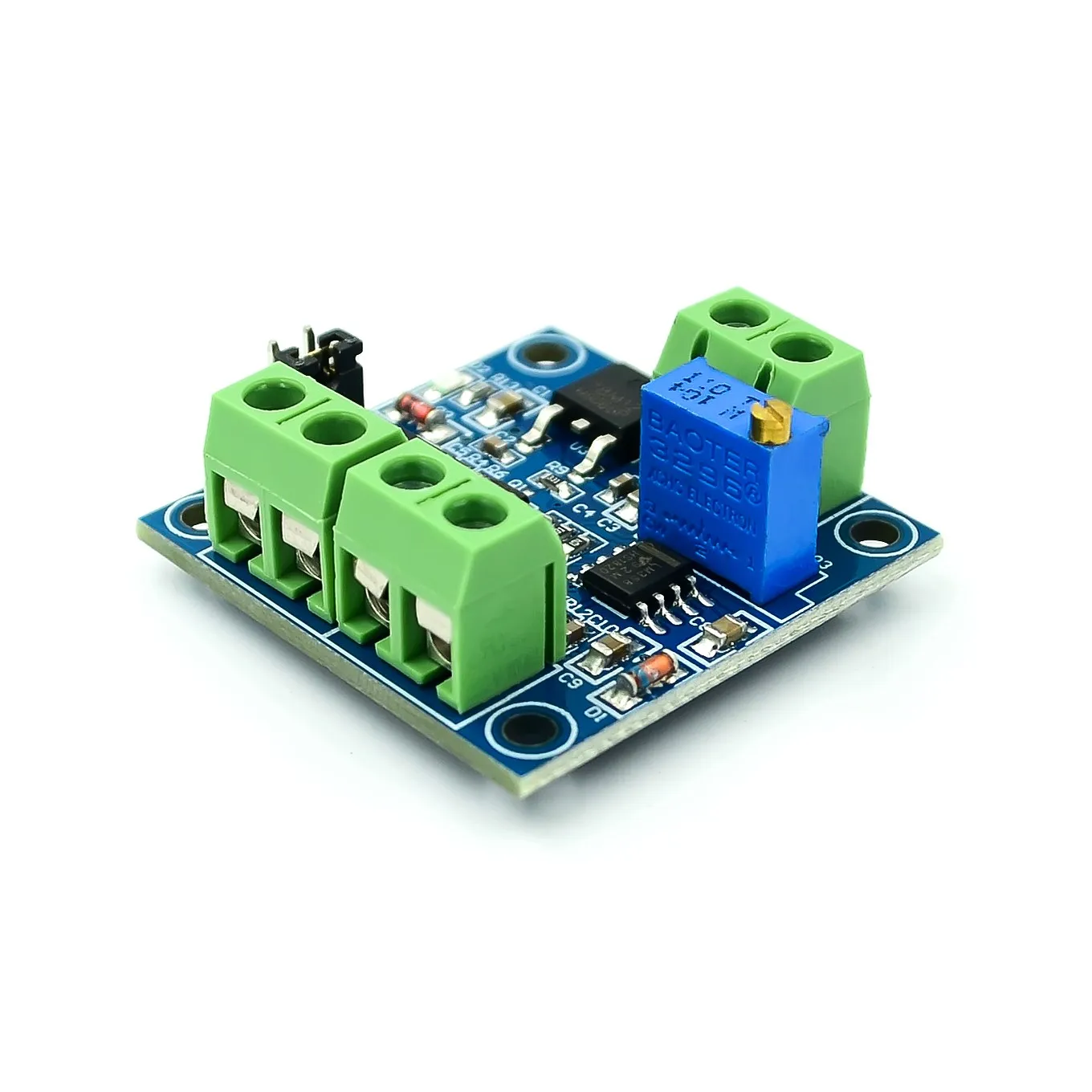

Experience seamless control with this compact and reliable PWM to Voltage Converter Module. Designed for industrial and automation projects, it transforms PWM signals into stable 0-10V analog output, allowing precise voltage regulation in your systems. The module’s intelligent design features a compact rectangular blue PCB adorned with organized components, including vibrant green screw terminals, a bright blue relay, and a compact gold potentiometer for fine adjustments. Black integrated circuits add to its precise, functional aesthetic, making installation straightforward. Perfect for use with PLCs or microcontrollers, this module ensures smooth signal integration, calibration, and operation. Its robust construction and adjustable parameters give you the confidence to enhance your projects efficiently.
Key features of this PWM to Voltage Converter Module
- Converts PWM signals (1kHz-3kHz) to stable 0-10V analog output, suitable for industrial automation and control systems. Easy calibration allows precise voltage matching with minimal effort.
- Powered by DC 12V-30V, it delivers over 100mA current, with input PWM levels adjustable via short-circuit jumpers for voltage compatibility (4.5V-10V or 12V-24V).
- Output voltage fine-tuned with a built-in potentiometer, calibrated by inputting a 50% duty cycle signal at 1kHz-3kHz, ensuring a consistent 5V output for precise system integration.
- Features include a compact size, organized component layout on a sleek blue PCB with green screw terminals, and a vibrant blue relay for switching applications, providing durable and professional performance.
- Includes detailed wiring instructions with resistors of 330Ω or 2.7KΩ to limit current, and labeled connection points for easy integration into your device or control system.
- Technical specifications ensure compatibility with various industrial controllers and microcontrollers, making it a versatile choice for signal conversion and automation tasks.
- Additional modules, such as the voltage-to-frequency converter (0-10V to 0-10KHz, with FREQ-OUT and OC-OUT ports), expand your control capabilities—both modules calibrated and designed for high precision in dense, technical environments.
This PWM to Voltage Module is perfect for your automation needs—order now to elevate your systems efficiently!
Unlock the potential of your control projects with this highly customizable, easy-to-calibrate PWM to Voltage Converter. Whether upgrading your industrial automation line or enhancing your microcontroller projects, this module offers reliable performance and straightforward adjustments. Its durable construction, clear specifications, and organized design make it a go-to choice for professionals seeking precision and efficiency. Invest in this module today and experience a seamless transition from digital PWM signals to accurate analog voltage signals, optimized for your specific application needs.
| Color | PWM to Voltage, Voltage to PWM |
|---|---|
| Condition | New |
| Warehouse | HK Warehouse – Hong Kong |
