PCB Test Fixture with Adjustable Pin Configurations
Price range: 35.99 € through 41.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake

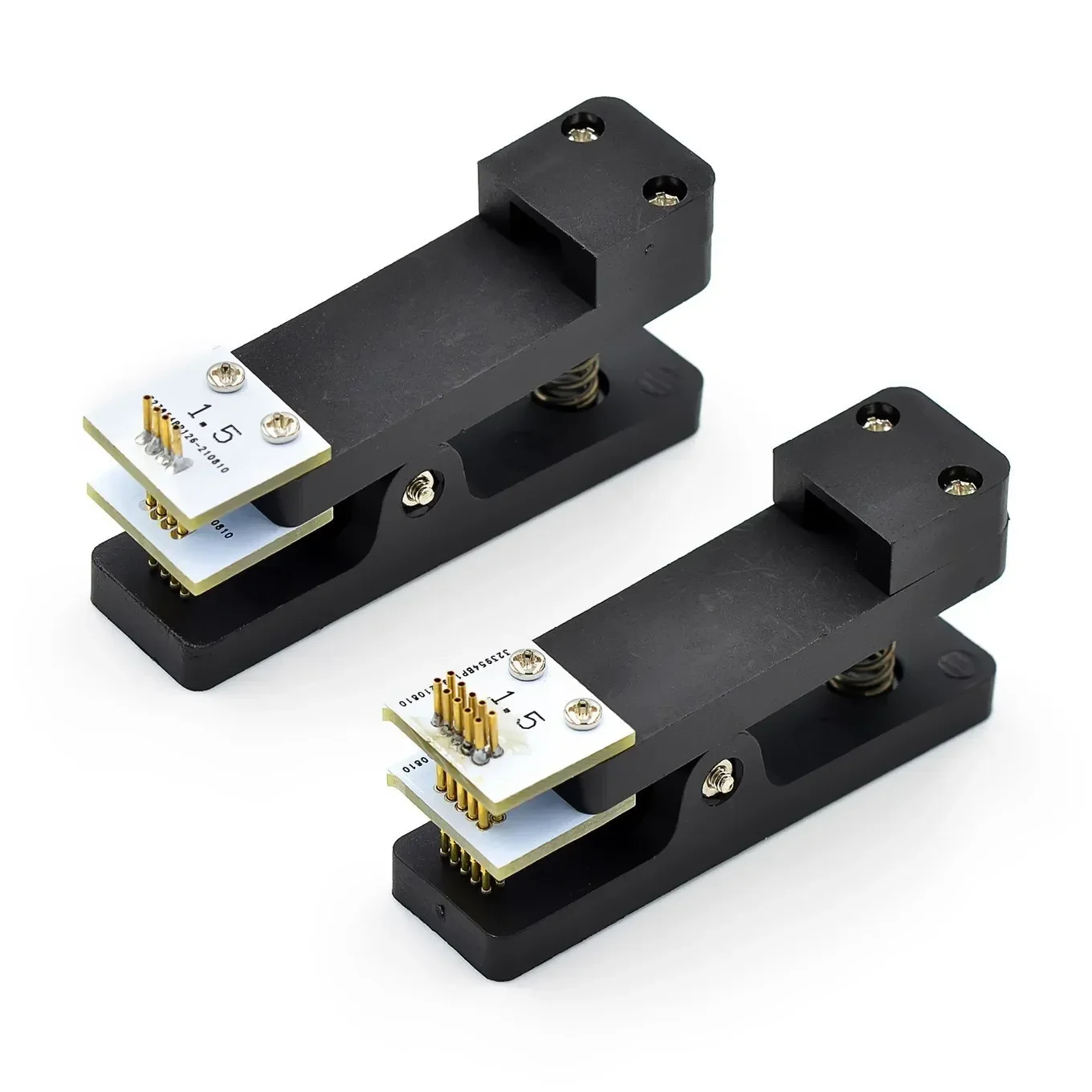

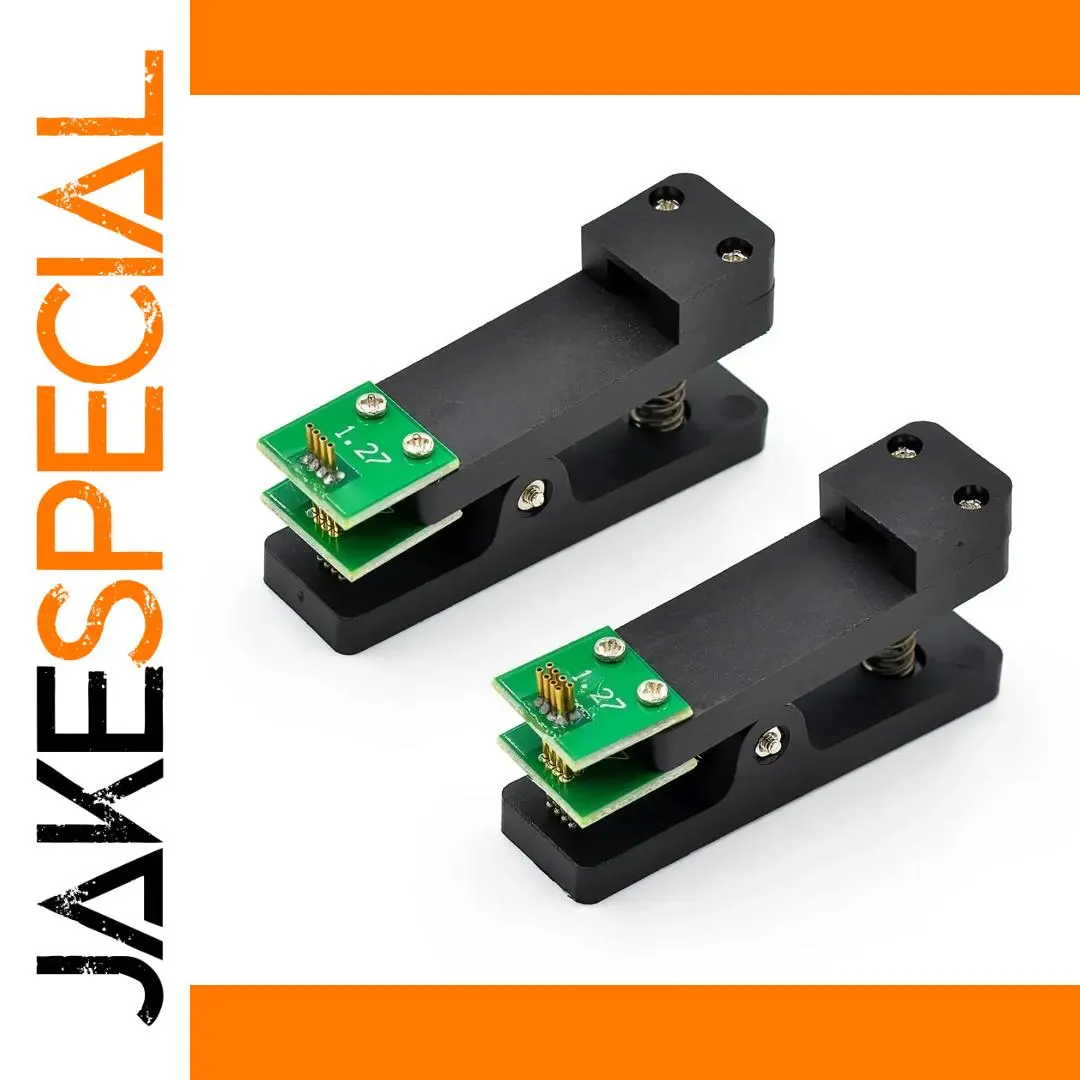

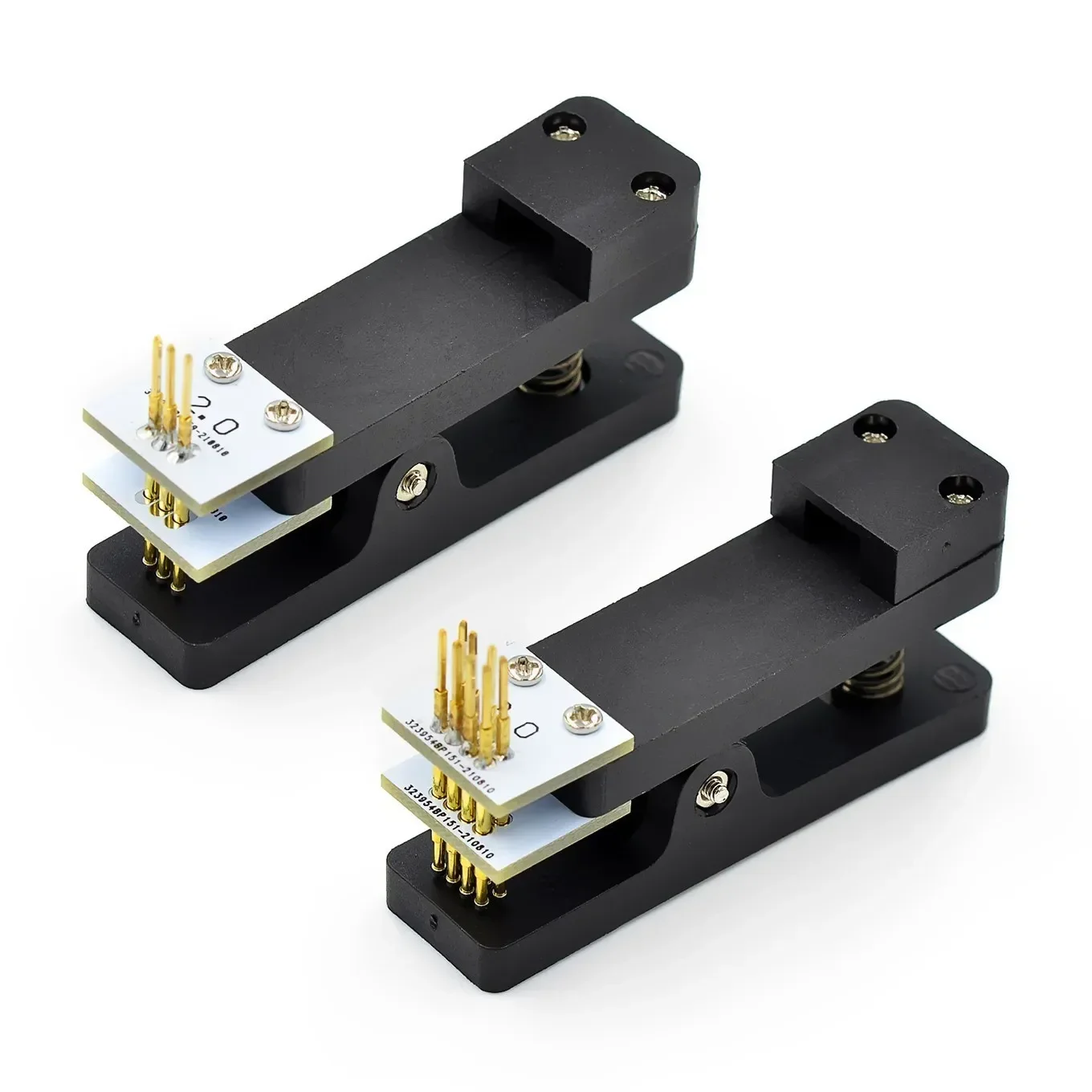

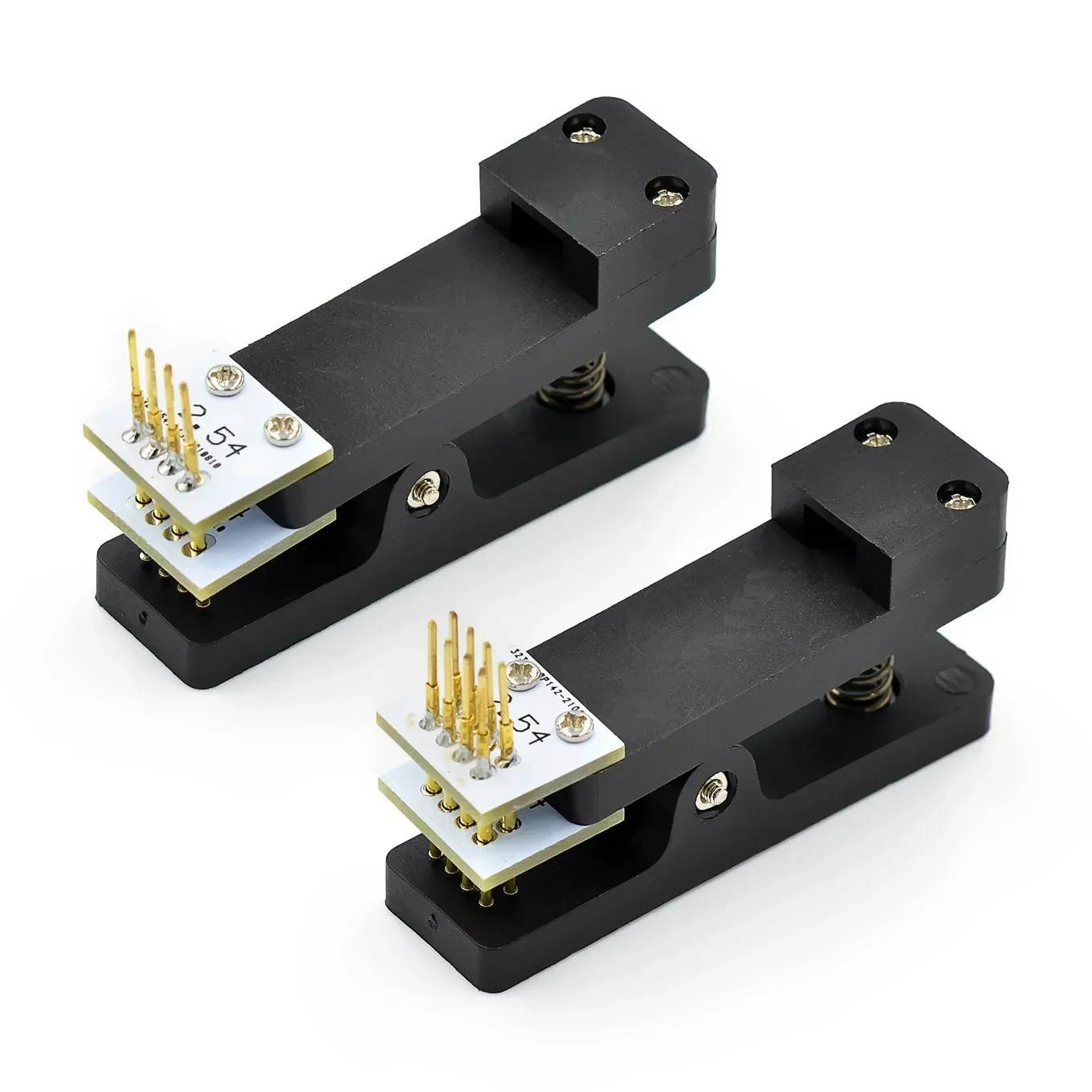

This versatile PCB test fixture features a durable black rectangular housing with a matte finish, designed for precise electrical testing and programming. It includes a vibrant green PCB with gold-plated pins, available in various configurations such as double or single row arrangements with pitch sizes of 1.27mm, 1.5mm, 2.0mm, and 2.54mm. Pin counts range from 3P to 10P, ensuring compatibility with a wide array of voltage regulator and electronic component testing applications. Built for durability and accuracy, these fixtures are ideal for both automated and manual testing setups, providing reliable contact and efficient performance in professional electronics environments.
This this PCB clip fixture for precise testing
Experience reliable and efficient testing with this high-quality PCB clip fixture designed for electrical verification and programming. Crafted with a sleek black rectangular housing, it features a durable, matte textured surface that exudes modern professionalism. The fixture comes equipped with vibrant green PCBs mounted perpendicular to the main body, showcasing gold-plated contact pins for optimal conductivity. Multiple configurations accommodate a range of pin counts from 3 to 10 and pitch sizes from 1.27mm up to 2.54mm. The compact, streamlined design ensures easy handling and compatibility with automated systems. Whether you're testing voltage regulators or other electronic components, this fixture guarantees precise and consistent connections, enhancing your workflow efficiency and accuracy in testing environments. It's built for durability and technical excellence, empowering your electronic testing or programming tasks.
Keys features of this PCB clip fixture
- Black rectangular housing with textured matte finish, offering durability and a professional look.

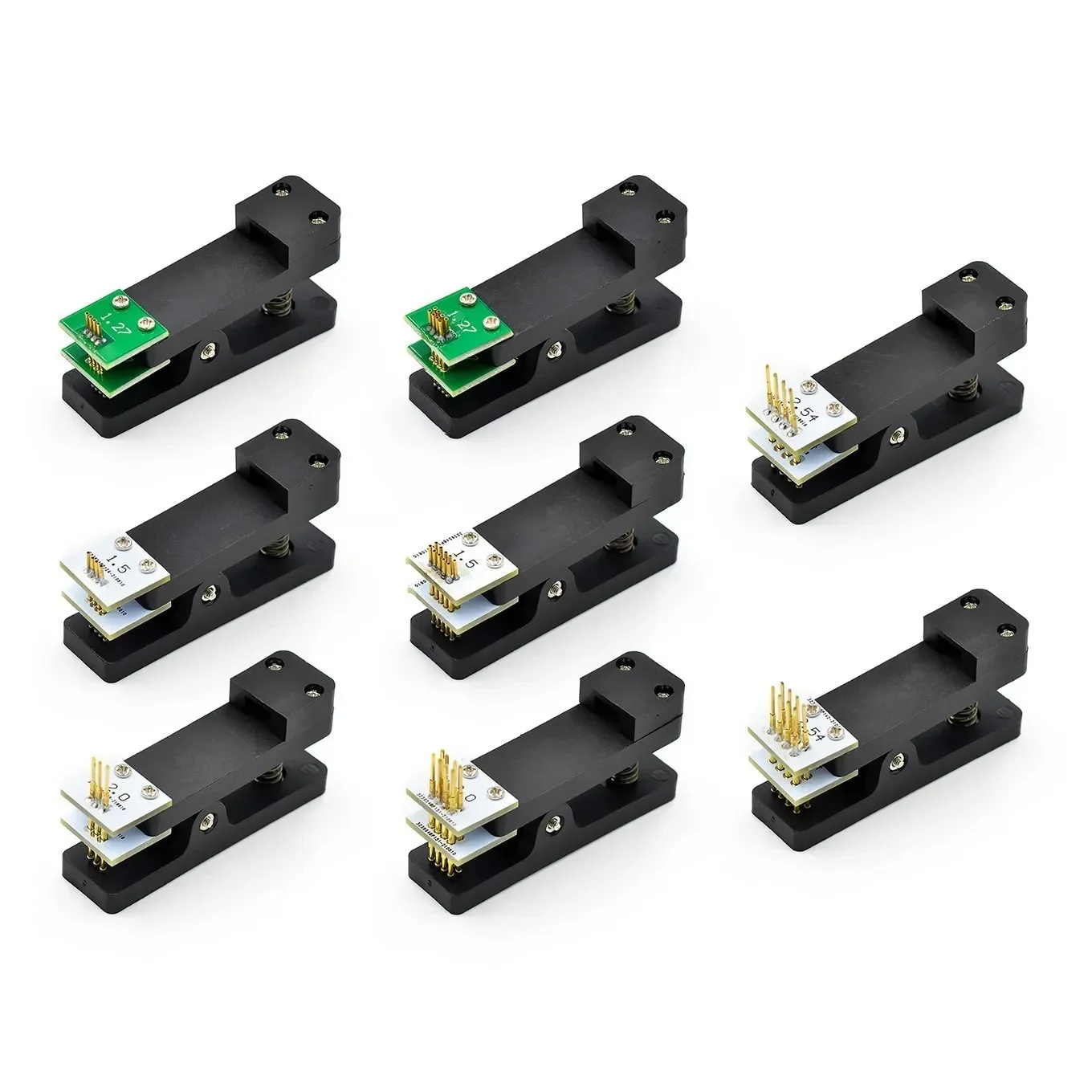

- Adjustable configurations with pin counts from 3P to 10P, suitable for various testing needs.
- Compatible with multiple pitch sizes: 1.27mm, 1.5mm, 2.0mm, and 2.54mm, accommodating diverse PCB standards.
- Green PCBs mounted perpendicularly with gold-plated contacts for enhanced electrical conductivity.
- Designed for stable, reliable connections in automated and manual testing setups, including voltage regulators.
- Technical specifications: high-precision pogo pins, secure screw fastening, and spring-loaded contact pressure for consistent performance.
- Compatible with a variety of electronic testing and programming applications, ensuring versatility across projects.
Upgrade your testing setup with this PCB fixture now
By choosing this this PCB clip fixture, you're investing in a dependable, precise, and versatile tool that simplifies your testing process. Visualize seamless connections every time, ensuring your electronic components perform at their best. Whether for professional testing laboratories or individual repair stations, this fixture will quickly become an essential part of your equipment. Its durable design, adaptable configurations, and high-quality materials mean you can rely on it for consistent results. Take the step towards more efficient, accurate testing today—this fixture is ready to elevate your electronic project workflows to the next level. Don't miss out on this reliable testing companion.
| Color | 1.27mm Double row3P, 1.27mm Double row4P, 1.27mm Double row5P, 1.27mm Double row6P, 1.27mm Single row3P, 1.27mm Single row4P, 1.27mm Single row5P, 1.27mm Single row6P, 1.5mm Double row 3P, 1.5mm Double row 4P, 1.5mm Double row 5P, 1.5mm Double row 6P, 1.5mm Single row 3P, 1.5mm Single row 4P, 1.5mm Single row 5P, 1.5mm Single row 6P, 2.0mm Double row 3P, 2.0mm Double row 4P, 2.0mm Double row 5P, 2.0mm Double row 7P, 2.0mm Single row 3P, 2.0mm Single row 5P, 2.0mm Single row 6P, 2.0mm Single row 7P, 2.0mm Single row 8P, 2.0mm Single row 9P, 2.0mm Single row10P, 2.54mm Double row 3p, 2.54mm Double row 4P, 2.54mm Double row 5P, 2.54mm Double row 6P, 2.54mm Double row 7P, 2.54mm Double row 8P, 2.54mm Double row 9P, 2.54mm Double row10P, 2.54mm Single row 3P, 2.54mm Single row 4P, 2.54mm Single row 5P, 2.54mm Single row 6P, 2.54mm Single row 7P, 2.54mm Single row 8P, 2.54mm Single row 9P, 2.54mm Single row10P |
|---|---|
| Condition | New |
| Warehouse | HK Warehouse – Hong Kong |
