PCB Programming Test Fixture 3-10P, 2.54mm Pitch
Price range: 29.99 € through 36.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake
This PCB clip clamp fixture features a 2.54mm pitch with configurations ranging from 3P to 10P in single and double-row arrangements, supported by P75-E2 pointed-tip pogo pins with a 1.3mm needle diameter and R75-3W sleeves. Designed for accurate logic IC programming and testing, it operates at 3-5V with a power dissipation of 1W and is suitable for use in TQFP packages within an environmental range of 0-85°C. Its robust build and precise alignment ensure reliable connections, making it ideal for computer hardware testing and programming applications.
This this test fixture for PCB programming and testing

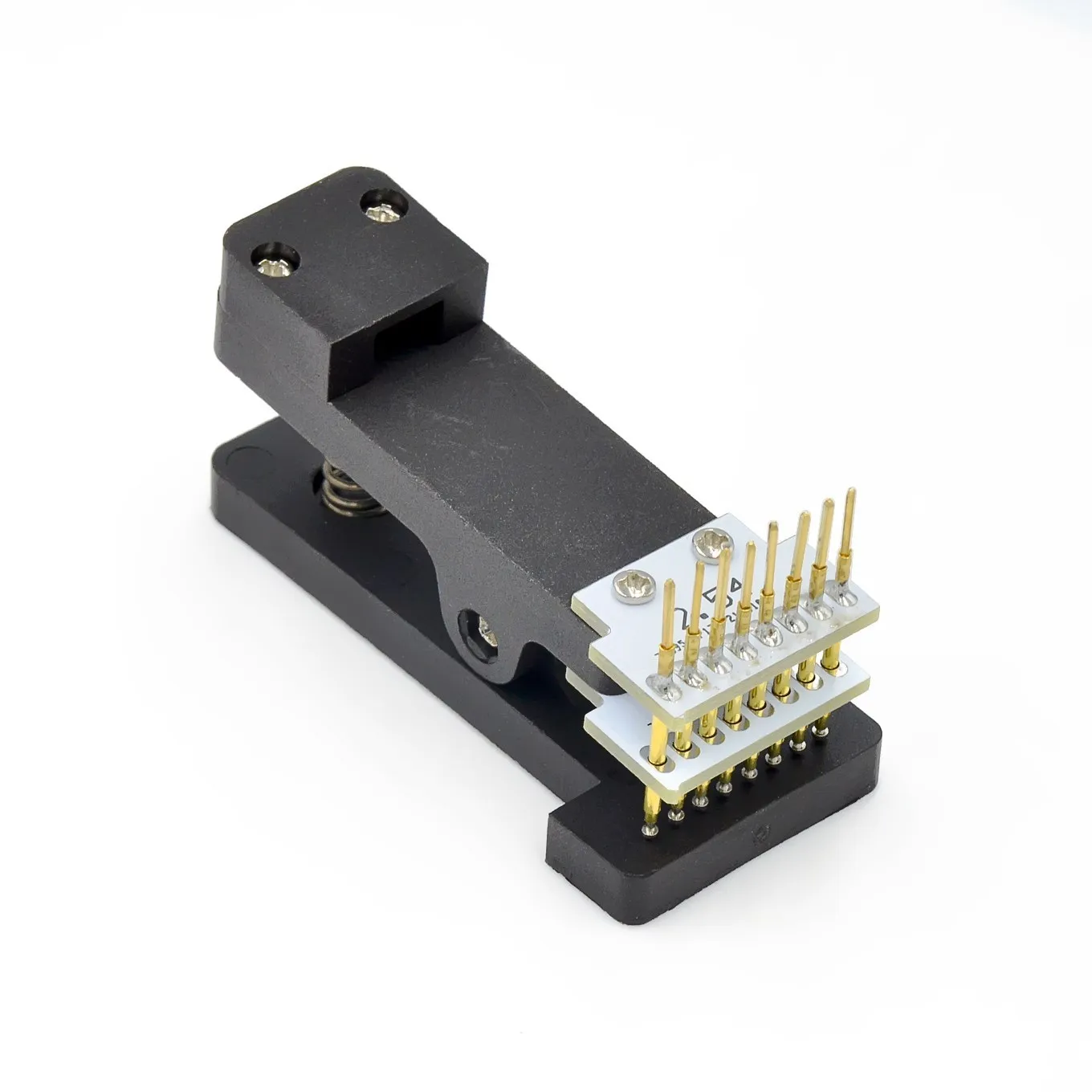

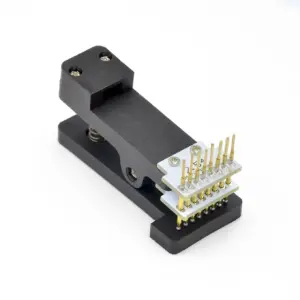

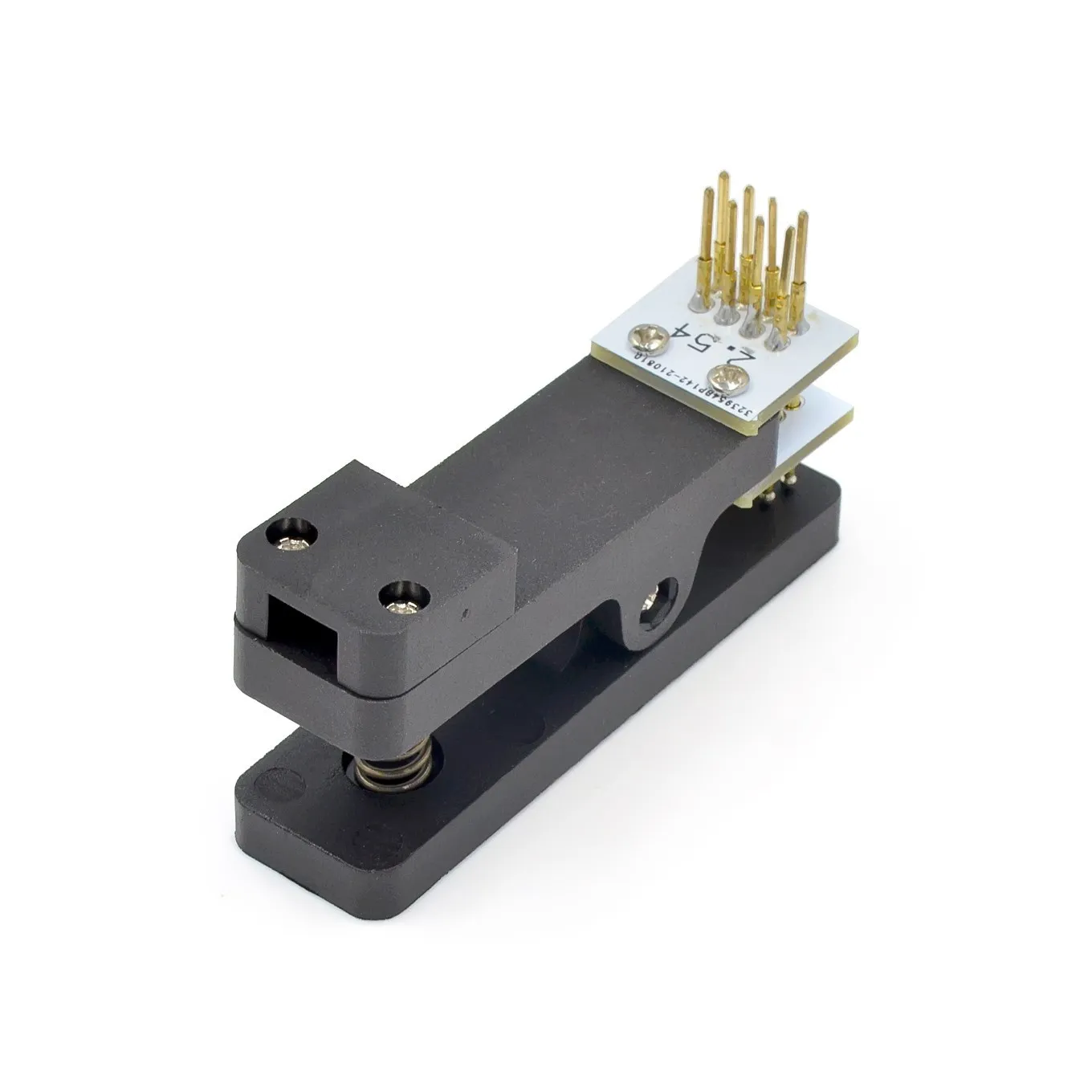

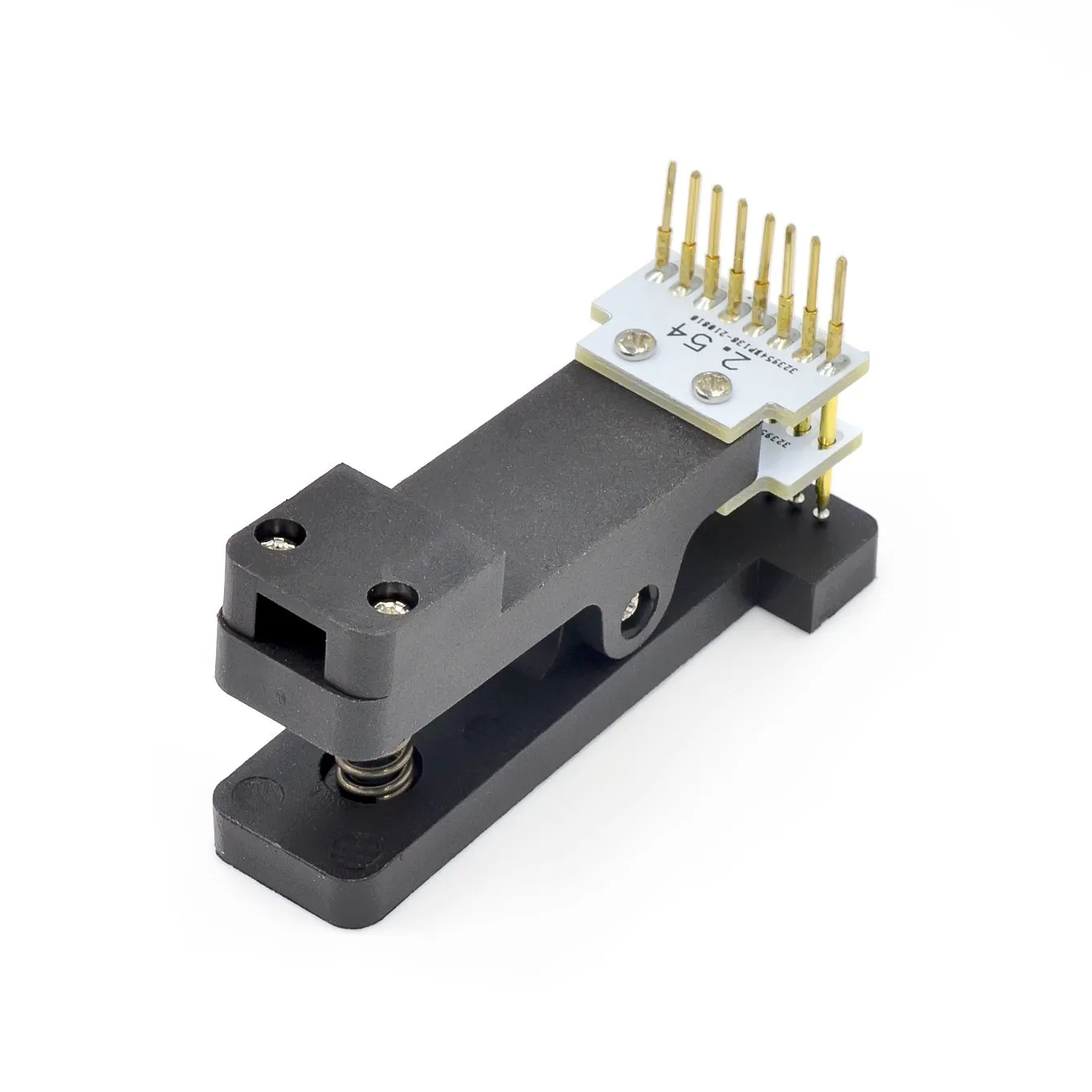

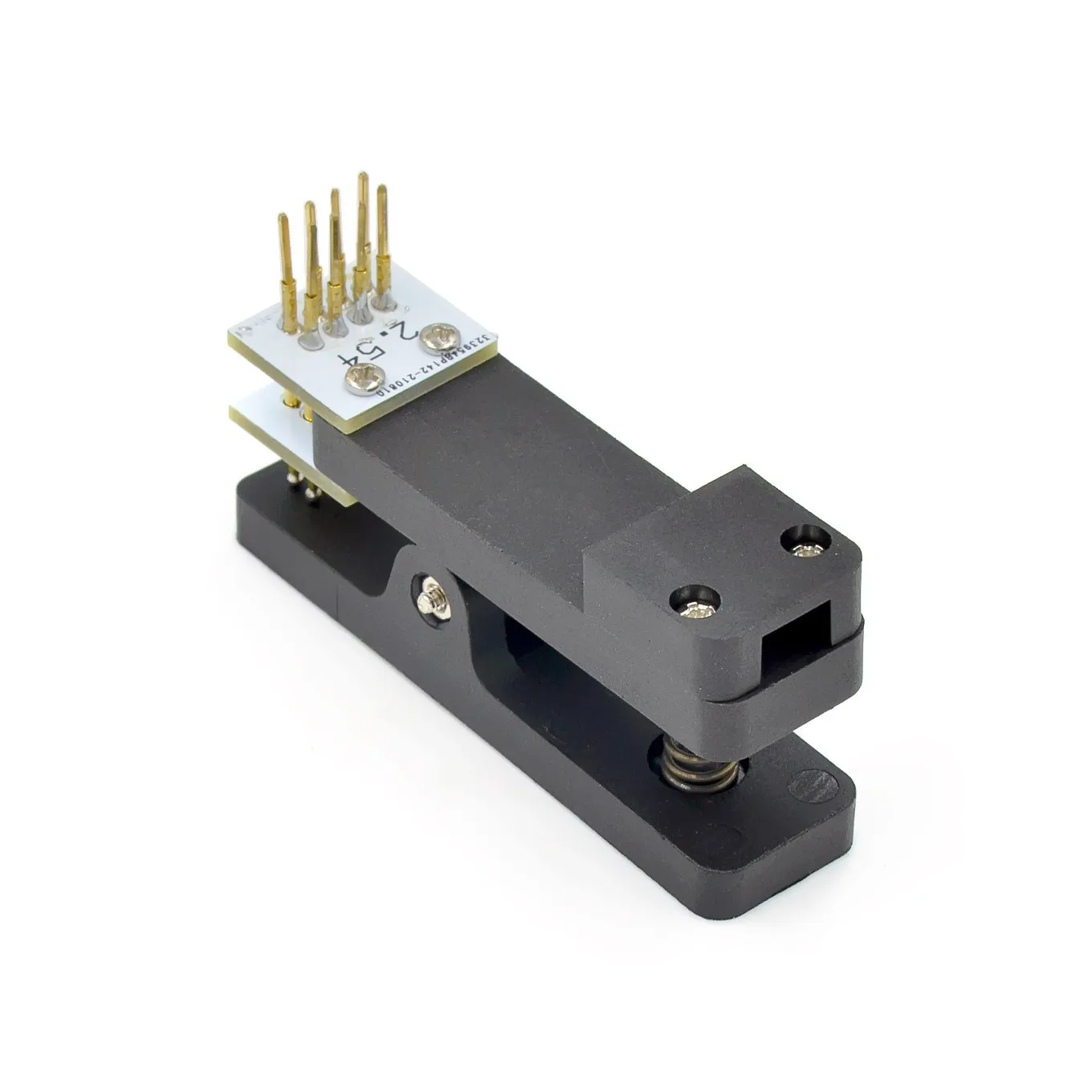

Experience precise and reliable PCB testing with this specialized fixture, designed to support multiple pin configurations from 3P to 10P with 2.54mm pitch spacing. Its sturdy black base provides excellent stability, while the sleek metallic arm holds gold-colored pogo pins, offering a high-reflective surface that underscores its precision engineering. The white insulating plate enhances visibility and contrasts well with the metallic components. Designed for durability, this fixture ensures consistent contact on TQFP packages within an operating temperature of 0-85°C. Perfect for electronics manufacturing or repair, it combines functional robustness with a professional aesthetic, making your testing and programming tasks seamless and efficient.
Keys features of this PCB test fixture
- Supports pin configurations from 3P to 10P, with single and double-row options for versatile testing needs.
- Features a 2.54mm pitch for compatibility with standard PCB layouts, ensuring accurate alignments during testing processes.
- Uses high-quality P75-E2 pointed-tip pogo pins with a needle diameter of 1.3mm for optimal contact and durability.
- Designed to operate at 3-5V with a power dissipation of 1W, suitable for logic IC programming on TQFP packages.
- Constructed with a sturdy black base and a brushed metal arm that enhances its industrial and modern aesthetic appeal.
- Includes a white insulating plate that highlights the pin arrangement, ensuring quick visual verification and precise placement.
This this test fixture is ready for your next project—order now!
Bring efficiency and confidence to your PCB testing process with this high-precision fixture. Its durable build and adaptable configurations make it an essential tool for professionals. Once installed, you'll appreciate the ease of use, stable contact, and professional design that this fixture offers. Don't miss the opportunity to improve your workflow and ensure the quality of your electronic assemblies. Whether for production or repair, this fixture is built to meet your needs with durability and precision. Add it to your toolkit today!
| Color | 10P single, 3P double, 3P single, 4P double, 4P single, 5P double, 5P single, 6P double, 6P single, 7P double, 7P single, 8P double, 8P single, 9P single |
|---|---|
| Condition | New |
| Warehouse | HK Warehouse – Hong Kong |
