Passive Tone Control Board for Audio Enhancement
22.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake

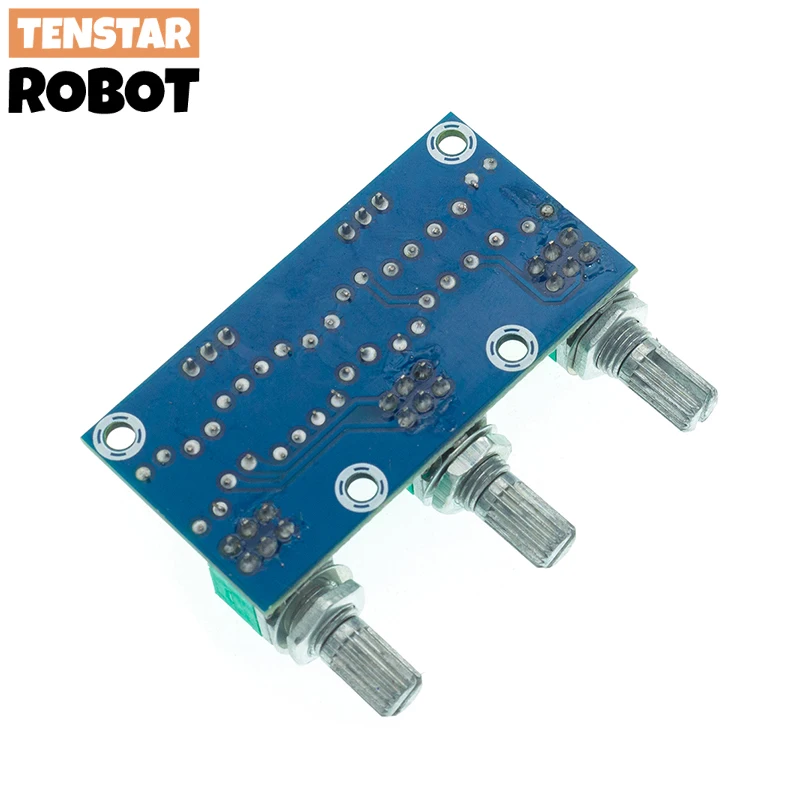

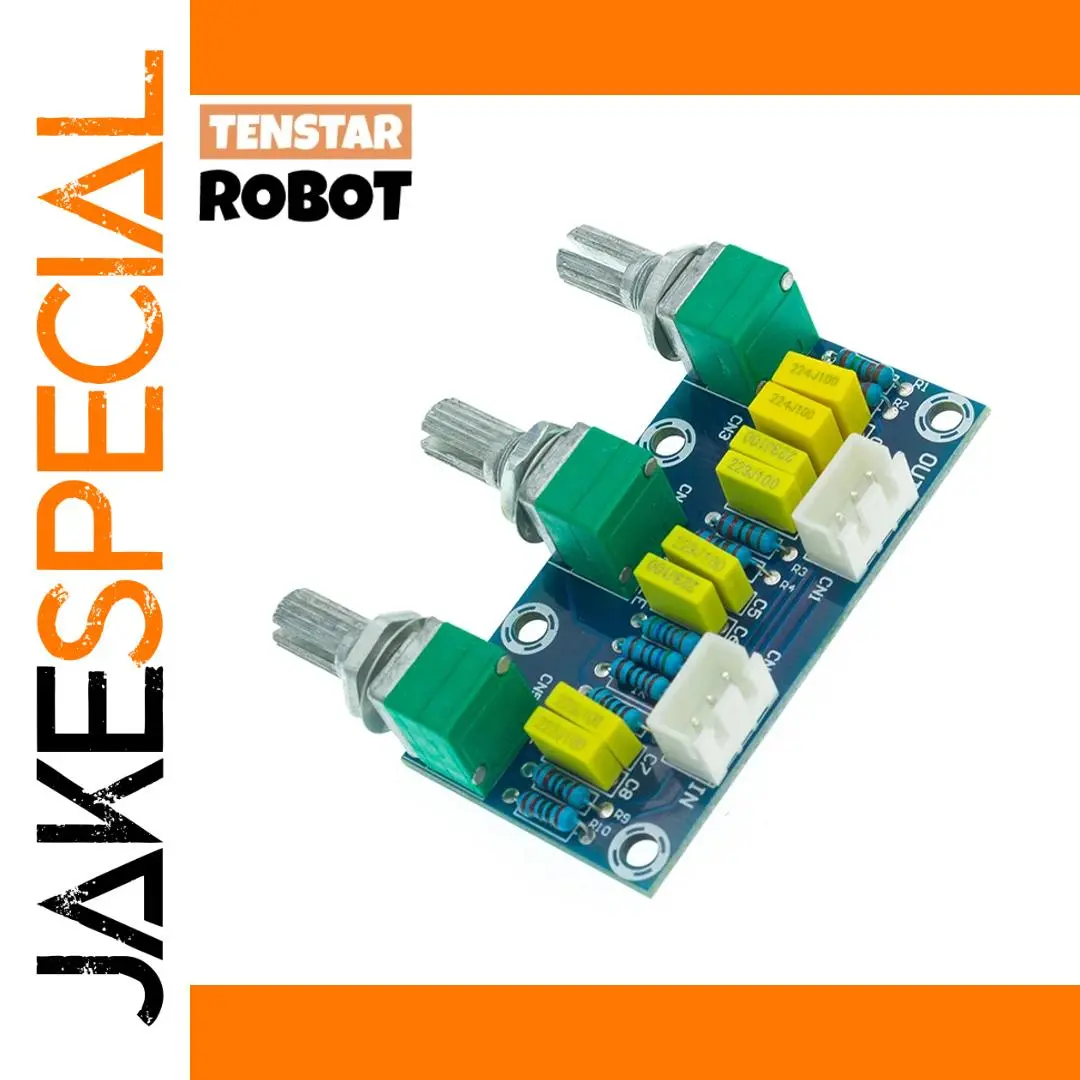

Enhance your audio setup with this compact passive tone board, featuring a 56.28mm rectangular blue PCB with three metallic silver rotary knobs spaced 22.5mm apart for precise control of total volume, treble, and bass. The module uses RC filtering for high and low-frequency adjustments, requiring no power supply, though output volume is reduced post-processing. Equipped with XH2.54 3-pin sockets and designed for 2-channel audio applications, it dissipates only 1W at a supply voltage of 1V. Its vibrant design combines functionality with a sleek aesthetic, making it ideal for DIY audio projects, computer audio systems, and high-frequency sound tuning.
In stock
This is this Passive Tone Board for Precise Sound Control

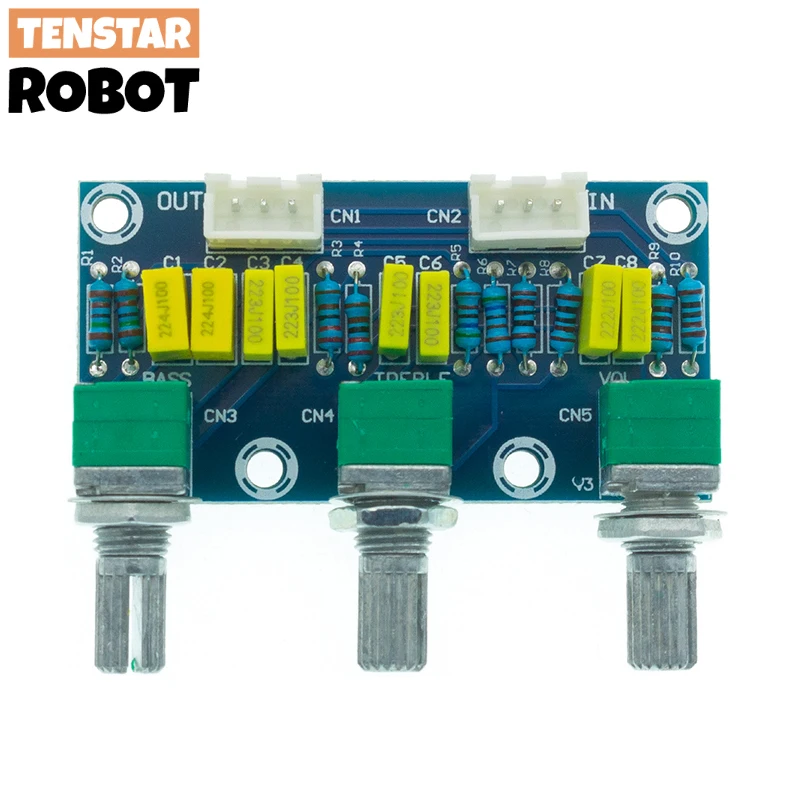

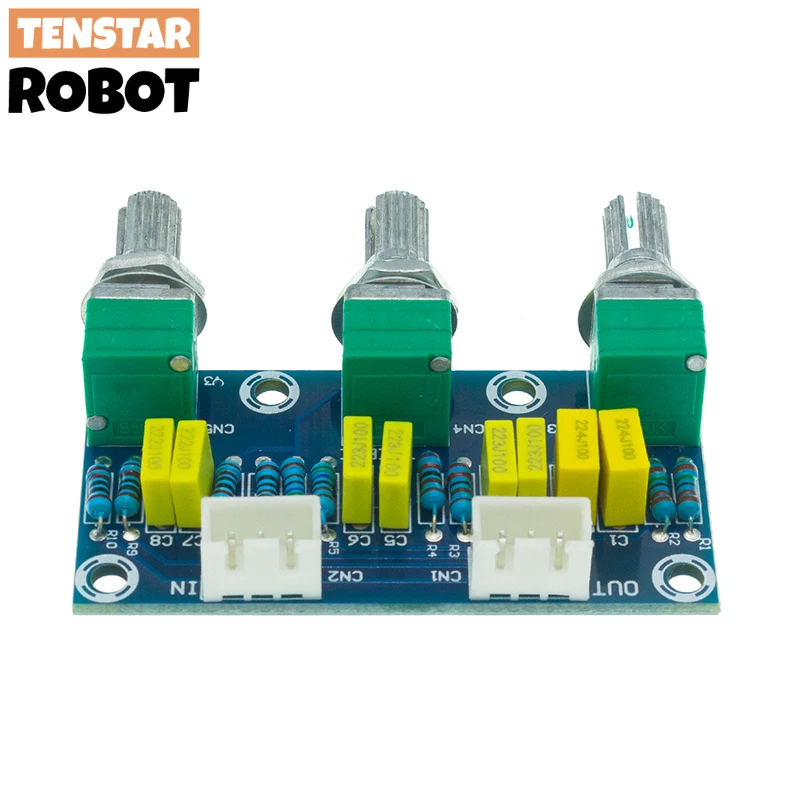

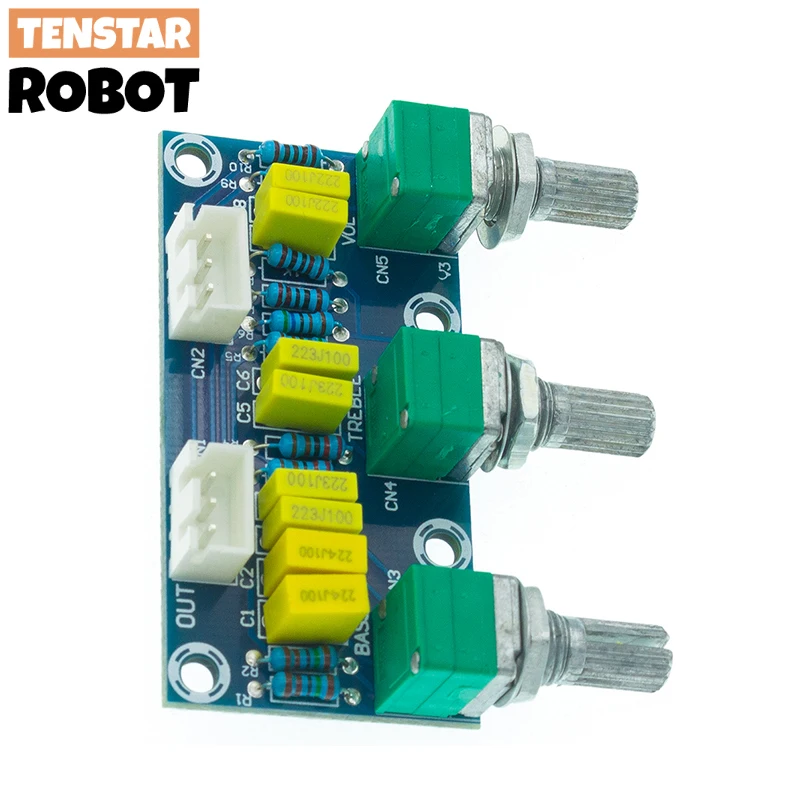

Experience professional-grade audio tuning with this compact Passive Tone Board, designed for enthusiasts and DIY audio projects. Its sleek rectangular blue circuit board measures just 56.28mm, featuring a clean layout with three silver rotary knobs in a linear arrangement, spaced at 22.5mm. These knobs, mounted on vibrant green rectangular housings, allow you to effortlessly adjust treble, bass, and overall volume. Bright yellow capacitors and small blue resistors surround the controls, enhancing the visual appeal with contrasting colors. The white 3-pin connectors facilitate seamless audio input/output connections. Crafted for stability and accuracy, this module is perfect for high-frequency sound customization, delivering tailored audio experiences in a compact, visually appealing package.
Keys features of this Passive Tone Board

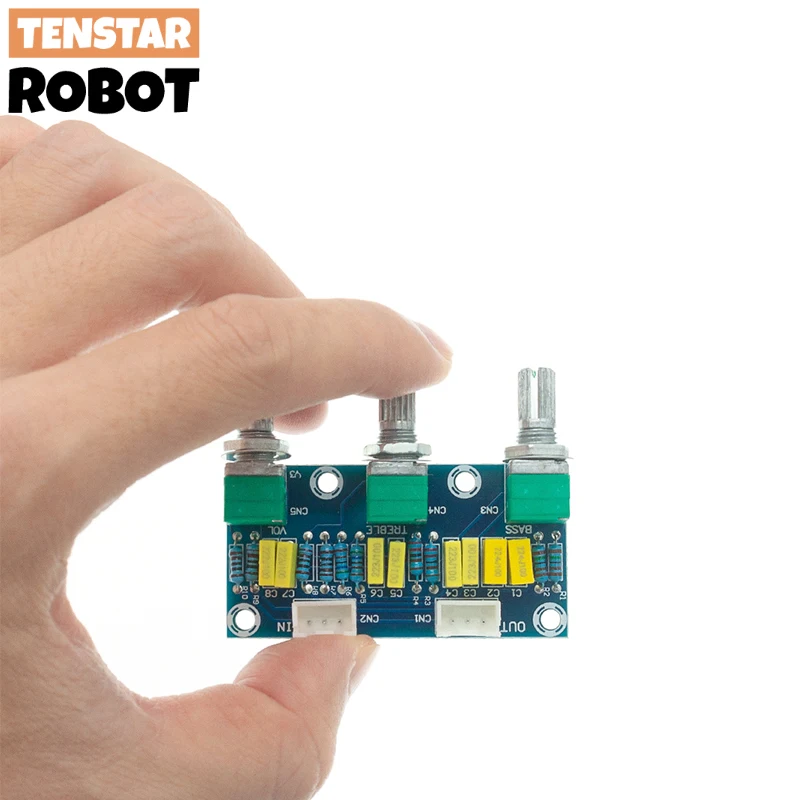

- Two-channel PCB module with adjustable volume, treble, bass controls for precise sound shaping. Its compact size (56.28mm) fits easily into various audio projects or systems.
- Features three metallic silver textured rotary knobs spaced at 22.5mm, mounted within bright green housings, providing smooth, tactile control over high and low frequencies.
- Bright yellow capacitors labeled “223/100” and “220/10” deliver distinct capacitance values essential for RC filtering, combined with blue resistors for biasing and filtering functions.
- White 3-pin XH2.54 socket connectors enable quick and secure audio input/output connections, compatible with SMD mounting for easy integration into your setup.
- Designed without needing a power supply, this module relies on RC filtering to adjust high and low frequencies, offering a pure signal path with reduced output volume post-processing.
- Operates at a supply voltage of 1V, dissipates 1W of power, and is ideal for computer audio systems, with a new, non-chemical, voltage regulator circuit design for durability and reliability.
This Passive Tone Board is Essential for Enhanced Audio Control—Buy Now
Transform your audio system with this high-quality, versatile tone control module. Whether you're customizing sound for a professional project or personal setup, this PCB offers precision, durability, and effortless control. Its vibrant colors, compact size, and user-friendly design make it a reliable addition to your DIY toolkit or existing audio infrastructure. Enjoy clear, tailored audio output and experience the difference this smart tuning solution can bring to your sound system. Don't miss out—upgrade your audio experience today!
