Optical Isolation Module with EL817/PC817
29.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake
Upgrade your electronic systems with this compact optical coupling isolation module, featuring a green PCB and a 5.0 pitch screw terminal for easy wiring. Powered default at 5V, it offers options for 12V or 30V input voltages upon request. Equipped with an EL817/PC817 photoelectric isolator, it provides over 3000V of isolation voltage, supporting input currents up to 50mA and an output current of 50mA, with a drive current of 15-20mA. Capable of operating in temperatures from -55°C to 110°C and supporting signal frequencies up to 5kHz, it is ideal for driving motors, PLC inputs, inverters, or signals requiring reliable isolation, current amplification, and protection in industrial automation or control applications.

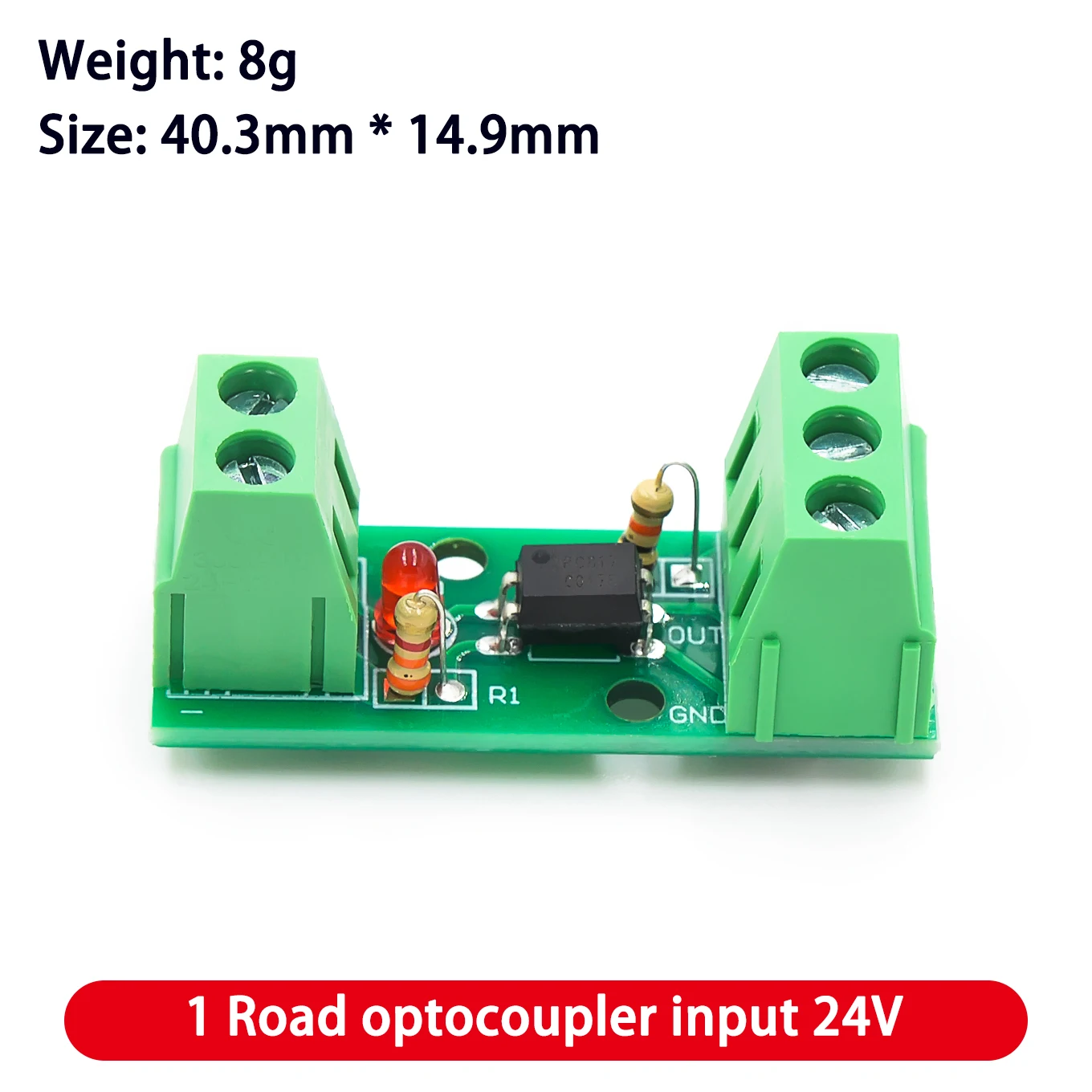

This Is a Compact Optical Coupling Isolation Module

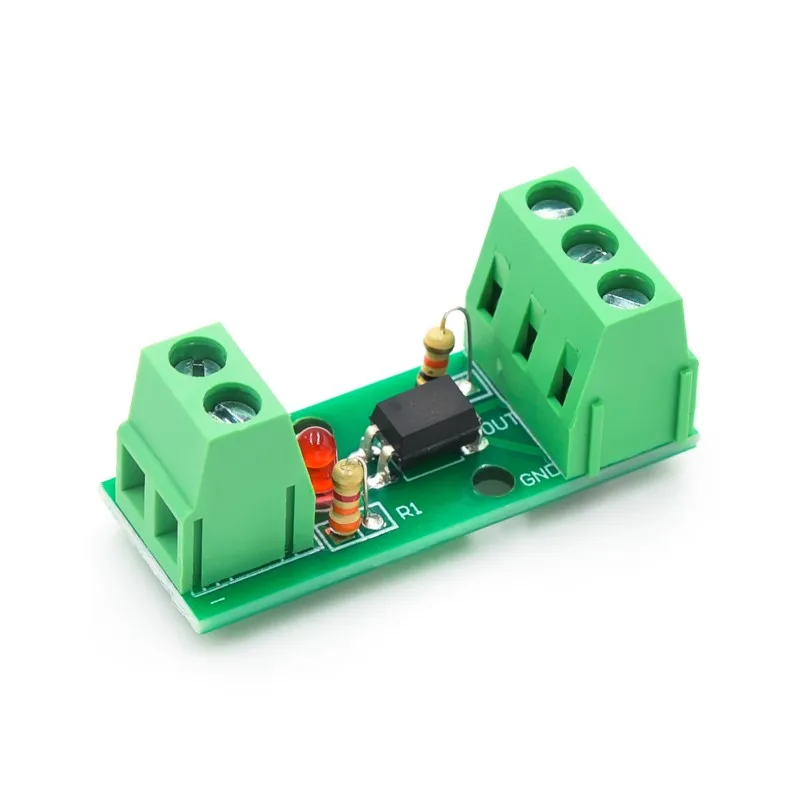

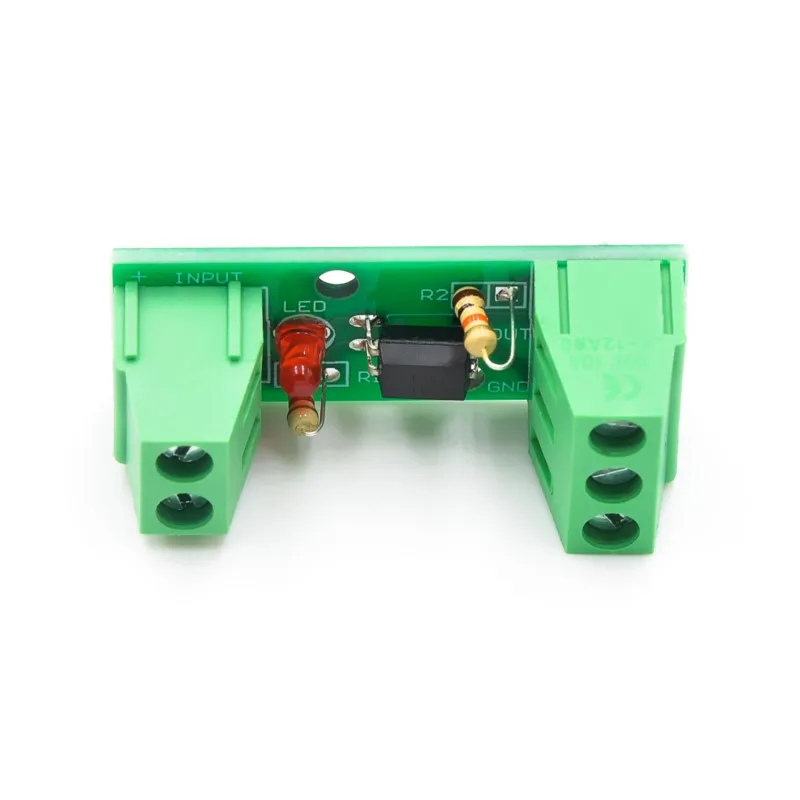

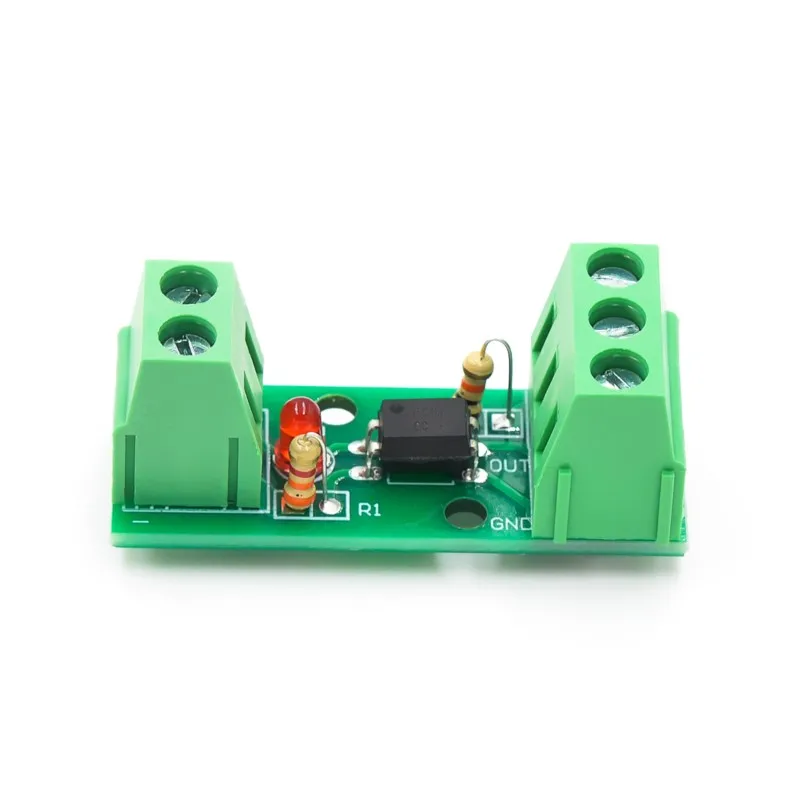

Experience reliable signal isolation and amplification with this sleek, high-performance optical coupling module. Designed with a vibrant green PCB and sturdy terminal blocks, it offers an organized and durable setup that integrates effortlessly into your electronic systems. The black IC package serves as a focal point, emphasizing precision and quality. Bright red LED indicator ensures quick visual status checks, while resistors with colorful bands add subtle accents. Whether you need to protect your microcontroller, drive motors, or interface with PLC devices, this module provides a clear and sturdy solution that guarantees safety and stability. Its industrial aesthetic combines functional minimalism with technical finesse, making it as visually appealing as it is effective.
Keys features of this optical coupling isolation module

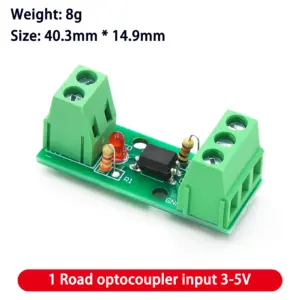

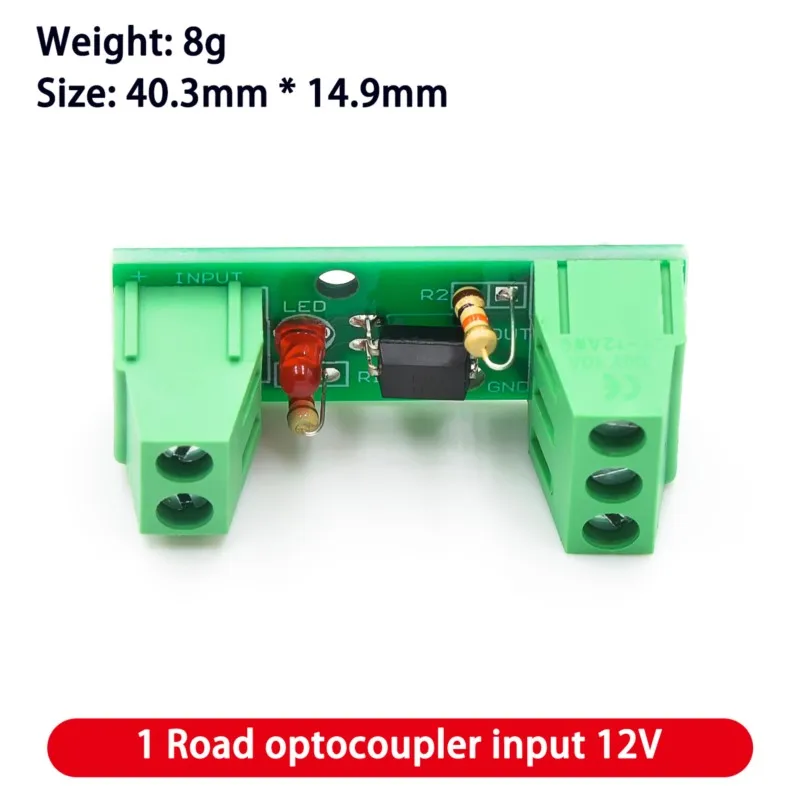

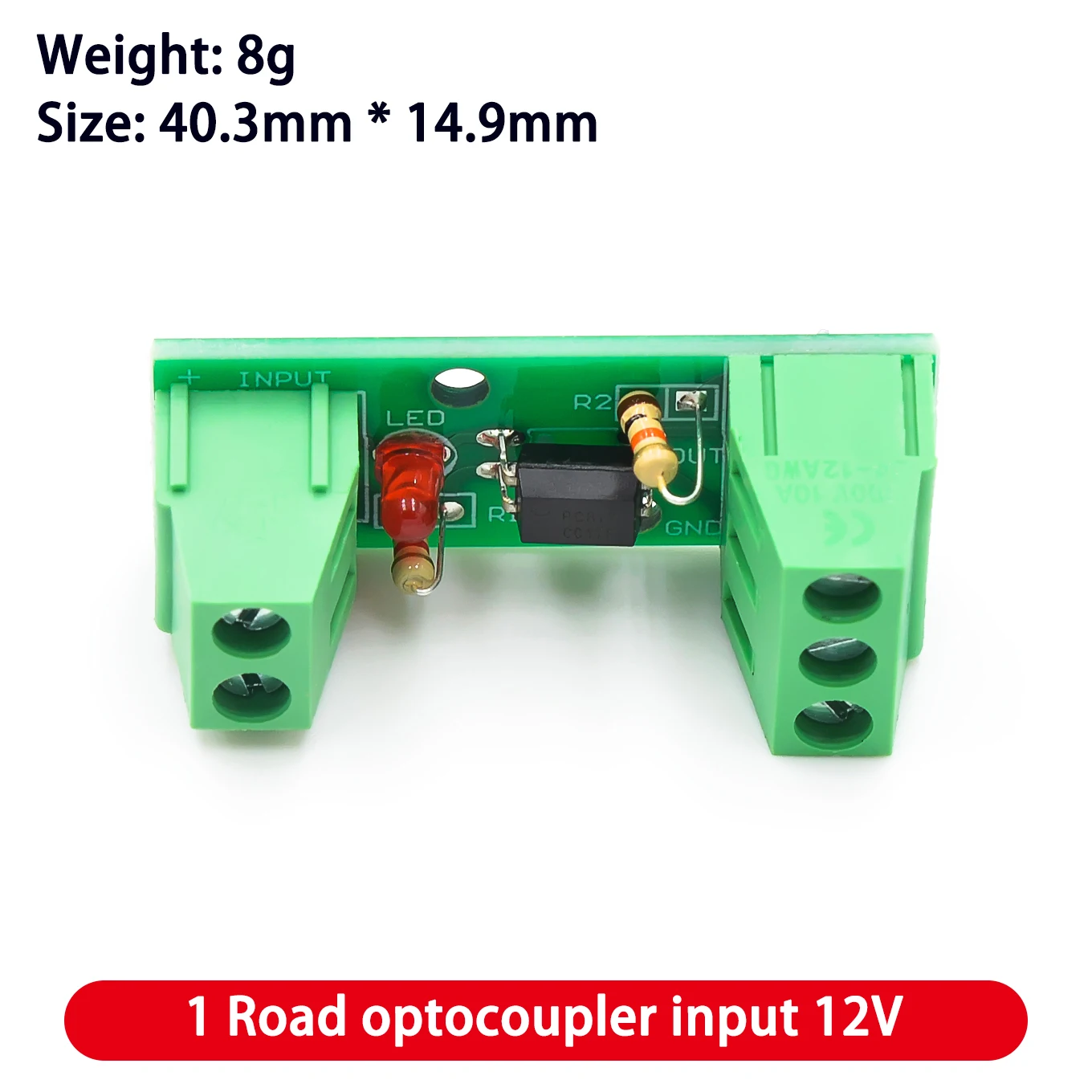

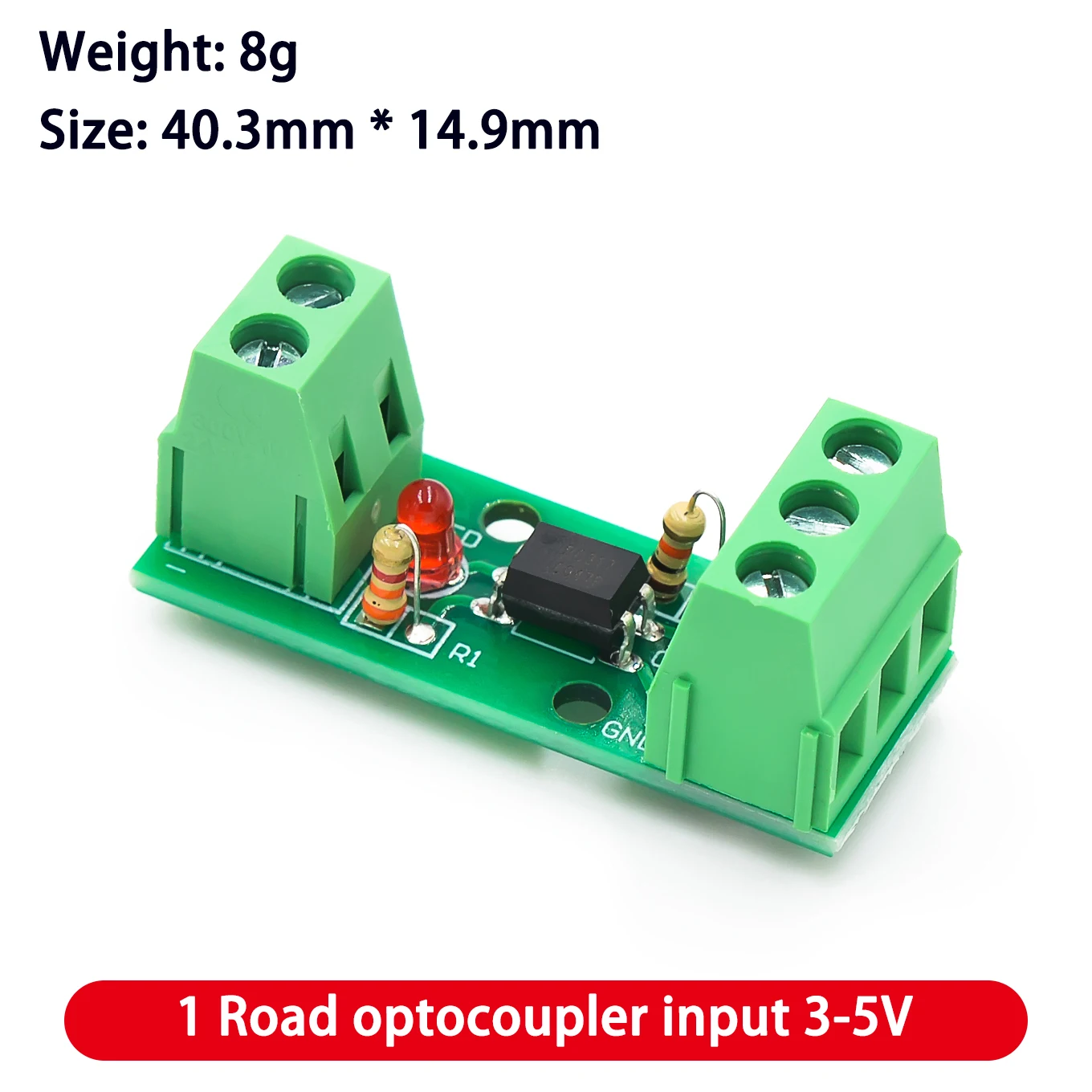

- This module features an input voltage default setting of 5V, with options for 12V or 30V, compatible with a wide range of automation and control applications.
- Built with EL817/PC817 photoelectric isolators, offering an insulation voltage greater than 3000V for superior safety and interference protection in sensitive circuits.
- Supports an input current of up to 50mA and requires 15-20mA for proper operation, suitable for driving microcontrollers and other low-current devices effectively.
- Maximum output current reaches 50mA, making it capable of driving motors, relays, and digital input signals for various industrial applications.
- Designed to operate within a broad temperature range of -55°C to 110°C, ensuring reliability in harsh environments.

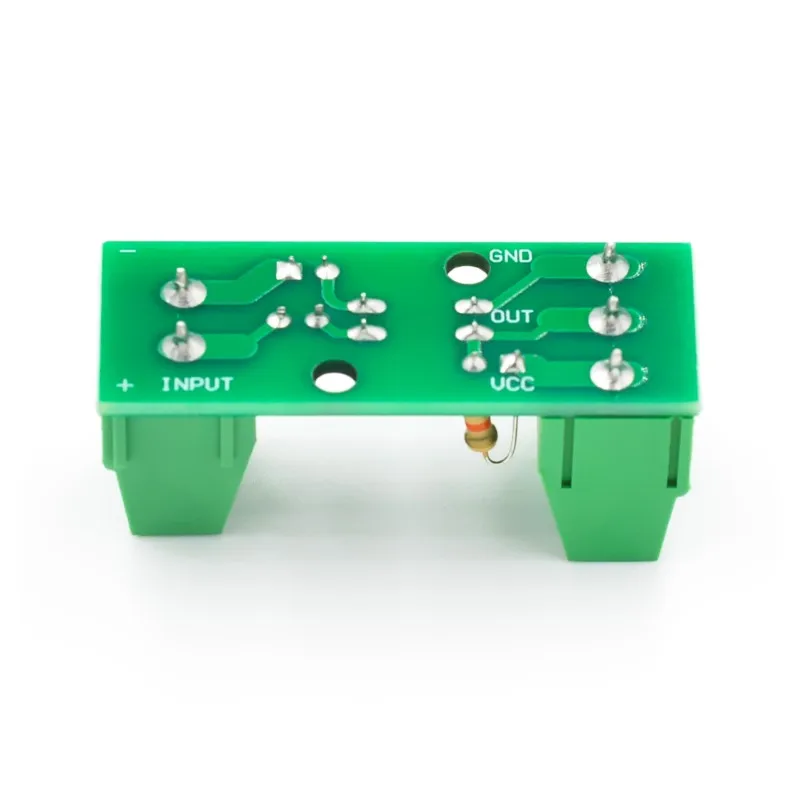

- Features a 5.0 pitch screw terminal for easy wiring, supporting application signal frequencies up to 5kHz for versatile use in control systems.
- Compatible with 12V, 24V, and 3-5V power supplies, accommodating diverse system requirements with precision and stability.
This Optical Coupling Module is Perfect for Your Projects – Order Now
Enhance your circuit's safety, isolation, and performance with this dependable optical coupling module. Its robust design and versatile specifications ensure seamless integration into your automation, motor control, or PLC system. Whether upgrading existing setups or building new projects, this module offers peace of mind, durability, and technical excellence. Invest in reliability today and experience improved interference protection and signal integrity in your electronic applications. Your advanced control system starts here—get yours now and elevate your projects effortlessly.
| Color | 12V, 24V, 3-5V |
|---|---|
| Condition | New |
| Warehouse | HK Warehouse – Hong Kong |
