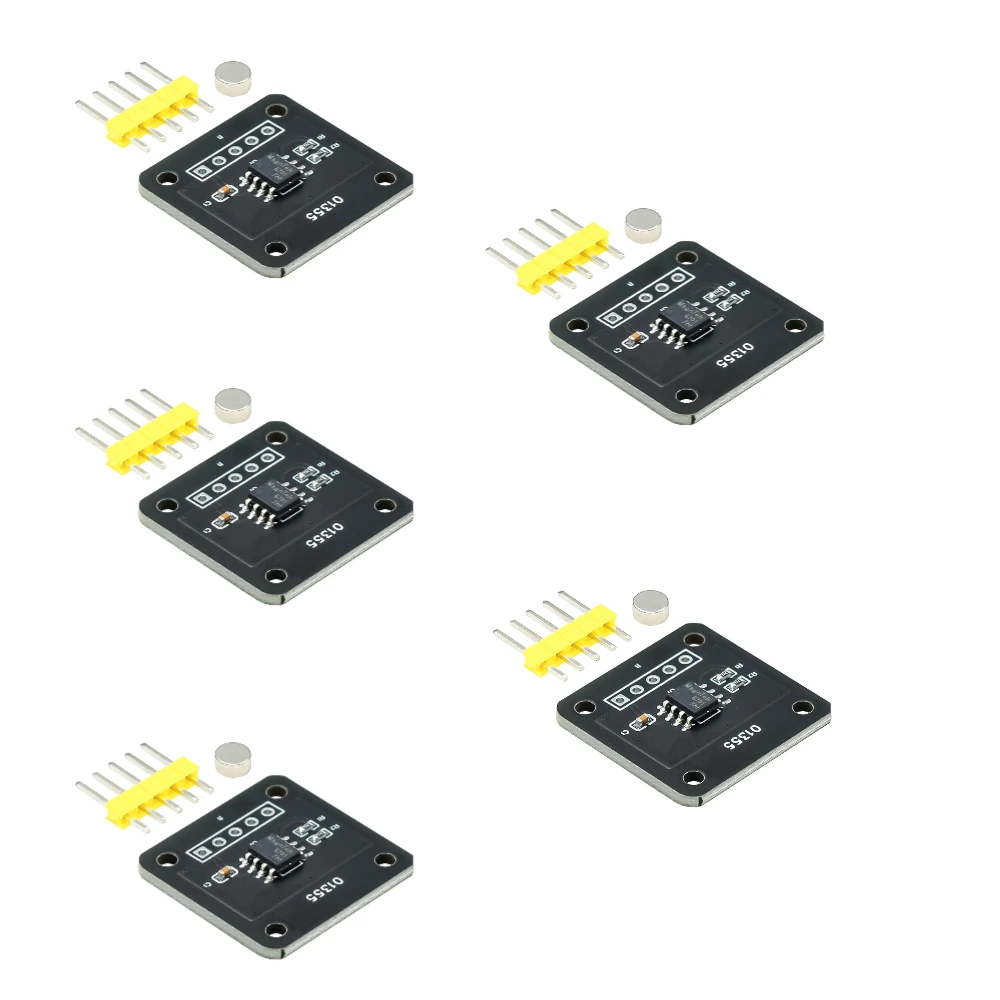

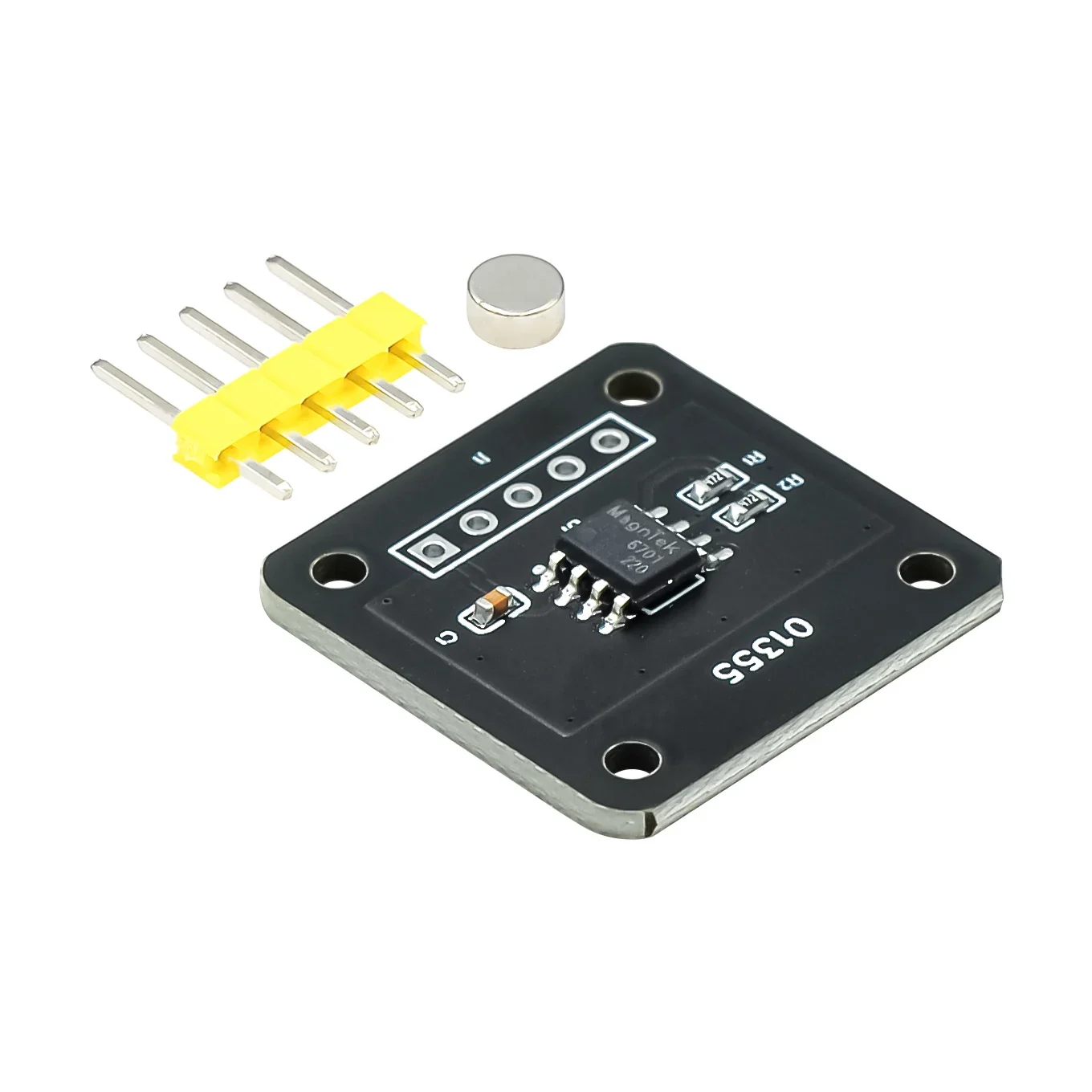

MT6701 Magnetic Angle Sensor Module for Robots
Price range: 24.99 € through 47.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake
The MT6701 is a high-precision magnetic angle measurement sensor module featuring differential Hall induction technology, capable of measuring absolute angles from 0° to 360°. Operating with a voltage of 3.3V to 5.0V and temperature tolerance from -40°C to 125°C, it boasts a linearity deviation of less than ±1° (up to ±1.5° across temperature). With a system delay of just 5 microseconds, it supports rotation speeds up to 55,000 RPM. The module provides 14-bit digital angle data via I2C and SSI interfaces, with flexible incremental outputs (ABZ, UVW) supporting resolutions from 1 to 1024 lines, alongside 12-bit PWM and analog outputs. Ideal for precise angular measurement applications.
This MT6701 Magnetic Angle Sensor Module
Experience high-precision angle measurement with this MT6701 magnetic sensor module, designed for demanding applications requiring absolute positioning and rapid response. Its differential Hall induction technology allows for accurate detection of angles from 0° to 360°, providing reliable readings even in extreme temperatures ranging from -40°C to 125°C. With a low system delay of just 5 microseconds, it can support rotational speeds up to 55,000 RPM, making it ideal for industrial automation, robotics, and motor control. The module offers versatile output options, including 14-bit digital via I2C and SSI, incremental ABZ and UVW signals, PWM, and analog outputs. Its durable design ensures consistent performance, and the built-in EEPROM guarantees stable operation over 1000+ programming cycles, fostering confidence in your projects.
Key Features of the MT6701 Magnetic Angle Sensor Module
- Provides absolute angle measurement from 0° to 360°, with linearity deviation less than ±1°, ensuring high accuracy for precision tasks. Operates between 3.3V and 5.0V across wide temperature ranges.
- Supports high-speed rotational measurements up to 55,000 RPM with a system response delay as low as 5 microseconds, ideal for real-time control applications requiring fast feedback.
- Offers 14-bit digital angle data via I2C and SSI interfaces, supporting incremental ABZ resolutions from 1 to 1024 lines, and UVW polarity options from 1 to 16 for versatile configurations.
- Includes 12-bit PWM and 12-bit DAC analog outputs, as well as a dedicated push detection output for single-chip button functionalities, enhancing control and interactivity for complex systems.
- Built-in EEPROM supports over 1,000 programming cycles, ensuring repeatable accuracy and long-term stability in sensitive measurement environments.

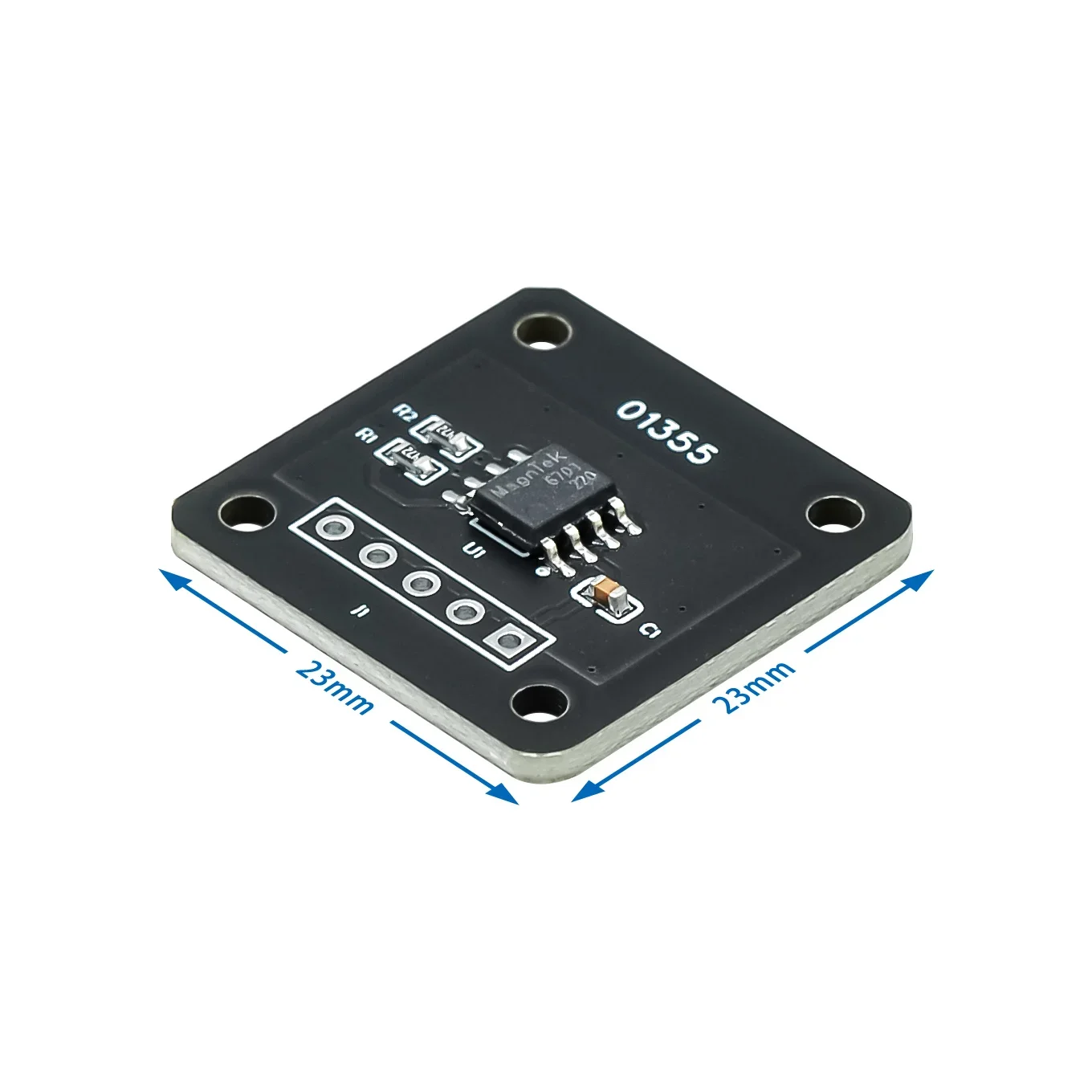

- Compact, robust design with surface-mounted components, matte black PCB, and gold-plated connection pins, optimized for reliable integration into diverse technical setups.
This MT6701 sensor module — Perfect your projects today
Imagine seamlessly controlling your rotation systems with the high precision and reliability of this MT6701 sensor. Its robust construction and versatile output options ensure it will integrate smoothly into your setup, providing precise readings under even the most demanding conditions. Whether you’re working on robotics, industrial machinery, or customized automation projects, this module empowers you with accurate angle data and quick response times. Investing in this high-quality sensor means improving your system’s performance and confidence. Take the step toward enhanced control and stability now—you deserve it.

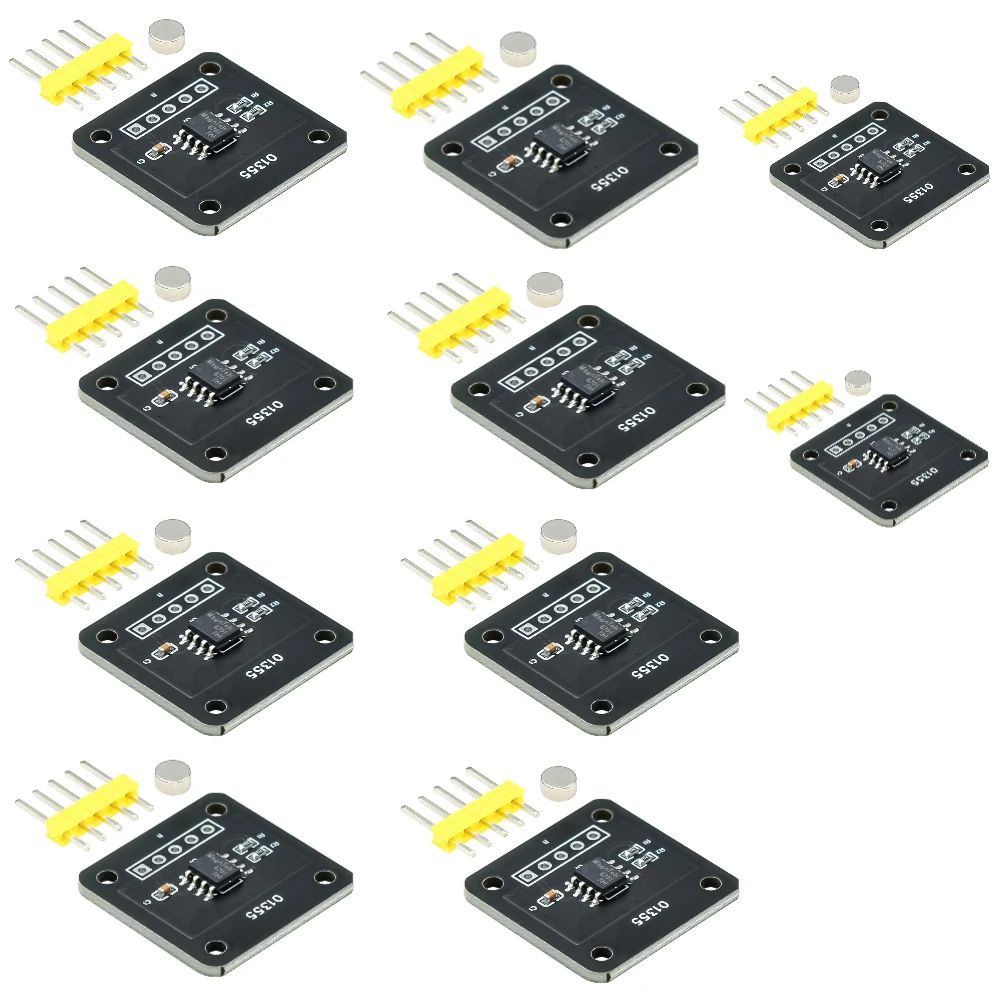

| Color | 10pcs, 1PCS, 5PCS |
|---|---|
