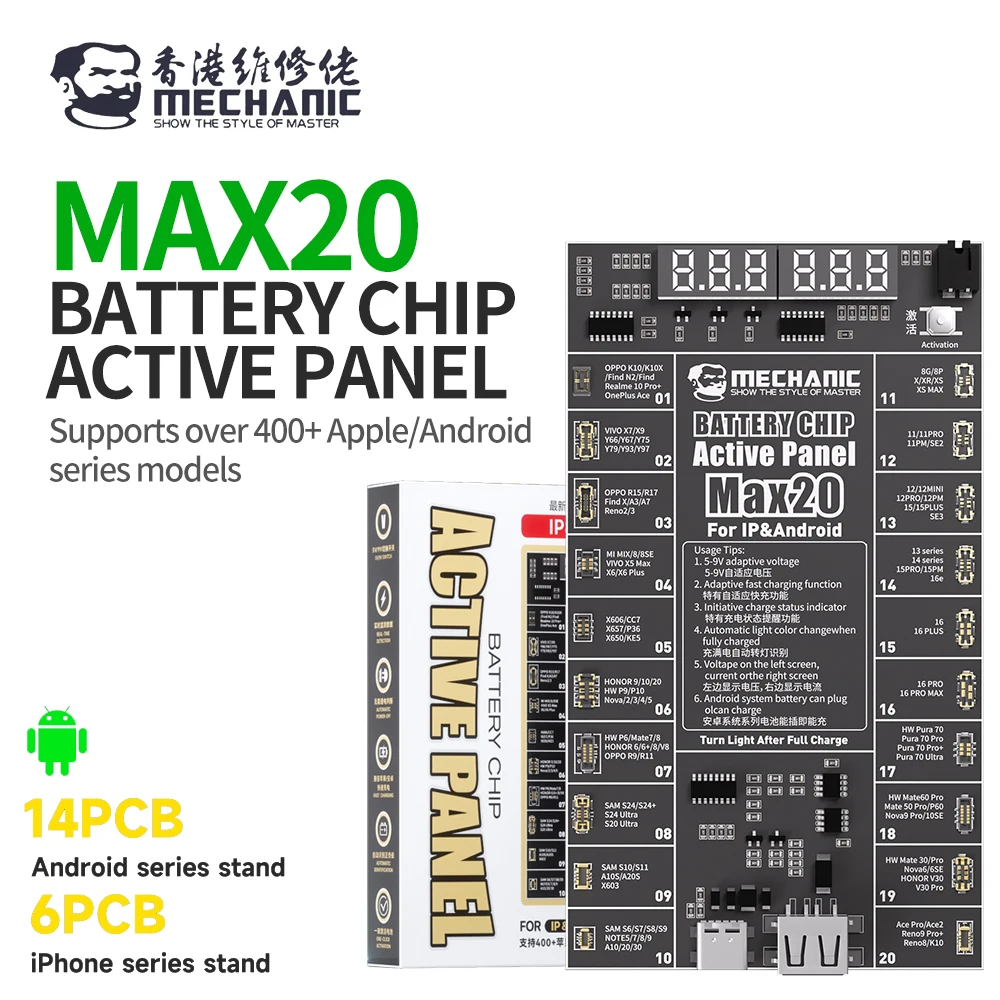

MECHANIC MAX20 Battery Fast Charging Activation Test Board for IPhone 8-16 Series Android Repair Battery Activation Test Tool

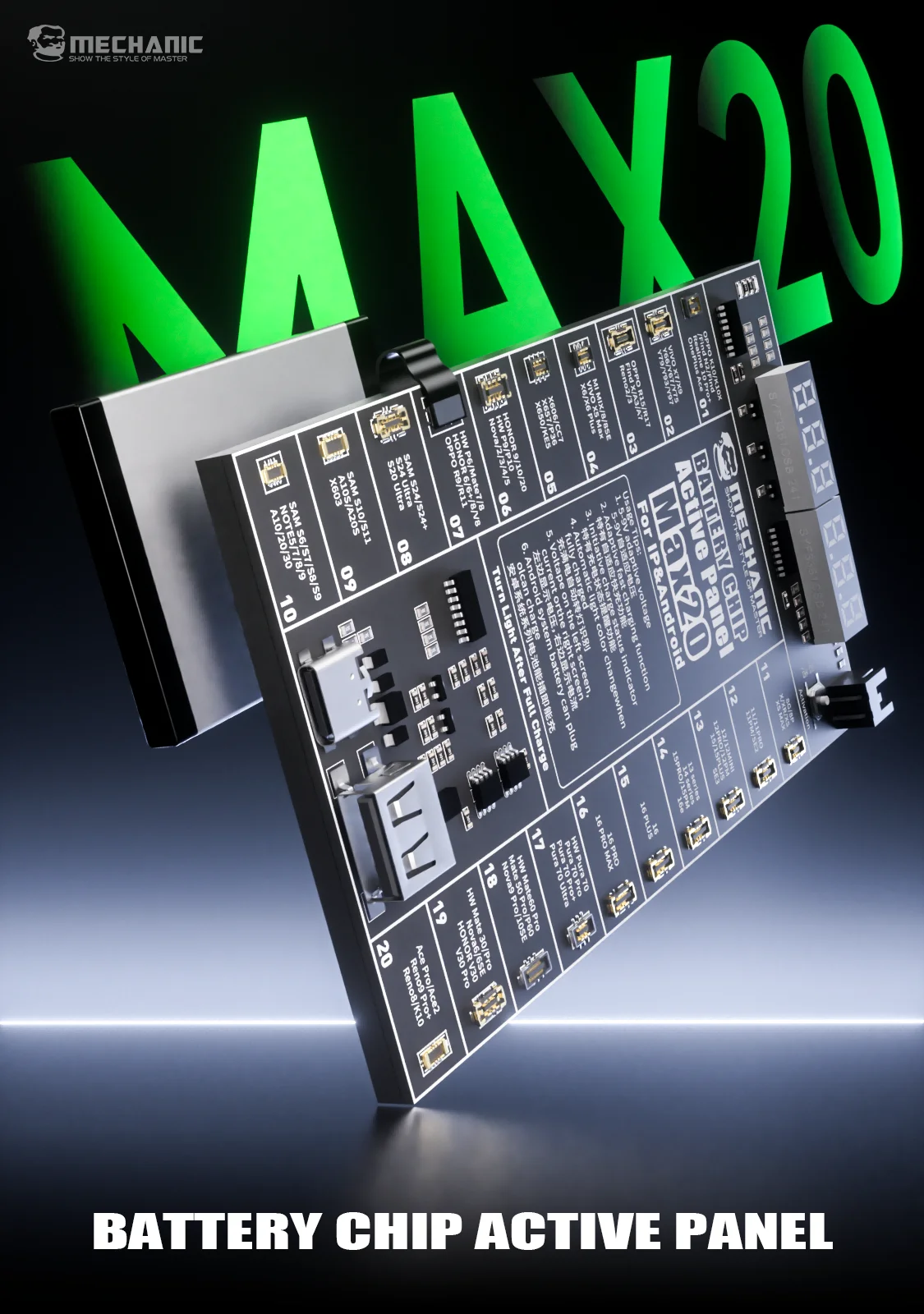

🔧 MECHANIC MAX20 Battery Chip Active Panel – Professional Tool for iPhone & Android Repair 🔧
✅ 4.2V-4.5V Dual Output: Precisely adjust voltage for battery activation and maintenance, compatible with lithium-ion batteries.

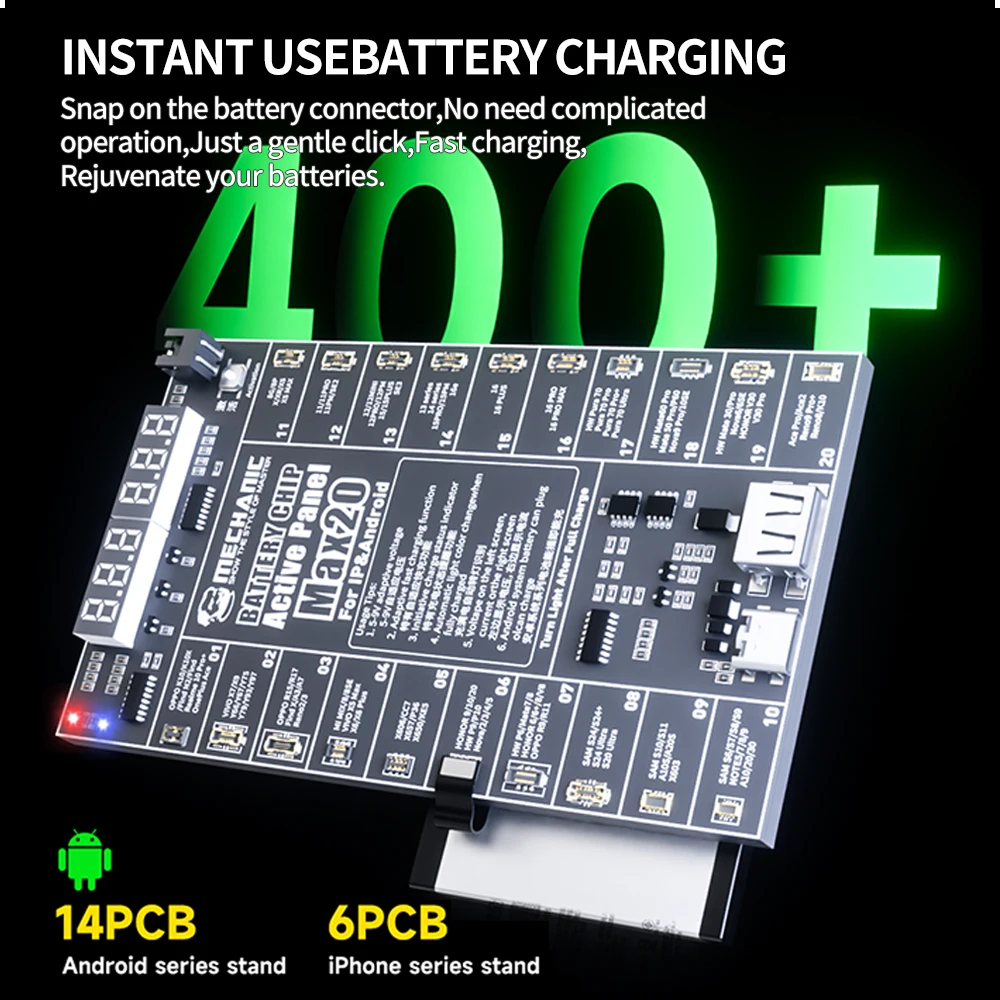

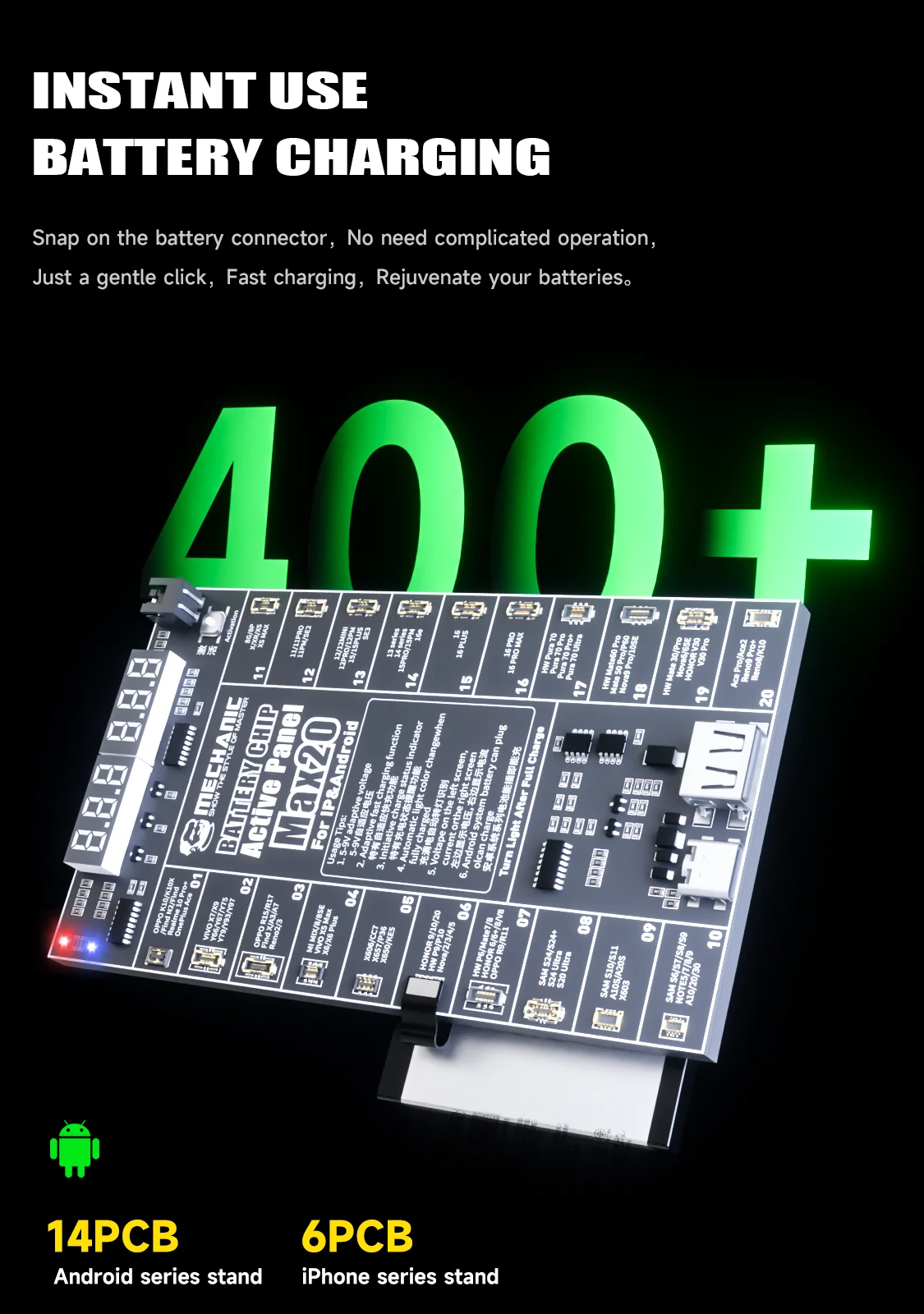

✅ 400+ Model Compatibility: Supports mainstream iPhone and Android devices (400+ models), with labeled slots for quick connection.

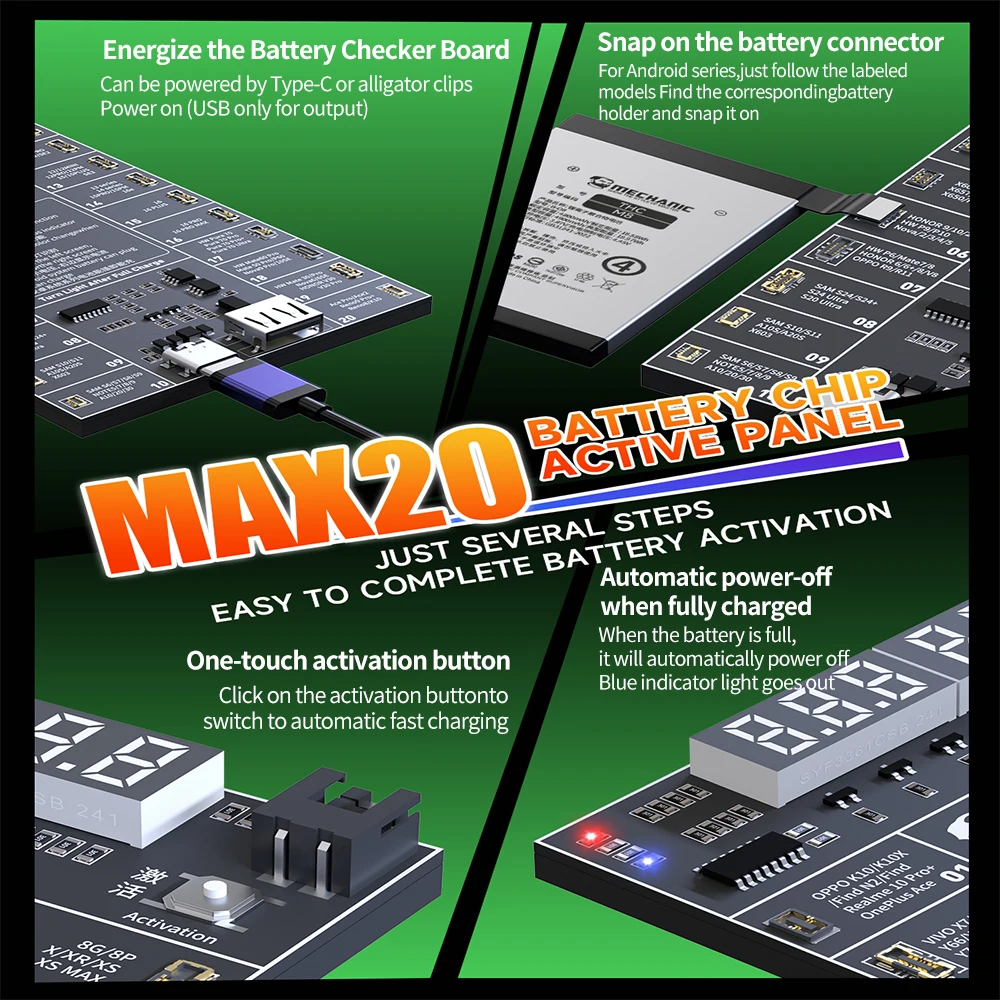

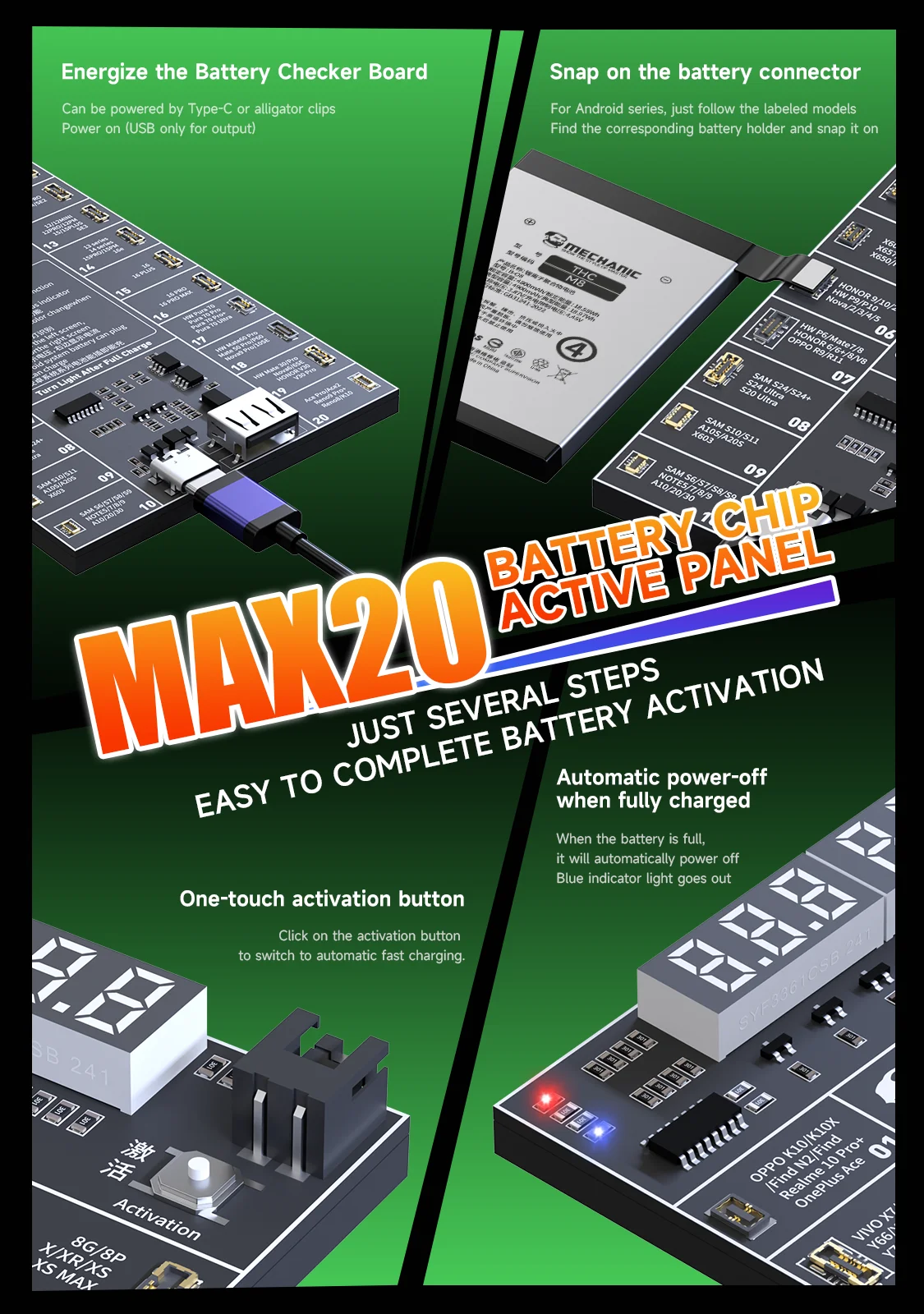

✅ One-Click Activation: Instantly switch to fast-charging mode with the dedicated button; blue LED indicates active status.
✅ Auto Power-Off: Automatically shuts off when charging completes; red LED alerts for over-voltage/over-current.
✅ Durable Build: Reinforced ABS plastic casing + stainless steel connectors for long-lasting use in repair shops.
📌 Technical Specifications:
-
🔥 Voltage Range: 4.2V–4.5V (adjustable via dial)
-
⚖️ Dimensions: 134×77×6mm (panel)
-
💡 Certifications: CE/FCC/RoHS (if applicable)
📦 Includes:
-
1× MAX20 Battery Chip Active Panel
-
1× User manual
💡 Usage Scenarios:
🔧 Battery activation for dead iPhone/Android devices
🔧 Precision voltage adjustment for PCB maintenance
🔧 Charging/discharging testing of lithium-ion batteries

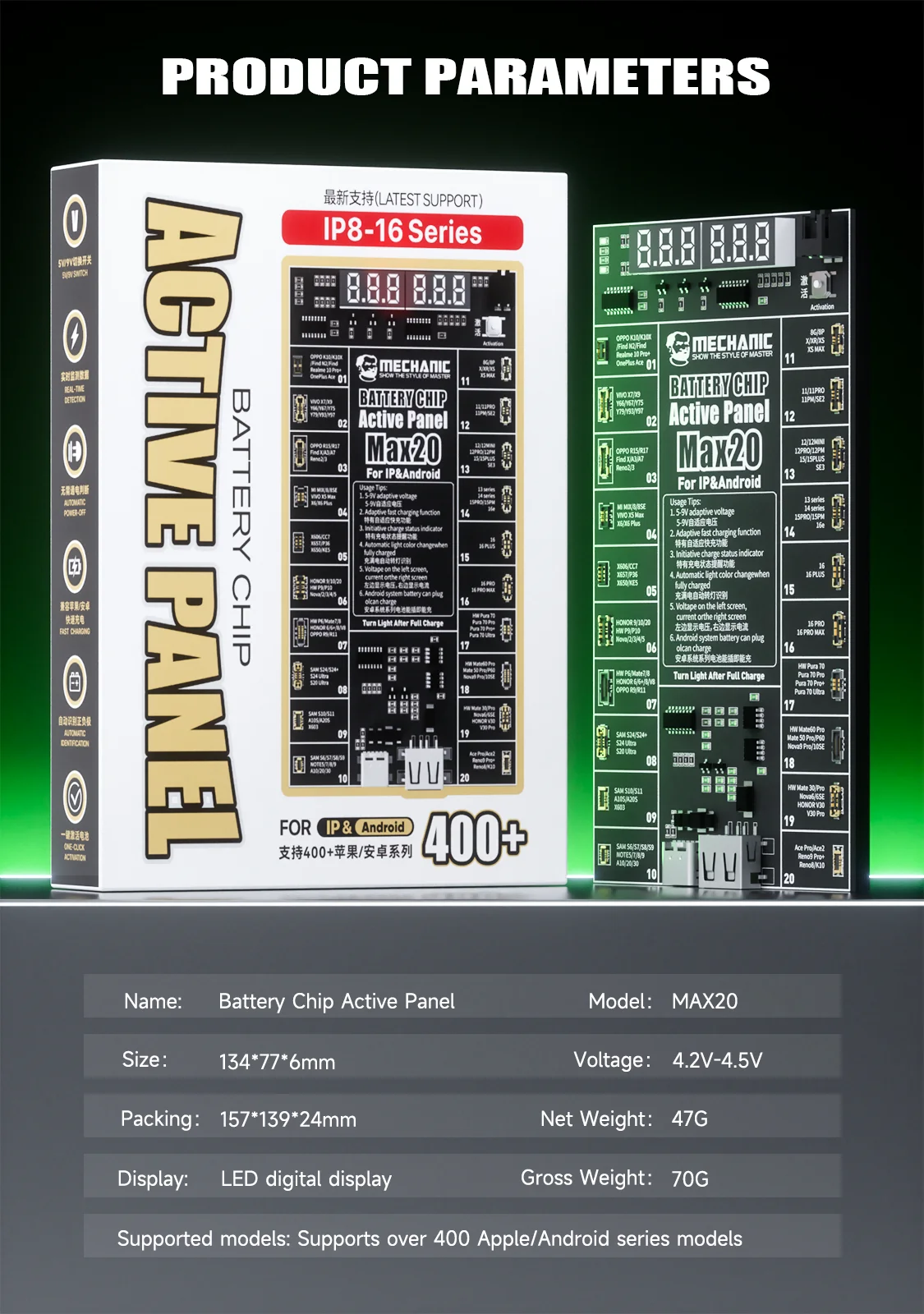

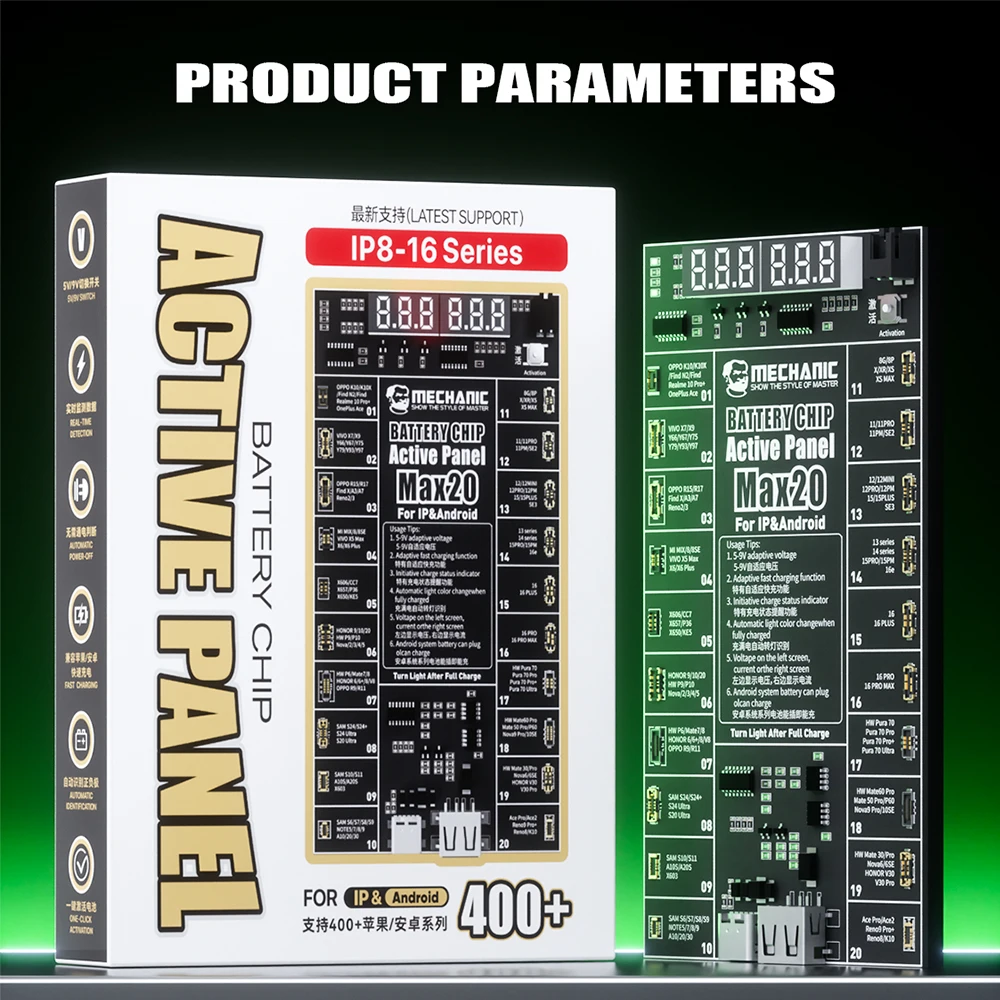

Product Specifications
Brand Name: welsolo
Origin: Mainland China
High-concerned chemical: None
DIY Supplies: Electrical
Type: Combination
is_customized: No
Model Number: MECHANIC MAX20
Brand: MECHANIC
Product name: Battery Chip Active Panel
Model: MAX20
Product size: 134*77*6mm
Packing: 157*139*24mm
Net weight: 47g
Gross weight: 70g
Voltage: 4.2V-4.5v
Display: LED digital display
Supported models: Supports over 400 Apple/Android series models
Choice: yes
