Matek F405-Wing-V2 Flight Controller
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake

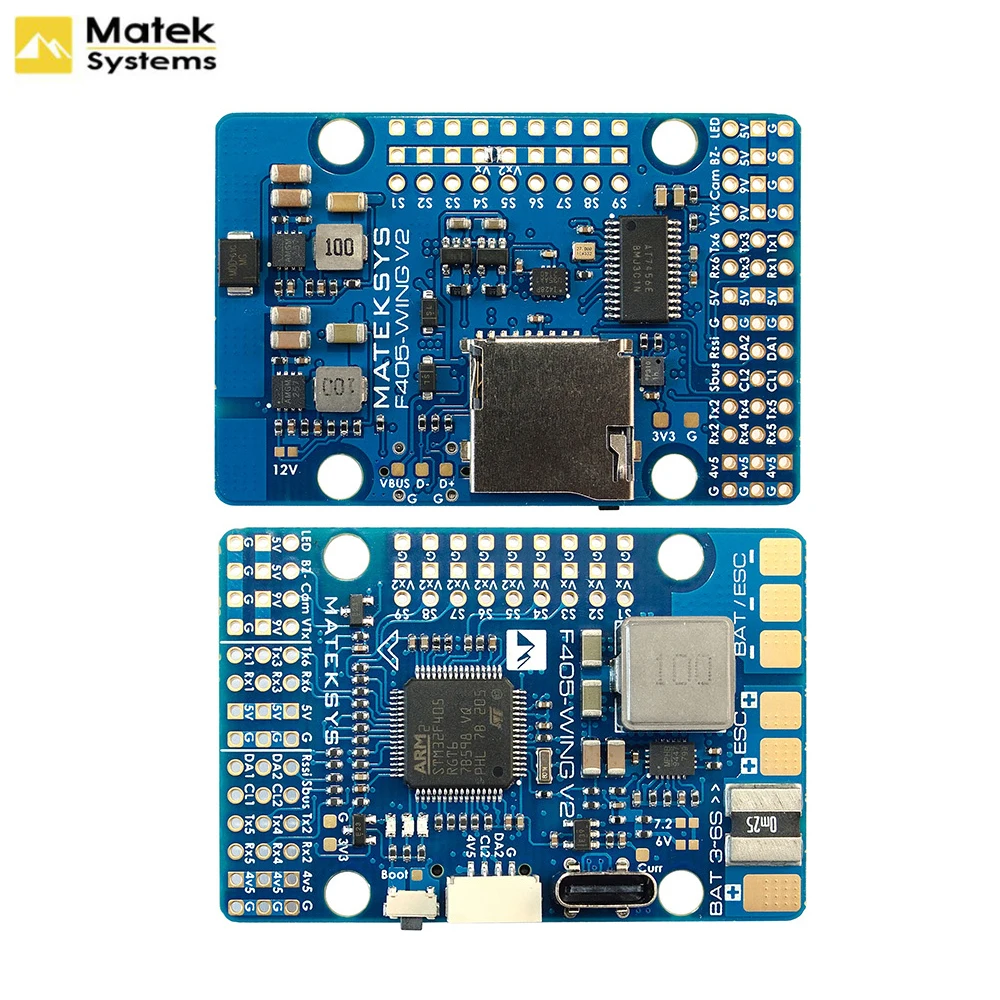

The Matek Mateksys F405-Wing-V2 flight controller is a compact, high-performance board designed for advanced drone applications. Measuring 54x36x13mm and weighing only 25g, it features an STM32F405RGT6 MCU at 168MHz with 1MB flash, along with ICM42688-P IMU, DPS310 barometer, and AT7456E OSD. Equipped with 6 UARTs, 10 PWM outputs, 2 I2C ports, 3 ADC channels, and a MicroSD card slot, it provides versatile connectivity. The power distribution board supports 9-30V input with TVS protection, includes a 220A current sensor, multiple BEC options (5V, 9V/12V, 3.3V), and mounting grommets for easy installation, making it ideal for custom FPV and multirotor builds.
This is the Matek Mateksys F405-Wing-V2 Flight Controller
Experience precise control with this sleek, blue-colored flight controller designed for professional drone operations. The rectangular board, measuring approximately 54mm by 36mm with rounded edges, combines modern aesthetics with high functionality. Its vibrant blue surface features an organized layout of electronic components and connectors, including a prominent dark blue label at the center showcasing model and technical details. The gold-plated pins add a refined touch and facilitate secure connections. Equipped with multiple mounting holes surrounded by black grommets, this controller ensures a stable setup. The clean, tight organization of components reflects a professional and minimalistic style, perfect for serious enthusiasts seeking durability, technical precision, and a confident flying experience.
Key features of the Matek Mateksys F405-Wing-V2
- This flight controller features an STM32F405RGT6 MCU running at 168MHz with 1MB flash, providing robust processing power for demanding drone applications. The blue PCB is carefully designed for optimal airflow and durability.
- Includes an ICM42688-P IMU, DPS310 barometer, AT7456E OSD chip, and a MicroSD slot for blackbox data logging, giving you comprehensive real-time flight data analysis capabilities.

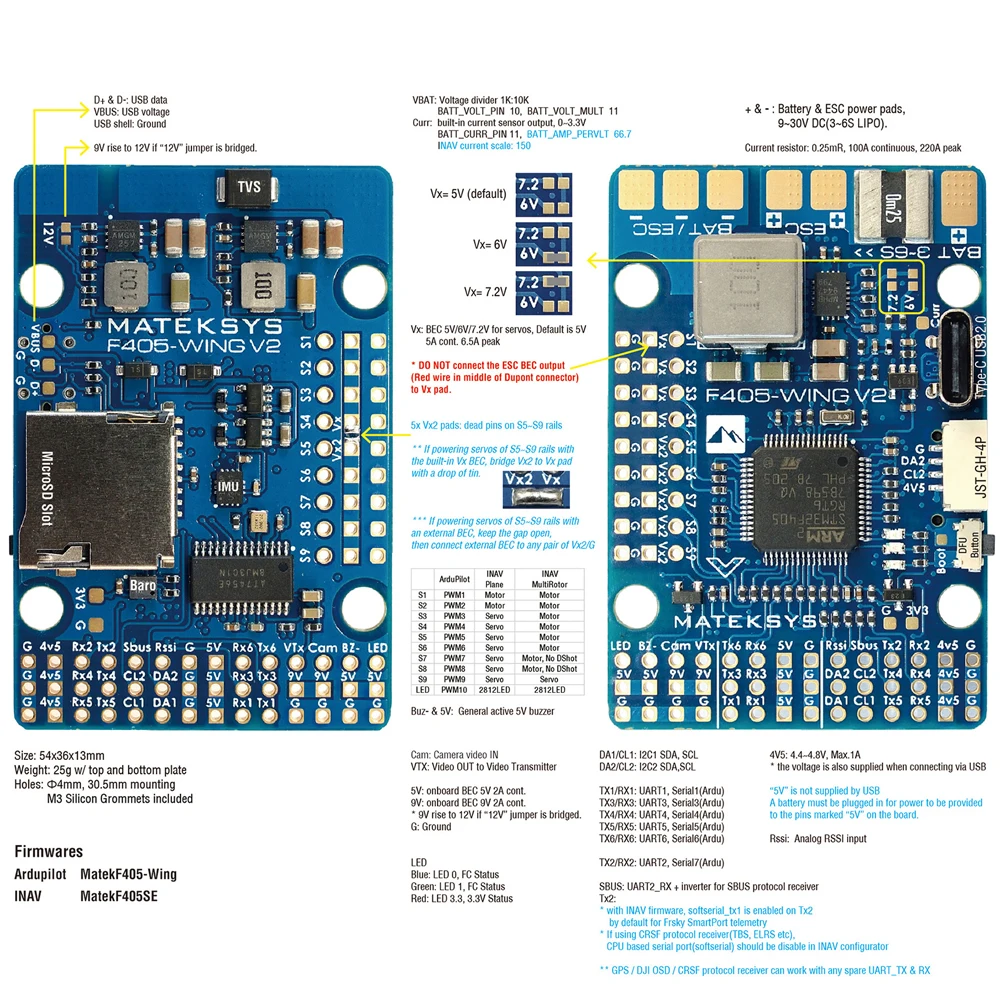

- Offers six UART interfaces, one Softserial Tx port (supports INAV), ten PWM outputs, two I2C ports, and three ADC channels for VBAT, current, and RSSI measurements—ensuring extensive connectivity options.
- Supports firmware such as ArduPilot (MatekF405-Wing, ArduPlane 4.4+) and INAV (MATEKF405SE, INAV 6.0+), compatible with 3-6S LiPo batteries, and includes voltage regulation features like a 5V BEC (2A), 9V/12V output, and adjustable Vx output (default 5V, max 7.2V).

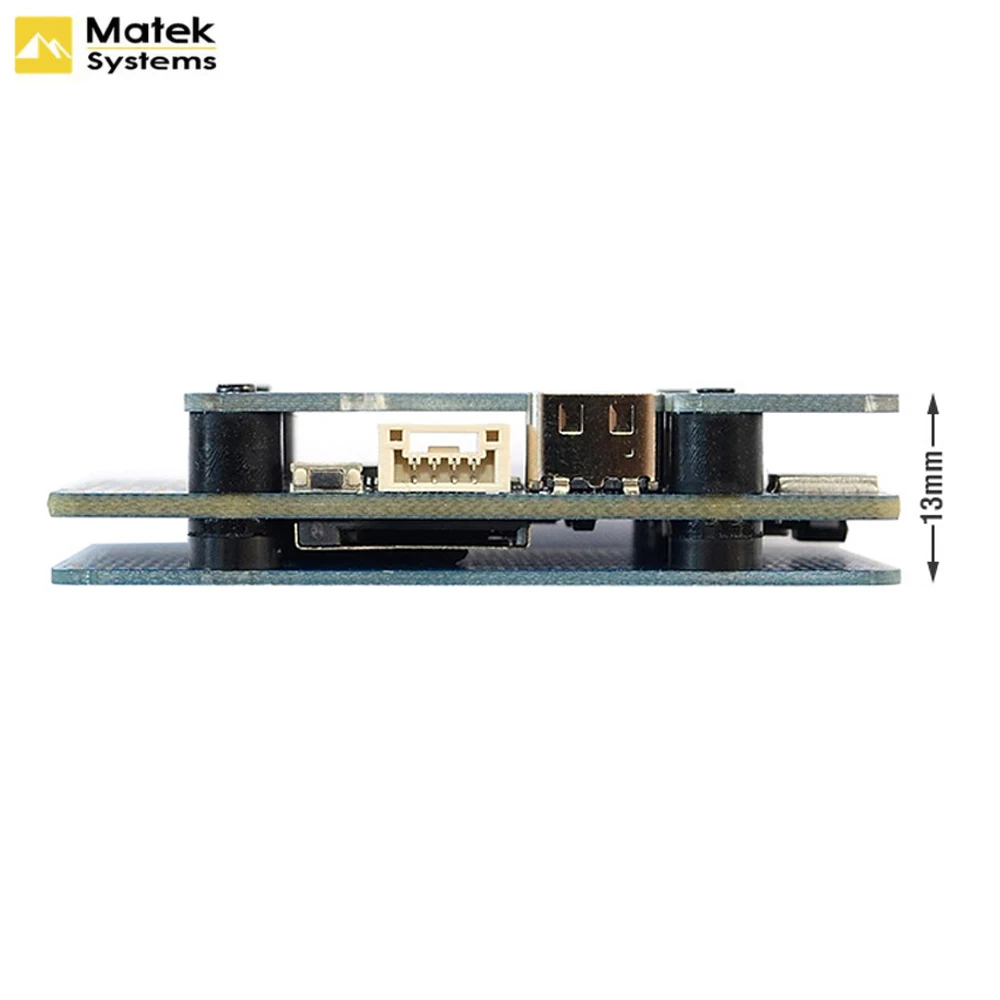

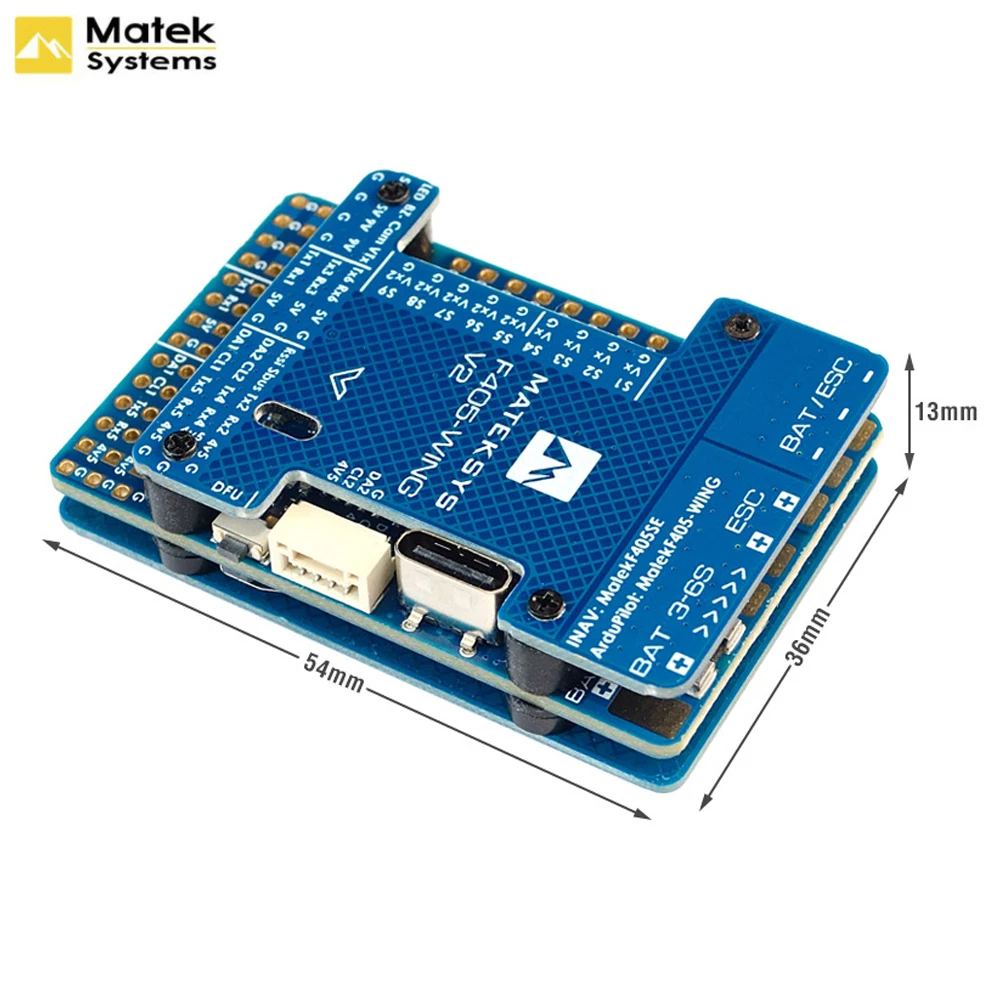

- The physical dimensions are 54x36x13mm, weighing just 25 grams. Mounting is facilitated through four Φ4mm grommet holes on a 30.5mm square grid, designed for versatile drone integration and secure attachment.
- The PCB surface is sleek and organized, with a centered blue label and gold-plated pins, blending high-tech looks with reliability—the ideal addition for high-performance drone builds.
This is the Matek Mateksys F405-Wing-V2, get yours today
Unlock your drone’s full potential with this premium flight controller. Its advanced features, robust build, and sleek design make it an essential component for expert pilots who demand excellence. Imagine the confidence you’ll have knowing your drone is powered by such reliable technology. Whether you're customizing your drone or upgrading your setup, this controller ensures seamless integration and exceptional performance. Invest in quality for stability, durability, and ultimate control—take your flying experience to new heights today. You're one step closer to mastering drone flight with this outstanding piece of equipment.
