LVDS LCD Controller PCB for 10-42″ Screens
38.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake
The MT169/MT6820-MD V 2.0 Universal LVDS LCD Monitor Screen Program is a compact 108×28mm PCB designed for 10-42 inch wide LVDS LCD screens, supporting a maximum resolution of 1920×1200 pixels. Equipped with the HX6820-A main IC, it supports 1-channel VGA input and is compatible with most formats up to 1080p (1920×1080) at 75Hz. The board provides dual 8-bit LVDS output for 1920×1080 displays, and supports SOG and infrared touch interfaces. Operating at 12V with a temperature range of -20 to 65°C, it offers a reliable, versatile solution for laptop and TV LCD screens.
In stock
This versatile PCB for LVDS LCD screens

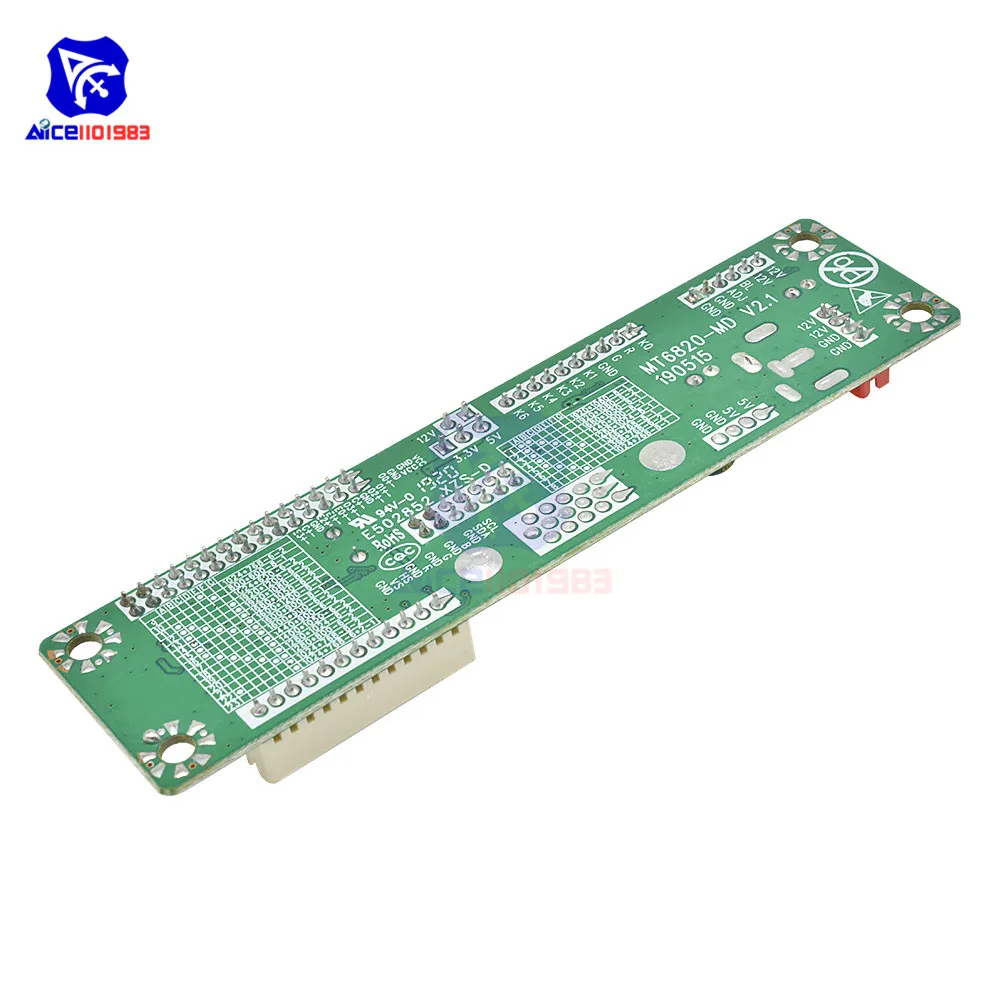

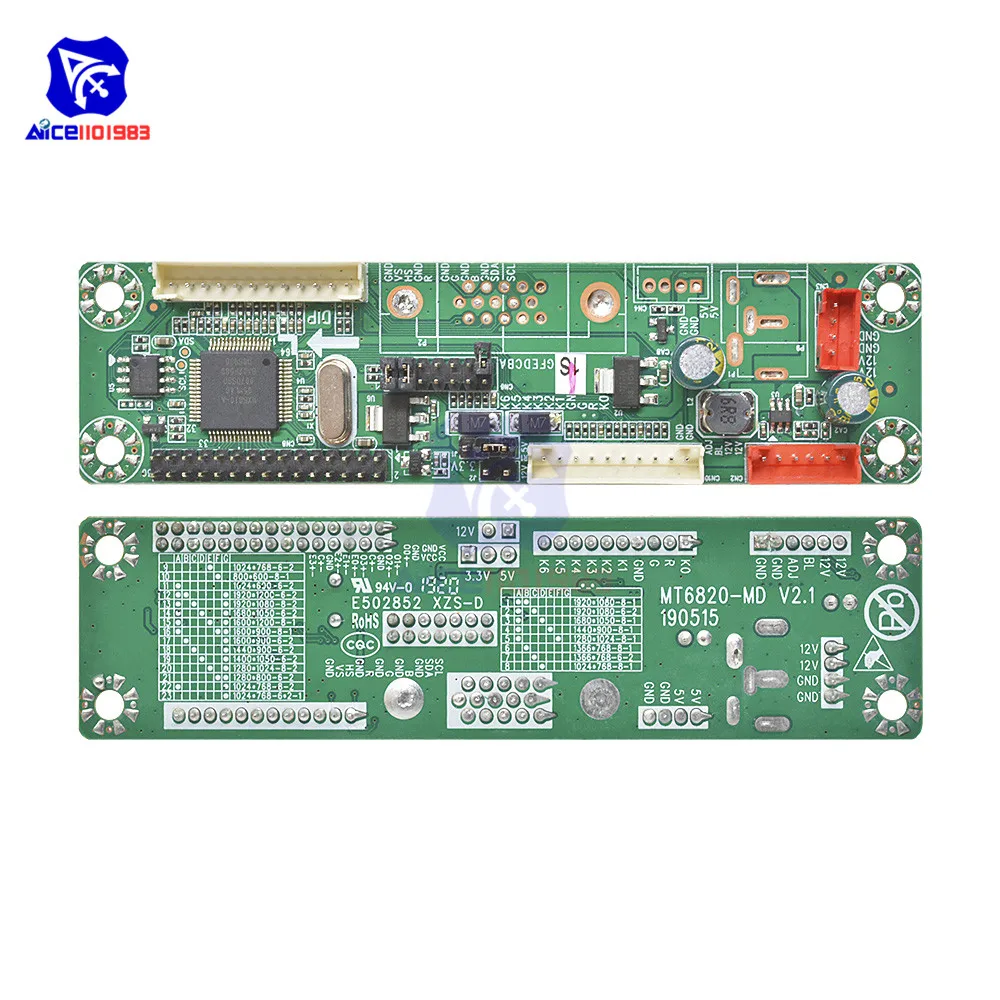

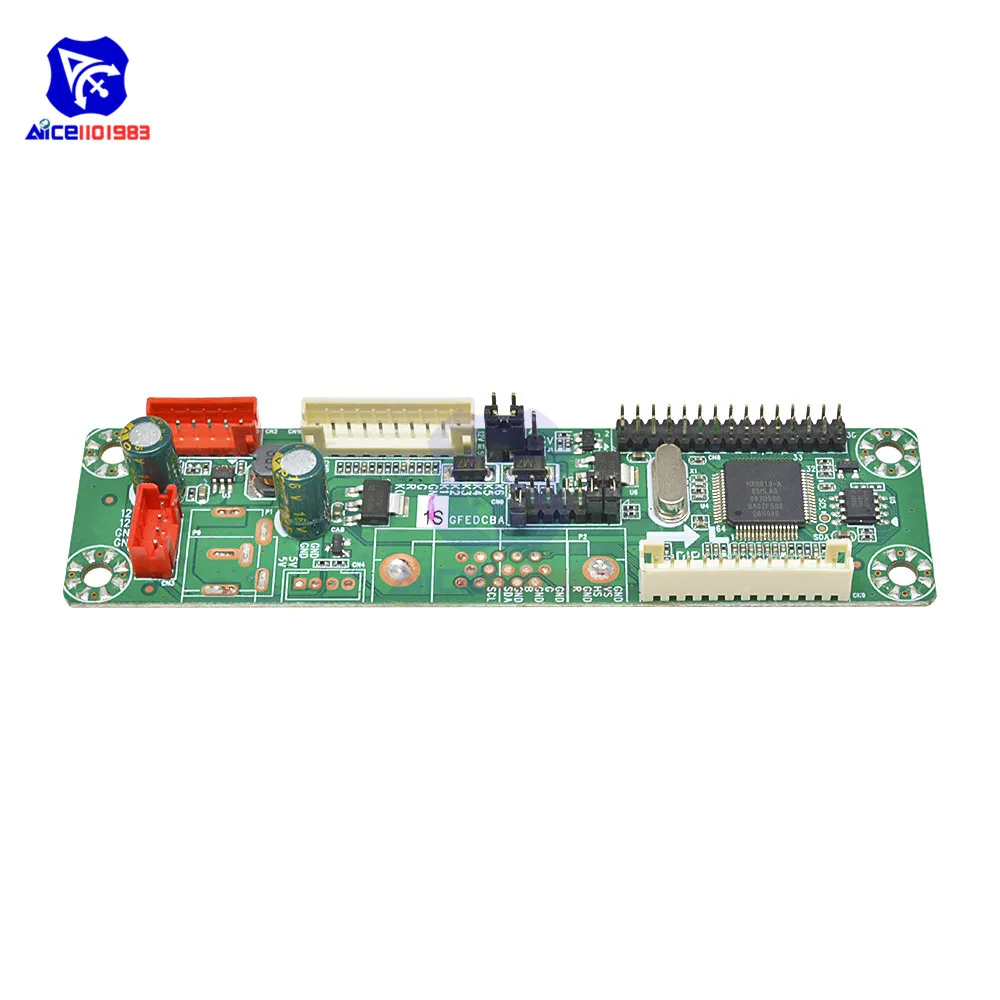

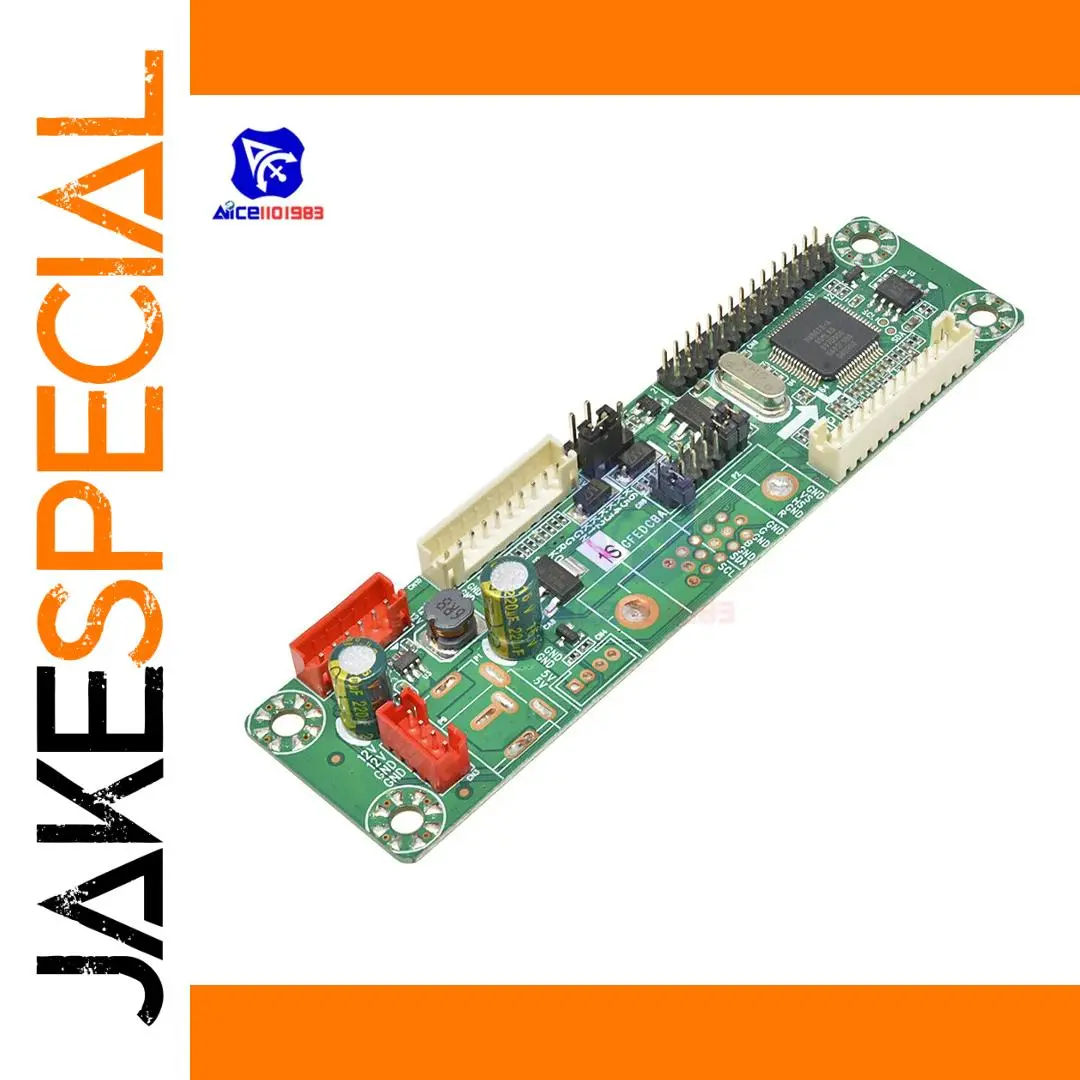

Step into your project with confidence using this high-quality MT169/MT6820-MD V 2.0 Universal LVDS LCD Monitor Screen Program PCB. Designed for seamless integration, it supports displays from 10 to 42″ with a maximum resolution of 1920×1200 pixels. Whether upgrading an existing monitor or building a custom setup, this board offers reliable performance and easy compatibility. Featuring a sleek, elongated design at 108×28mm, the vibrant green surface is densely populated with essential components, organized for efficient data and power flow. The classic green PCB contrasts beautifully with the black ICs, shiny metallic crystals, and bright, standout capacitors and terminals, giving it an aesthetically professional look. Trust this module for precision display control in your electronic projects.
Keys features of the product PCB for LVDS LCD screens
- Supports wide LCD screens from 10 to 42″, perfect for a variety of monitor and TV projects with resolutions up to 1920×1200 pixels for crisp visuals.
- Main IC HX6820-A ensures high-quality data transfer, supporting 1-channel VGA input and most formats up to 1080p (1920×1080) at 75Hz refresh rate for smooth images.
- Features dual 8-bit LVDS output compatible with 1920×1080 displays, enabling connection to multiple high-resolution screens for vivid imaging.
- Operates on a 12V supply and functions efficiently within a temperature range of -20 to 65°C, ideal for various environmental conditions.
- Includes SOG and infrared touch interface support, offering flexible interactivity options for touchscreen applications.
- Compact, durable construction with copper traces, high-quality electrolytic capacitors, and robust mounting holes ensures longevity and reliable performance in demanding setups.
This PCB is the perfect choice—order now for your LCD project
Imagine the seamless operation of your custom LCD build or upgrade, knowing this professional-grade PCB supports your display needs reliably. Its technical precision ensures crisp images, stable connections, and compatibility with many screens. Investing in this module means trusting a component engineered for performance, giving you peace of mind and inspiring confidence in your projects. Improve your display solutions today—this PCB is ready to help you bring your vision to life with durability and clarity.
| Condition | New |
|---|---|
| Warehouse | HK Warehouse – Hong Kong |
