LT6600 Low Pass Filter Module 2.5-20MHz
61.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake
Experience precise high-frequency signal processing with this compact LT6600 low pass filter module, featuring a 50mm x 28mm PCB and lightweight design weighing just 9.1g. It offers selectable cutoff frequencies of 2.5MHz, 5MHz, 10MHz, 15MHz, and 20MHz, powered by a stable 5V DC supply with a maximum current of 50mA. The module handles signals up to 1.3V peak-to-peak within a 2kHz to 30MHz range, providing gain factors of 3.1x at 2.5MHz, 2x at 5MHz, 1.6x at 15MHz, and up to 1.3x at 10MHz and 20MHz. Featuring SMA connectors for coupling signals with DC components, it is ideal for power systems, sensor processing, and signal generation applications operating within 0°C to 75°C.
This this LT6600 Module for Precision Filtering

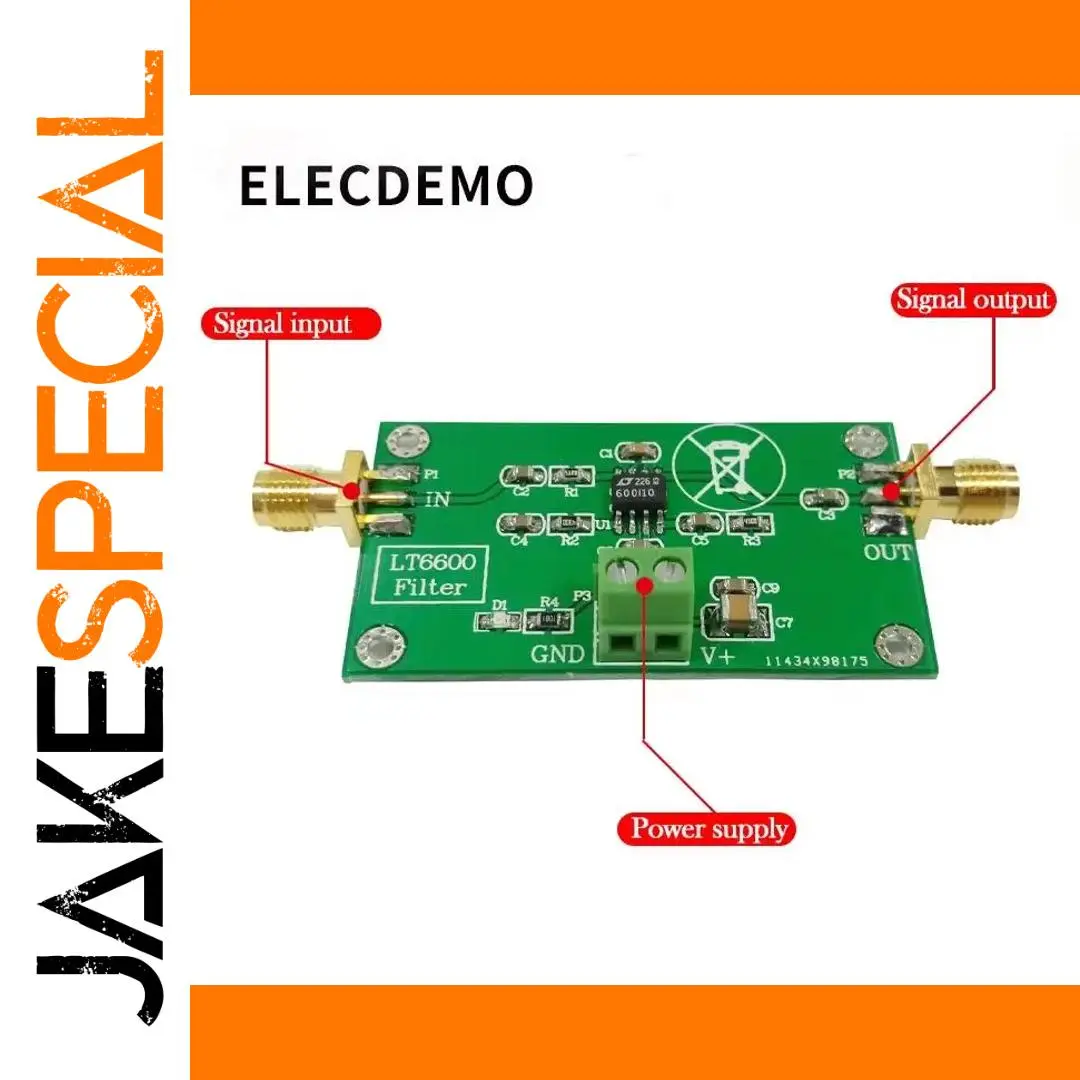

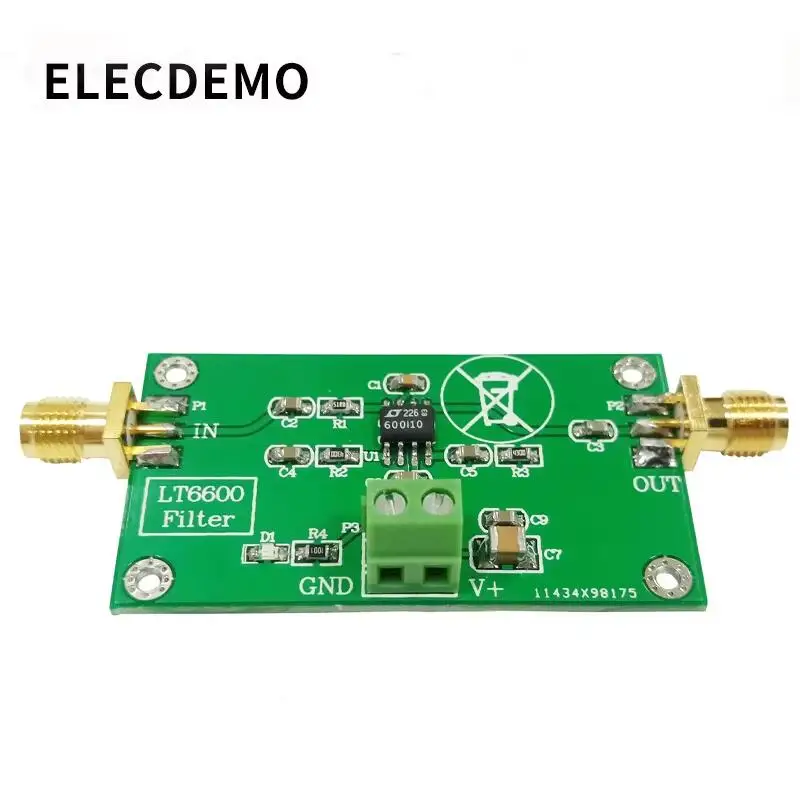

Experience seamless signal filtering with the this LT6600 module, designed for high-frequency applications. Its sleek, compact rectangular green PCB measures just 50mm by 28mm and weighs only 9.1g. The polished gold-colored SMA connectors on each side provide secure, high-quality connections for input and output signals, marked vividly with red labels and arrows for clarity. The surface-mounted components, including resistors, capacitors, and a black integrated circuit, are arranged symmetrically, emphasizing its organized, modern industrial aesthetic. Whether you're working on sensor processing, power systems, or signal generation, this module's clean design and precise engineering make integration straightforward, ensuring reliable performance in a compact form factor that fits into your projects effortlessly.
Keys features of this LT6600 Low Pass Filter Module
- Selectable cutoff frequencies of 2.5MHz, 5MHz, 10MHz, 15MHz, and 20MHz for versatile filtering needs, managed easily with internal settings for stable operation and adjustments.
- Powered by a 5V DC supply with a maximum current draw of 50mA, ensuring efficient power consumption suitable for various electronic systems without overload issues.
- Single-ended input channel capable of handling signals up to 1.3V peak-to-peak within a frequency range of 2kHz to 30MHz, ensuring compatibility with diverse signal sources.
- Outputs coupling signals with DC components via SMA interfaces, easy to connect with high-quality coaxial cables, ensuring minimal signal degradation and high-frequency integrity.
- Designed without reverse connection or overload protections, emphasizing precision performance; operate with care within the recommended temperature range of 0°C to 75°C.
- Technical specifications include a 4th-order switched capacitor low-pass filter with gain magnification factors: 3.1x at 2.5MHz, 2x at 5MHz, 1.3x at 10MHz/20MHz, and 1.6x at 15MHz, suitable for sensitive signal processing.
- Compatible with various systems requiring high-frequency filtering and signal integrity, making it ideal for sensor signal processing, power systems, and transmitter/receiver applications.
This this LT6600 module is ready to enhance your projects—order now and experience exceptional filtering performance!
Imagine integrating this high-performance filter into your setup — you'll notice how it elevates the clarity and quality of your signals, making your projects more precise and reliable. The sleek, organized design and stable operation help simplify your workflow, providing confidence in every measurement and signal process. Whether you're designing advanced communication systems, sensor arrays, or power management solutions, this module offers the flexibility and performance you need. Get yours today and unlock the full potential of your electronic projects with ease and precision!
| Color | 10MHz, 15MHz, 2.5MHz, 20MHz, 5MHz |
|---|---|
| Condition | New |
| Warehouse | HK Warehouse – Hong Kong |
