INA226 Precision Current Voltage Sensor Module
Price range: 26.99 € through 27.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake

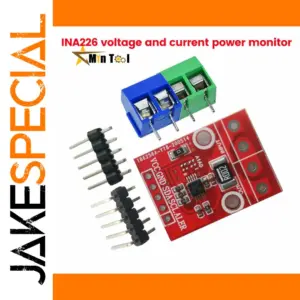

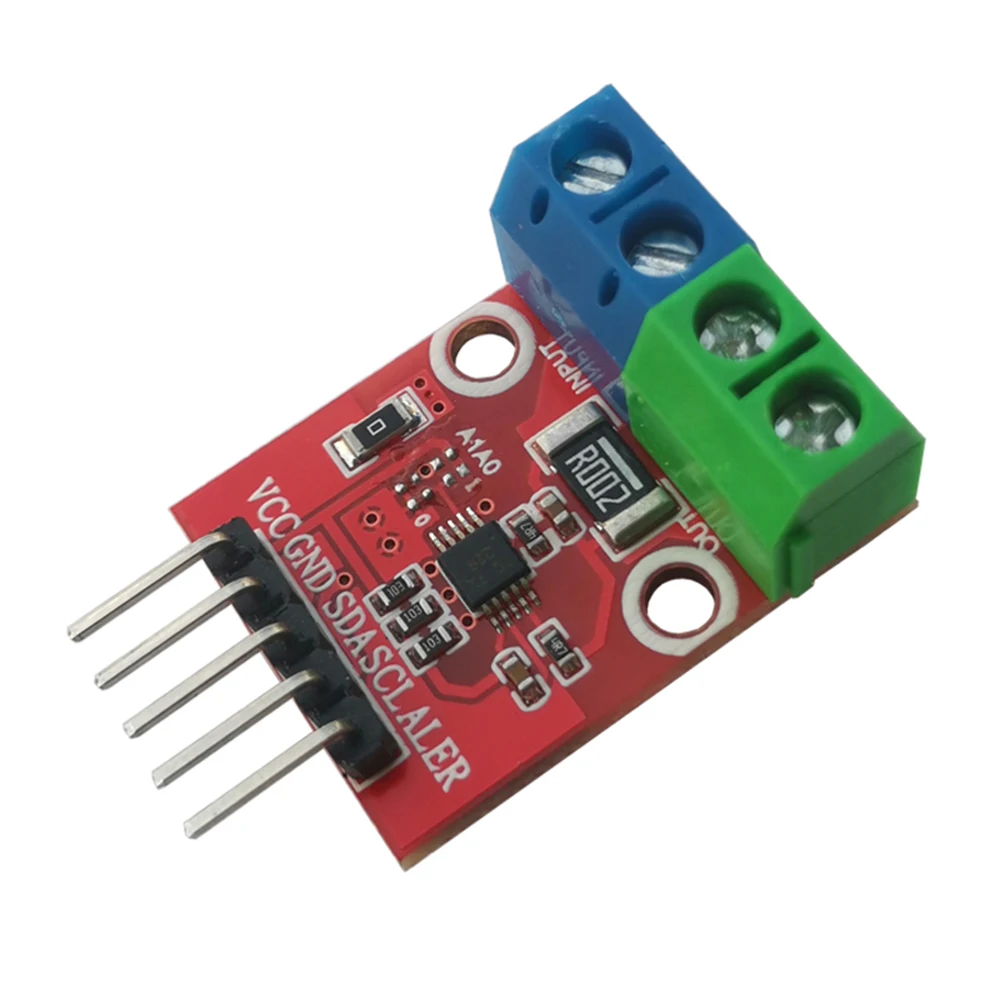

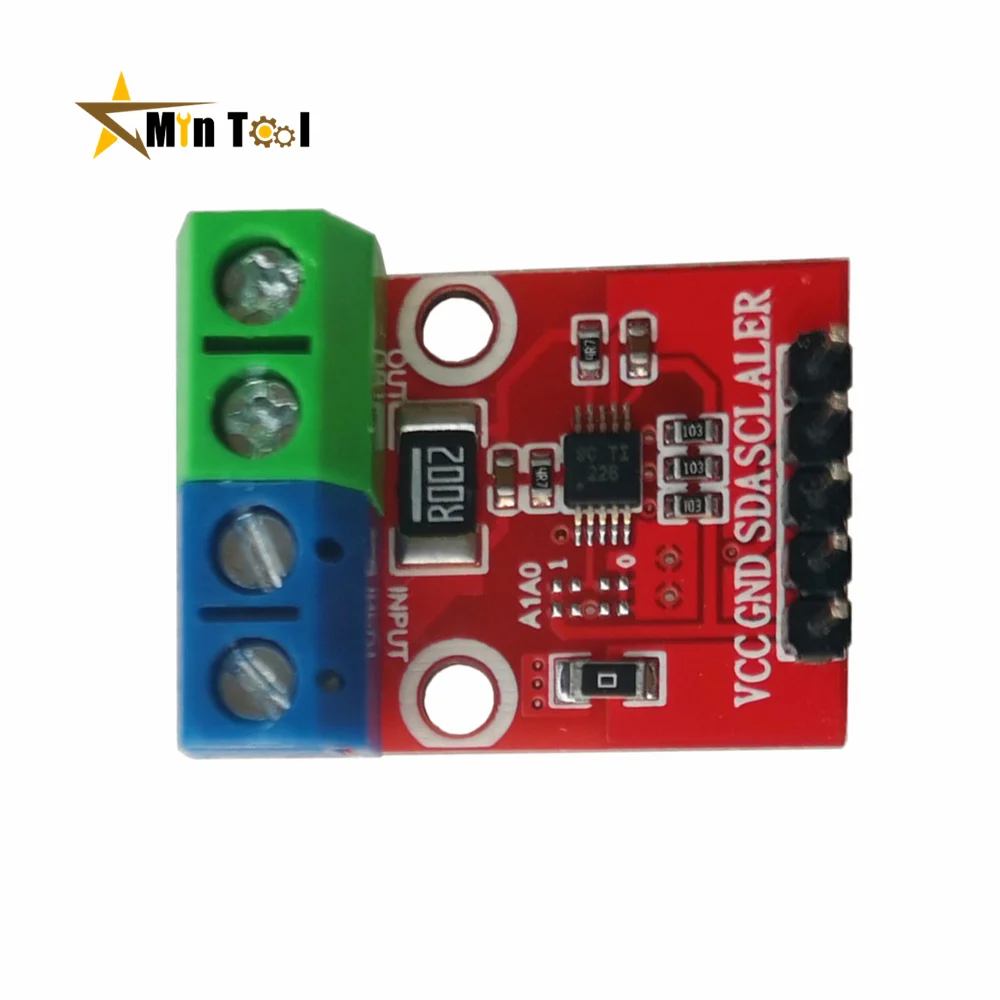

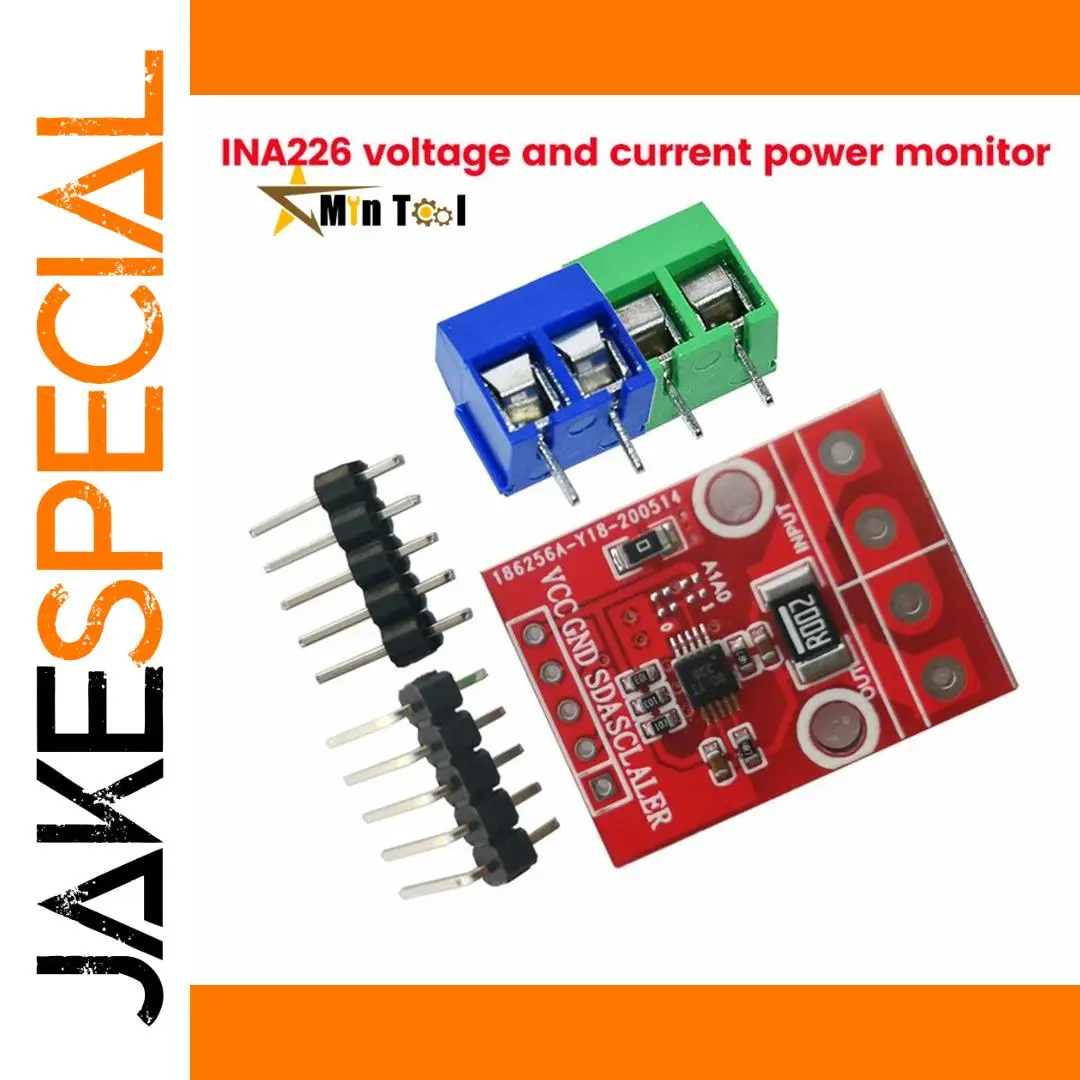

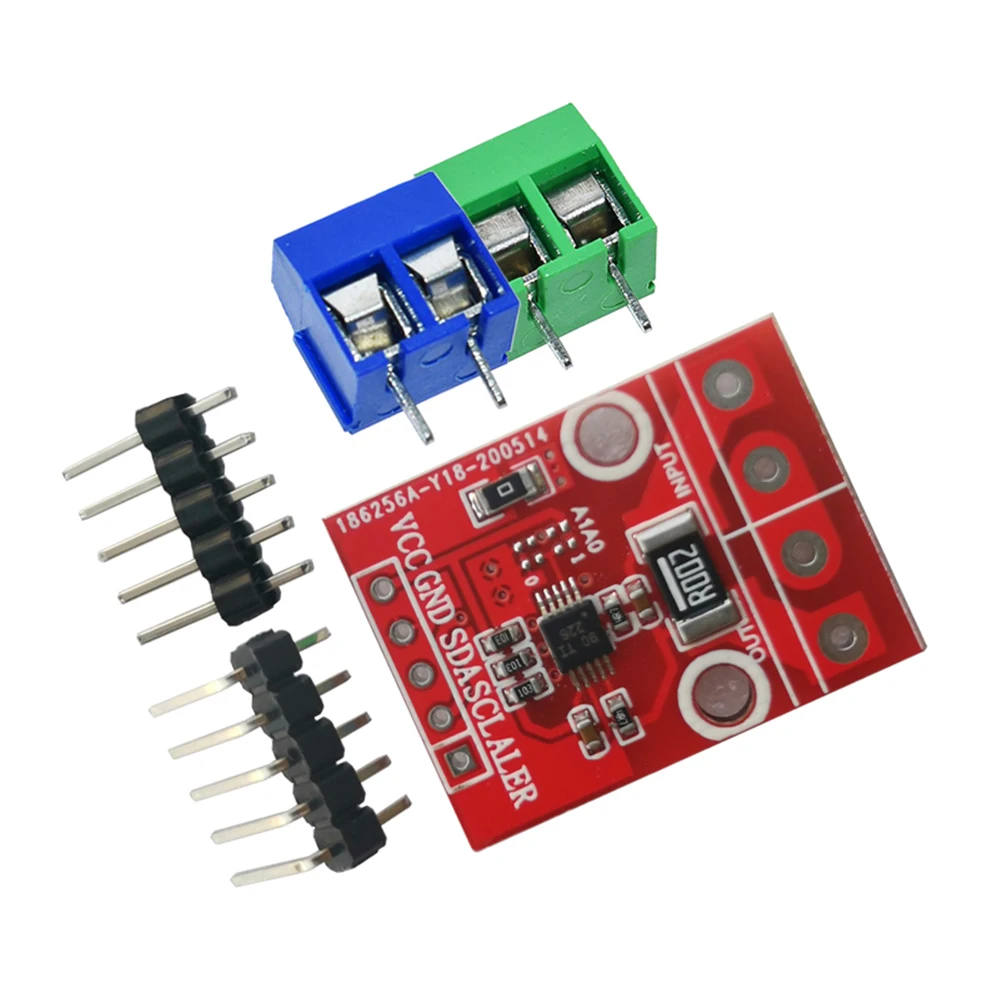

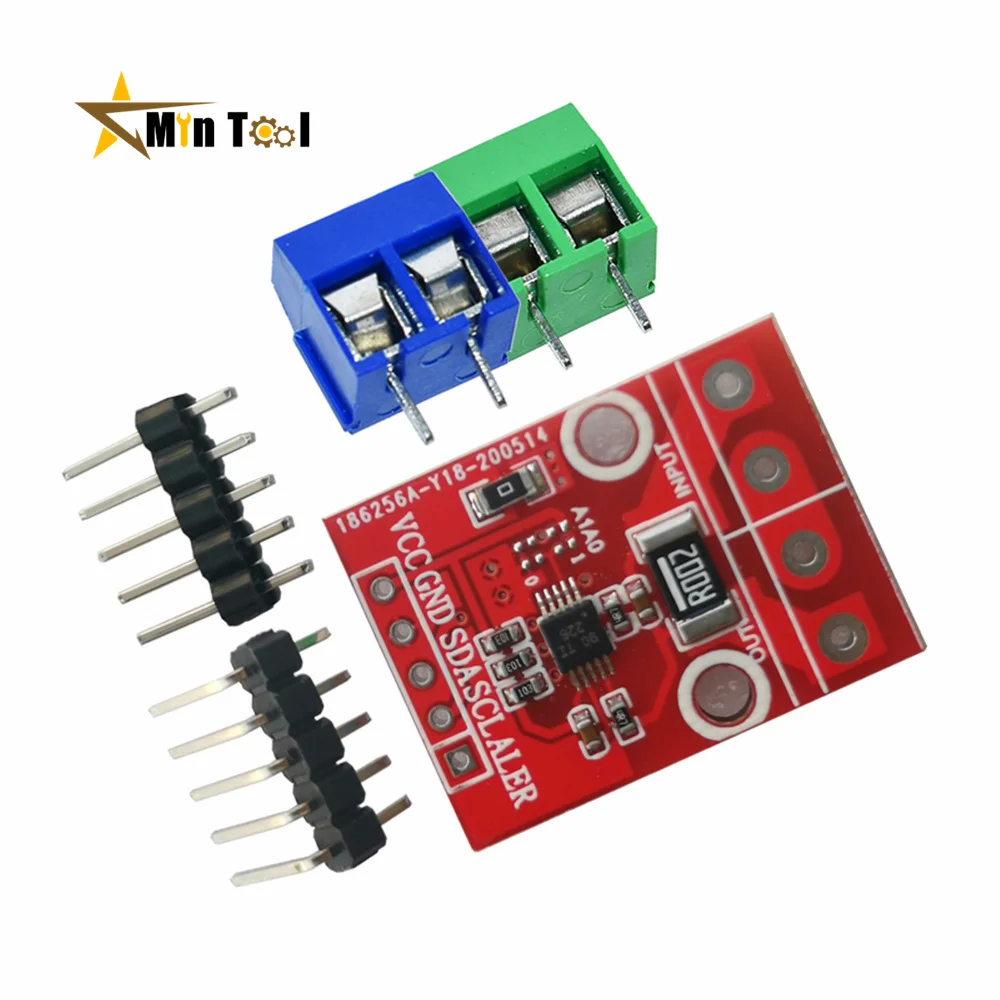

This compact INA226 current and voltage monitoring sensor module features a small 20mm x 27mm red PCB with white silkscreen labels, neatly organized surface-mounted components, and a black integrated circuit. Equipped with a green terminal block with metal screw terminals and blue connector housing for secure connections, it operates from 2.7V to 5.5V and measures voltages from 0 to 36V and currents from -20A to +20A in a bi-directional manner. The module provides 16-bit resolution, 1% accuracy, and supports up to 16 programmable I2C addresses. Its precise design and robust features make it ideal for power monitoring in single-phase DC systems up to 1 kW.
This reliable INA226 sensor module for measurements
Discover the sleek design of this INA226 Current Voltage Monitoring Sensor Module, crafted for precision. Its compact rectangular red PCB, measuring just 20mm by 27mm, seamlessly fits into your electronic projects. Featuring high-quality surface-mounted components, including an integrated circuit, resistors, and capacitors, it offers a clean and organized appearance. The module’s vibrant green terminal block and blue connector housing add pops of color, making setup straightforward and visually appealing. Its small size and modular layout make it ideal for monitoring power in compact systems, with a 3mm mounting hole ensuring easy installation. Whether integrating into new builds or replacing existing components, this design emphasizes ease of use, dependable performance, and technical clarity, making your electronic installation both efficient and durable. Its aesthetic details reflect functionality blended with thoughtful design for professional applications.
Keys features of the INA226 current and voltage sensor

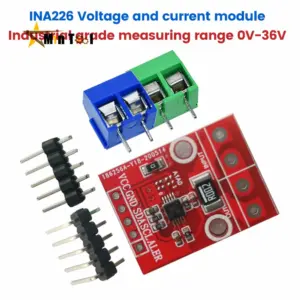

- Precisely measures voltage from 0 V to 36 V with 1.25 mV resolution, perfect for high-accuracy power monitoring in various electronic setups.
- Supports bi-directional current sensing from -20 A to +20 A, allowing comprehensive analysis of power flow in both directions for versatile applications.
- Operates on a single supply voltage from 2.7V to 5.5V, consuming a low 330 µA current, suitable for energy-efficient designs and portable devices.
- Features a 16-bit resolution with 1% accuracy, input offset voltage of ±10 μV, ensuring precise readings for sensitive electronic measurements.

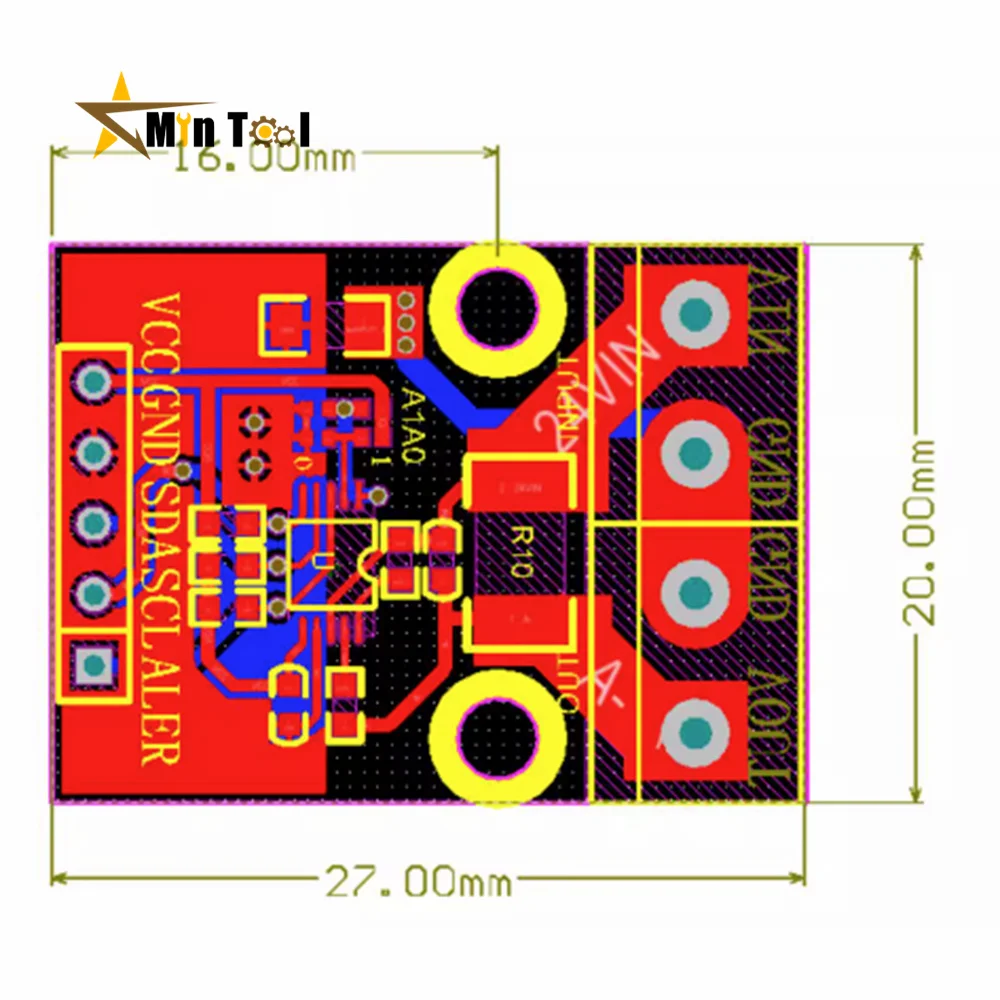

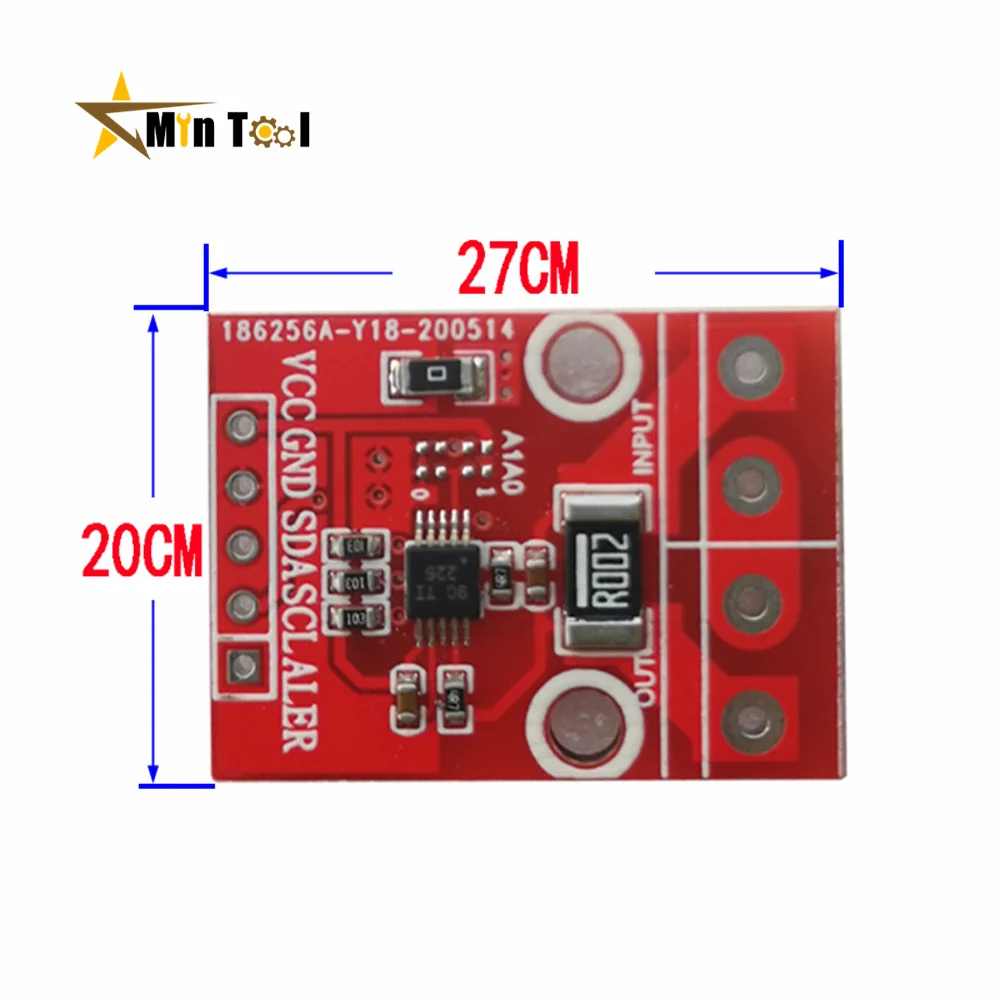

- Designed with a compact 20mm x 27mm PCB, including a 3mm fixing hole, for easy integration into various hardware projects and custom enclosures.
- Supports I2C interface with up to 16 programmable addresses, making it flexible for multiple sensor network configurations without conflicts.
- This module is an ideal solution for monitoring up to 1 kW power systems in single-phase DC applications, with operating temperature range from –40°C to 125°C for robust performance.
Get your INA226 sensor module today for accurate, reliable measurements
Imagine confidently installing this INA226 sensor into your project, knowing it offers precise voltage and current sensing within a compact form factor. Its reliable performance enhances your system’s efficiency and safety, giving you peace of mind. Whether monitoring power supplies, battery systems, or innovative electronic designs—this module combines technical excellence with user-friendly features. Don’t miss the opportunity to elevate your project with a trusted, high-quality component that’s built to last. Invest now and experience the difference that reliable measurement makes in your electronic setup. Your technical masterpiece is just a step away.
| Color | WHITE, Black |
|---|---|
| Condition | New |
| Warehouse | HK Warehouse – Hong Kong |
