ICL8038 Low Frequency Signal Generator Module
36.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake

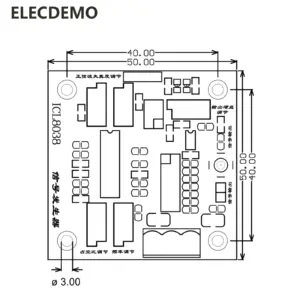

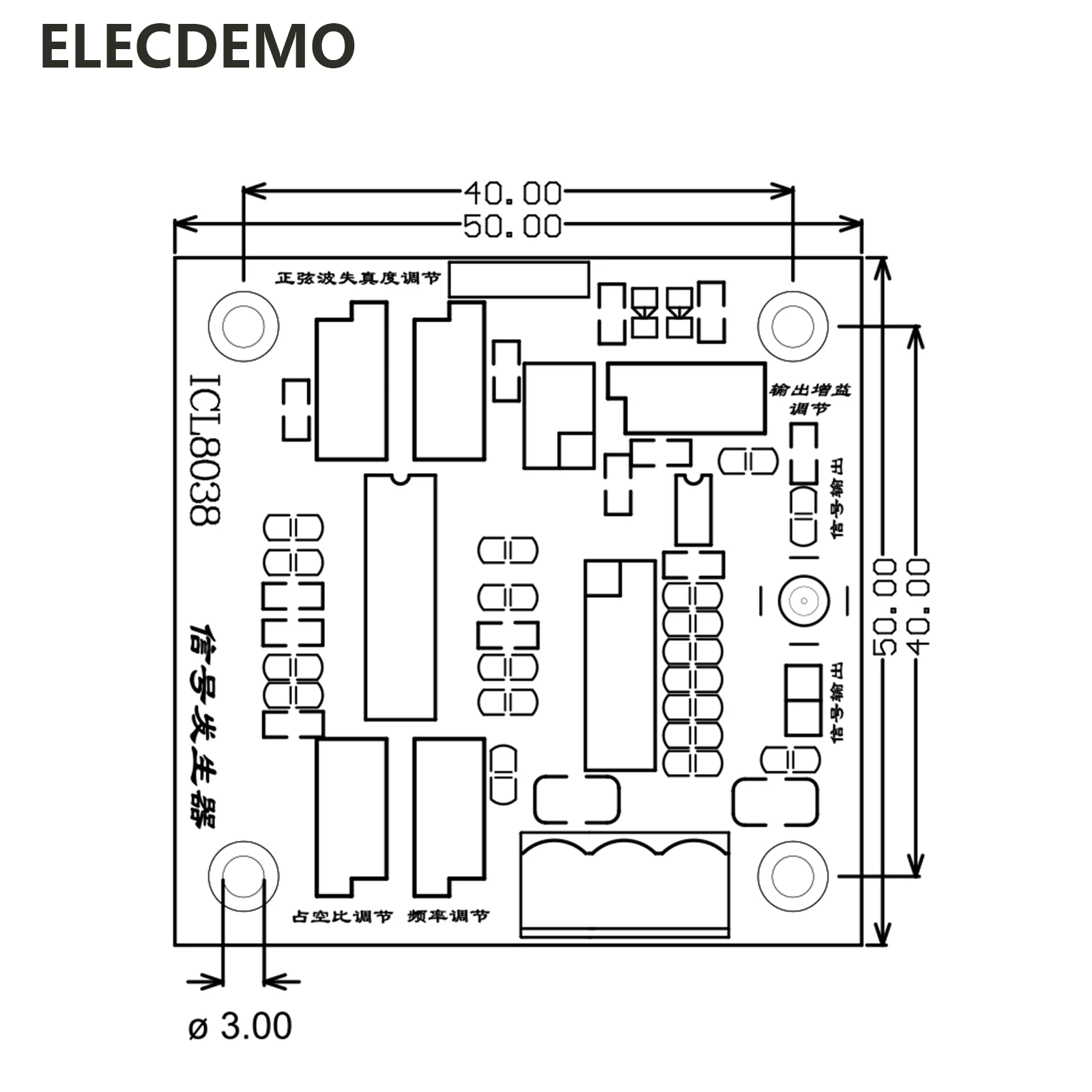

This compact 50mm×50mm low-frequency signal generator module, based on the ICL8038 integrated circuit, produces precise sine, triangular, and square waveforms with high linearity of 0.1% and distortion below 1%. Operating from+5V to+15V, it offers a frequency range from 0.001Hz to 1MHz, adjustable duty cycle from 2% to 98%, and an output voltage up to 28V TTL level. Designed for stability with low frequency drift (max 50ppm/°C), it features an easy-to-use interface with minimal external components, multiple waveform outputs, and external FM control, making it ideal for scientific, testing, and experimental applications.
In stock
This is the ICL8038 Low Frequency Signal Generator Module

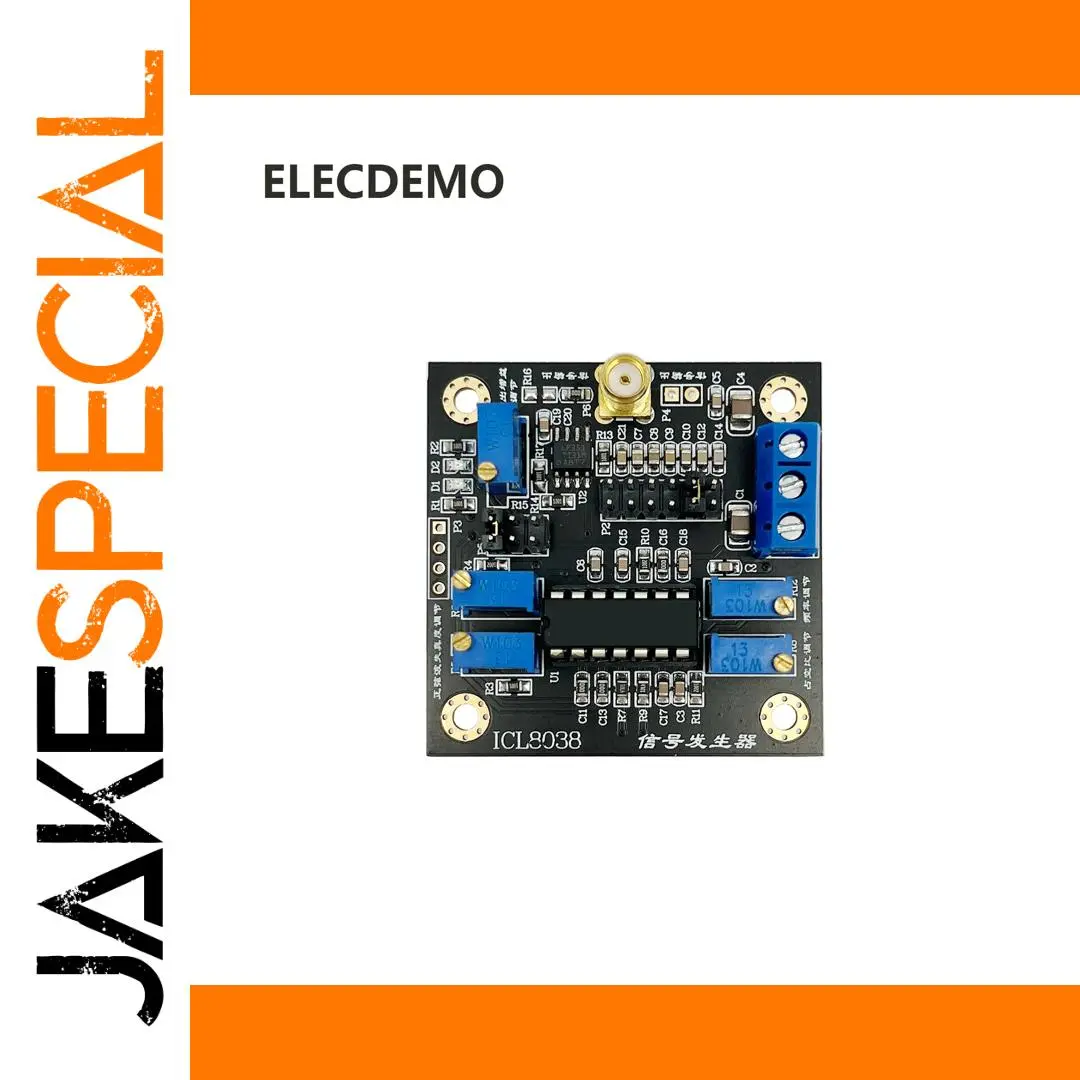

Experience precise waveform generation with this compact ICL8038 low-frequency signal source module. Designed for test setups, research, and experiments, this module offers the ability to produce sine, triangular, and square waves with minimal distortion. Its sleek 50mm×50mm black PCB surface with vibrant blue trimmer potentiometers and connectors provides a modern, technical aesthetic. The gold-plated circular connector adds a touch of detail, emphasizing quality craftsmanship. Easy to adjust and integrate, this module allows you to control frequency from 0.001Hz to 1MHz and duty cycle from 2% to 98%, making it ideal for varied applications. Its clean, organized design ensures reliable performance, combined with flexibility for external control and high-level output. Elevate your electronic projects today with this versatile waveform generator.
Keys features of the product ICL8038 Low Frequency Signal Generator
- Generates sine, triangular, and square waves with precise control and low distortion, suitable for advanced testing and experimental circuits requiring high fidelity outputs.
- Operates with a supply voltage between +5V and +15V, with an output bandwidth from 0.04Hz to 350KHz, ideal for low-frequency to moderate-frequency applications.
- Frequency adjustable from 0.001Hz to 1MHz, with duty cycle control from 2% to 98%, providing versatile waveform customization for various electronic tasks.
- Features high linearity of 0.1% for triangular waves, distortion below 1% for sine waves, and a low frequency drift of at most 50ppm/°C for stable performance over temperature variations.
- Designed with a matte black PCB and bright blue adjustment components, this 50mm×50mm module includes USB and screw terminal connections, plus a gold-plated FM control connector, ensuring durability and aesthetic appeal.
- Includes external FM control capability, TTL output up to 28V high-level voltage, and minimal external components requirements for ease of use and integration.
This ICL8038 module is a must-have for your electronic toolkit—order now!
Take your testing and experimentation to the next level with this high-quality signal generator module. Its sleek aesthetic, precise control, and broad frequency range make it an indispensable addition to your projects. Whether you're fine-tuning waveform parameters or exploring new circuit concepts, this reliable device ensures stable and accurate outputs. Invest in this versatile module today and enjoy effortless integration into your test setups, confident in its craftsmanship and specifications. Upgrade your equipment with a tool designed to meet the demanding needs of professionals and enthusiasts alike.
