High-Voltage DIY Transformer Kit for Sparks
26.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake
This DIY high-frequency transformer kit features a compact, blue PCB measuring 4.2cm×3.2cm×0.16cm with a 15KV output transformer, capable of producing high-temperature arcs up to 1.5cm long at a maximum output current of ≤0.4A. Designed for input voltages between DC 3.7V-4.2V (up to 12V with adjustment), it incorporates two primary windings, a secondary coil, and high-quality components including a UF4007 diode, N20 transistor with heatsink, 120Ω resistor, switch, and a 3-pin connector. Suitable for scientific experiments, ignition, and plasma applications, it demands careful assembly and safety precautions.
In stock
This DIY high-frequency transformer kit for sparks

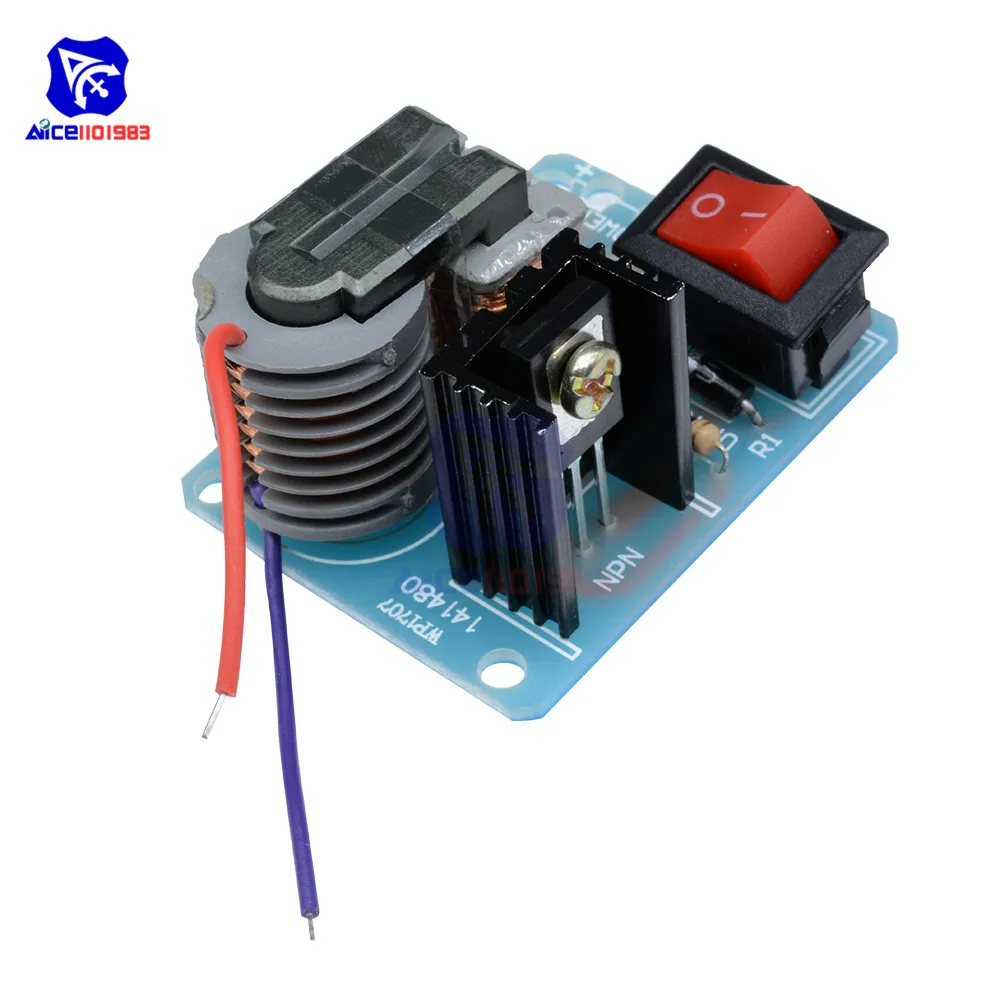

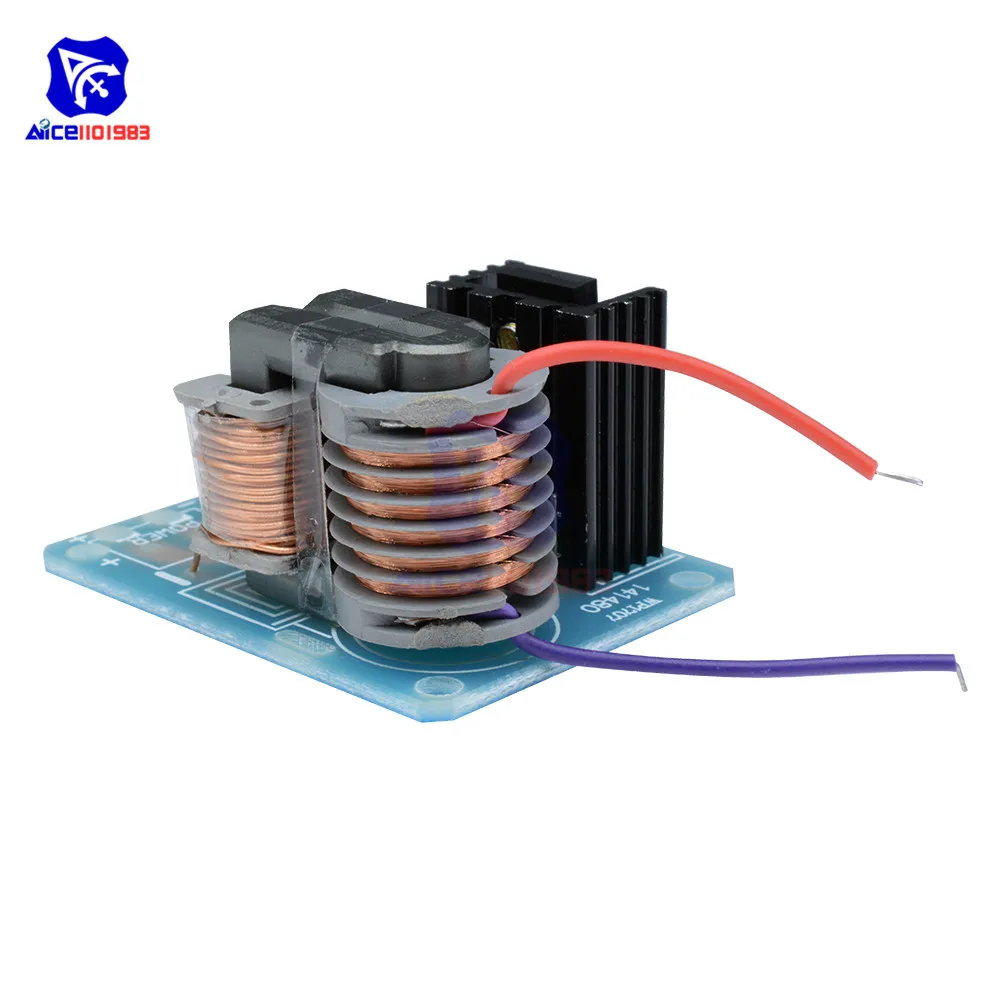

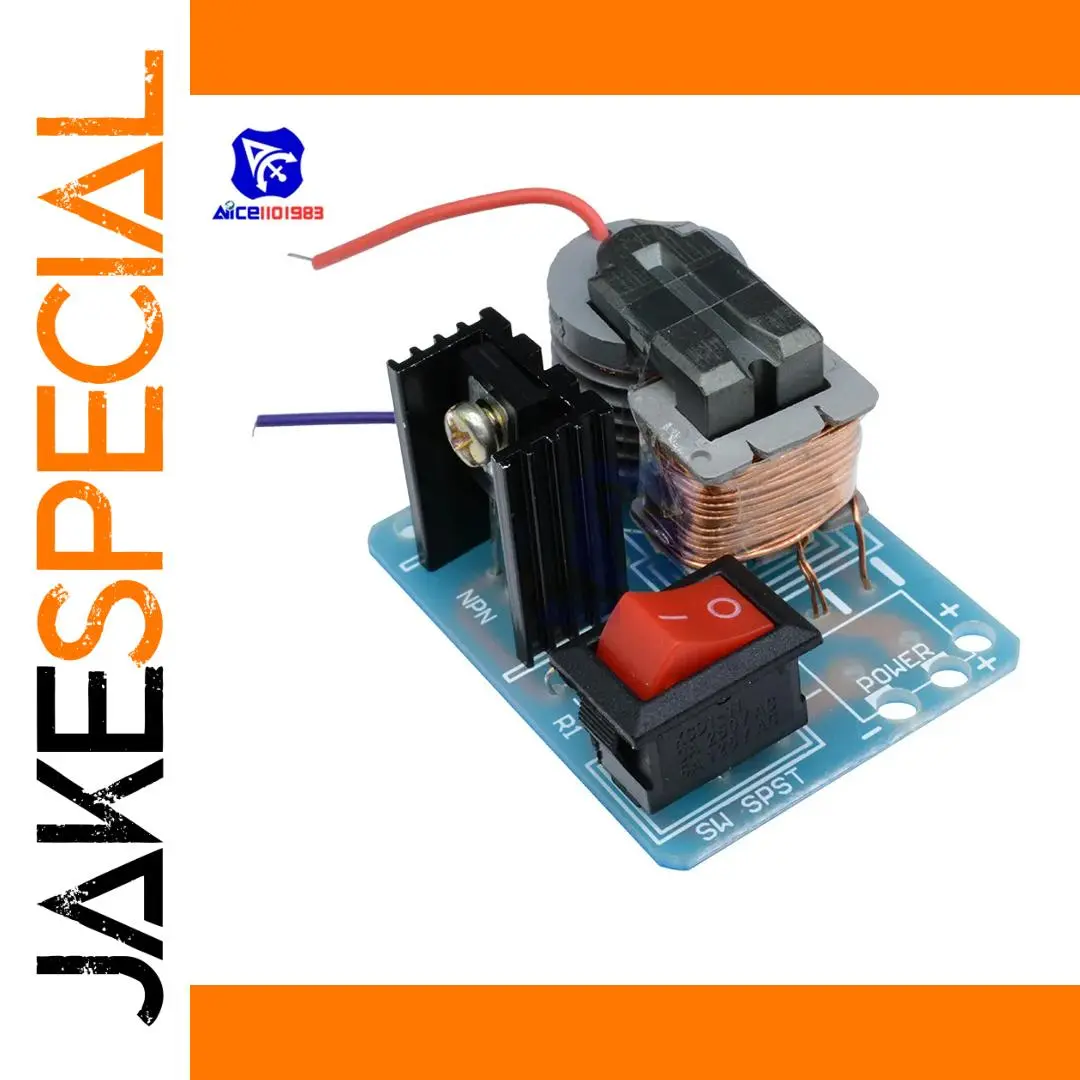

Discover the potential of this DIY high-frequency transformer kit, designed for electronic enthusiasts and scientific experimenters. Featuring a sleek, practical blue PCB measuring 4.2cm by 3.2cm, it provides a compact platform for assembling a powerful 15KV output transformer. The robust components include a large black transistor with a finned silver heatsink, a copper coil for magnetic induction, and a bright yellow-orange power connector for easy input connection. Perfectly suited for generating stable high-temperature arcs, this kit enables ignition and plasma experiments, helping you create impressive electrical sparks up to 1.5cm long. Its precise construction encourages hands-on learning, offering a reliable setup for developing your high-voltage projects safely and efficiently. Build your own high-frequency arc generator with confidence using this excellent kit.
Keys features of this high-frequency transformer kit
- This kit includes a powerful 15KV transformer with dimensions approx. 27×16×21mm, capable of producing high-temperature arcs up to 1.5cm for professional experiments.
- The circuit utilizes two primary windings and one secondary, designed for maximum output with input voltage from DC 3.7V to 4.2V, up to 12V with resistor adjustments to prevent damage.

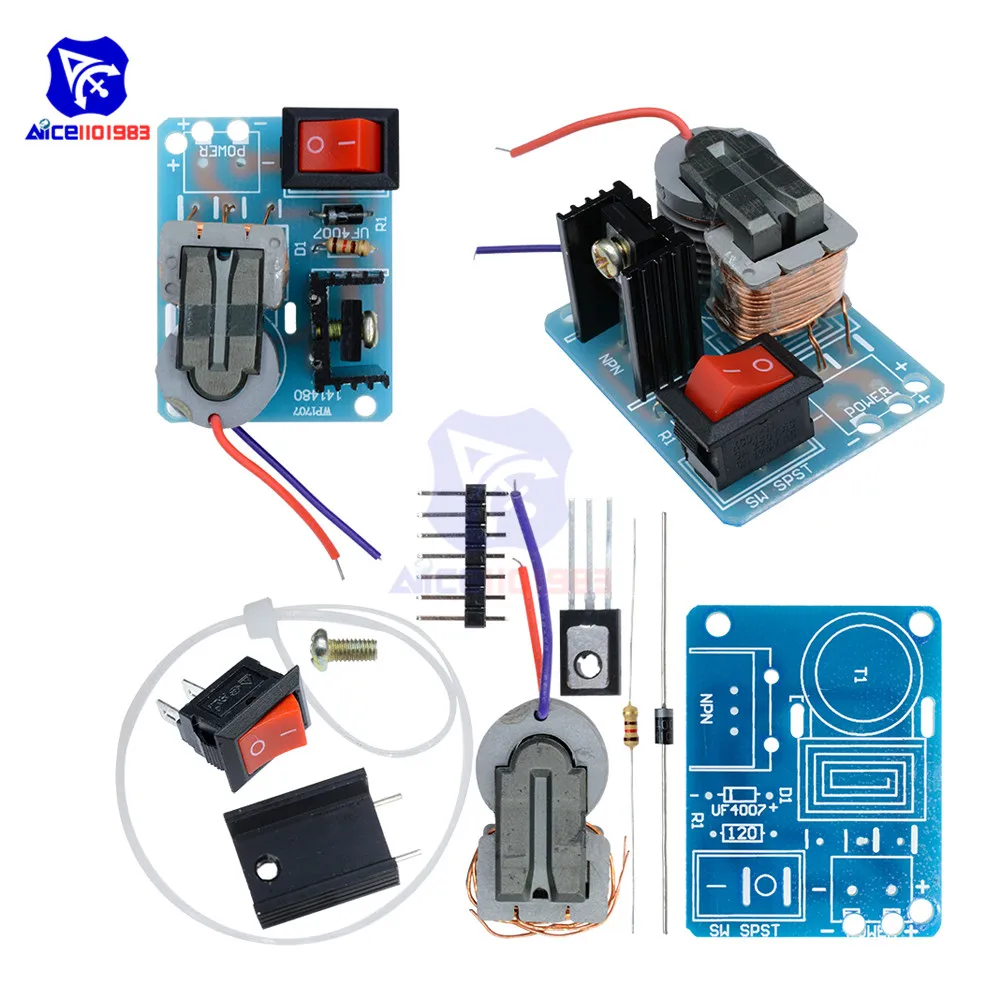

- The meticulously assembled PCB has clearly labeled connection points, with components such as a 120Ω resistor, UF4007 diode, and N20 transistor with a heatsink, ensuring reliable performance.

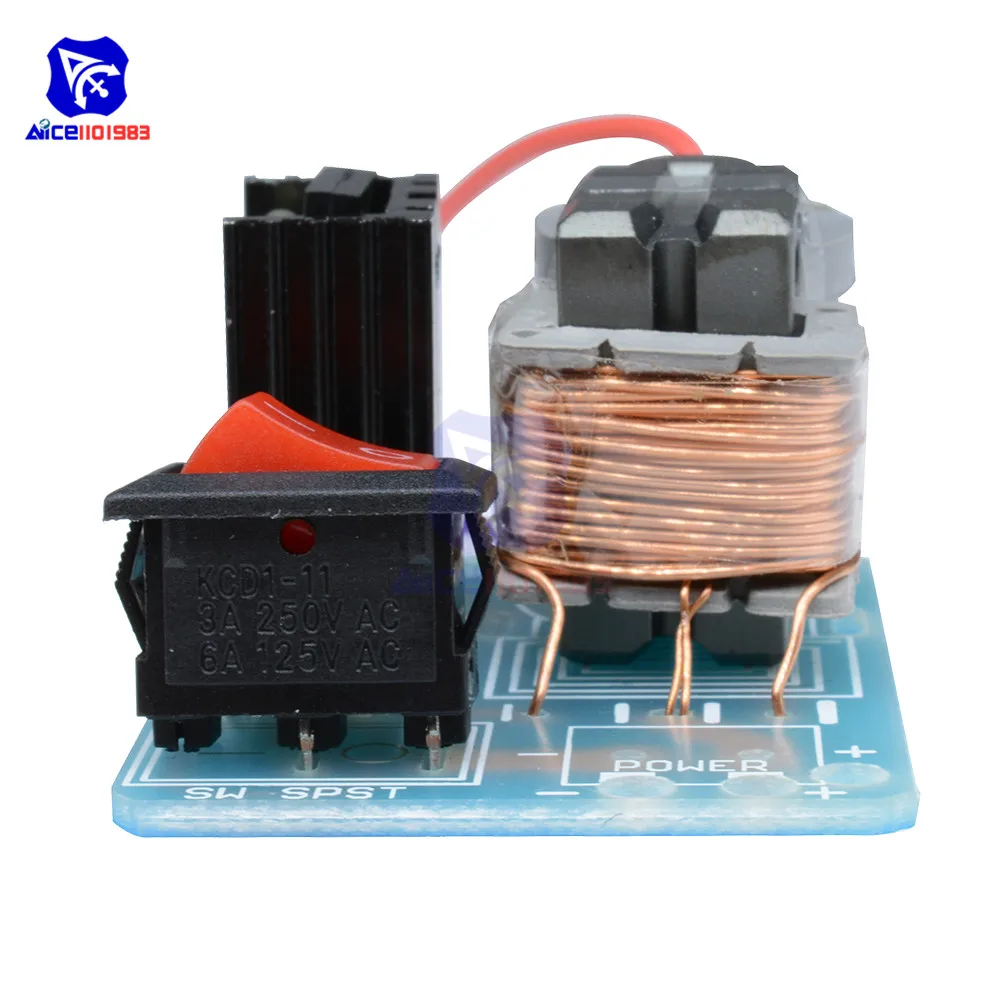

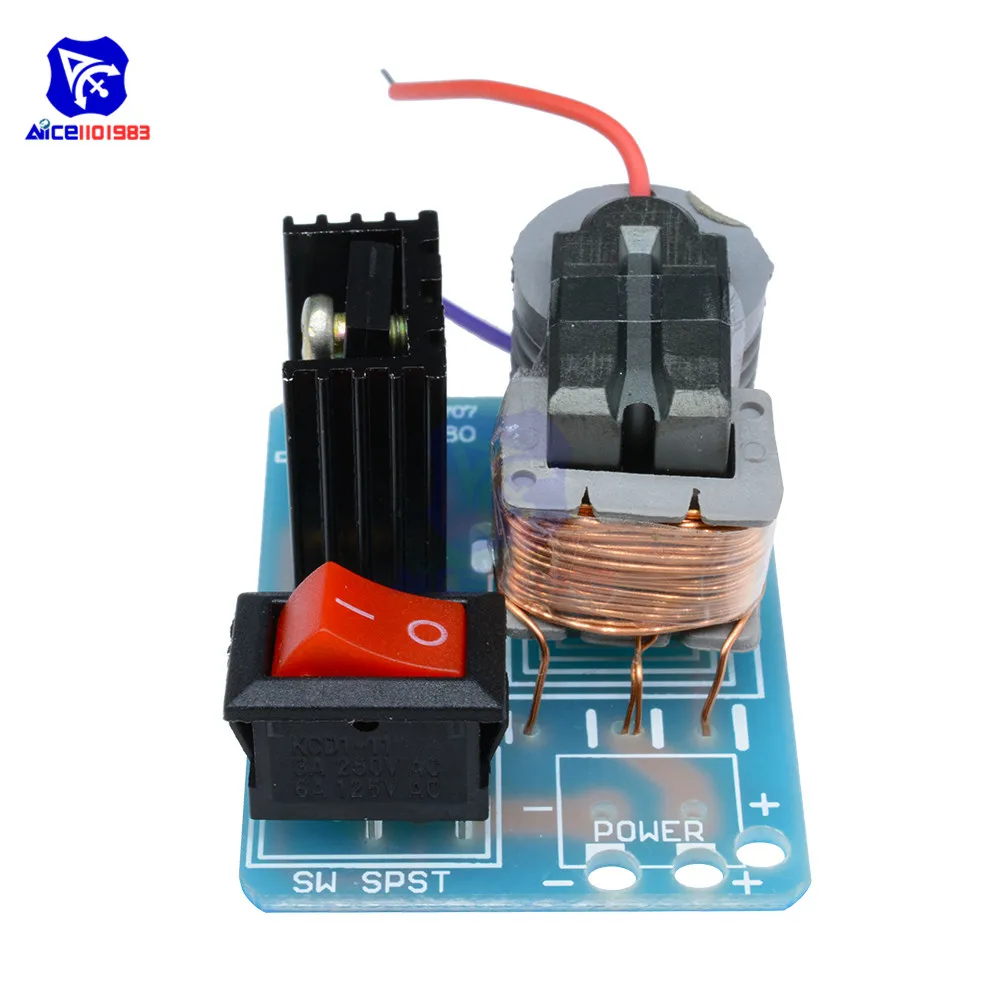

- The kit features a sturdy black switch with a vivid red toggle for safe power control and an eye-catching yellow-orange wire-connected power input for easy setup and operation.
- Operating within a temperature range of -40°C to 85°C, this assembly offers durability across various environments, ideal for both educational and experimental applications.
- The technical specifications include an dissipation power of 8W, output current limited to ≤0.4A, and safe arcs suited for igniting combustible materials or scientific demonstrations.
Get your high-voltage kit today and spark your experiments!
Imagine yourself harnessing the power of high-frequency arcs, creating stunning sparks and igniting your scientific curiosity. This DIY transformer kit provides all the technical precision and safety features you need, so you can confidently build and operate high-voltage experiments. Whether you are working on educational projects, research, or creative experiments, this kit is your perfect partner for exploring the fascinating world of plasma and electrical phenomena. Don't wait—embark on your high-voltage journey now and make your scientific visions a reality.
