High-Precision YK-WT20 Weight Sensor Module
Price range: 39.99 € through 41.99 €
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake

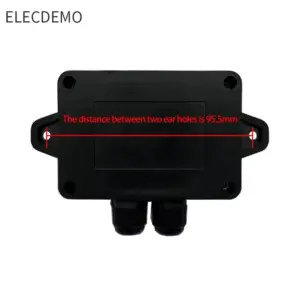

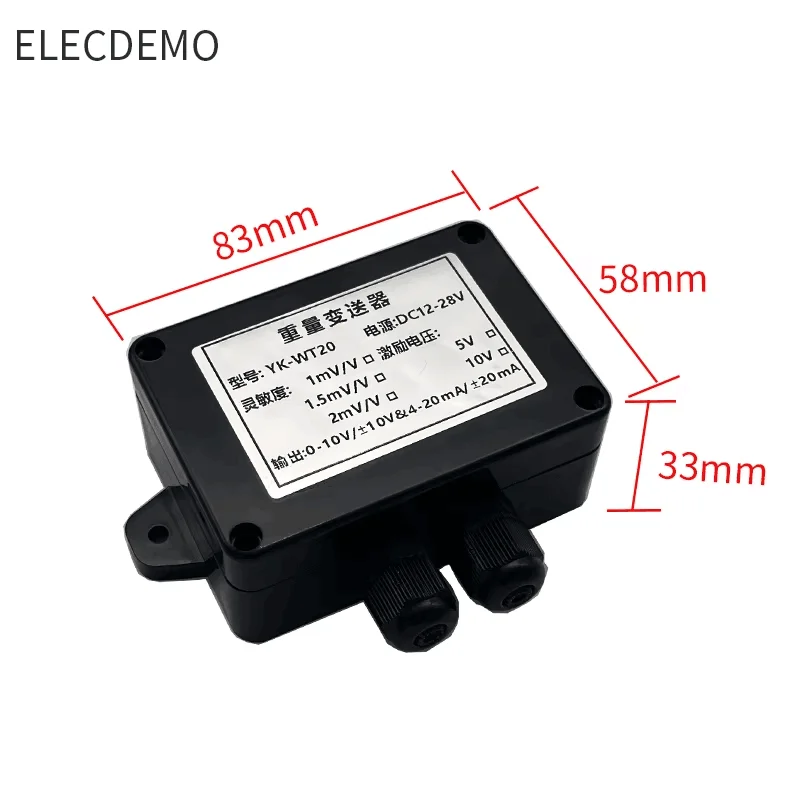

Enhance your industrial measurement setup with the YK-WT20 high-precision weighing sensor module. Crafted in a sleek black waterproof enclosure measuring 83mm x 58mm x 33mm, it features two circular positioning holes spaced 95.5mm apart for easy installation. Compatible with strain bridge sensors like load cells and force sensors, it accepts input signals of 0-20mV and provides versatile output options, including 0-5V, 0-10V, 0-±10V, 0-20mA, 4-20mA, or 0-±20mA, with an output accuracy better than 0.1%. Powered by 12-28V DC with reverse connection and short circuit protection, its robust design suits tension, pressure, weighing, and signal amplification in harsh industrial environments.
This is the high-precision YK-WT20 weighing sensor module

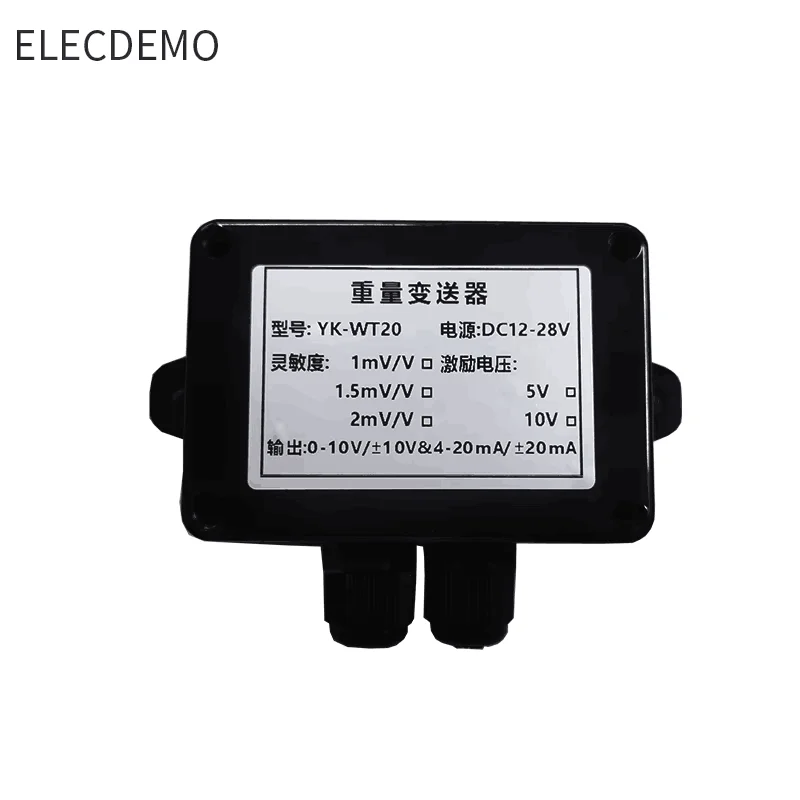

This is the YK-WT20, a sleek, black industrial-grade weight sensor module designed for durability and precision. Its rectangular enclosure measures 83mm in length, 58mm in width, and 33mm in height, with smooth rounded edges for a streamlined look. The robust black housing offers a utilitarian aesthetic, perfect for demanding industrial environments. A white label contrasts sharply on its surface, providing clear technical information for quick identification. Small circular mounting holes spaced 95.5mm apart facilitate easy installation. Surrounding the main unit are schematic-style illustrations in monochrome, emphasizing its technical nature. Its overall design seamlessly combines modern functionality with industrial style, ensuring your setup looks professional, organized, and reliable. This module is designed to blend seamlessly into your industrial measurement systems while offering top-tier accuracy and stability.
Keys features of the YK-WT20 weight sensor module
- The YK-WT20 features a compact black enclosure measuring 83x58x33mm, with rounded edges, making it easy to install and integrate into various industrial systems.
- It operates on a DC power supply of 12-28V, with a selectable excitation voltage of 5V or 10V and an excitation current of 100mA, supporting flexible power configurations.
- The module accepts an input signal from 0-20mV, with sensitivity above 0.1mV/V, suitable for measuring tension, pressure, and force with high accuracy.
- Output options include 0-5V, 0-10V, 0-±10V, 0-20mA, 4-20mA, and 0-±20mA, providing compatibility with a wide range of data acquisition and control systems.
- Designed with a waterproof PG7 connector and wiring terminal, it offers reverse power protection, short circuit protection, and operates reliably over -20°C to 80°C and 10%RH to 90%RH humidity.
- The module’s lightweight design (98g) and precise mounting holes at 95.5mm spacing make it simple to install securely in diverse environments.
This is the YK-WT20 weighing module—order now to enhance your measurements
Imagine how seamlessly the YK-WT20 module can integrate into your existing systems, providing accurate, reliable data for tension, pressure, or weight measurements. Its rugged construction and versatile output make it a dependable solution for industrial automation, testing, and control applications. You’ll appreciate its compact design, easy installation, and excellent protection features, ensuring long-term stability even in harsh environments. Investing in this module means equipping your setup with a high-precision sensor that meets demanding standards. Don’t miss the opportunity to improve your measurement accuracy and operational efficiency with the YK-WT20 today.
| Color | 10V 1.5mV, 10V 1mV, 10V 2mV, 5V 1.5mV, 5V 1mV, 5V 2mV, Customized |
|---|---|
| Condition | New |
| Warehouse | HK Warehouse – Hong Kong |
