High-Precision Voltage Amplifier Module 50x45mm
32.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake

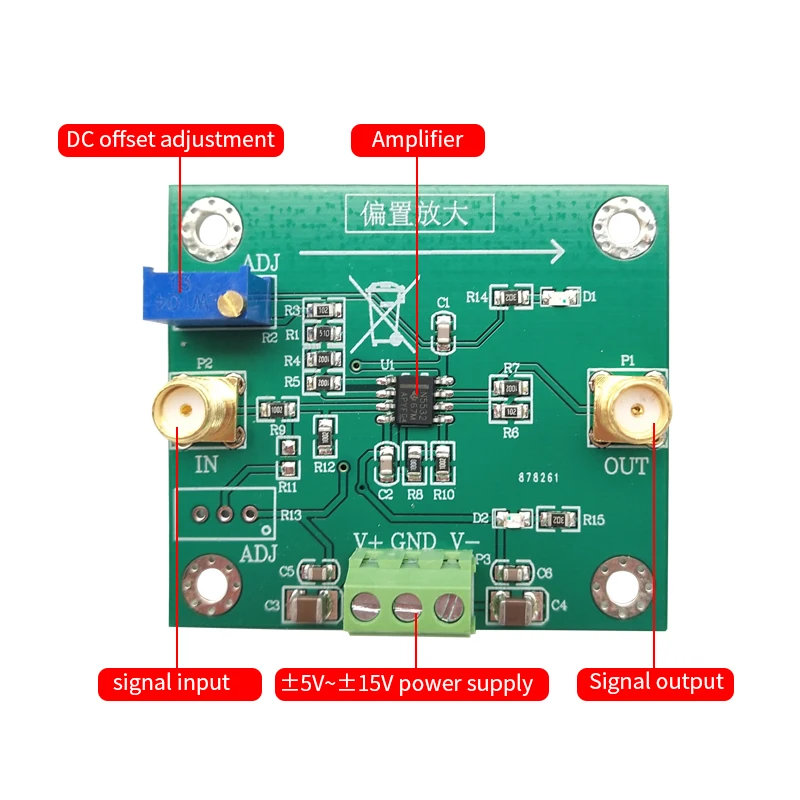

The voltage amplifier DC offset module measures 50mm by 45mm and weighs just 20g, designed for precise signal amplification. Supporting a power supply voltage range of ±15V to ±18V (with an operation range of ±5V to ±18V), it provides 10-times amplification with adjustable DC offset of ±3V at ±5V supply. The well-organized circuit layout ensures high reliability and performance, making it ideal for professional voltage amplification applications. The green PCB surface features densely packed surface-mount resistors, capacitors, and connectors, including gold-colored SMA input and output ports, a blue potentiometer for easy adjustment, and a central black IC. This module is an essential component for high-precision electronic projects.
In stock
This ElecDemo Voltage Amplifier Module Completes Your Projects

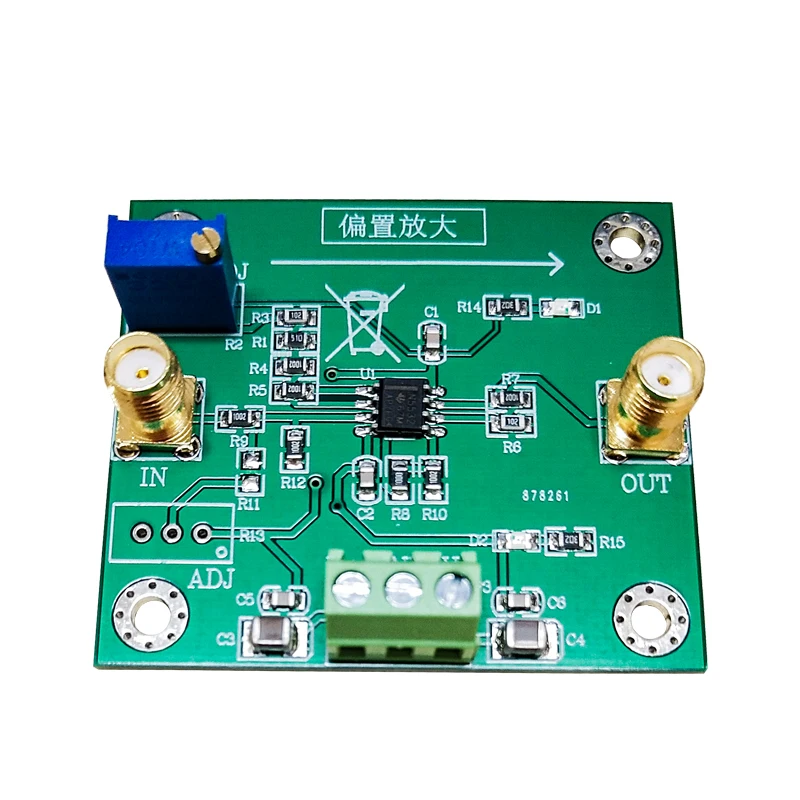

Imagine seamlessly integrating this high-quality voltage amplifier module into your electronic setup, delivering precise amplification and reliable performance. Designed with a compact size of 50mm by 45mm and weighing only 20 grams, this green PCB board offers a neat, organized layout that reflects meticulous engineering. It features two gold SMA connectors for easy input and output connection, a blue potentiometer for fine DC offset adjustment, and a central black IC for amplification. The dense array of surface-mount resistors and capacitors ensures high accuracy and stability. Perfect for hobbyists and professionals alike, this module is built to support voltage ranges from ±5V up to ±18V, delivering consistent 10× gain for your signal processing needs.
Keys features of the voltage amplifier module
- Compact size of 50mm x 45mm with a lightweight of 20g for easy integration into various projects and systems, providing a space-efficient solution for voltage amplification tasks.
- Supports a broad power supply voltage range of ±15V to ±18V, with an operating voltage of ±5V to ±18V, ensuring compatibility with most professional and hobbyist power supplies.
- Provides a stable, 10-times signal amplification, ideal for boosting weak electronic signals while maintaining high fidelity and low distortion, suitable for diverse electronic applications.
- Equipped with precise DC offset adjustment of ±3V at ±5V power, allowing customization for specific circuit needs, enhancing the versatility of the module.
- Features a well-organized and robust circuit layout, densely populated with surface-mount components, ensuring durability, stability, and reliable long-term performance.
- Includes high-quality connectors and adjustable components, designed for seamless integration with other electronic devices and circuits, with no batteries required for operation.
- Technical specifications include a detailed circuit design, smooth matte green PCB surface, and compatibility with various voltage amplifier systems, suited for both hobbyist experiments and professional projects.
This ElecDemo voltage amplifier module is your ideal component, order now to enhance your electronic builds effectively!
Building or upgrading your electronic devices has never been simpler—this high-precision, reliable module ensures your signals are amplified with clarity and efficiency. Whether you're experimenting, prototyping, or designing advanced systems, this amplifier module becomes an indispensable part of your toolkit. Its thoughtful design and robust specifications guarantee consistent performance, making your projects more successful and enjoyable. Invest in quality today and experience the difference that precise engineering can make in your electronic creations!
