High-Precision Transimpedance Amplifier Module
Price range: 57.99 € through 60.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake

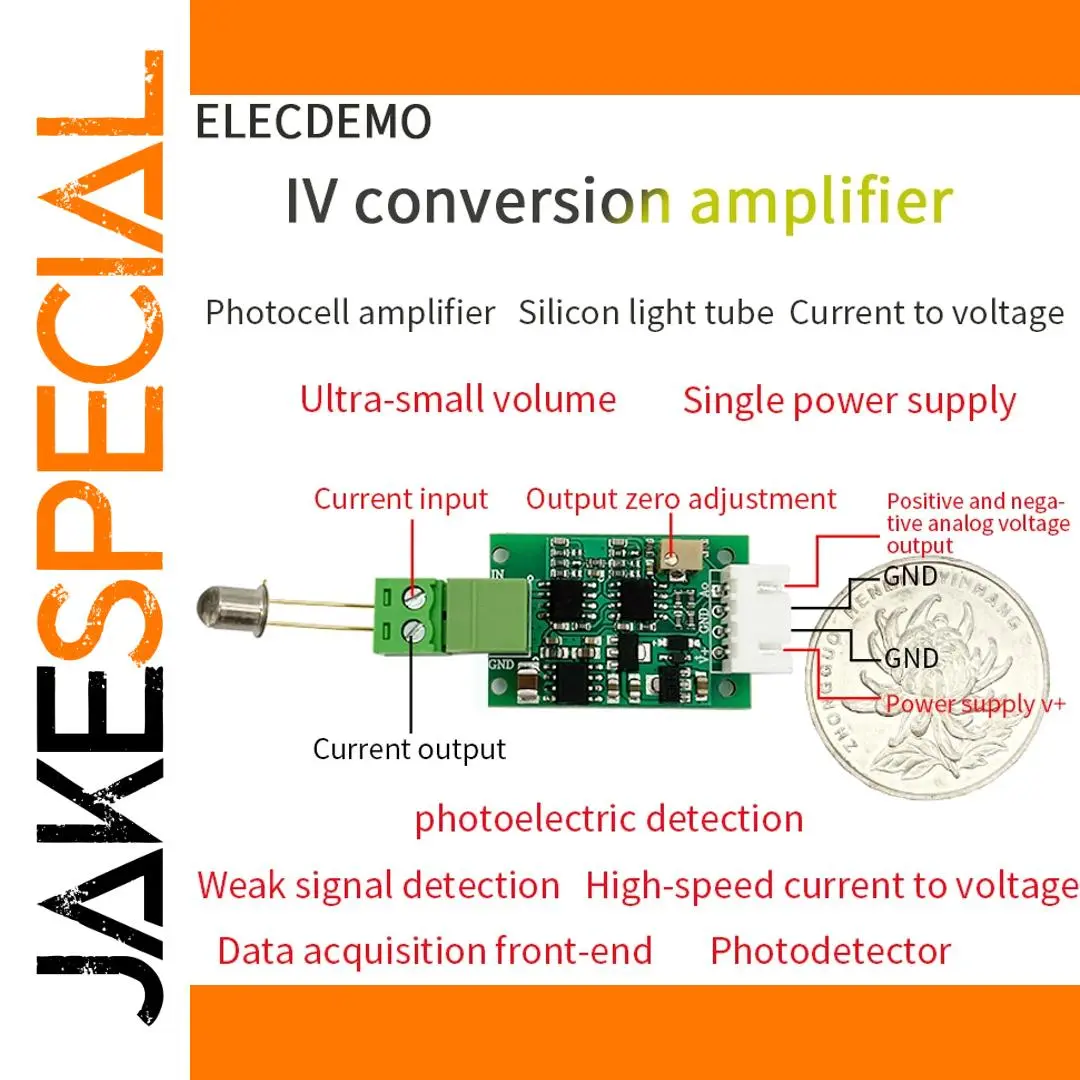

Experience precision with this compact IV conversion amplifier module, measuring 48mm x 21.5mm x 11mm, designed to transform tiny photodiode currents into high-quality voltage signals. Operating on a DC power supply of 15V to 24V, it offers a gain range from 10kV/A to 500kV/A, with a 1000kHz bandwidth at 100kV/A gain, and boasts a minimum current resolution of 1nA. Equipped with versatile input options including SMA shielding connectors and wiring terminals (10K, 50K, 100K, 500K), this high-performance module provides low noise, high amplification, and seamless integration for applications like weak signal detection, laser ranging, and fluorescence measurements, ensuring reliable, stable operation in demanding environments.
This versatile IV-AMP1656SP transimpedance amplifier module

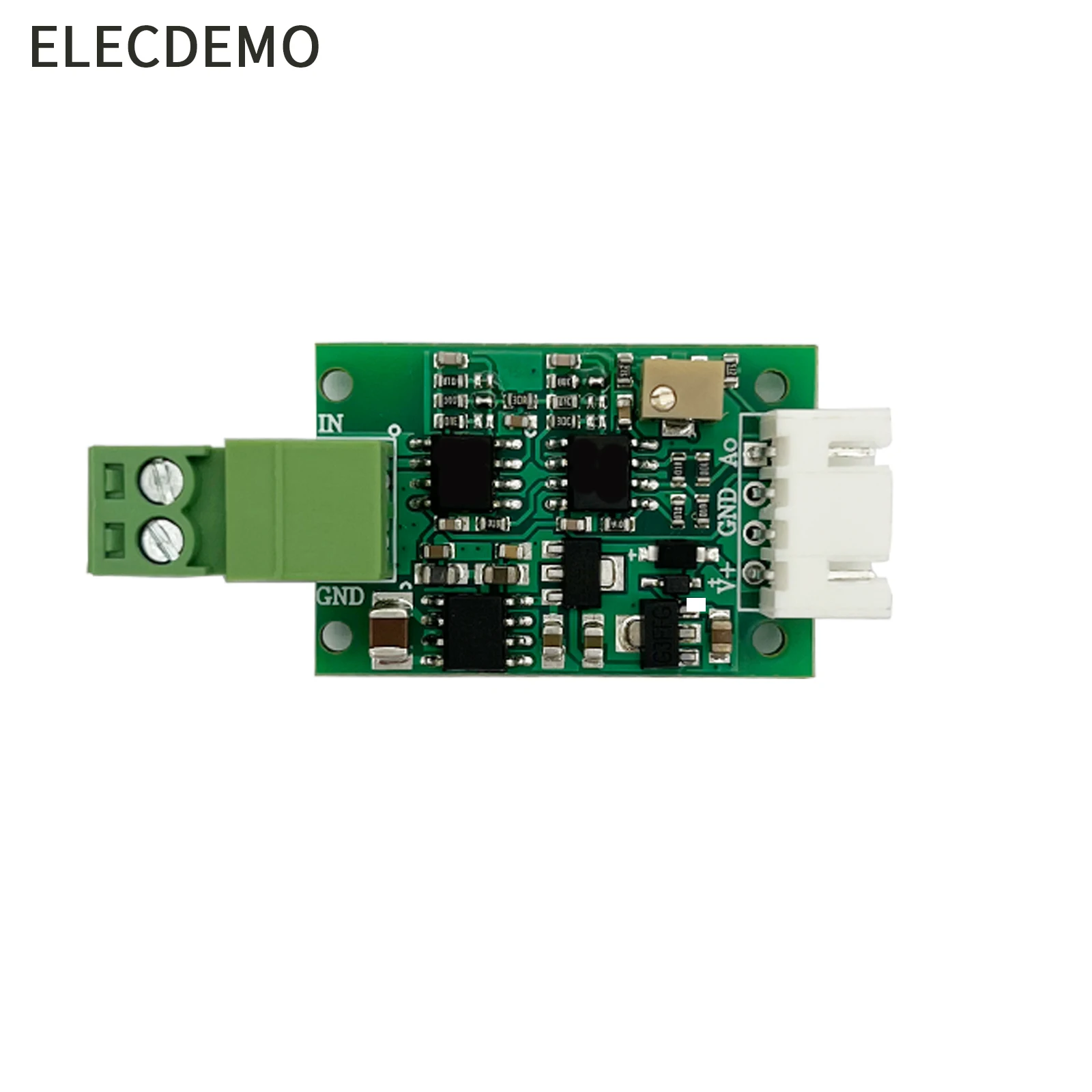

Experience precise high-speed signal amplification with this compact IV-AMP1656SP transimpedance amplifier module. Its sleek rectangular design, measuring just 48mm by 21.5mm, seamlessly integrates into your detection system. The vibrant green PCB features clearly labeled components and connection points, ensuring straightforward setup and calibration. Target applications include weak signal detection, laser ranging, and fluorescence measurement. Offering a wide gain range from 10kV/A to 500kV/A, and a signal bandwidth of up to 1000kHz at 100kV/A gain, this module delivers reliable, low-noise performance. Its minimal current resolution of 1nA makes it ideal for small, high-speed photodiode signals. Designed for ease of use, it supports various input interfaces and requires a linear power supply to optimize stability and performance, making it an essential tool for high-precision optical measurements.
Key features of the IV-AMP1656SP transimpedance amplifier

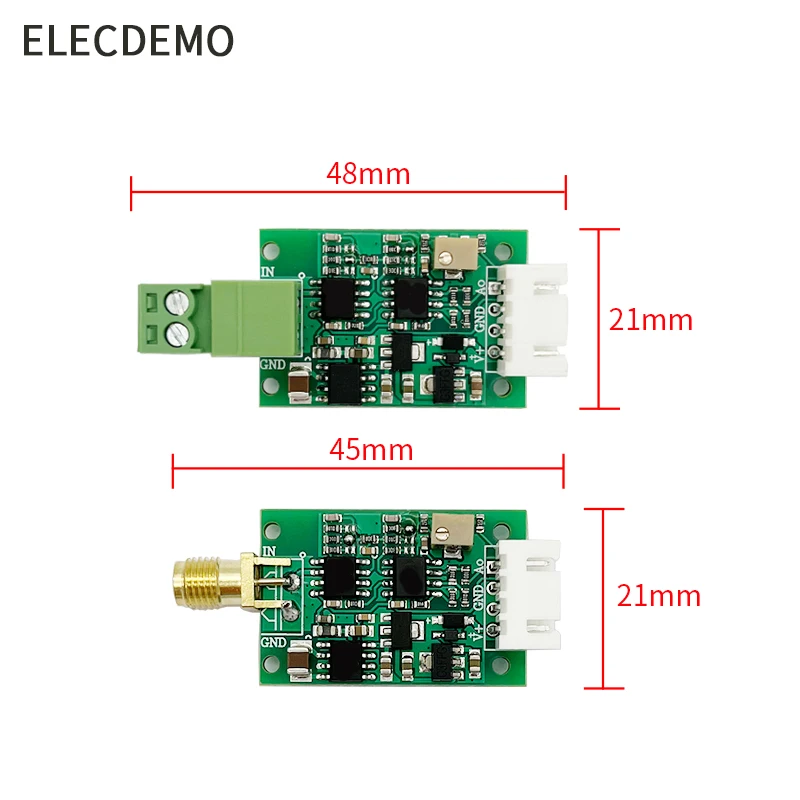

- The module measures 48mm x 21.5mm x 11mm, offering a compact design for easy integration into existing systems.
- Powered by DC 15V-24V, it ensures stable operation with a wide voltage range suitable for various setups.
- Gain adjustable from 10kV/A to 500kV/A, with a bandwidth of 1000kHz at 100kV/A gain for high-frequency applications.

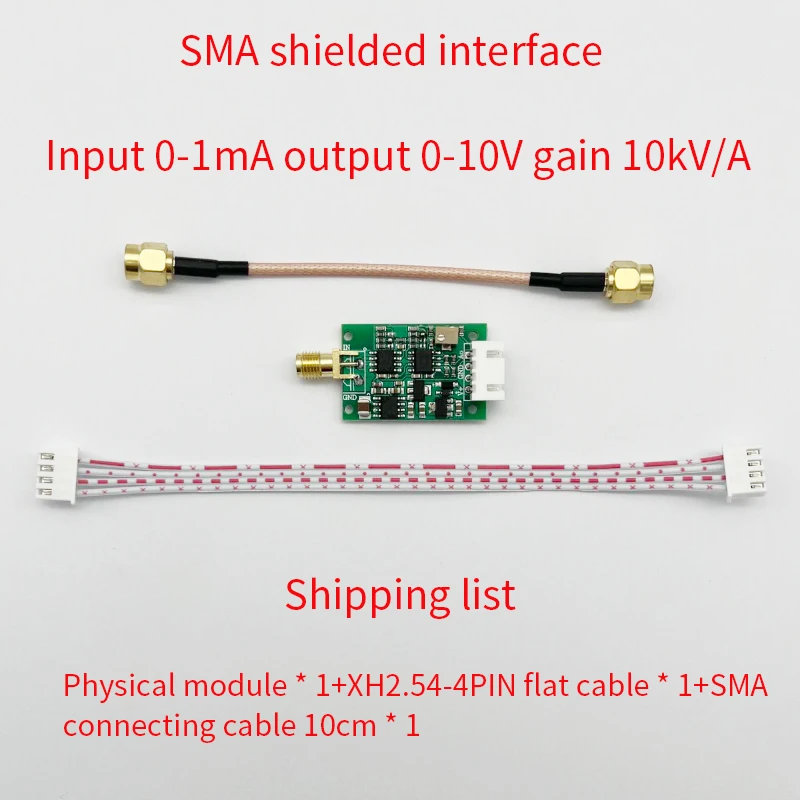

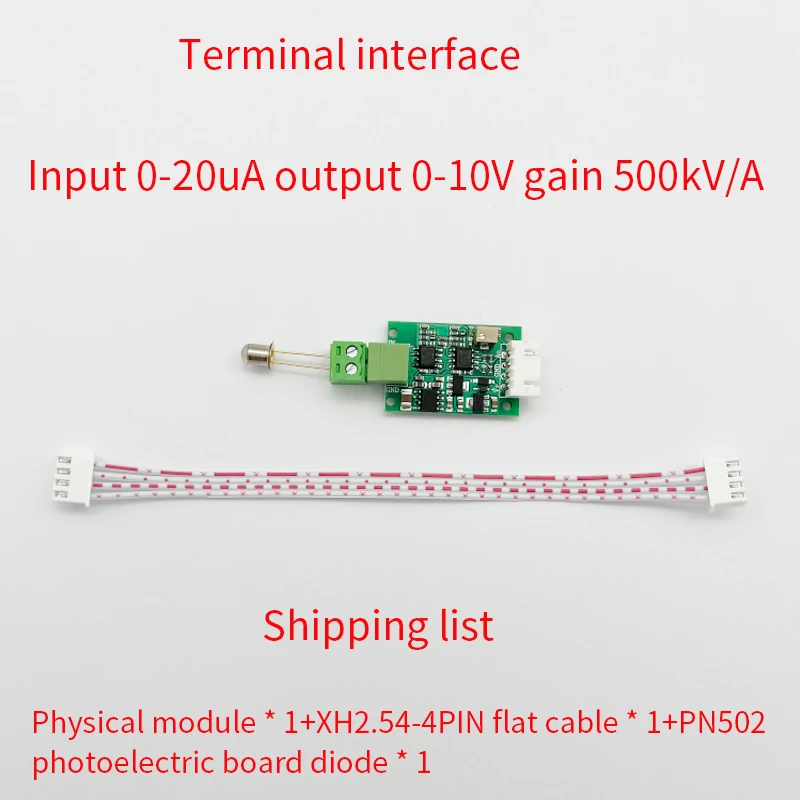

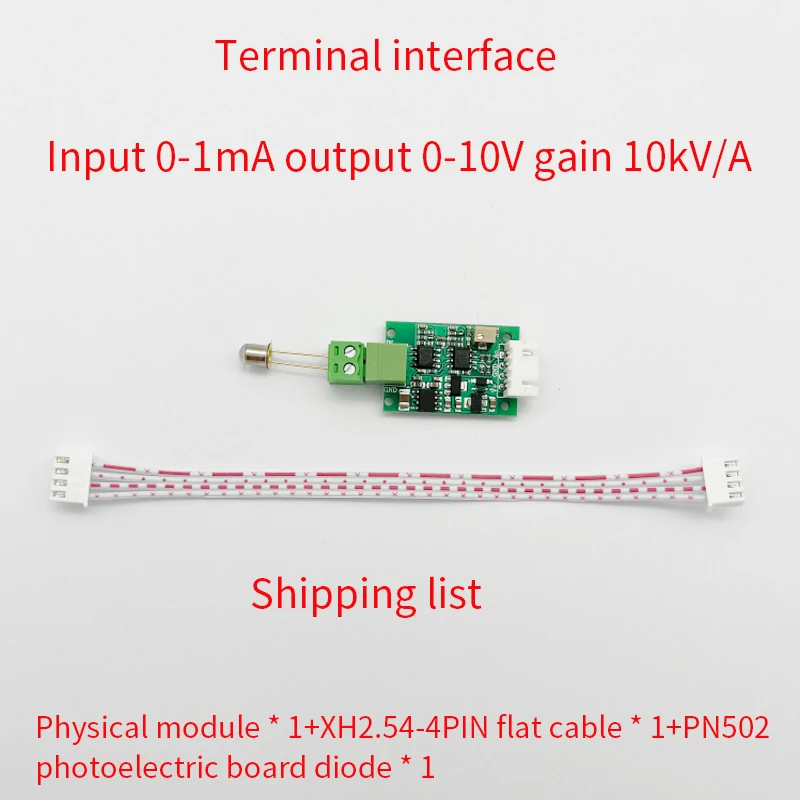

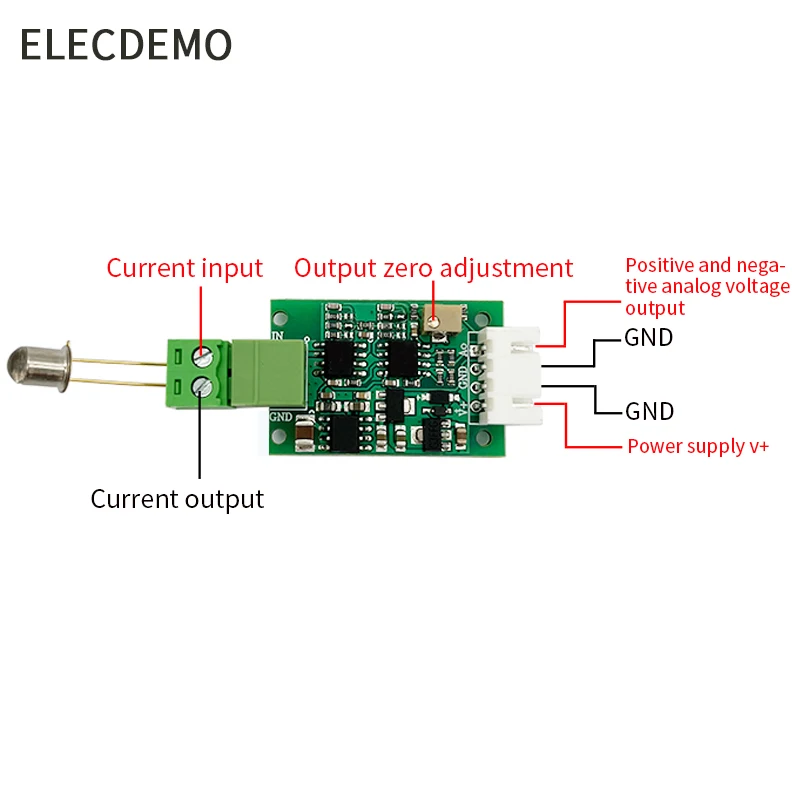

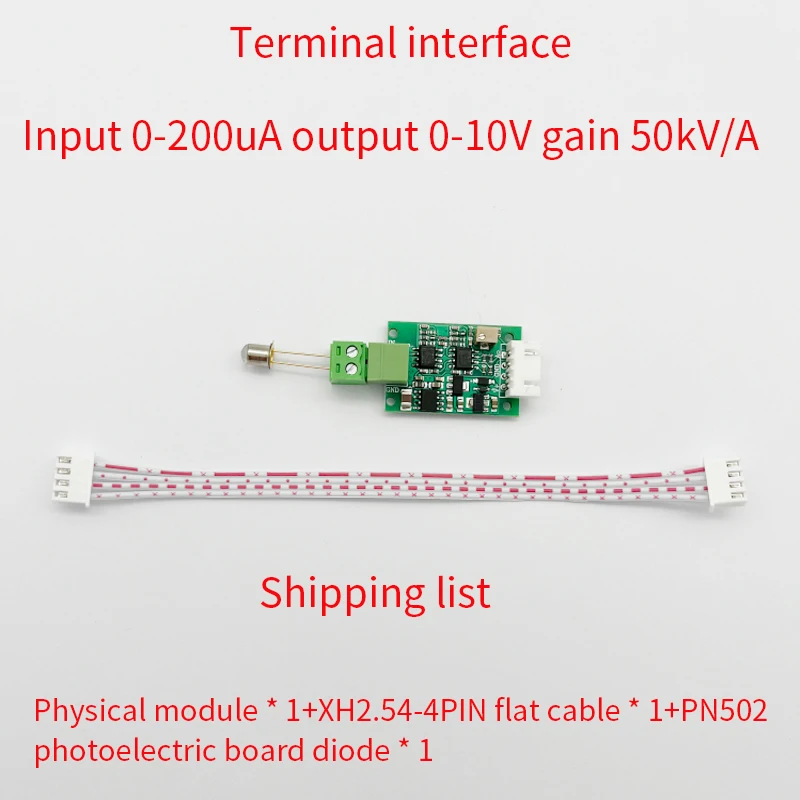

- Supports multiple input interfaces including SMA shielding options at 10K, 50K, 100K, 500K, and wiring terminals at the same resistance values for versatile connectivity.
- Achieves a minimum current resolution of 1nA, perfect for detecting small, high-speed photocurrents from photodiodes.
- Built with high-quality components such as resistors, capacitors, and a core operational amplifier, ensuring low noise and high amplification stability.
- Designed to be embedded easily into detection systems, with recommendations for low ripple linear power supplies to ensure optimal performance.
This IV-AMP1656SP amplifier is ideal for your high-precision measurement needs—order now and enhance your optical detection capabilities!
Imagine effortlessly integrating this advanced transimpedance amplifier into your projects, achieving crystal-clear signals in minimal time. Its compact size and versatile input options make it the perfect choice for high-speed photodiode applications, laser ranging, and fluorescence analysis. You can trust its superior noise performance and stability, knowing it’s designed for adult enthusiasts who demand quality. Whether you’re improving lab setups or developing new detection systems, this module provides the technical excellence you need. Make the smart choice today and elevate your measurement precision with this reliable, high-performance amplifier for your professional or hobbyist projects.
| Color | Custom made, SMA shield 100K, SMA shield 10K, SMA shield 500K, SMA shield 50K, Wiring terminals 10K, Wiring terminals 50K, Wiringterminals 100K, Wiringterminals 500K |
|---|---|
| Condition | New |
| Warehouse | HK Warehouse – Hong Kong |
