High-Precision ADS1256 ADC Module 24-bit
58.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake
This high-precision ADS1256 module features a 24-bit resolution with an effective noise-free resolution of 23 bits, sampling at 30KSPS for single channels. It supports eight single-ended or four pseudo-differential inputs, operating on a 5V power supply with a maximum current of 15mA. Equipped with a low-noise programmable gain amplifier (gain 1x to 64x), digital filtering, and calibration for offset and gain correction, this compact module measures 50mm x 50mm x 12mm. Communication is via SPI protocol at 3.3V logic levels, supporting external reference voltages of 2.5V and input voltage ranges from ±5V to ±0.0781V. Its low power consumption and high non-linearity accuracy make it ideal for industrial process control and precise signal acquisition.
In stock
This high-precision ADS1256 ADC module

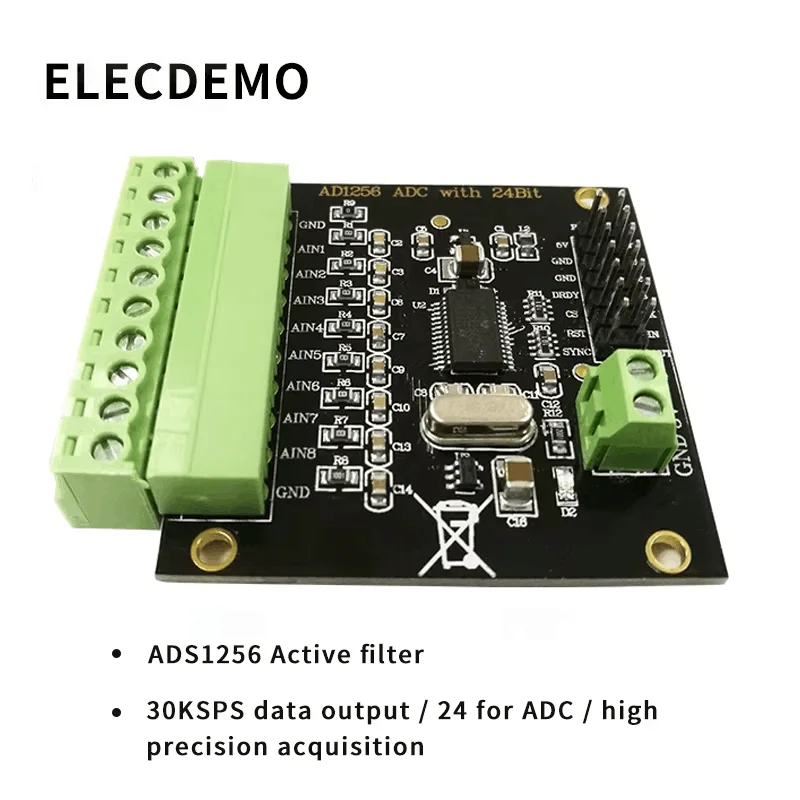

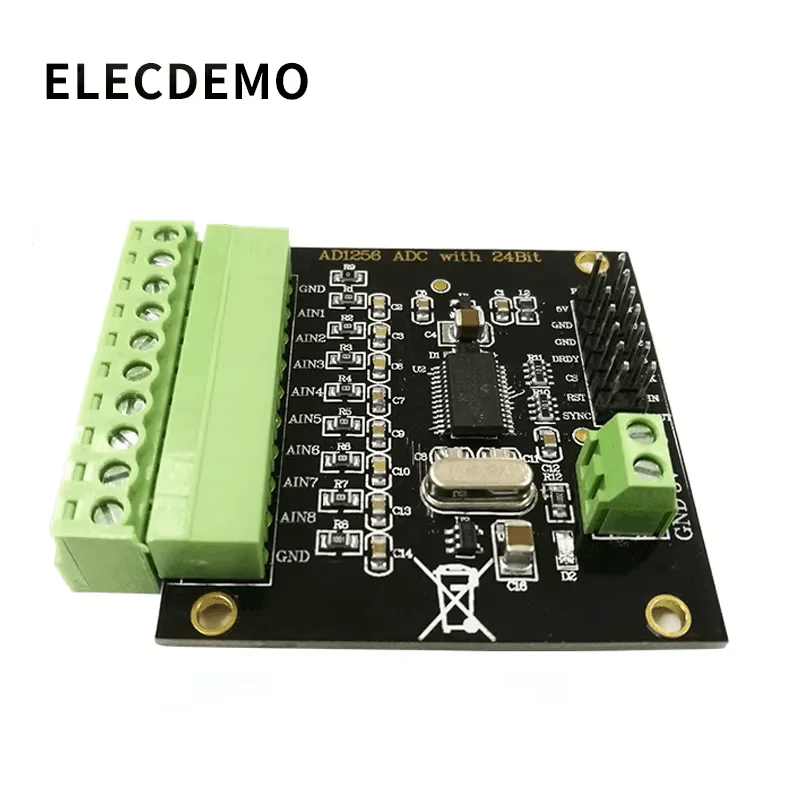

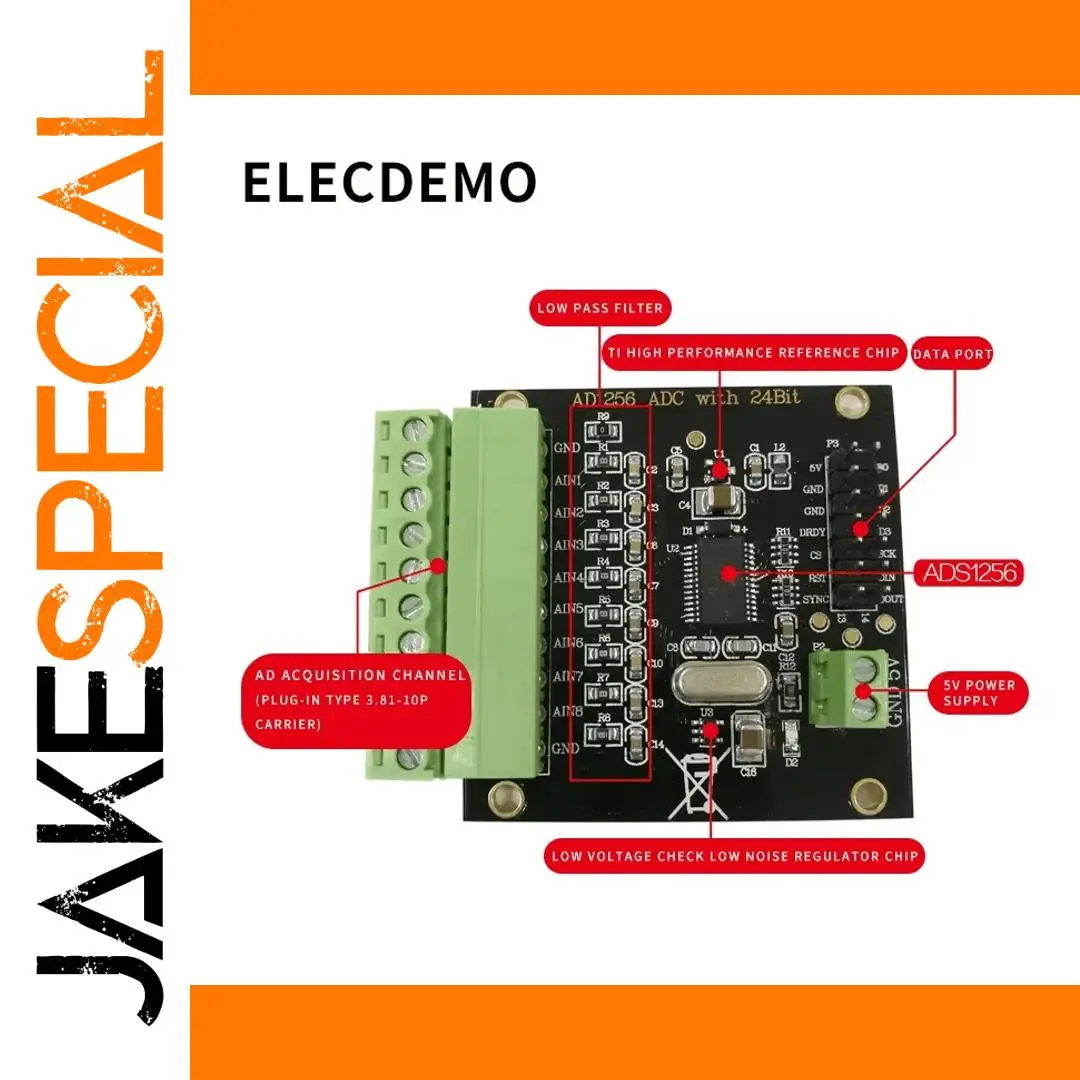

Experience exceptional data accuracy with this ADS1256 ADC module, boasting a 24-bit resolution, a noise-free effective resolution of 23 bits, and a sampling rate of 30KSPS. Its sleek, rectangular black PCB design features clearly labeled components and connectors, giving it a professional appearance suitable for demanding measurement applications. The green terminal block provides easy, secure input connections, while the small surface-mount components are meticulously aligned, adding to its tidy, technical aesthetic. This module’s minimalist labels and structured layout emphasize its high-tech functionality, making it an essential component for precise industrial control and signal acquisition projects. Its modern design not only ensures reliability but also inspires confidence in your measurements.
Keys features of this ADS1256 ADC module
- 24-bit resolution with 23 bits noise-free data ensures high-precision measurements for sensitive applications.
- Sampling rate of up to 30KSPS with 8 single-ended or 4 pseudo-differential inputs supports versatile measurement setups.
- Powered by 5V supply with max current of 15mA; compatible with SPI protocol at 3.3V logic levels for easy integration.
- Low-noise PGA offers gain settings from 1x to 64x, with programmable digital filtering and optional input buffer for enhanced signal integrity.
- input impedance of 1MΩ and support for external reference voltages up to 2.5V, with calibration capabilities to correct offset and gain errors.
- Dimensions of 50mm x 50mm x 12mm, featuring a 3.81-10PIN terminal interface and robust construction for industrial environments.
This ADS1256 ADC module is perfect for your high-precision measurement needs — buy now!
Enhance your projects with this reliable, high-performance ADC module, designed to deliver accurate, noise-free data under demanding conditions. Whether integrating into industrial control systems or scientific instruments, this module’s technical excellence ensures your measurements are precise and dependable. Its compact size and professional layout make installation straightforward, empowering you to focus on your application. Trust this ADS1256 module to provide the stability and accuracy you require for your advanced projects. Make the smart choice today and upgrade your data acquisition setup with confidence.
| Condition | New |
|---|---|
| Warehouse | HK Warehouse – Hong Kong |
