High-Precision AD825 Transimpedance Module
Price range: 46.99 € through 63.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake

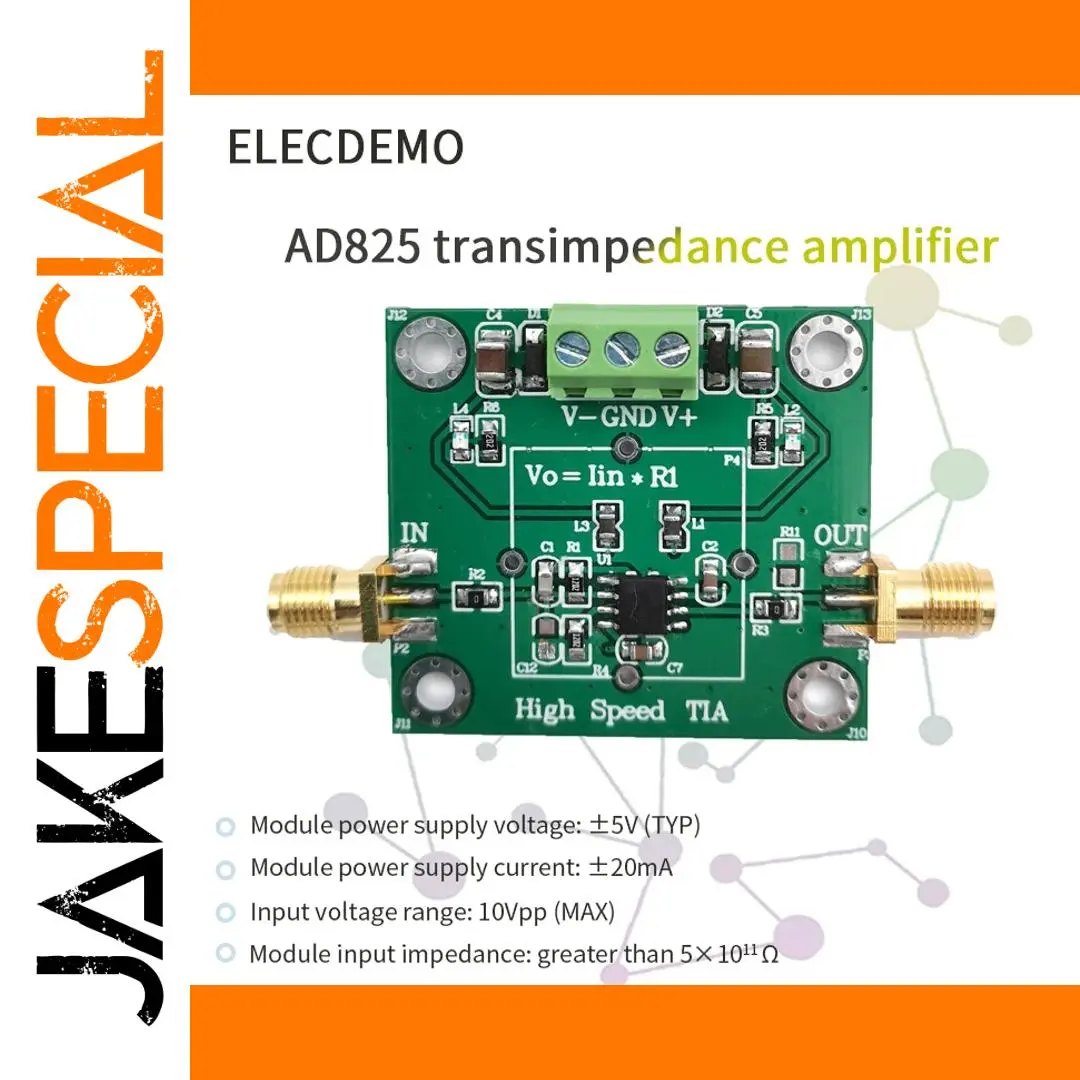

The AD825 transimpedance amplifier module is a high-precision, compact current-to-voltage converter designed for photoelectric detection, weak signal detection, and data acquisition. Measuring 41mm × 37mm × 7mm and weighing 16g, it operates within a temperature range of -25°C to +75°C with a power supply of ±5V (typical) to ±15V (max) at 20mA. Featuring an input impedance exceeding 5×10¹¹Ω, a bandwidth of DC to 5MHz, and a maximum output voltage of 10Vpp, it supports signals up to 1mA with a 10pA resolution. The module includes LED indicators, reverse power protection, SMA interface, and is ideal for photodiodes and avalanche photodiodes applications.
This high-precision AD825 transimpedance amplifier module

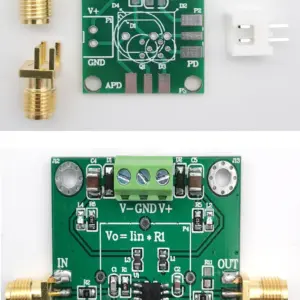

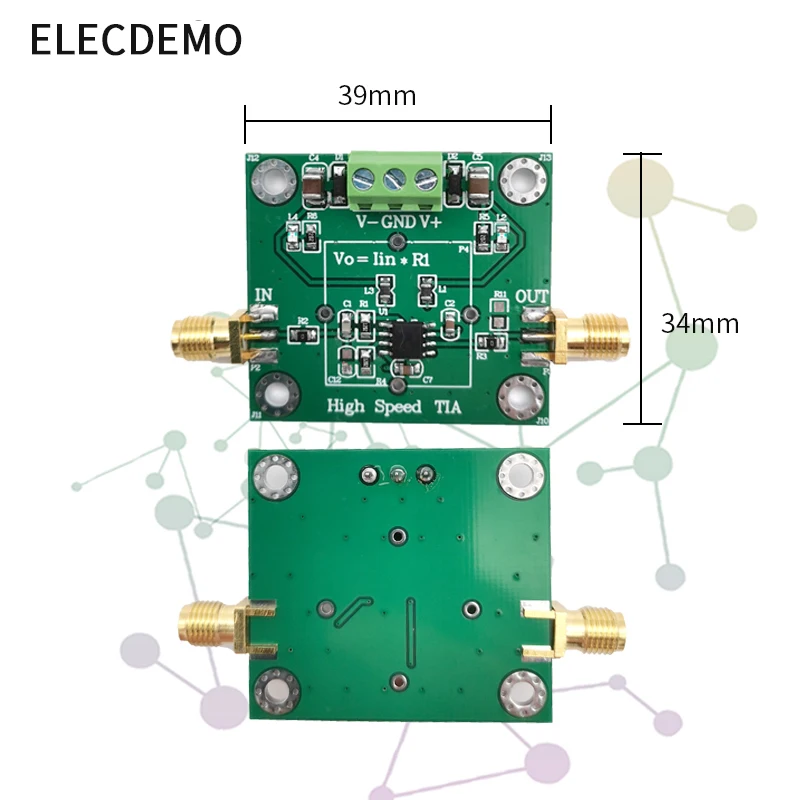

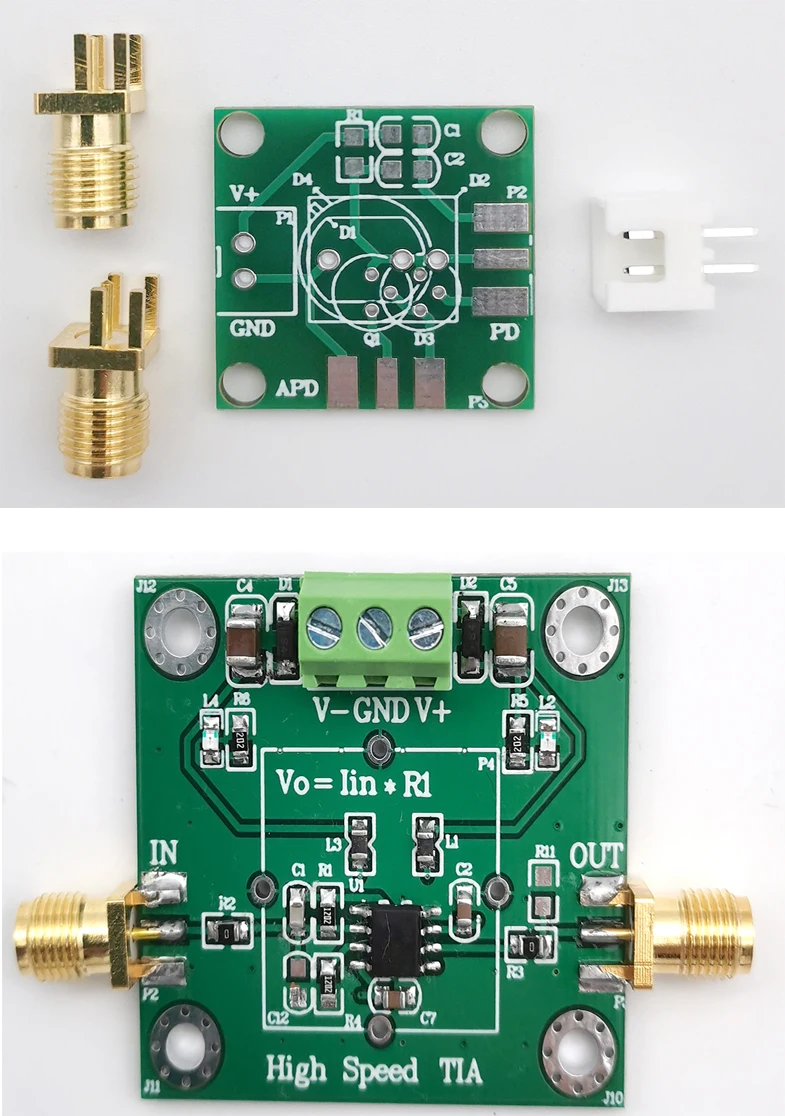

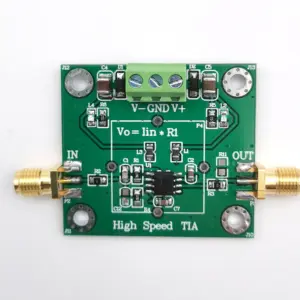

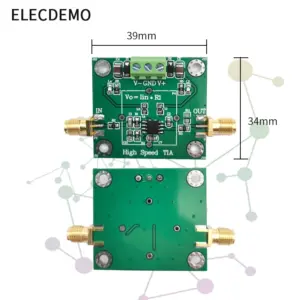

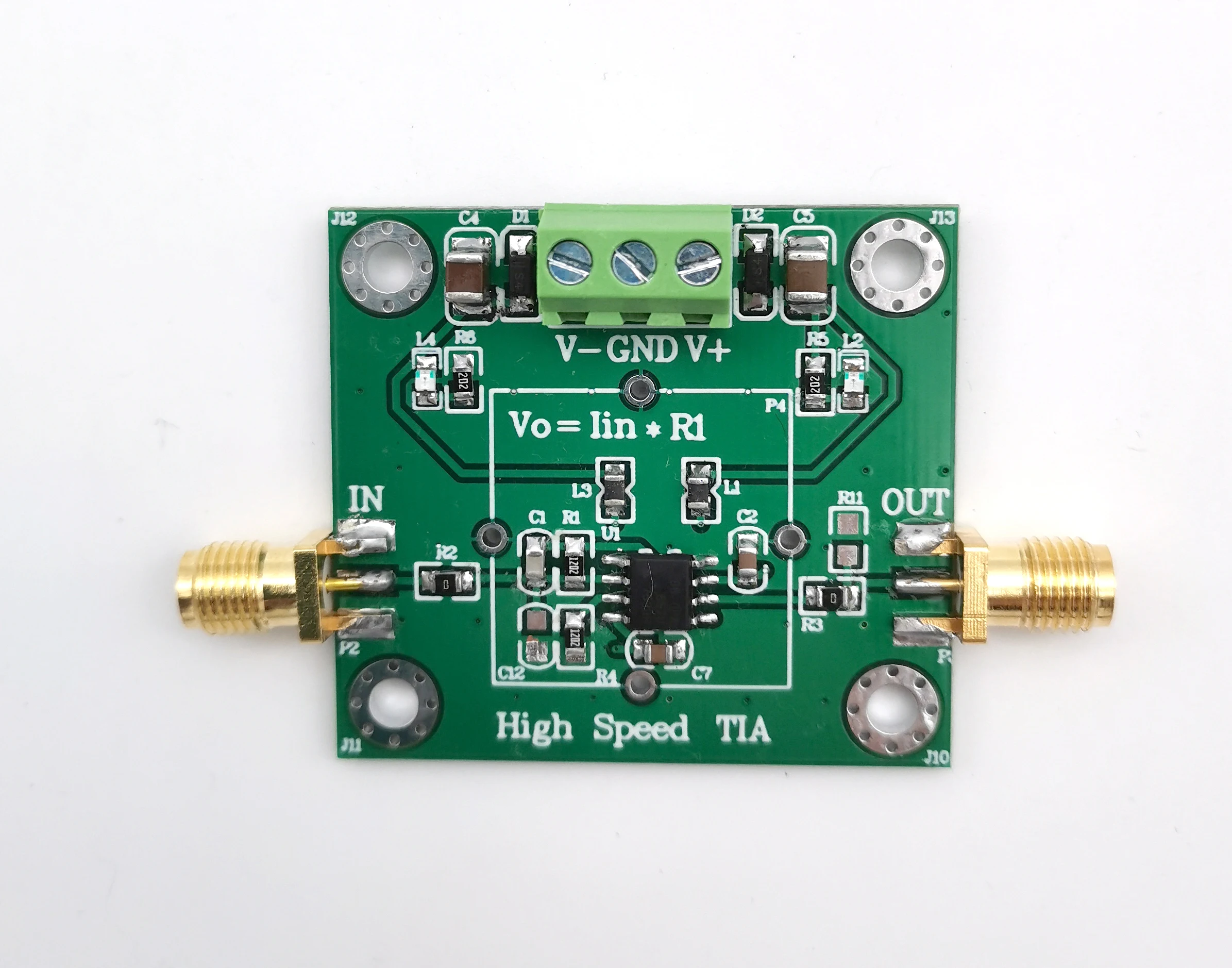

Experience exceptional signal conversion with this sleek, green printed circuit board (PCB) designed around the AD825 chip. This compact module measures just 41mm by 37mm with a slim 7mm profile, making it ideal for tight spaces and sensitive setups. Its vibrant green matte surface is accented by gold-plated SMA connectors, offering a professional and durable look. The black integrated circuit at the center draws visual focus, complemented by small gray and tan surface-mount components that indicate careful, precise engineering. Bright red and green LED indicators at the top provide immediate power status. The neatly labeled connection points and silver mounting holes on the edges highlight its functional and industrial aesthetic. This module perfectly balances form and function for your photoelectric detection and weak signal measurement projects.
Keys features of this AD825 transimpedance amplifier module
- Power supply ranges from ±5V (typical) to ±15V (max), consuming only 20mA for energy-efficient operation and reliable performance across applications.
- Single-ended input handles currents up to 1mA with a minimum resolution of 10pA, ensuring precise weak signal detection and photoelectric conversion.
- Input impedance exceeds 5×10¹¹Ω, supporting high sensitivity in photodiode and avalanche photodiode (APD) applications with minimal signal loss.
- Analog bandwidth surpasses 5MHz, translating to fast, accurate current-to-voltage conversion suitable for high-speed data acquisition projects.
- Output voltage can reach a maximum of 10Vpp within power limits, with a maximum output current of ±5mA, following the formula Vout = -Iin × R for precise signal processing.

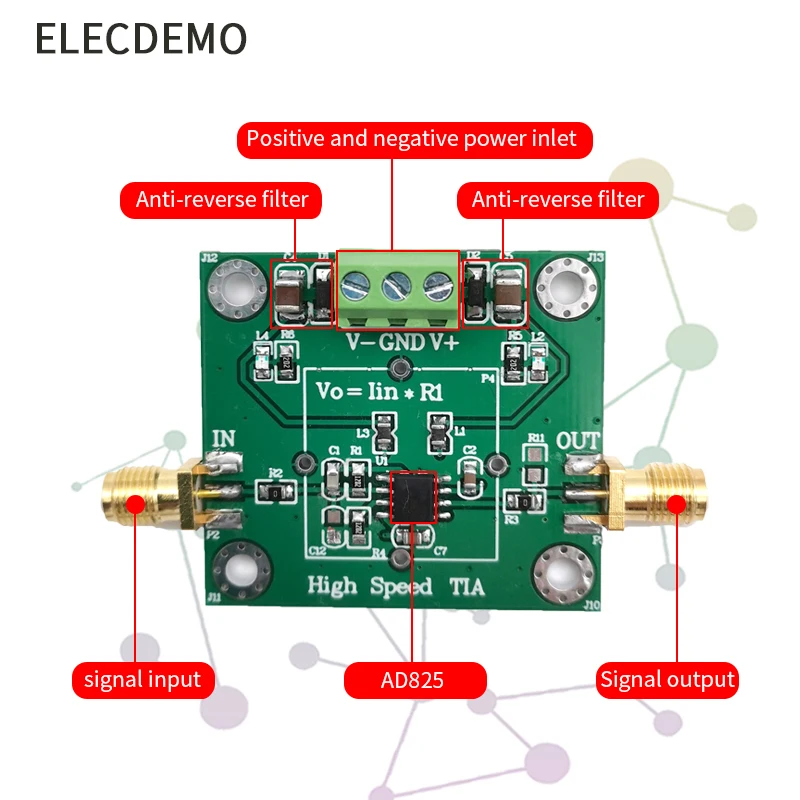

- Additional features include reverse power protection, LED indicators for output polarity, small size (41×37×7mm), lightweight (16g), and compatibility with SMA interface for seamless integration.
Get this AD825 amplifier module now and elevate your projects
Imagine the confidence of having a reliable, high-precision transimpedance amplifier seamlessly integrated into your system. This module is designed for photoelectric detection, weak signal detection, and data acquisition, ready to take your experiments to the next level. Whether you're working with photodiodes or avalanche photodiodes, this module delivers stable, tested performance. Its durable construction and detailed features ensure you can trust it for your most demanding tasks. Incorporate it into your setup today and experience the difference that real, dependable specifications make in your scientific or industrial applications.
| Color | 100K, 10K, 10m, 1K, 1M, APDPower module, Other customization |
|---|---|
| Condition | New |
| Warehouse | HK Warehouse – Hong Kong |
