High-Precision AD630 Signal Processing Module
98.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake
This compact 50mm by 50mm black PCB module features the AD630 chip for balanced modulation, demodulation, and lock-in amplification, ideal for weak signal detection. It offers a ±5V to ±15V power supply, with a typical current of ±10mA. The module provides IN1 input range of 0-13Vpp (-6.5V to +6.5V), with adjustable front amplification from 2x to 100x, and IN2 input range from (V-)+3V to (V+)-1.5V. Output boasts a maximum of 26Vpp (-13V to +13V) for OUT1, and -8V to +8V for OUT2. Features include 10kΩ input impedance, 51Ω OUT1 impedance, low-pass cutoff at 10Hz, DC offset adjustments of ±25mV, reverse polarity protection, and SMA signal interfaces, supporting precise applications such as phase detection and lock-in amplification.
In stock
This High-Precision AD630 Signal Module

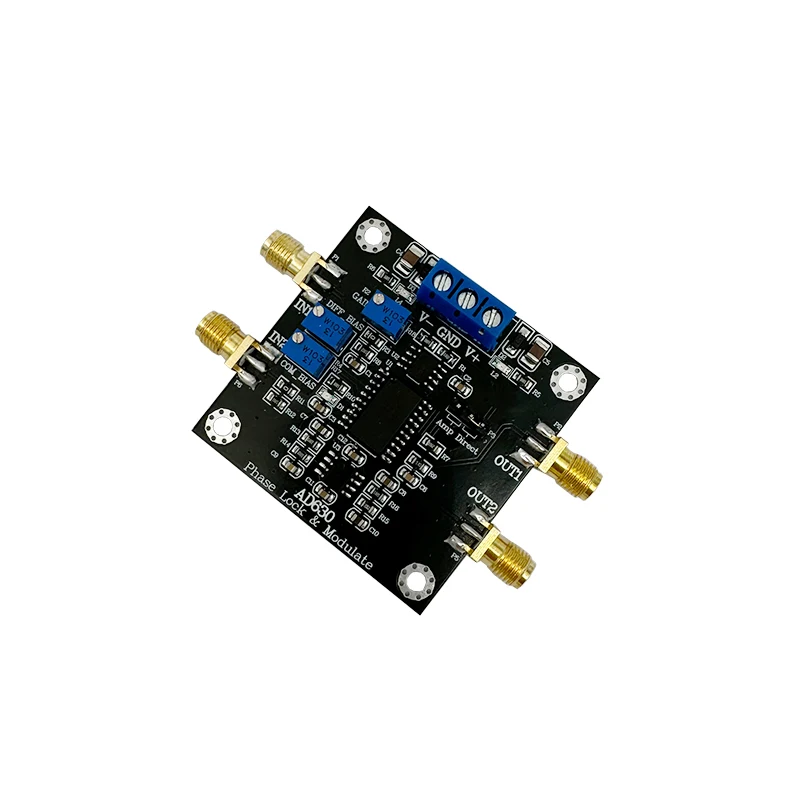

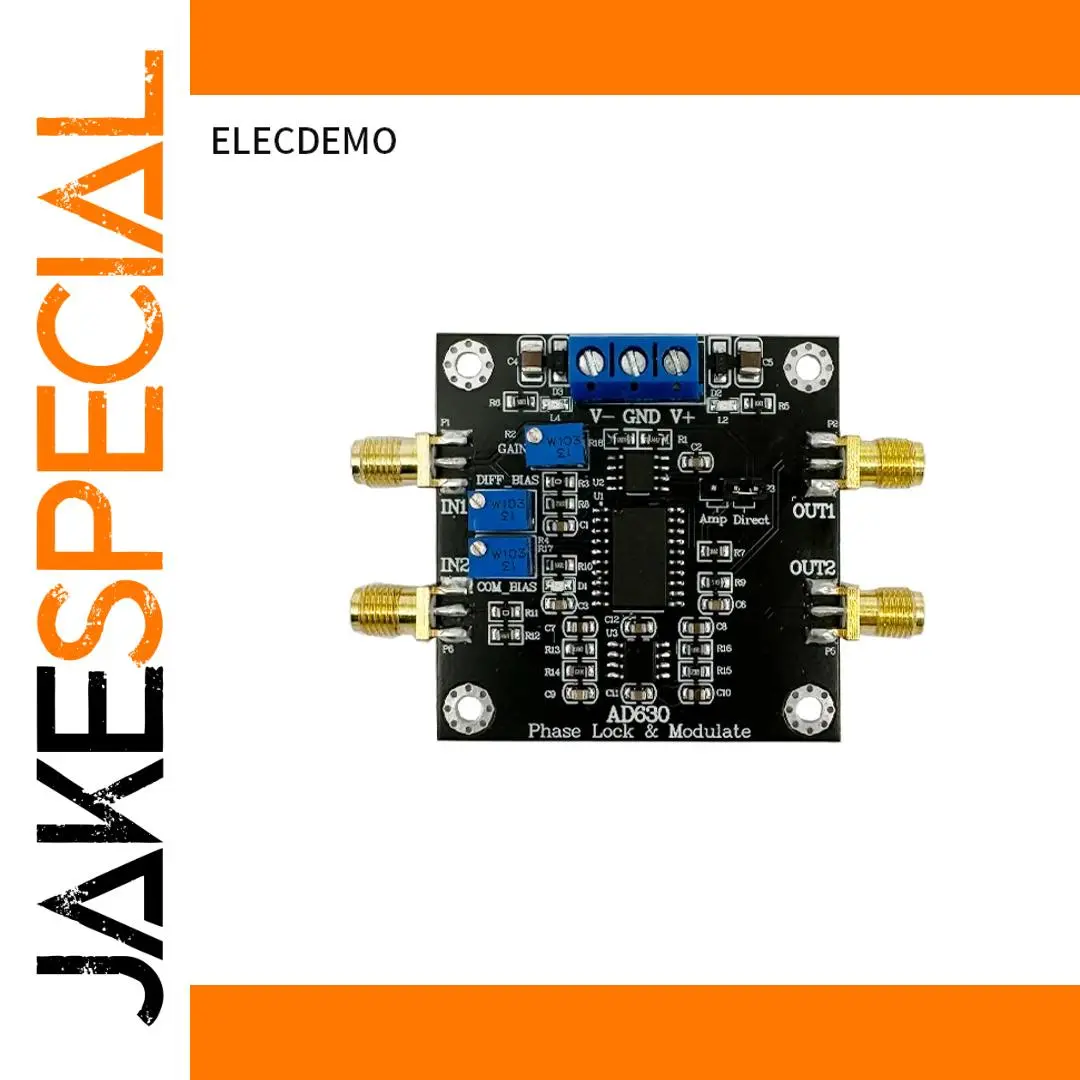

Experience seamless signal processing with this compact, high-precision AD630 module. Measuring just 50mm by 50mm, its sleek black PCB showcases a professional design with neatly arranged surface-mounted components. Four gold-plated SMA connectors at the edges facilitate reliable signal input and output, while blue terminal blocks add a vibrant touch for easy wiring. The module's meticulous layout emphasizes clarity and functionality, making calibration and adjustments straightforward. Whether you're working on balanced modulation, demodulation, or lock-in amplification, this module delivers consistent performance with adjustable gain and bias. Its robust construction and thoughtful design ensure stability and precision, making it ideal for experimental, industrial, or research applications requiring weak signal detection and phase lock features.
Keys features of the AD630 signal module

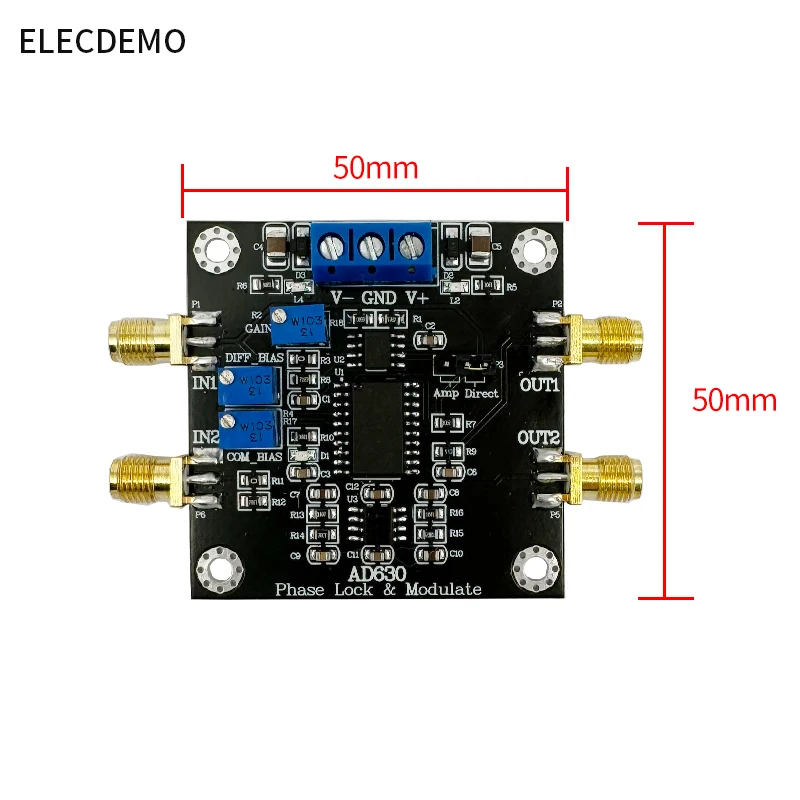

- Compact, square design measuring 50mm by 50mm with a sleek black PCB surface for a professional look.

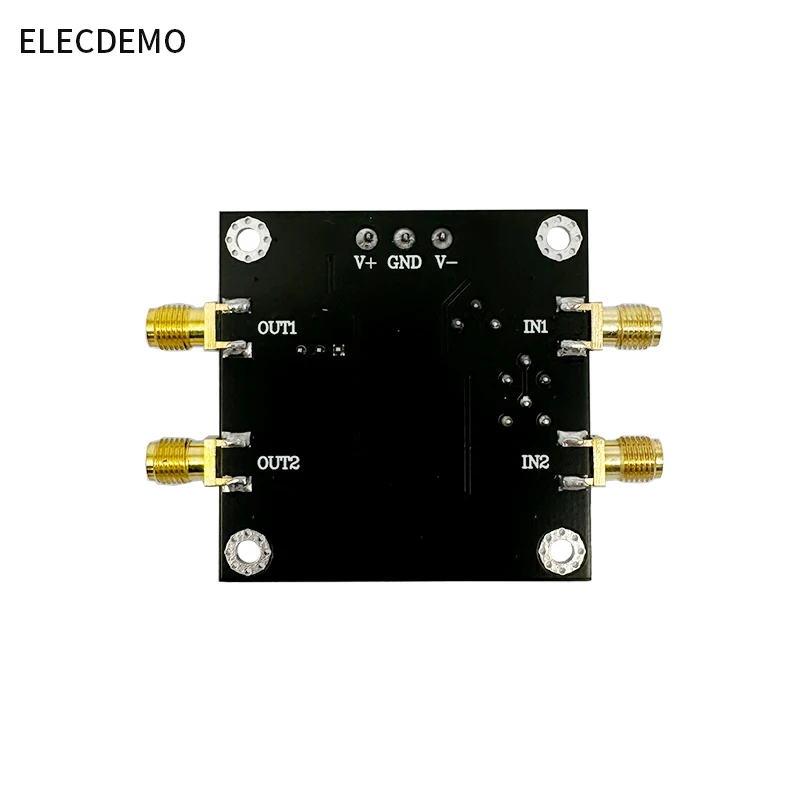

- Features four gold-plated SMA connectors for signal input/output, ensuring durable and high-quality connections.
- Includes blue terminal blocks for power connections, supporting ±5V to ±15V supply voltages, with clear labels for easy setup.

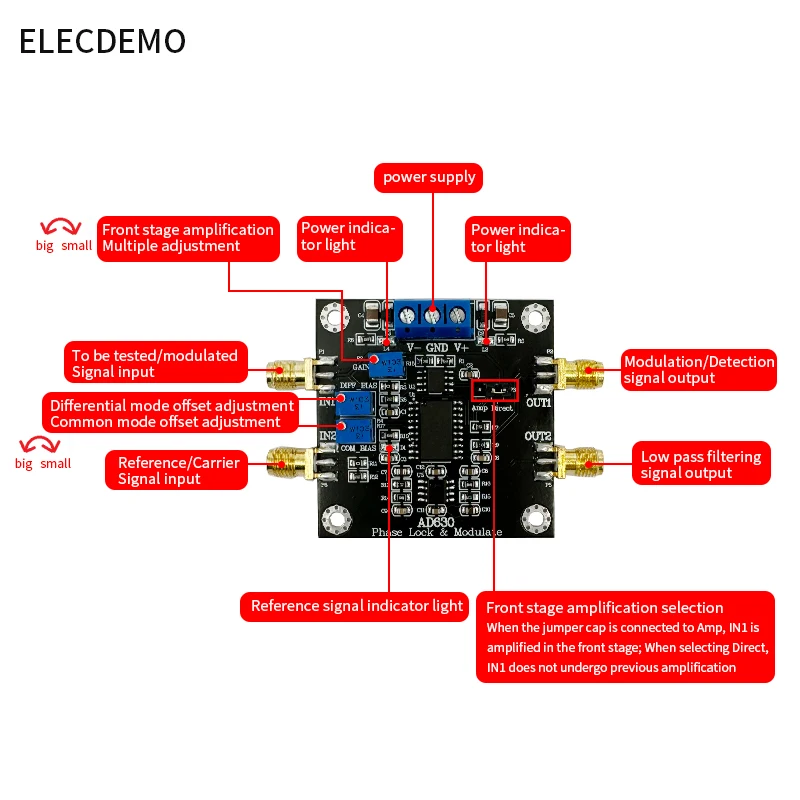

- Designed with adjustable front amplification from 2 to 100x, enabling fine-tuning for precise signal processing tasks.
- Operational temperature range from -25°C to +75°C; no heat sink required, ensuring reliable performance in diverse environments.
- Technical specifications: Gain-bandwidth product of 2MHz; input impedance of 10kΩ; output impedance of 51Ω for OUT1; low-pass filter cutoff at 10Hz.
- Supports applications like balanced modulation/demodulation, phase detection, lock-in amplification, and square wave multiplication for versatile uses.
Get your high-precision AD630 module today and elevate your signal detection projects!
Enhance your experimental setups with this reliable, feature-rich module. Its detailed design and adjustable parameters make it easy to integrate into complex signal processing systems. Whether for research, industrial testing, or advanced hobbyist projects, this AD630 module ensures high stability and accurate signal modulation and detection. Investing now means you’ll have a powerful tool that meets your technical needs with precision and ease. Don’t miss out on this essential component—make it part of your lab today and experience the difference in performance and quality.
