High-Performance RF Synthesizer Module 5.376GHz
88.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake
Experience precise RF signal generation with this compact broadband PLL RF synthesizer module, operating up to 5.376 GHz VCO frequency and providing a continuous output range from 10 MHz to 1344 MHz with 1 kHz control steps. Features include ultra-low phase noise (-123 dBc/Hz at 12.5 kHz offset @ 480 MHz, -145 dBc/Hz at 1 MHz offset, and > -231 dBc/Hz base noise), support for FM and programmable FSK modulation (levels 2, 4, 8), and two SMA output channels with 50Ω impedance delivering up to 4 dBm RMS power. Powered by 5V DC with a 250 mA max current, this 50 x 50 x 7 mm, 15-gram module offers high stability, fast lock technology, and SPI communication compatibility, making it ideal for RF testing, communication research, and signal simulation in a temperature range of 0–75°C.
In stock
This High-Performance RF Synthesizer Module

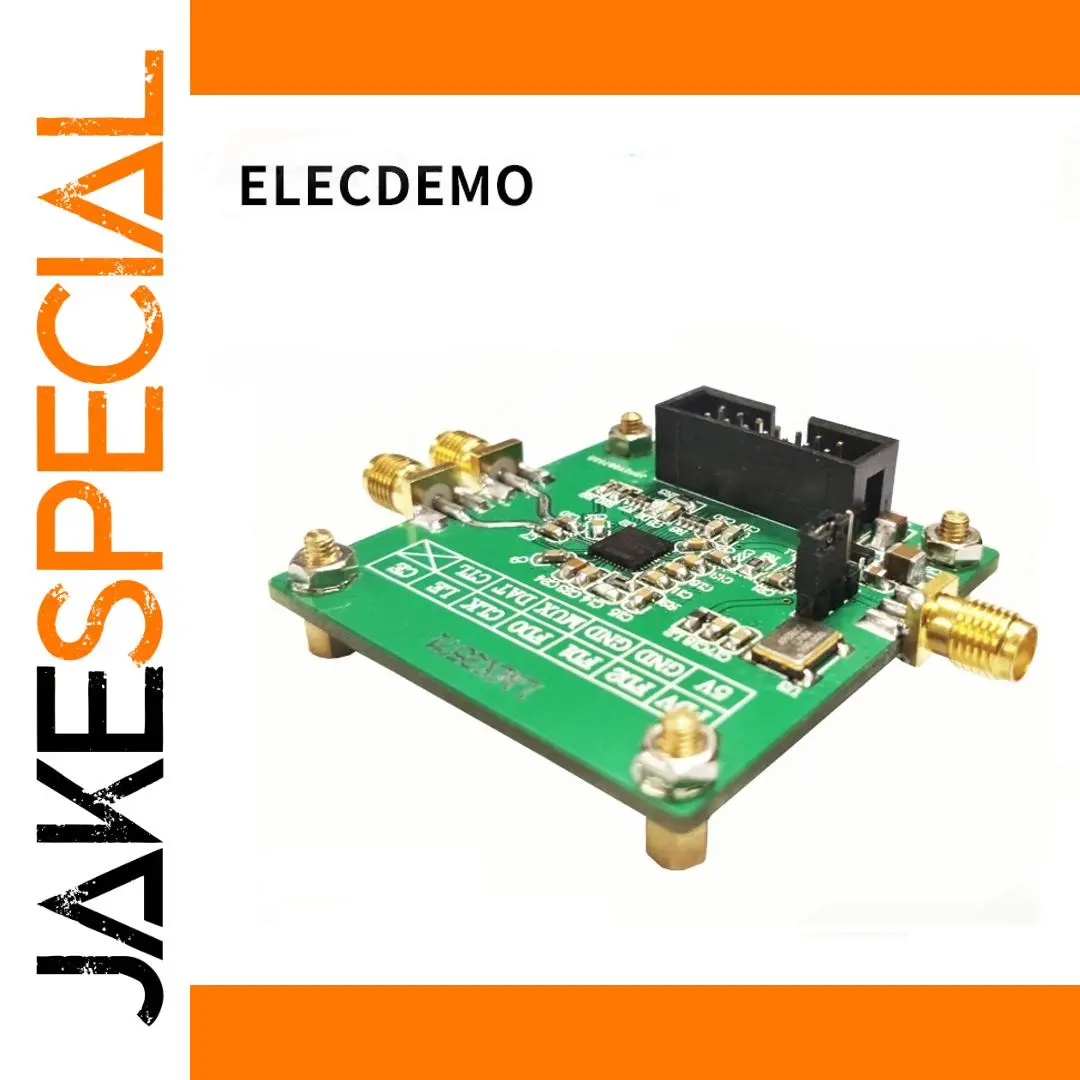

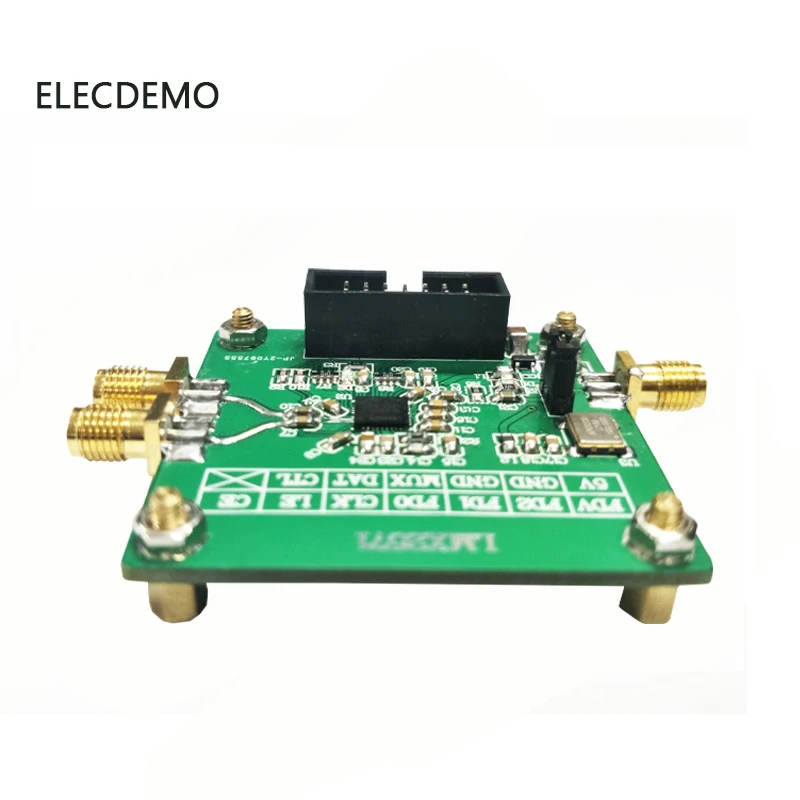

Imagine adding this advanced broadband PLL RF synthesizer to your project, elevating your RF signal generation capabilities. With a compact 50x50x7mm design weighing only 15 grams, this module seamlessly integrates into your system. It operates smoothly within 0–75°C, delivering stable signals with ultra-low phase noise, ensuring precise results. The module features two SMA connectors with 50Ω impedance, outputting up to 4dBm RMS power, perfect for RF signal testing, communication research, or sensor excitation. Its sleek green PCB with gold SMA connectors creates a technically sophisticated aesthetic. Whether for professional experimentation or development, this module empowers your projects with reliable, high-performance RF synthesis.
Keys features of this RF synthesizer module
- This broadband PLL RF synthesizer operates up to 5.376GHz VCO frequency, with a continuous output range from 10MHz to 1344MHz, offering versatile frequency options for your applications.
- It provides a frequency control step of just 1kHz, with ultra-low phase noise specifications such as -123dBc/Hz at 12.5kHz offset and -145dBc/Hz at 1MHz offset, ensuring signal clarity and precision.
- This module supports FM and FSK modulation with levels configurable to 2, 4, or 8, programmable via pins, facilitating complex signal modulation for communications or testing.
- Features include SPI communication protocol compatible with STM32F103 microcontrollers, rapid lock technology, and outputs resembling a square wave, requiring external filters for sine waves.
- Operating on 5V DC with a maximum current of 250mA, the module’s design emphasizes low power consumption and stability, fitting compact setups with environmental operation from 0–75°C.

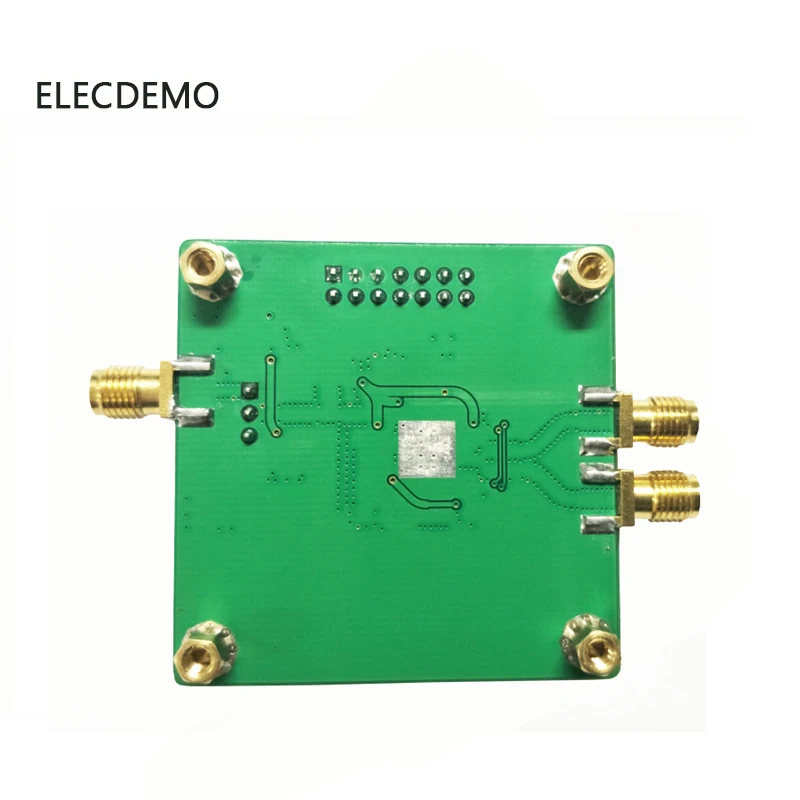

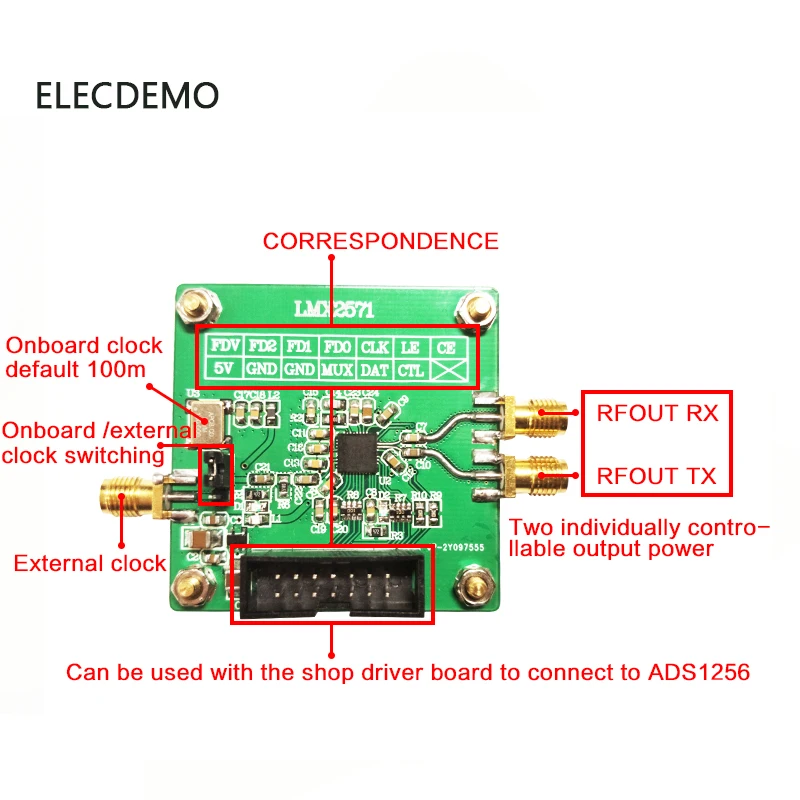

- The module includes physical features like gold SMA connectors, a crystal oscillator or differential clock input, and silkscreen labels for easy configuration, emphasizing reliability and precision.
This RF module is ready for your projects—buy now!
Enhance your RF research, development, or testing with this high-quality synthesizer module. Its technical excellence and compact form make it an ideal addition to your toolkit. Trust in its low phase noise performance and flexible modulation options to achieve accurate, stable signals. Whether for your lab experiments, communication system development, or sensor calibration, this module offers reliable power and precision. Adding this module to your collection means empowering your projects with advanced RF capabilities, paving the way for innovative breakthroughs. Experience the difference today—your next project deserves this level of performance.
