High-Performance BLDC Motor Controller 6-60V 450W
36.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake
This high-performance BLDC three-phase DC brushless motor controller operates within a voltage range of 6-60V, delivering up to 450W and rated at 16A (peak 20A). It features PWM control with hall sensor inputs (Ha, Hb, Hc, +5V, GND) for precise motor commutation, supporting both onboard potentiometer and external 0-5V analog PWM speed regulation. Equipped with forward, reverse, and brake functions, plus a speed pulse output (SC), the compact 63mm x 45mm x 28mm design weighs approximately 93g. Built-in overcurrent protection ensures reliable operation—ideal for motors requiring stable low-speed torque and high performance.
This is the ultimate BLDC three-phase motor controller
Experience precise control and reliable performance with this high-quality BLDC three-phase DC brushless motor controller. Designed to operate within 6-60V, it delivers up to 450W of power with a rated current of 16A (peaking at 20A). Its compact dimensions of 63mm x 45mm x 28mm and lightweight design of approximately 93g make it easy to integrate into various projects. The vivid red PCB highlights the robustness of this module, accented by bright green terminal blocks, white connectors, and a striking blue potentiometer for effortless speed adjustments. Equipped with PWM control, hall sensor inputs, and forward/reverse/brake functions, this controller ensures smooth, low-speed startup with high torque, ideal for demanding applications requiring precise motor management.
Key features of this BLDC three-phase motor controller
- The controller operates at 6-60V voltage, delivering a maximum 450W, with rated current of 16A (peak 20A), suitable for high-power brushless motors requiring stable power supply.

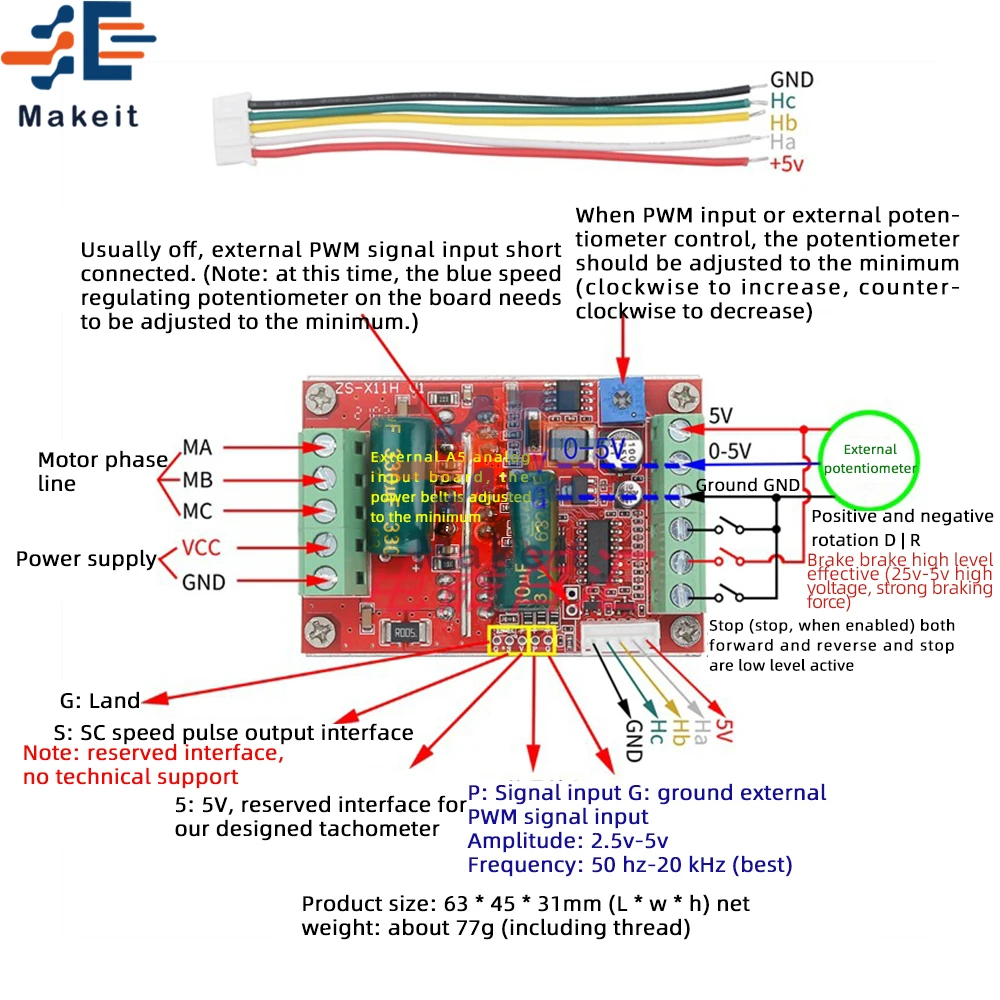

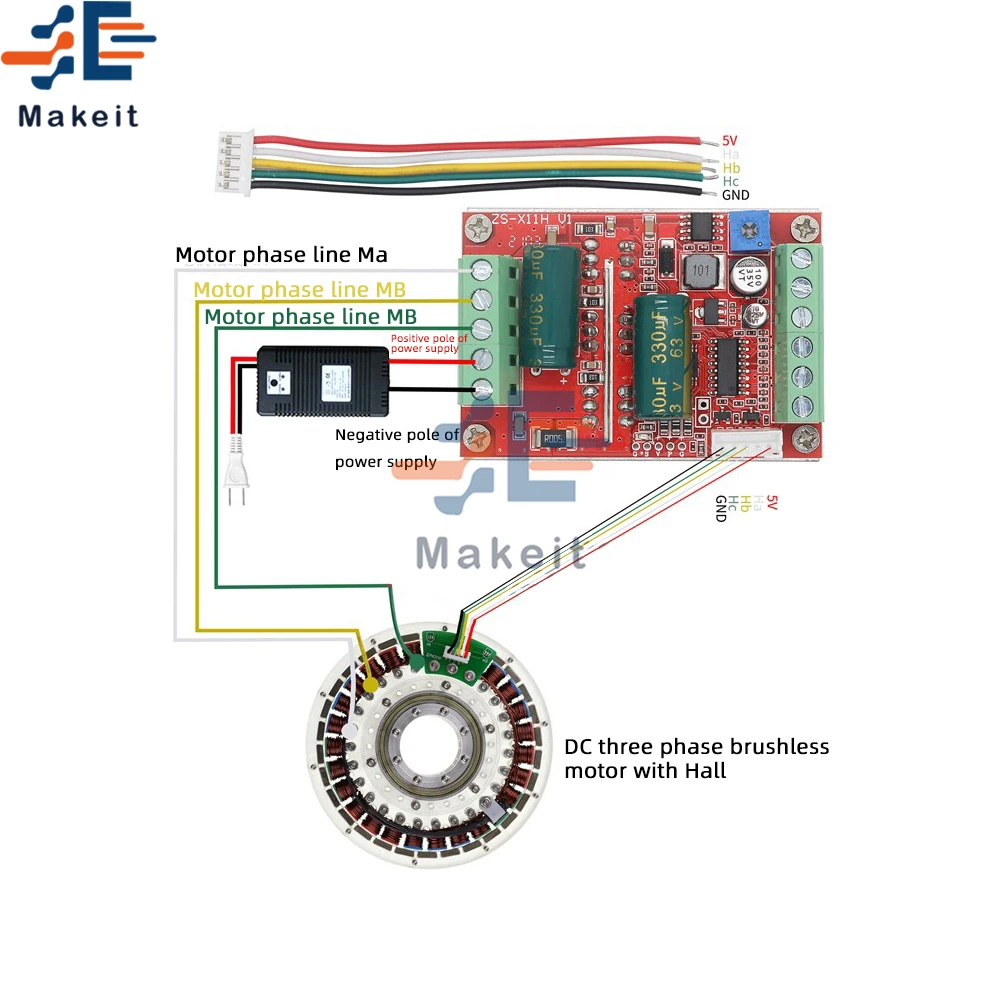

- Features PWM control with hall sensor inputs (Ha, Hb, Hc, +5V, GND) for accurate commutation, ensuring smooth motor operation across all speeds and loads.
- Includes multiple interfaces: speed regulation via onboard potentiometer or external 0-5V PWM input (VR), along with forward/reverse and braking functions for dynamic motor control.
- Design incorporates overcurrent protection; dimensions are 63mm in length, 45mm in width, with a height of 28mm, and weights approximately 93g, facilitating easy installation and integration.

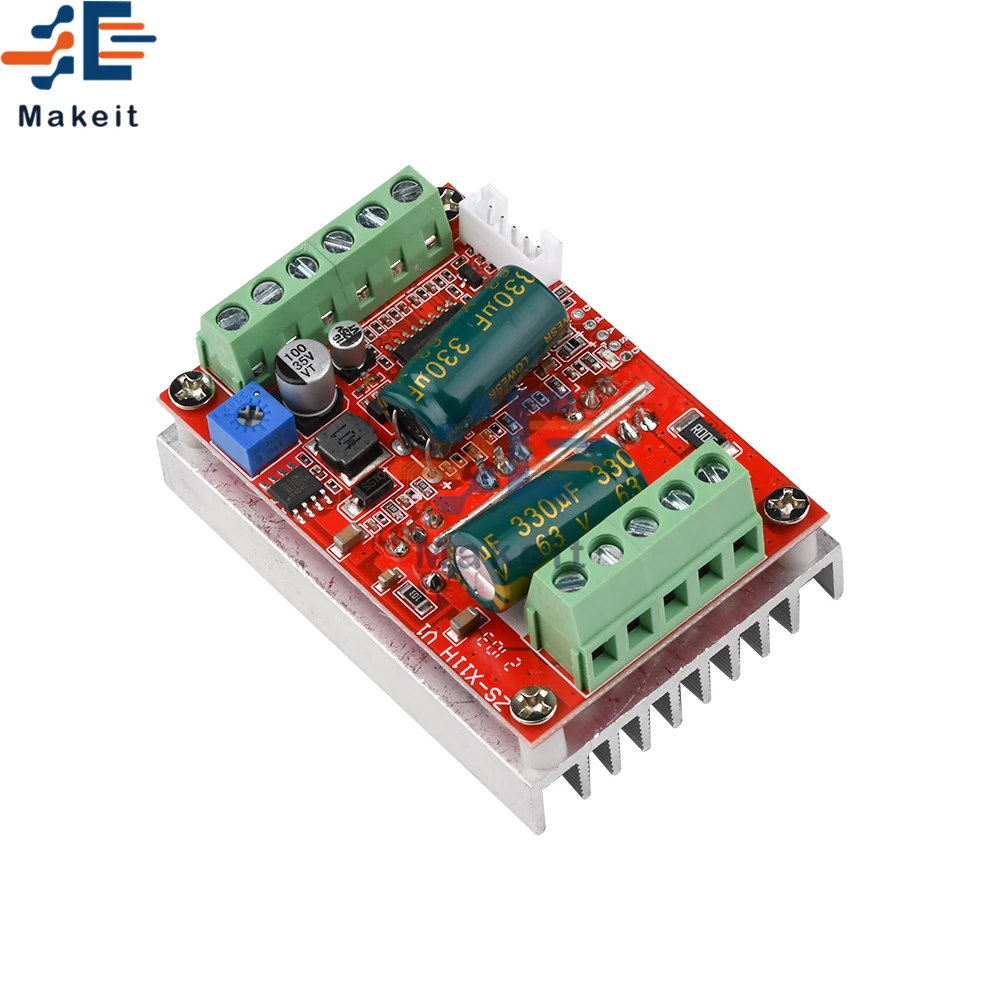

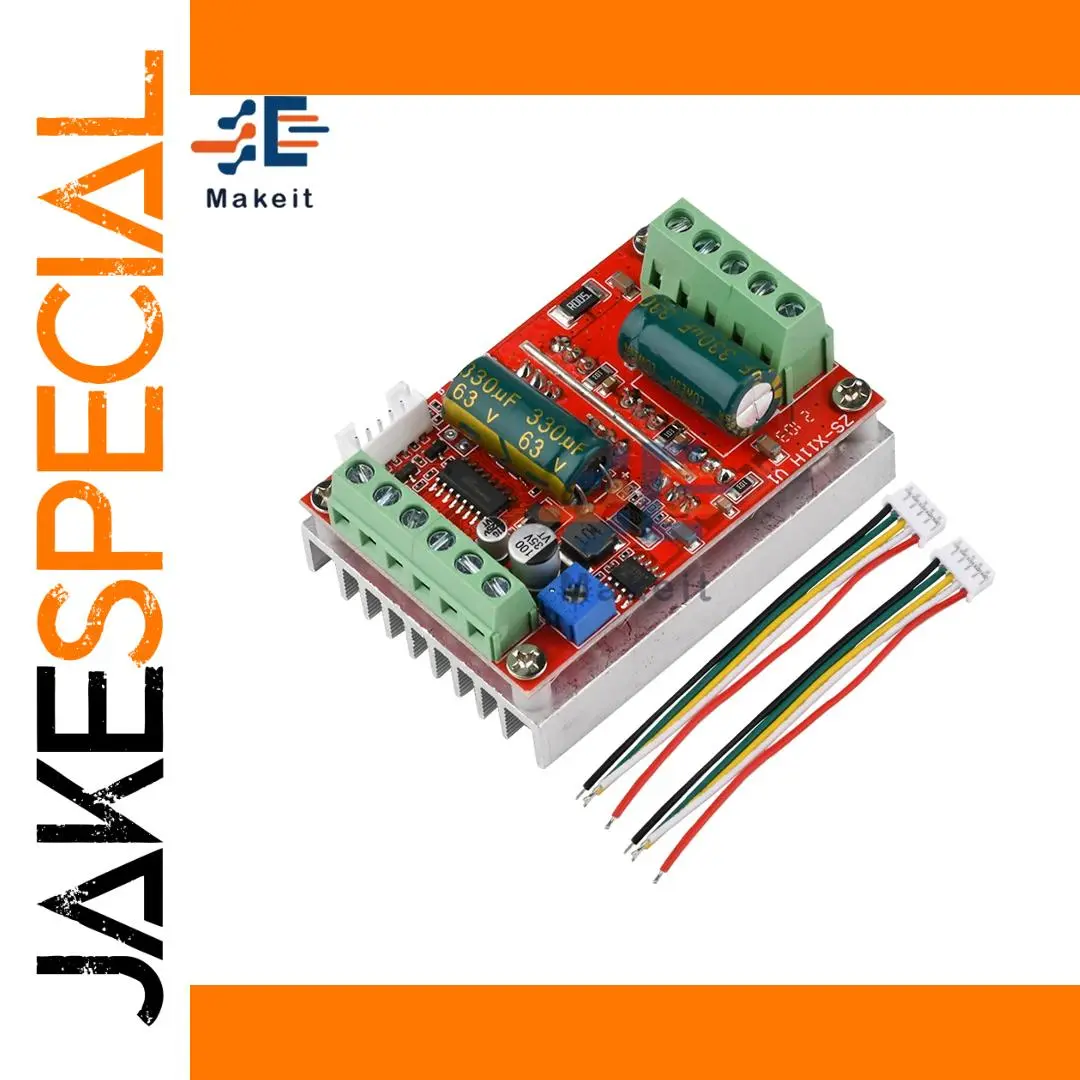

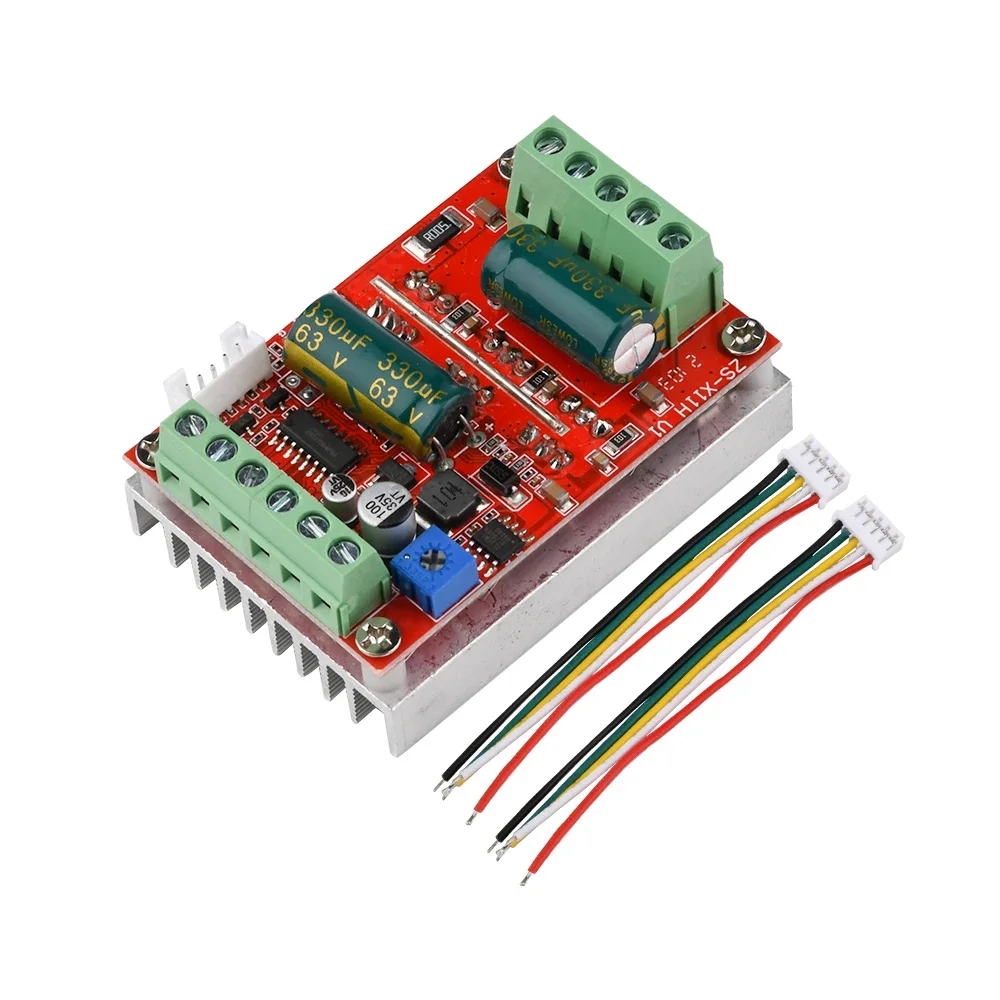

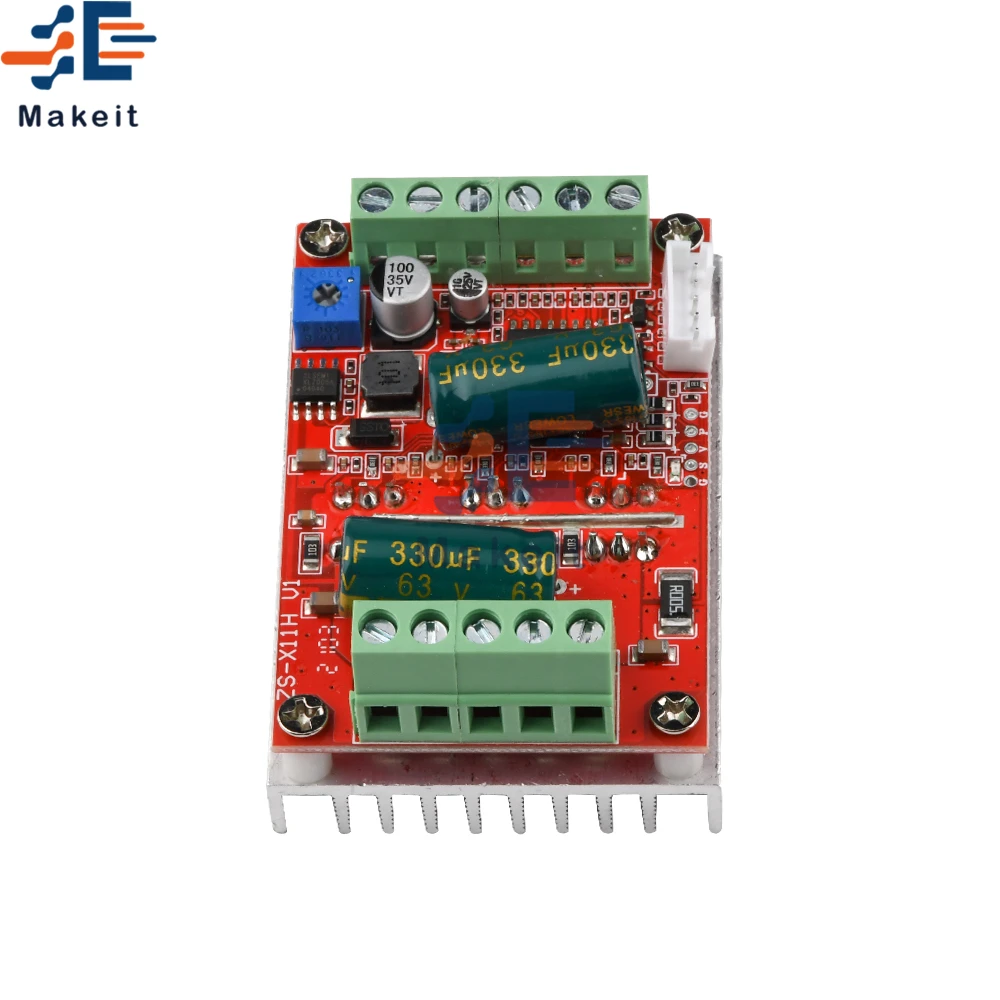

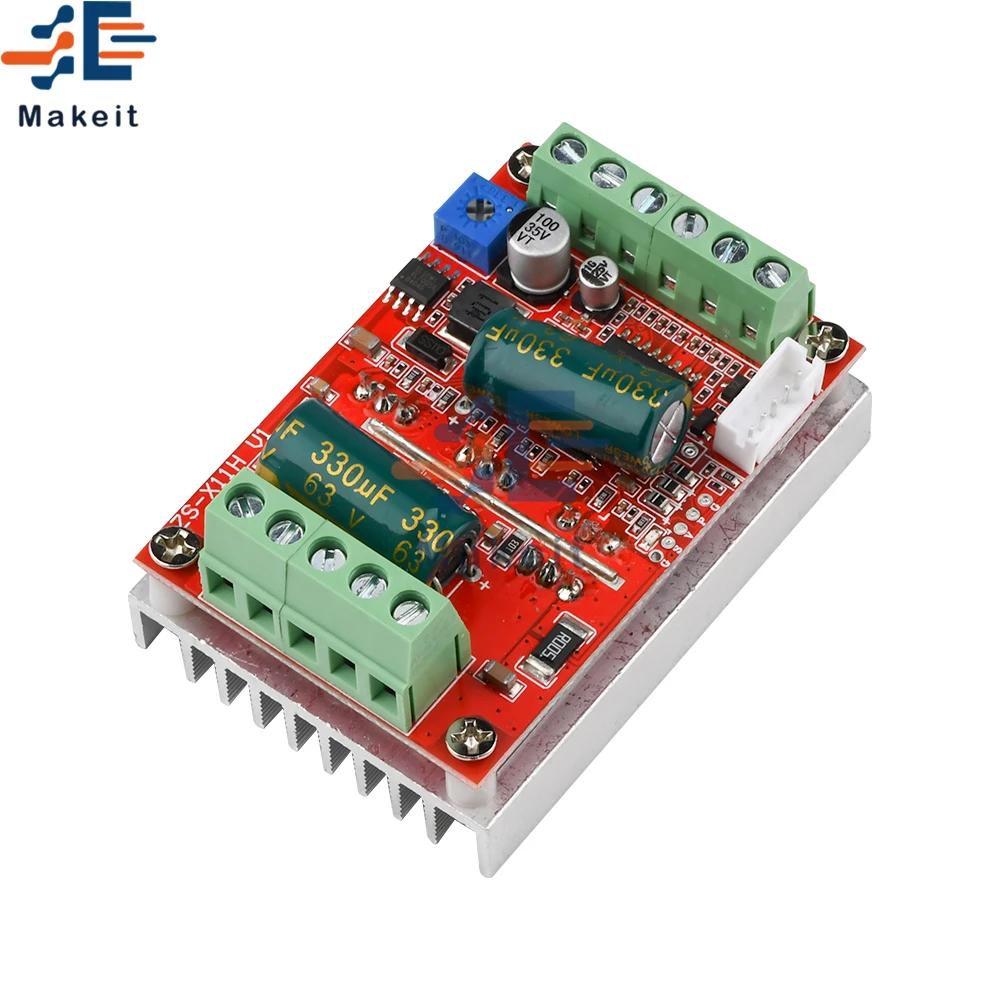

- The vivid red PCB features a large yellow capacitor (330μF 63V), green terminal blocks for motor and power connections, white multi-pin control connectors, and a prominent blue potentiometer, creating a bold, industrial aesthetic.
- Built-in safety features include overcurrent protection; careful wiring is essential as there is no fuse on the main power circuit to prevent permanent damage during faults.
This BLDC motor controller is ready to elevate your project—purchase today
Transform your motor control needs with this reliable, high-performance BLDC driver. Imagine effortless speed regulation, smooth startup, and robust power management, all housed in a vivid red PCB that speaks to its industrial strength. Whether you’re building a robotic arm, a drone, or an automated system, this controller offers the precision and stability you require. Don’t miss out—bring efficiency and control to your designs now and enjoy the satisfaction of complete, precise motor management.
| Color | as show |
|---|---|
| Condition | New |
| Warehouse | HK Warehouse – Hong Kong |
