High-Frequency RF Mixer Module 0.1-500MHz
28.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake
This compact RF mixer module features a vibrant green PCB measuring 33×33 mm and weighing just 11 grams, designed for high-frequency applications from 0.1 to 500 MHz. It includes SMA connectors for RF and LO signals, with a handling capacity of up to 500 MHz at -10 dBm, and offers an IF output bandwidth of 250 MHz from 0.1 to 200 MHz. The device boasts a third-order intercept point of +24 dBm, low DC offset, and a noise figure of 10.3 dB at 70 MHz, making it ideal for RF-IF down conversion, DMR base station second mixers, quadrature modulation, and Doppler frequency shift detection.
This High-Frequency RF Mixer Module in Green

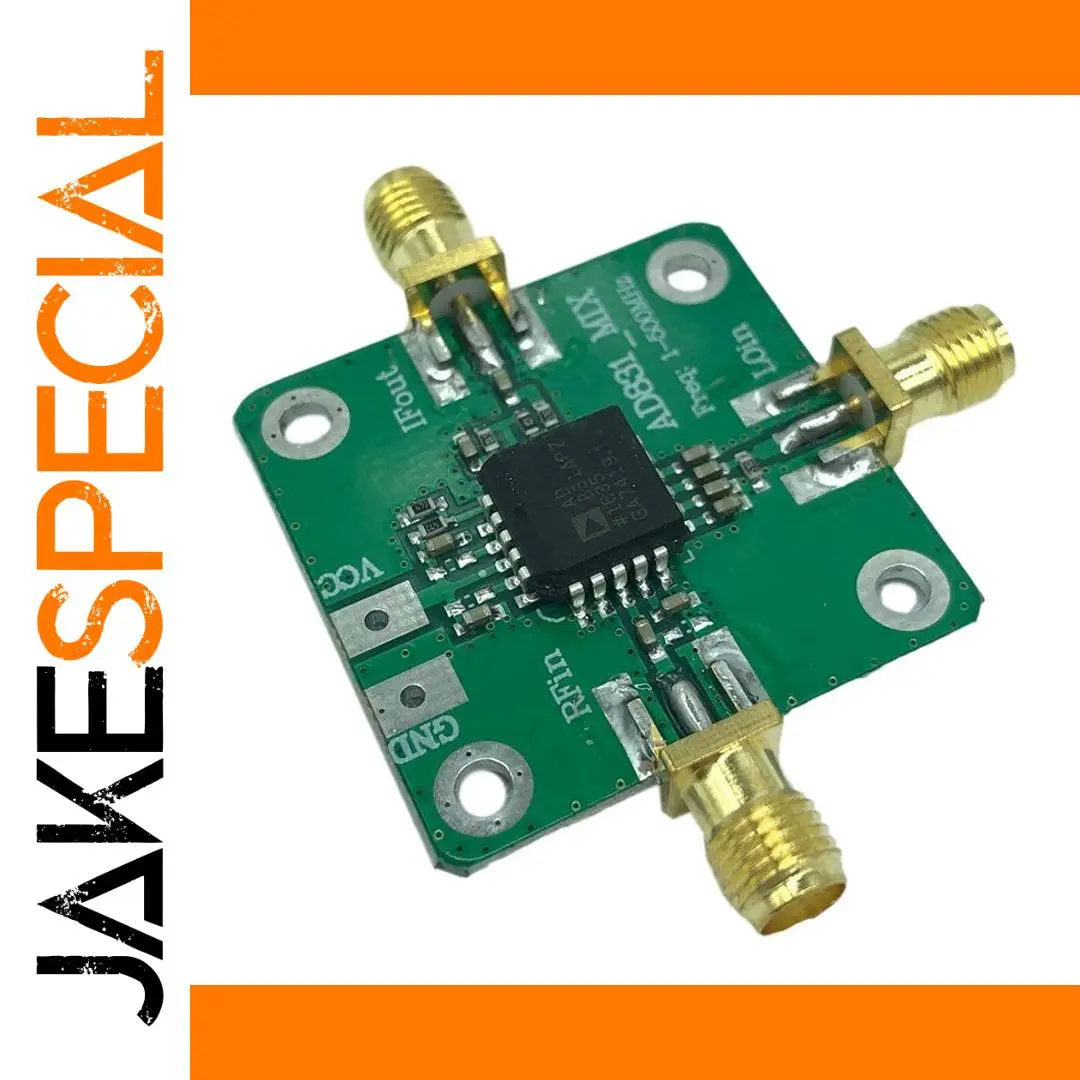

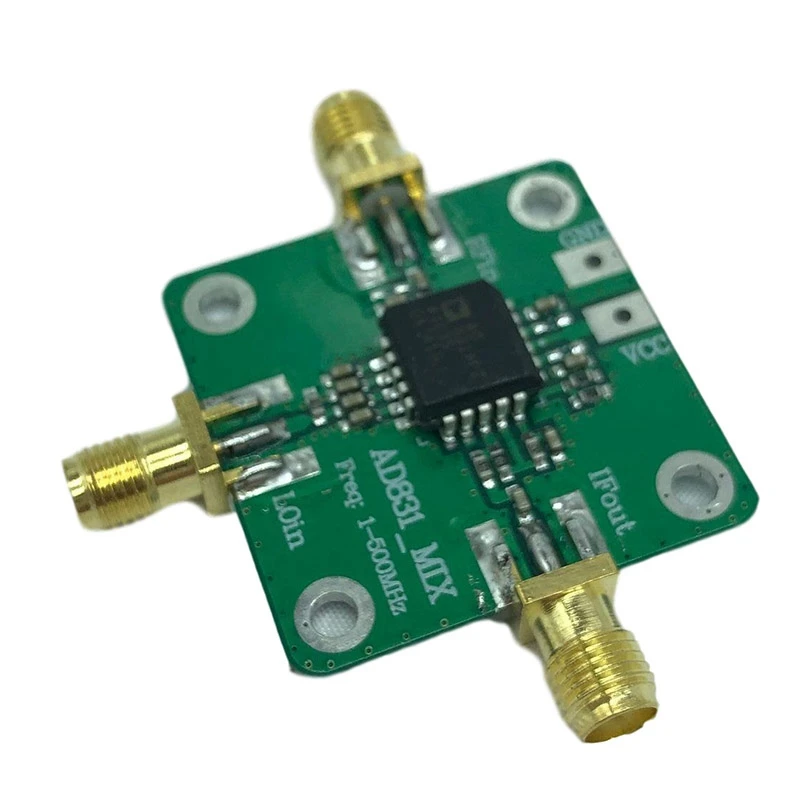

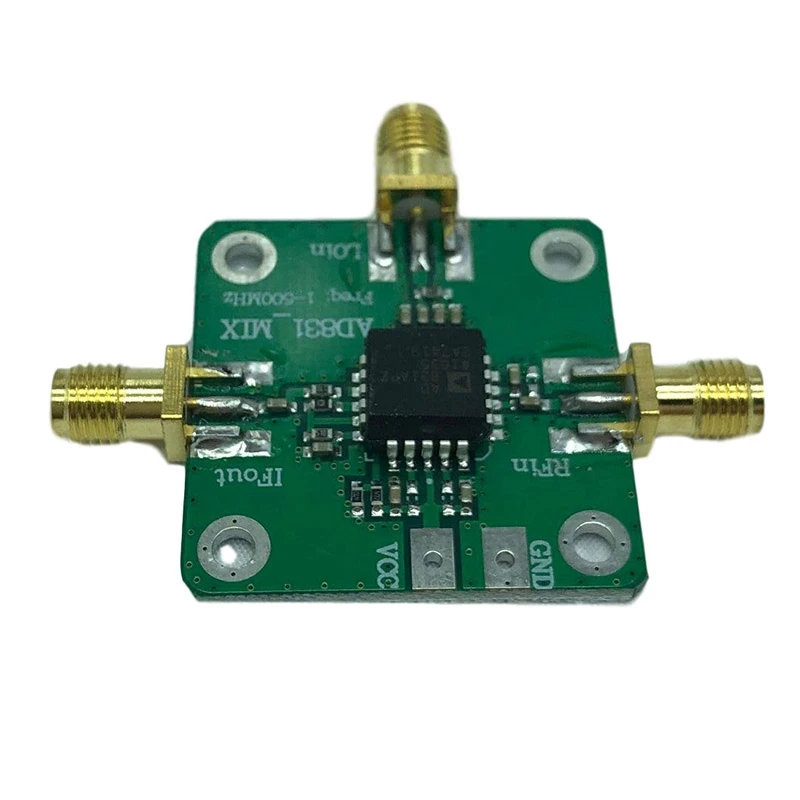

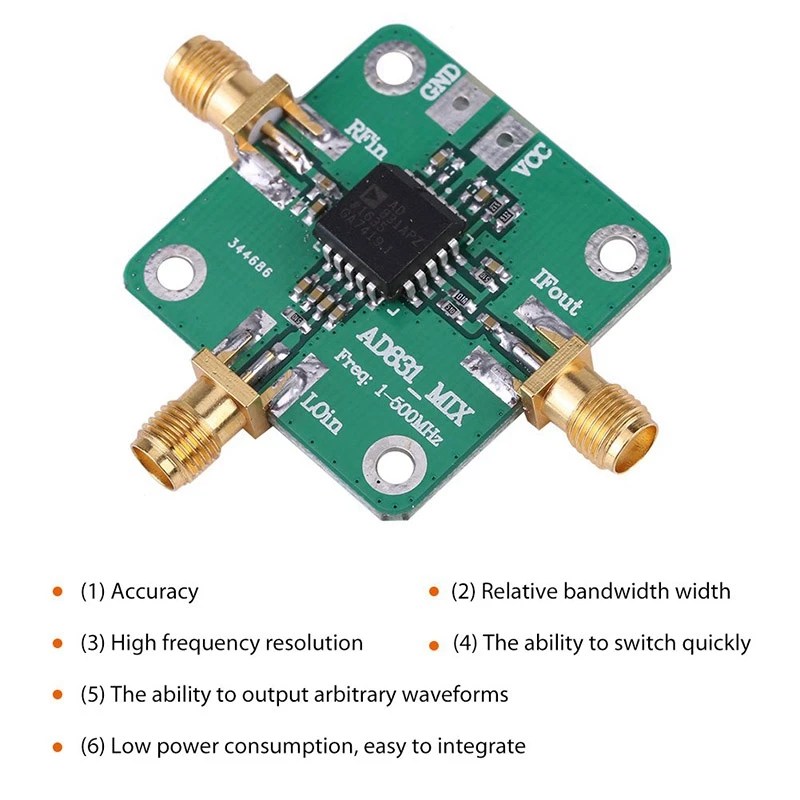

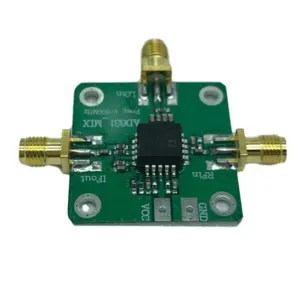

Experience seamless integration with this sophisticated RF mixer module, boasting a vibrant green PCB design measuring just 33x33mm. Its compact, square shape features four precise mounting holes, perfect for easy installation into your RF systems. The glossy black integrated circuit at the center, paired with shiny gold-plated SMA connectors, highlights its high-quality craftsmanship. Designed for high-frequency applications up to 500 MHz, this module combines functionality with a sleek, professional aesthetic. Its precise layout and durable materials ensure reliable performance in RF-IF down conversion, base station mixing, quadrature modulation, and Doppler detection. Imagine elevating your projects with a component that merges technical excellence and visual sophistication, adding a touch of modern precision to your electronic ensemble.
Keys features of the this RF mixer module
- Operates over a frequency range of 0.1 to 500 MHz with robust handling of RF and LO signals at -10 dBm, perfect for wideband RF applications requiring stability and clarity.
- Supports RF input at +10 dBm with a 1 dB compression point, and an IF output spanning 0.1 to 200 MHz with a bandwidth of 250 MHz, ensuring high-performance signal conversion.
- Powered by a single 9-11 V DC power supply, weighing only 11 grams, with a compact 33x33mm form factor for versatile installation in crowded RF systems.
- Features a +24 dBm third-order intercept point and a low DC offset amplifier, providing excellent linearity and signal integrity for sophisticated communications and radar projects.
- Has DC isolation capacitors on RF, LO, and IF ports, enhancing signal stability; gain adjustable via resistor between OUT and FB pins, supporting customization.
- Constructed with a vibrant green PCB, complemented by gold-plated SMA connectors, combining aesthetic appeal with high conduction efficiency for reliable RF connections.
This RF Mixer Module—Upgrade Your RF Projects Today
Envision yourself integrating this reliable RF mixer into your next project, confidently handling high-frequency signals with ease. Its technical capabilities paired with a sleek look make it a top choice for RF engineers and enthusiasts. Whether you’re developing communication systems, radar, or signal processing devices, this module promises precision, durability, and a professional finish. Make this high-performance component yours today and bring your RF applications to a new level of excellence. Enjoy the benefits of advanced technology wrapped in a compact, visually appealing package designed to meet your demanding needs.
Your RF projects deserve nothing but the best. With this high-frequency, versatile RF mixer module, you’re investing in reliability, performance, and aesthetic quality. Transform your design process and achieve superior results—order now to ensure you’re equipped with this essential component for cutting-edge RF systems.
| Color | Green |
|---|---|
| Condition | New |
| Warehouse | HK Warehouse – Hong Kong |
