FPV Drone Power Distribution Hub 36x50mm
28.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake

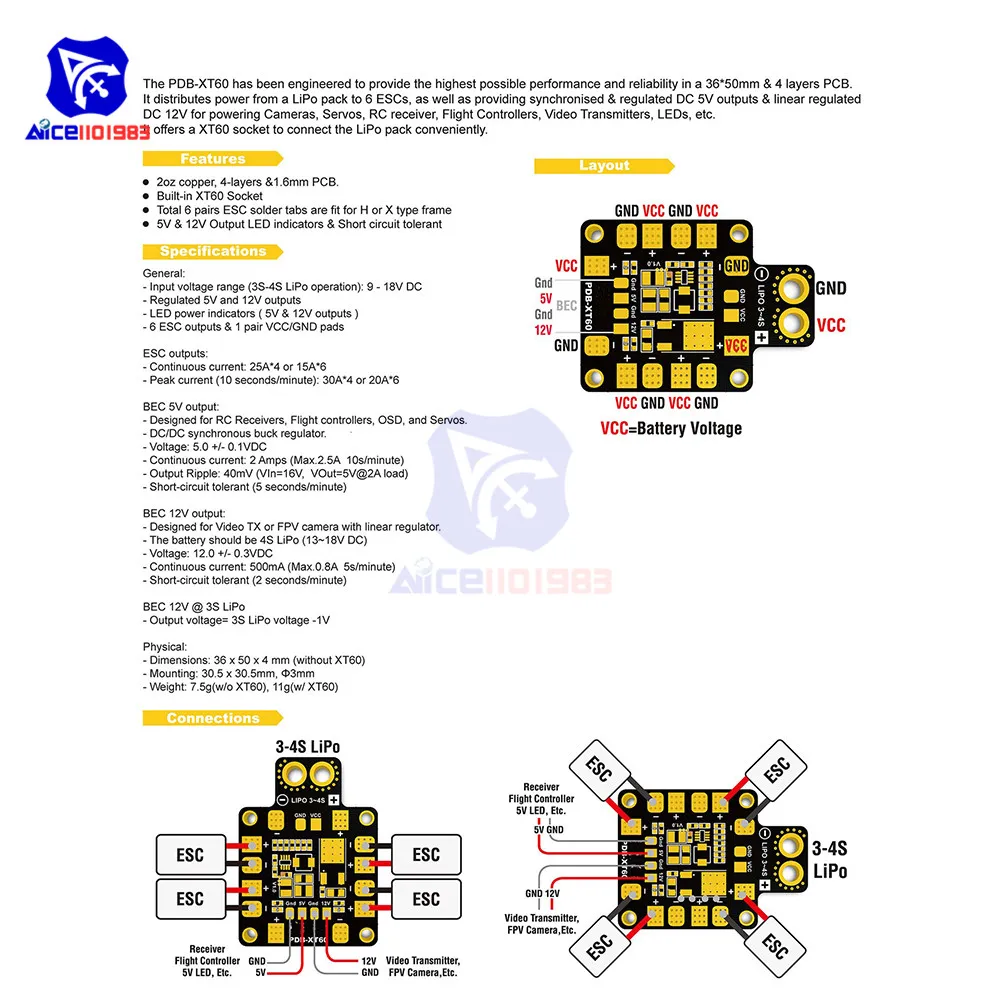

This compact power distribution board features a 36 x 50 x 4 mm black PCB with a 4-layer, 1.6mm thickness and 2 ounces of copper. It includes a built-in gold-colored XT60 socket and six soldering pads for ESC connections suitable for H or X frame configurations. The device supports input voltages of 9-18V DC (3S-4S LiPo) and provides regulated 5V and 12V outputs with LED indicators. It offers up to 25A continuous current per ESC (30A peak for 10 seconds) across four outputs or 15A per ESC (20A peak for 10 seconds) with six outputs. The BEC outputs deliver 2A at 5V and 500mA at 12V, making it ideal for RC power needs, with built-in safety features for reliable performance.
In stock

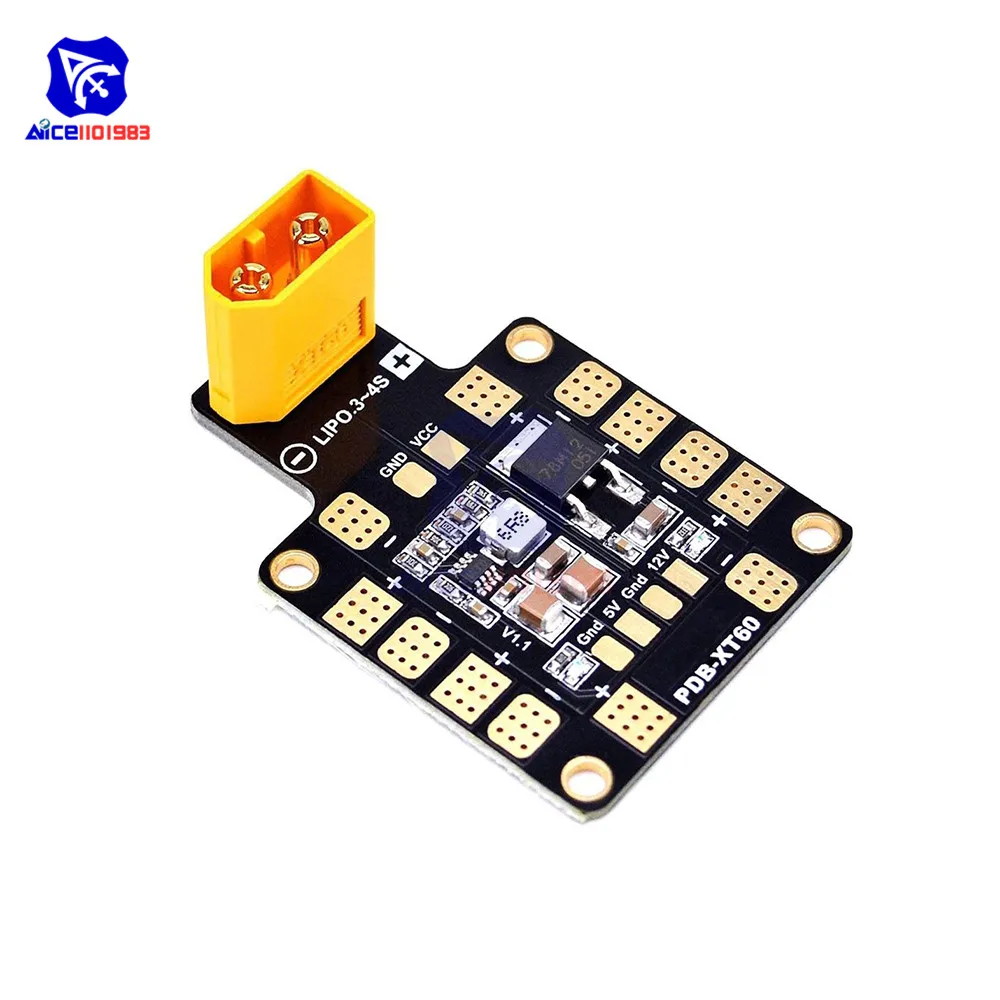

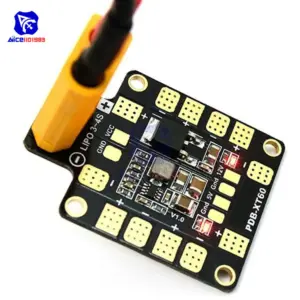

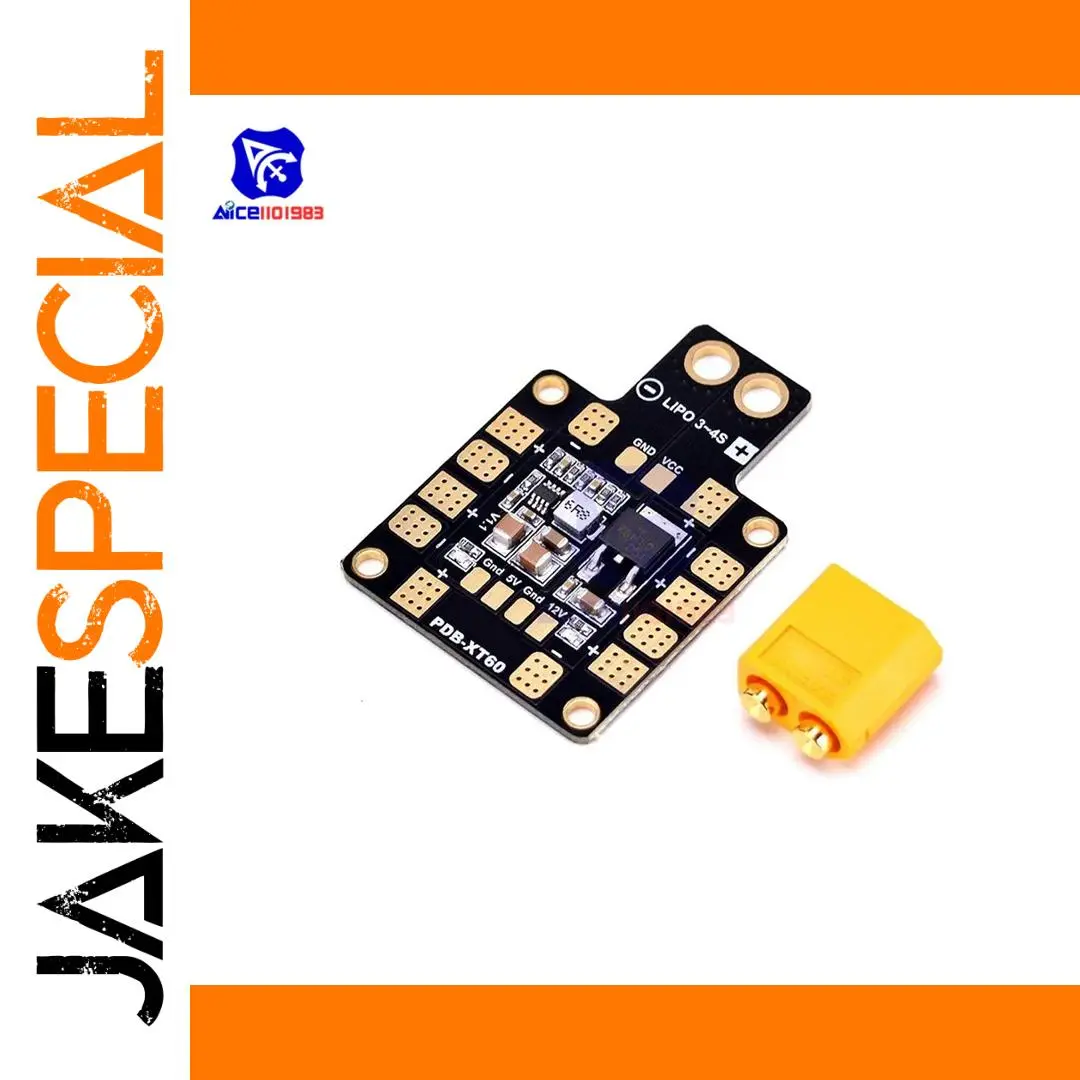

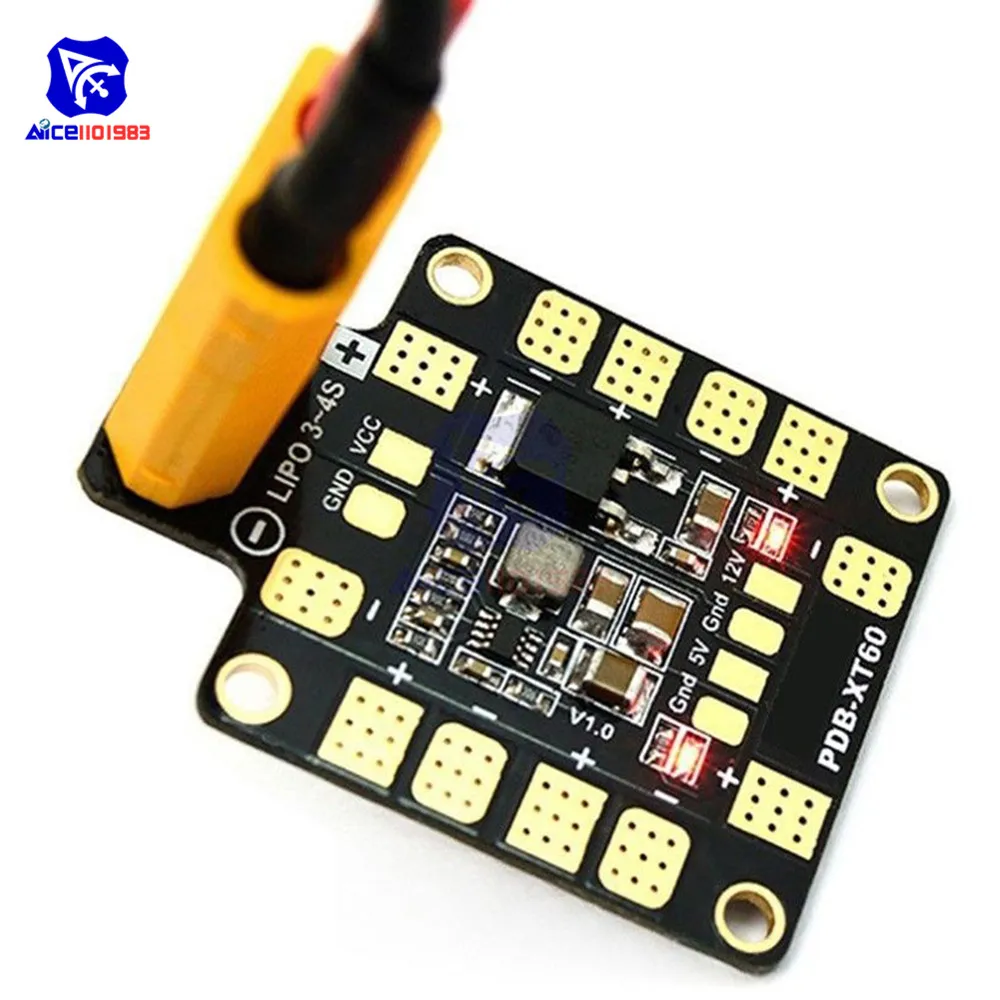

This sleek mini power hub for FPV drones
Experience a compact, highly functional power distribution board that seamlessly integrates into your FPV quadcopter. Crafted with a 4-layer, 1.6mm thick PCB using 2 ounces of copper, this board offers excellent durability and conductivity. Its modern black surface paired with a shiny gold XT60 connector provides a premium look. Designed for easy installation, the board features six clearly labeled ESC soldering pads suited for H or X frame configurations, along with convenient mounting holes. Bright LED indicators facilitate quick power status checks. Whether you’re upgrading your drone or building a new one, this PCB guarantees reliable power distribution, efficient voltage regulation, and enhanced safety for your electronics, all while maintaining a sleek, industrial aesthetic that matches any high-tech setup.
Keys features of this mini power hub
- Built with a durable 4-layer, 1.6mm PCB featuring 2 ounces of copper for optimal conductivity and heat dissipation. The black finish adds a sleek, professional aesthetic to your drone system.
- Includes a high-current gold XT60 socket, supporting input voltages between 9-18V DC (3S-4S LiPo), ensuring a stable power connection suitable for various drone configurations.

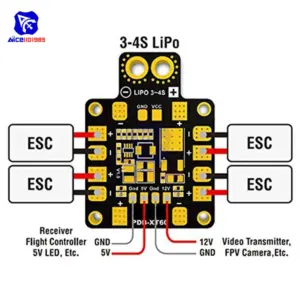

- Equipped with six ESC soldering pads adaptable for H or X frame setups, allowing flexible motor and ESC wiring with maximum continuous currents of 25A per ESC, peaking at 30A for short bursts.
- Features regulated 5V and 12V outputs with built-in LED indicators, providing visual confirmation of power status, essential for real-time monitoring of your flight setup's health and safety.
- The BEC 5V output delivers up to 2A, ideal for flight controllers, RC receivers, and OSD modules, with a ripple of just 40mV, ensuring clean power for sensitive electronics.
- The BEC 12V output supplies 12V ±0.3V at 500mA (max 0.8A for 5 seconds), perfect for FPV cameras and video transmitters, providing reliable video signal transmission during flight.
- Physical dimensions measure 36x50x4mm, with a 30.5×30.5mm mounting pattern and 3mm thickness, making it a perfect compact fit for most drone frames while offering safety features like LED indicators and short circuit tolerance for peace of mind during operation.
This mini power board is the smart choice for your drone upgrades
Imagine having a dependable power distribution system that integrates perfectly into your FPV drone. With its highly organized layout and safety features, you’ll enjoy peace of mind during each flight, knowing your electronics are well protected and efficiently powered. When you choose this product, you're investing in a reliable, high-quality component that will serve as a core part of your drone's performance. Don't wait—take your FPV experience to the next level today with this efficient, sleek power hub designed to match your high-tech aspirations.
