FM Modulation Module Board for RF Projects
82.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake
This compact FM modulation module operates with a 15V DC power supply, featuring a 50Ω output impedance and an output power of 3-10 dBm. It covers a center frequency range of 50MHz to 160MHz, with adjustable FM frequencies from 60MHz to 150MHz via a blue potentiometer. Supporting FM signal amplitudes of 0.5-12V peak-to-peak and 2FSK modulation with frequency hopping between 60MHz and 150MHz, it boasts a maximum carrier rate of 300kHz. The module’s size is 64mm by 44mm, with M3 mounting holes 4mm from the edge. Its phase noise at 100kHz offset is ≤ –120 dBc/Hz, and the VCO output is suitable for frequency modulation applications, though not a sine wave.
In stock
This this FM modulation module board for accurate signal

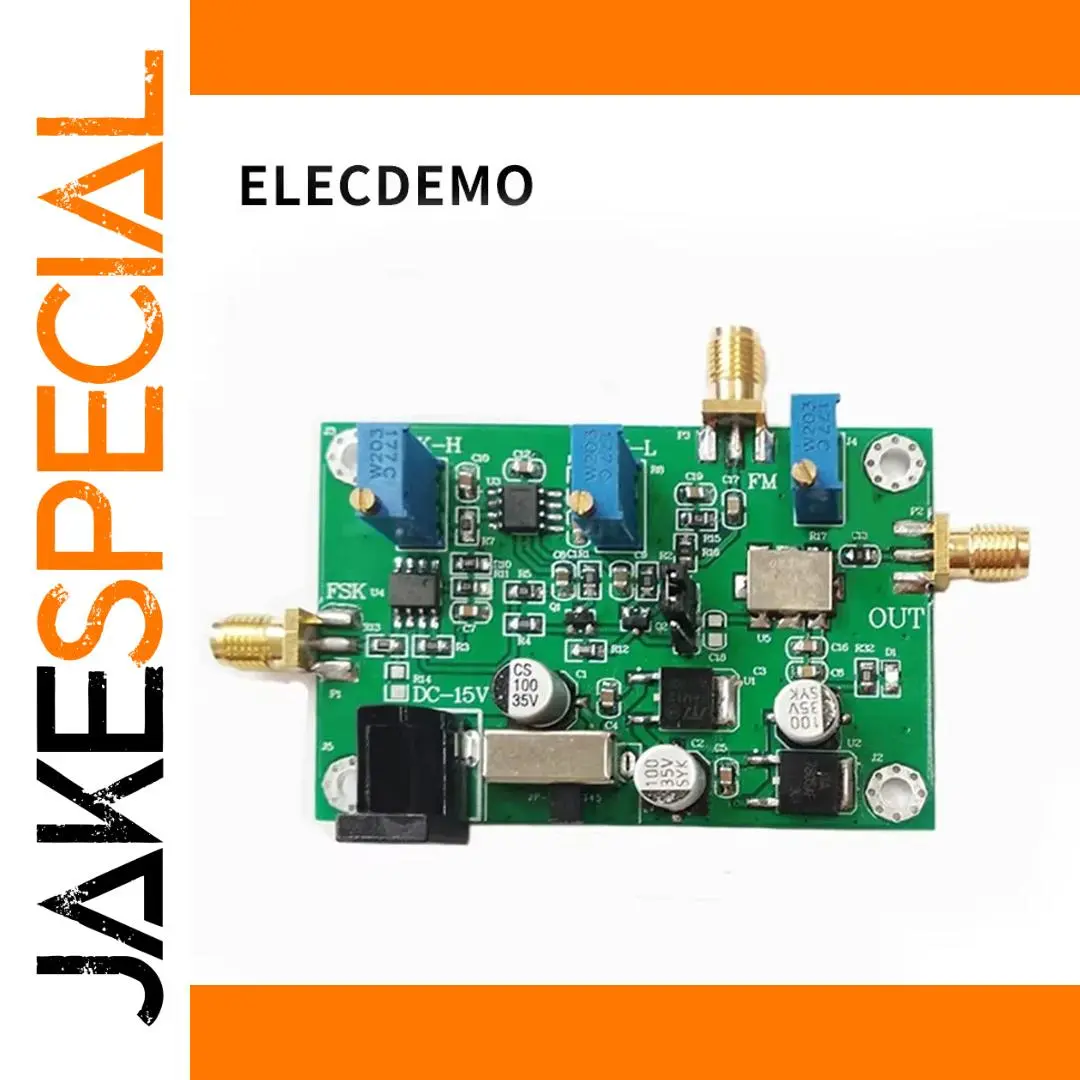

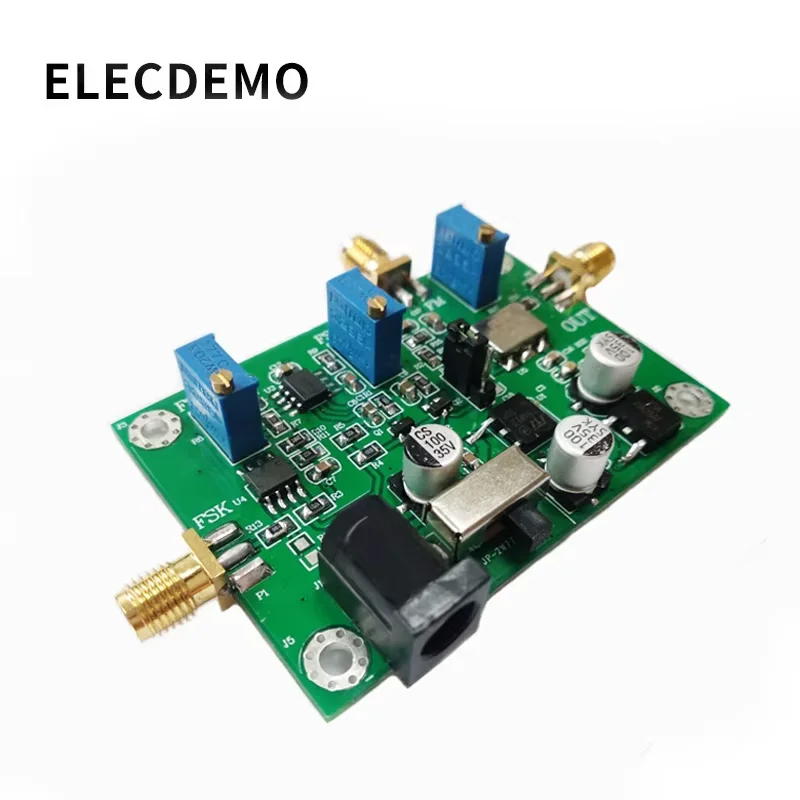

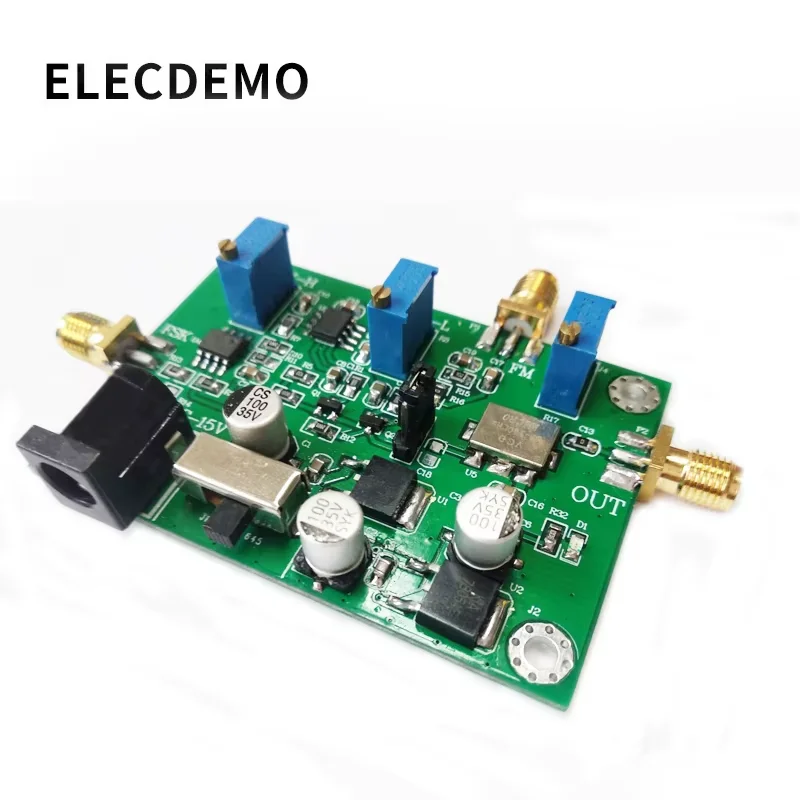

Imagine integrating this this FM modulation module board into your projects and instantly enhancing your radio frequency capabilities. Its vibrant green PCB provides a sleek, technical aesthetic that highlights premium craftsmanship. Silver-plated ports and connectors offer a professional look, while bright blue potentiometers with white dials allow for precise adjustments. The compact 64mm by 44mm size ensures easy integration, with M3 mounting holes for secure installation. Designed for stability and versatility, this module delivers reliable FM and 2FSK modulation with adjustable center frequencies. Whether you're working on scientific research, manufacturing, or educational projects, this board offers a sleek and efficient solution. Visualize connecting it seamlessly into your setup and experiencing smooth, high-quality frequency modulation.
Keys features of this FM modulation module board
- Operates on a 15V DC supply with an output impedance of 50Ω, delivering 3-10dBm power suitable for RF applications.

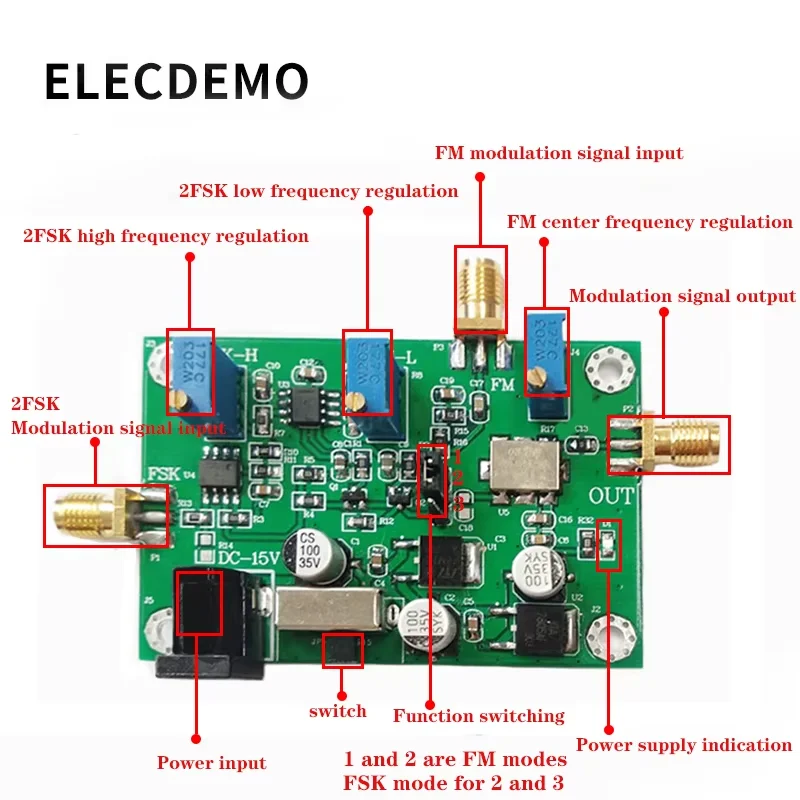

- Supports a broad center frequency range of 50MHz to 160MHz, with adjustable FM center frequency from 60MHz to 150MHz using the potentiometer.
- Supports FM signal amplitude input of 0.5-12V peak-to-peak and 2FSK modulation with frequency hopping capabilities between 60MHz and 150MHz.
- Maximum 2FSK input frequency of 150MHz, with a carrier rate up to 300kHz, 2FSK high-level voltage from 1V to 12V, low-level from 0V to 0.2V.
- Compact dimensions of 64mm by 44mm, equipped with M3 mounting holes 4mm from each edge for easy installation.
- Phase noise at 100kHz offset is ≤ -120 dBc/Hz, and the VCO output is optimized for frequency modulation applications rather than sine wave output.
This this FM modulation module, harness versatile RF modulation today
Imagine the possibilities when you incorporate this this FM modulation module into your setup. Its precise control, robust specifications, and sleek design make it an essential for advanced electronic projects. Whether you're refining a communication system or conducting research, this module offers both reliability and performance. Don't wait—visualize completing your project with this product now, bringing your frequency modulation capabilities to professional levels. Investing in this module means elevating your technical work with a trusted, high-performance component crafted for serious enthusiasts and professionals alike.
| Condition | New |
|---|---|
| Warehouse | HK Warehouse – Hong Kong |
