Dual-Circuit SMD Practice Circuit Boards Kit
Price range: 23.99 € through 24.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake
Enhance your electronics skills with this dual-circuit practice kit, featuring the 89x58mm Rotating LED Board with a 1.6mm thick, high-quality fireproof PCB showcasing a circular running water lamp circuit built from CD4017, NE555, and LEDs operating at 3-12V, alongside the 70x57mm HKT002 Board made from durable FR-4 with a vibrant blue solder mask, housing 149 tin-plated SMD components, 444 solder joints, and 10 categories with 129 parts and test points for comprehensive soldering practice. Ideal for electronics enthusiasts looking to improve circuit repair and assembly skills with precise, modern design and technical clarity.
This innovative practice kit with circuit boards
Experience hands-on learning with this dual-circuit training kit, perfect for mastering SMD soldering techniques. The set includes two high-quality boards, designed for durability and repeated use. The first board, the Rotating LED Board, features a sleek, rectangular design measuring 89 by 58 millimeters with a 1.6-millimeter thickness, showcasing a central circular pattern of LEDs creating a dynamic water lamp effect. It also includes three vertical columns of solder pads on each side for precise practice. The second board, the HKT002, measures 70 by 57 millimeters, with a vibrant blue solder mask and a dense array of 149 SMD components, totaling 444 solder joints. Both boards possess a professional aesthetic, combining technical precision with modern industrial style, ideal for enthusiasts seeking detailed circuit assembly experience.
Keys features of the practice circuit boards

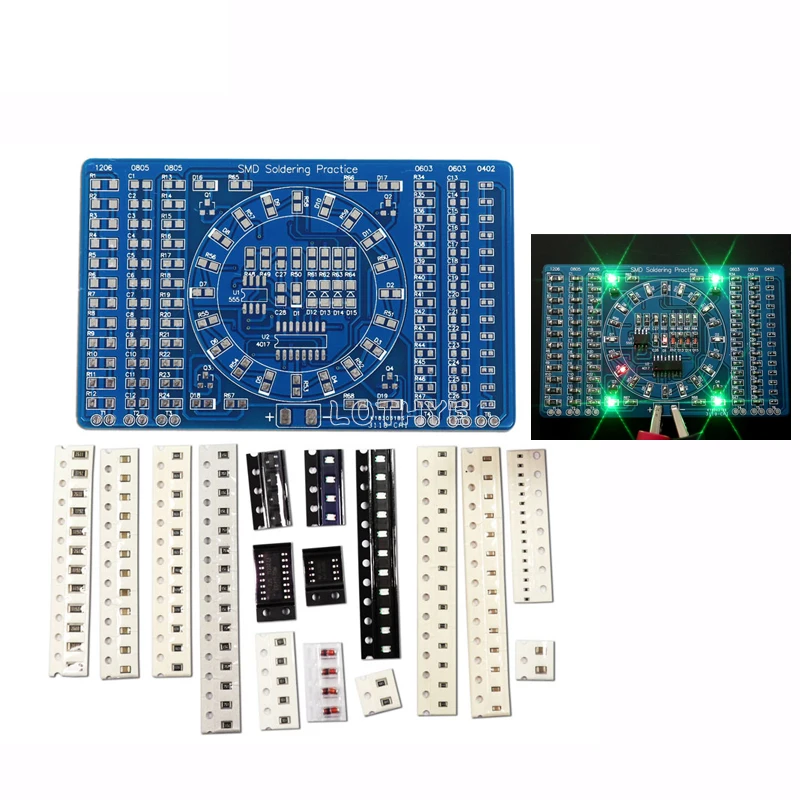

- The Rotating LED Board measures 89x58mm, featuring a central circular water lamp circuit with LEDs connected to CD4017 and NE555 chips, operated between 3-12V, with high-strength fireproof tinned pads.

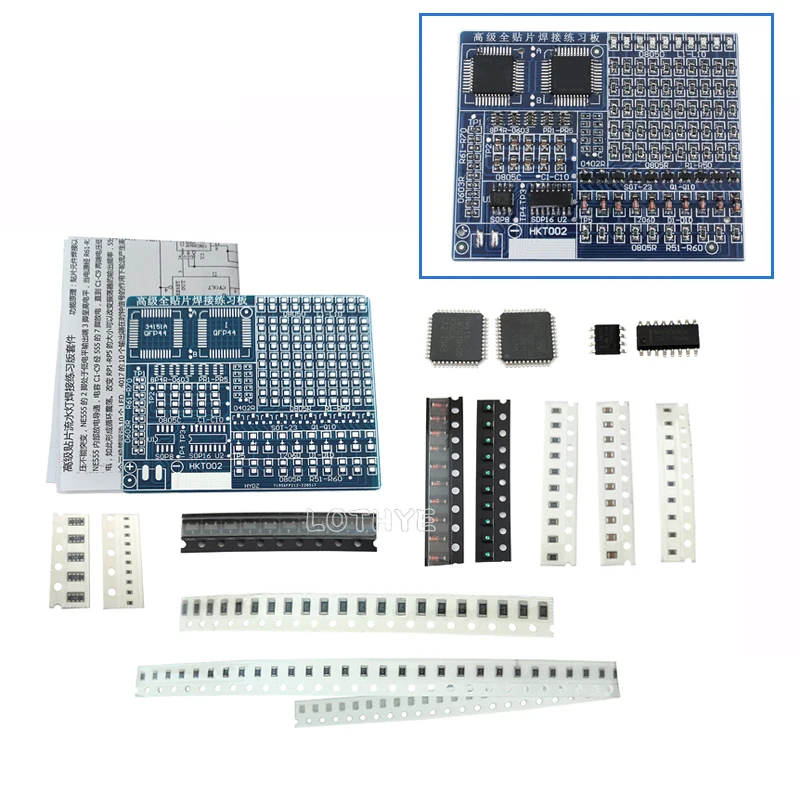

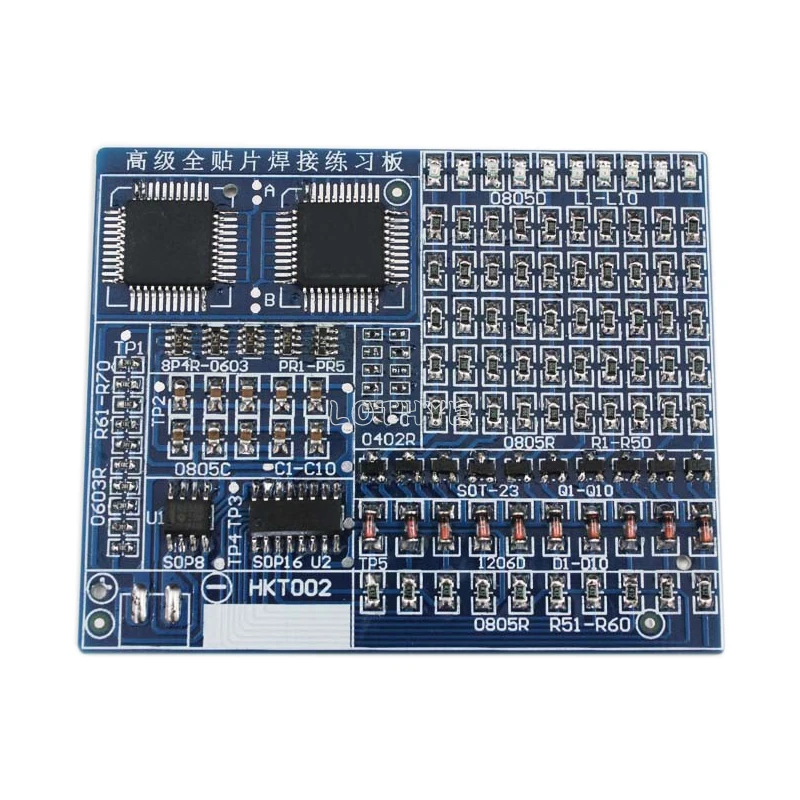

- The HKT002 Board measures 70x57mm with a 1.6mm thick blue FR-4 material, housing 149 SMD components and 444 solder joints, suitable for advanced surface-mount component practice.
- Both boards are designed with a professional, minimalist aesthetic, including clearly marked test points, reference images printed on the back, and precise edge finishing for durability and ease of handling.
- The content includes realistic circuit layouts, with the Rotating LED Board featuring pathway guides and the HKT002 offering categorized component zones for efficient welding training.
- The kits are compatible with standard SMD components, improving your practical skills and understanding of electronic circuit construction and troubleshooting.
- Technical specifications include high-quality PCB with tin-plated pads, 1.6mm thickness, operating voltage range of 3-12V, and detailed component placement for dedicated practice and experimentation.
This product is ideal for electronic enthusiasts—grab yours now!
Elevate your electronics skills with this premium dual-circuit training kit. Whether you're a hobbyist or a professional, these boards provide a valuable platform for practicing soldering, circuit testing, and component assembly. Visualize yourself confidently creating intricate circuits, troubleshooting, and refining your techniques. Owning this set means gaining a durable, practical tool tailored for consistent use, helping you progress from basic soldering to complex surface-mount projects. Don’t miss out on this opportunity to develop your expertise—make this essential addition to your electronics toolkit today!
| Color | HKT002 Board, Rotating LED Board |
|---|---|
| Condition | New |
| Warehouse | HK Warehouse – Hong Kong |
