Dual-Channel PWM Signal Generator with Digital Display
30.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake
Experience precise control with this compact dual-channel PWM generator module, supporting a voltage range of 5-30V and micro USB 5V power supply. It features two independent PWM channels with adjustable frequency from 1Hz to 150KHz and duty cycle from 0 to 100%, with display options spanning 1Hz–999Hz, 0.1KHz–99.9KHz, and 1KHz–150KHz. The device offers a default output amplitude of 5Vp-p (settable), operates with ±2% frequency accuracy, and supports serial communication at 9600 baud. Its sleek blue circuit board, featuring a digital display and tactile buttons, provides a streamlined, user-friendly interface for motor control, PWM dimming, speed regulation, and circuit testing.
In stock
This this PWM signal generator with digital display

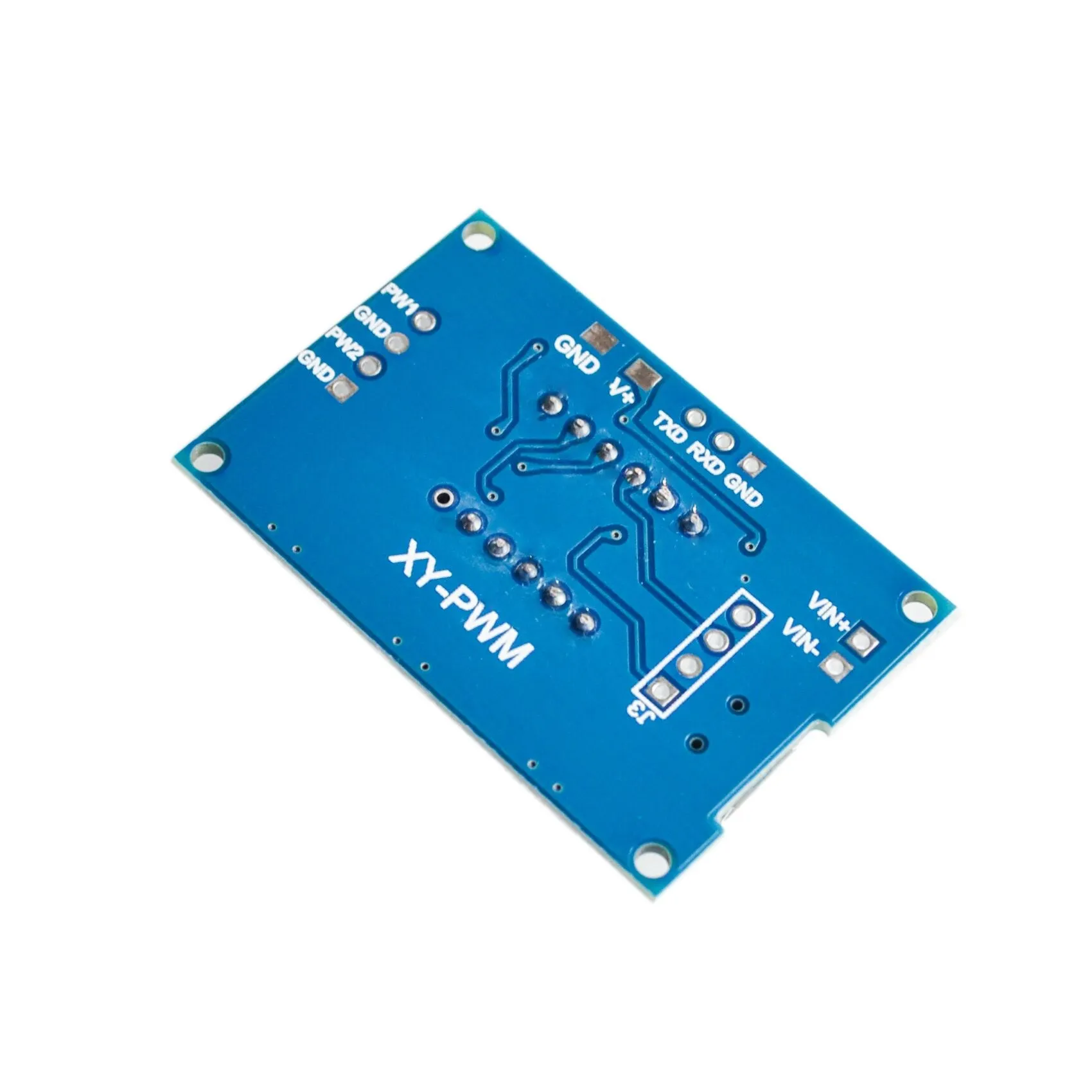

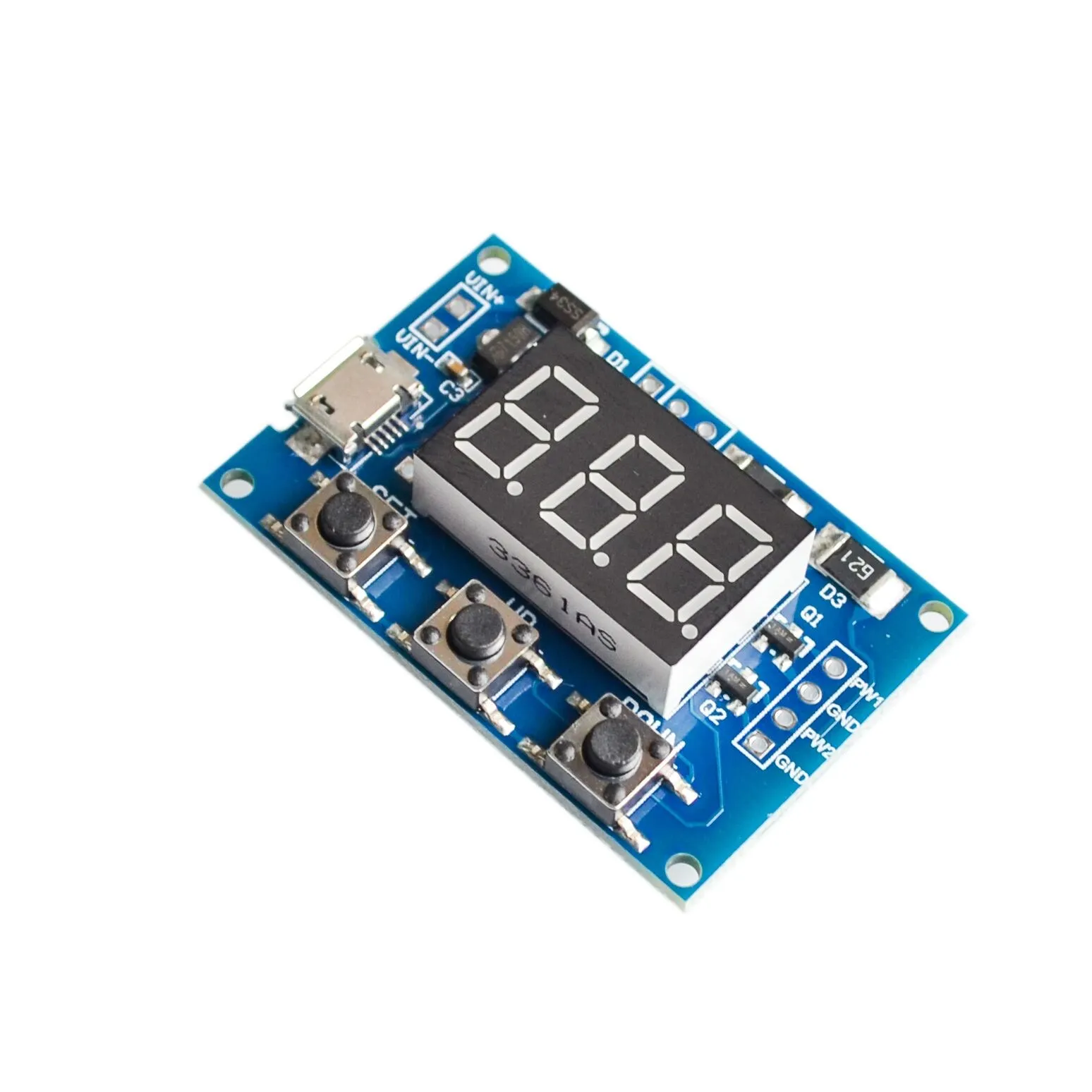

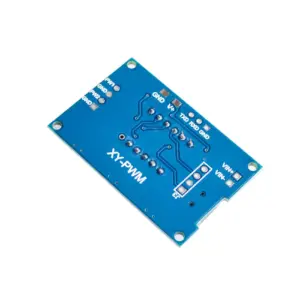

Experience precise control with this innovative PWM signal generator, designed for professionals and enthusiasts alike. Featuring a compact rectangular blue circuit board, it combines modern aesthetics with practical functionality. The prominent vertical 7-segment digital display showcases real-time frequency readings with clarity, while tactile push buttons allow you to swiftly adjust parameters such as frequency and duty cycle. The device supports a broad voltage range from 5V to 30V and can be powered via micro USB, making it versatile for various setups. Its two independent PWM channels deliver adjustable outputs from 0 to 100%, suited for motor control, circuit testing, PWM dimming, and speed regulation. Built for reliability, it retains settings in non-volatile memory, ensuring seamless operation across sessions and applications.
Keys features of this PWM signal generator with display
- Features two independent PWM channels with adjustable frequency from 1Hz to 150KHz, with high accuracy ±2%, suited for versatile electronic projects and testing setups.
- Modern and compact blue circuit board design with a clear digital display and tactile buttons, offering user-friendly manual parameter control and real-time feedback.
- Supports wider voltage range of 5V to 30V with support for micro USB power input; output current less than 30mA ideal for motor drivers and circuit modules.
- Multiple frequency display modes: 1Hz–999Hz, 0.1KHz–99.9KHz, and 1KHz–150KHz, allowing precise selection and easy visualization of the generated signal.
- Serial communication interface at 9600 baud rate enables integration with external systems or microcontrollers for automated control and adjustments.
- Includes configurable parameters such as default amplitude (5Vp-p), non-volatile memory to save settings, operating temperature range from -30°C to +70°C, ensuring durability and reliable performance.
This PWM signal generator with digital display – buy now for precise control
Imagine integrating this powerful PWM signal generator into your projects, seamlessly controlling motors, LEDs, or other electronic components with precision. Its sleek design, intuitive controls, and versatile features make it an essential tool in any electronics workspace. Whether you’re testing, prototyping, or fine-tuning your circuits, this device delivers consistent results backed by detailed digital feedback. Invest today and elevate your electronic creations to a new level of sophistication and accuracy. Your projects will thank you for the quality and reliability of this state-of-the-art module.
