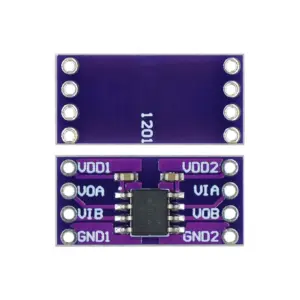

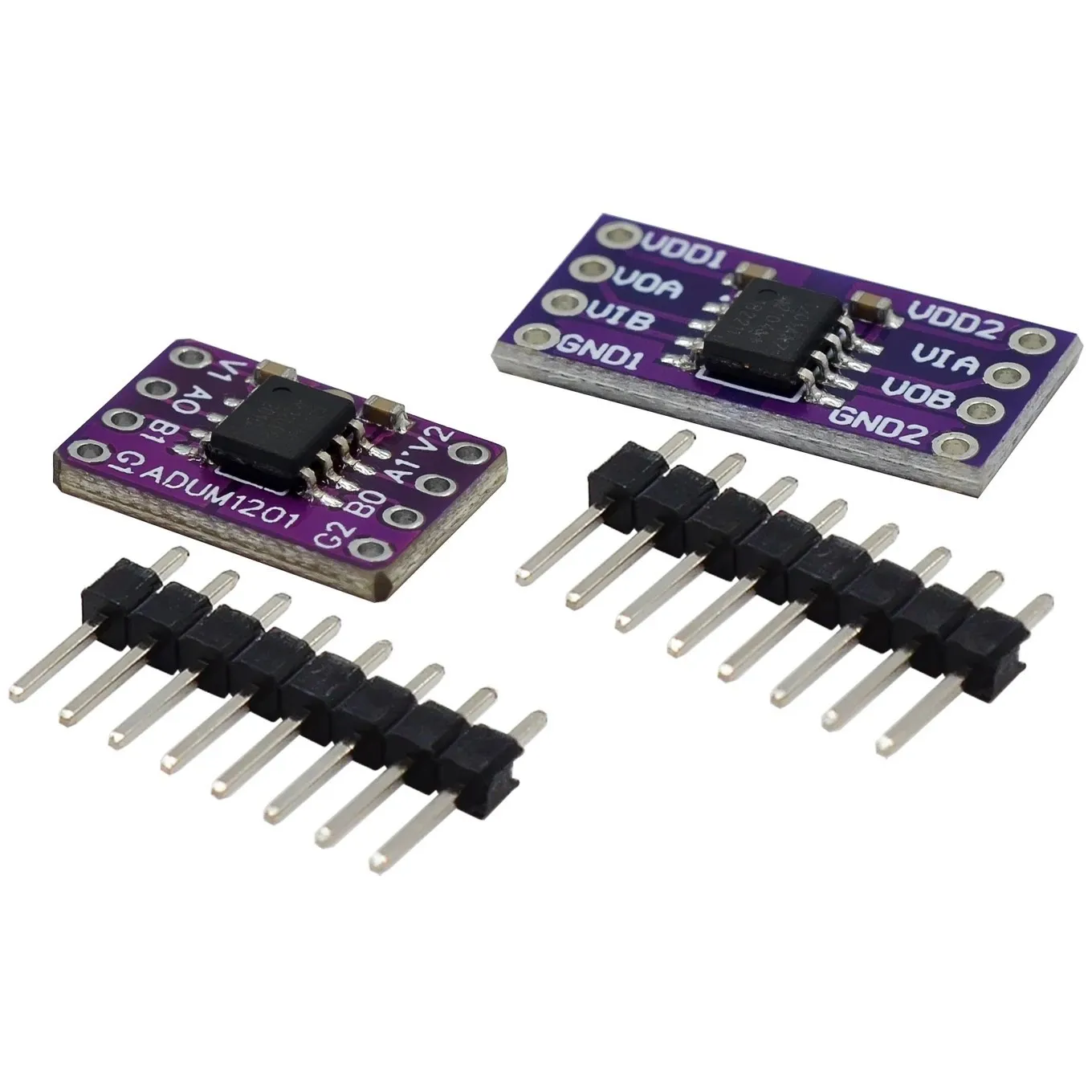

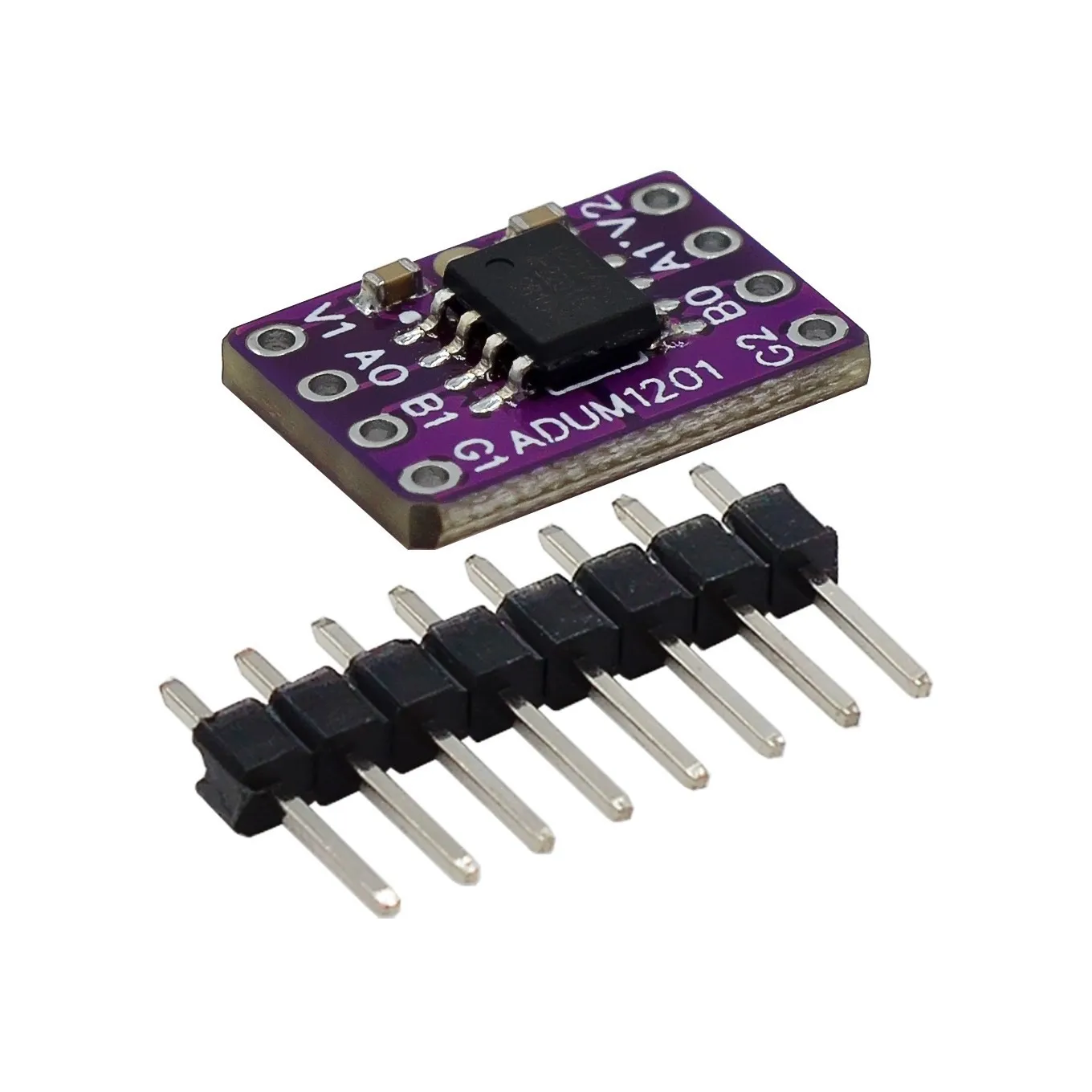

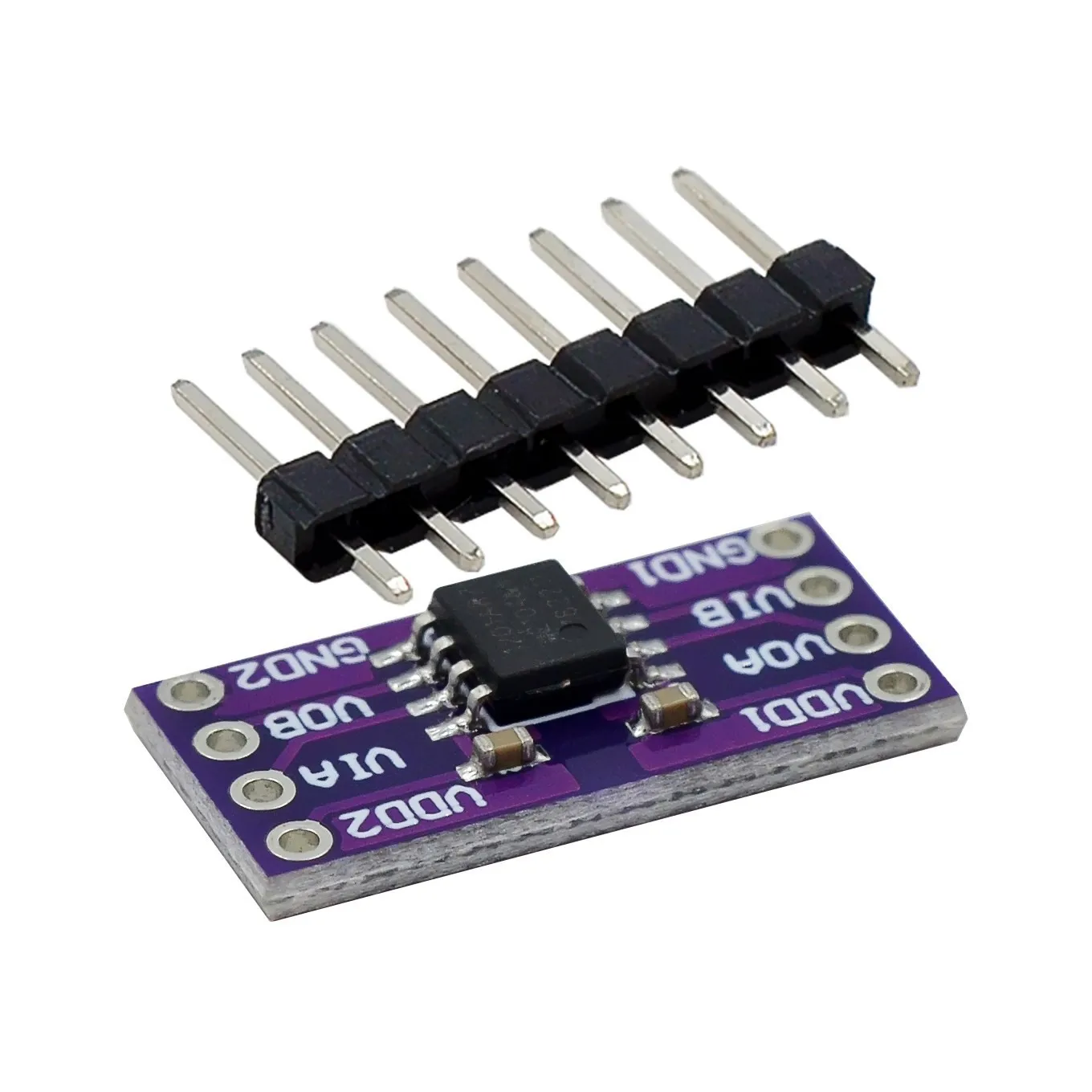

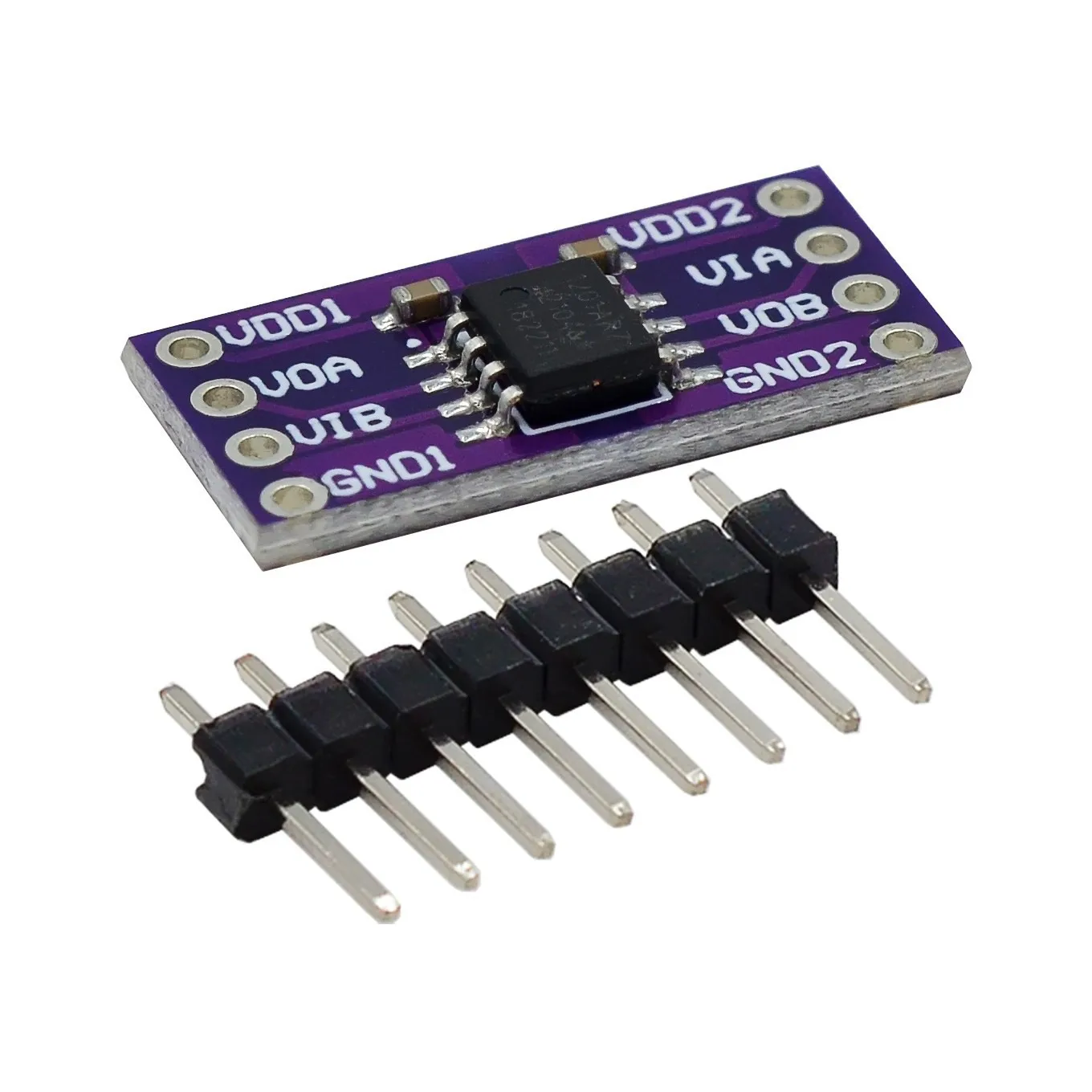

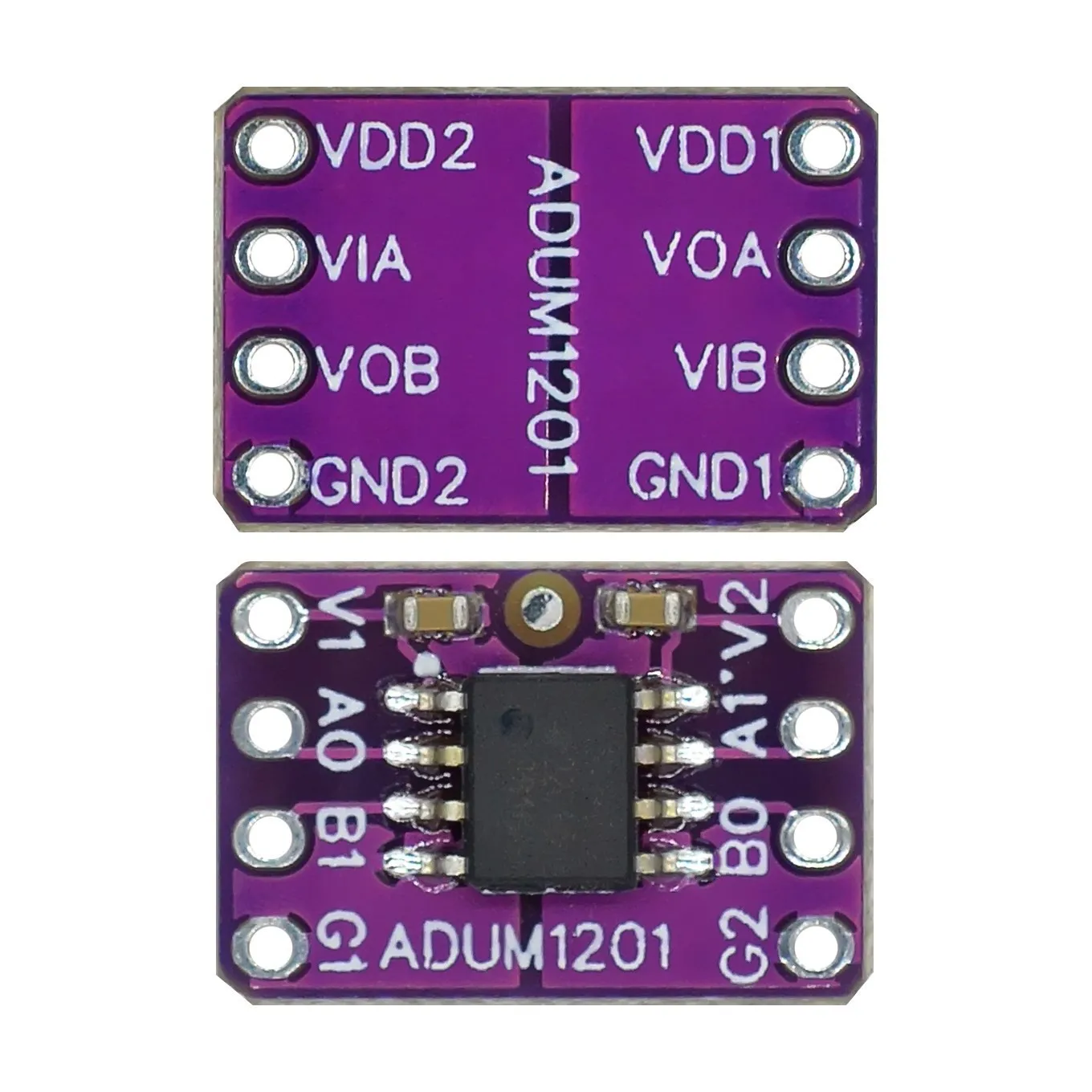

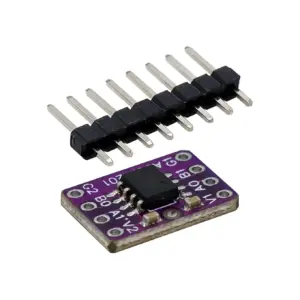

Dual-Channel Magnetic Isolator ADUM1201
Price range: 27.99 € through 30.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake
The ADUM1201 dual-channel digital magnetic isolator from Analog Devices offers high-speed data transfer rates up to 125Mbps, with a voltage supply range of 2.7V to 5.5V. Utilizing patented iCoupler magnetic technology, it provides significantly lower power consumption—only 0.8mA minimum—and superior timing accuracy and common-mode rejection. Its compact SOIC package reduces PCB area by 40%, supporting both forward and reverse data communication within the same chip for flexible signal transmission. Designed with separate reference grounds (GND1 and GND2), it ensures reliable performance even at elevated temperatures, making it ideal for space-constrained, high-performance applications requiring robust electrical isolation.
This this dual-channel digital magnetic isolator ADUM1201
Experience reliable and high-speed digital isolation with the ADUM1201 this dual-channel magnetic isolator. Featuring patented iCoupler magnetic technology, this device replaces traditional optocouplers, offering significantly lower power consumption—only 0.8mA at minimum—and higher data rates up to 125Mbps. Its compact SOIC package reduces PCB footprint by 40%, making it ideal for tight spaces. The isolator supports both forward and reverse communication within the same chip, providing flexible signal transmission for complex circuits. It boasts an isolation voltage twice as high as conventional optocouplers, ensuring safety and reliability even at elevated temperatures. Designed for easy integration, it requires precise power grounding and decoupling capacitors for optimal performance. Elevate your digital systems with the ADUM1201’s advanced magnetic isolation technology.
Keys features of the ADUM1201 magnetic isolator
- Supports dual-channel digital signals with a maximum transfer rate of 125Mbps, ensuring fast and accurate data communication across circuits.
- Uses patented iCoupler magnetic isolation technology that replaces optocouplers, providing 10 to 50 times lower power consumption at just 0.8mA minimum current.
- Features a compact SOIC package, reducing PCB space by 40%, perfect for space-constrained applications needing reliable isolation.
- Supports operation within a supply voltage range of 2.7V to 5.5V, compatible with various digital systems and low-voltage circuits.
- Offers high isolation voltage twice that of traditional optocouplers, with improved timing accuracy and transient common-mode rejection for enhanced performance.
- Supports both forward and reverse data flow within the same chip, simplifying hardware design and increasing signal transmission flexibility.
- Requires separate reference grounds (GND1 and GND2) and decoupling capacitors (0.01μF to 0.1μF) close to the device for optimal filtering and stability.
Enjoy enhanced performance with this magnetic isolator now
Imagine seamlessly integrating this high-performance isolator into your circuit—whether for industrial control, medical devices, or sensitive measurement systems. Its superior speed, low power, and excellent isolation characteristics mean your projects will operate more reliably and efficiently. By choosing this device, you’re investing in long-term durability and safety, ensuring your components operate flawlessly even under demanding conditions. Don’t miss out on transforming your design with this cutting-edge magnetic isolation technology. Add the ADUM1201 to your setup today and experience the difference.
| Color | ADUM1201, ADUM1201ARZ |
|---|---|
| Condition | New |
| Warehouse | HK Warehouse – Hong Kong |
