Digital Oscilloscope Module 500KHz, 12-bit, 1.5Msps
Price range: 34.99 € through 60.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake

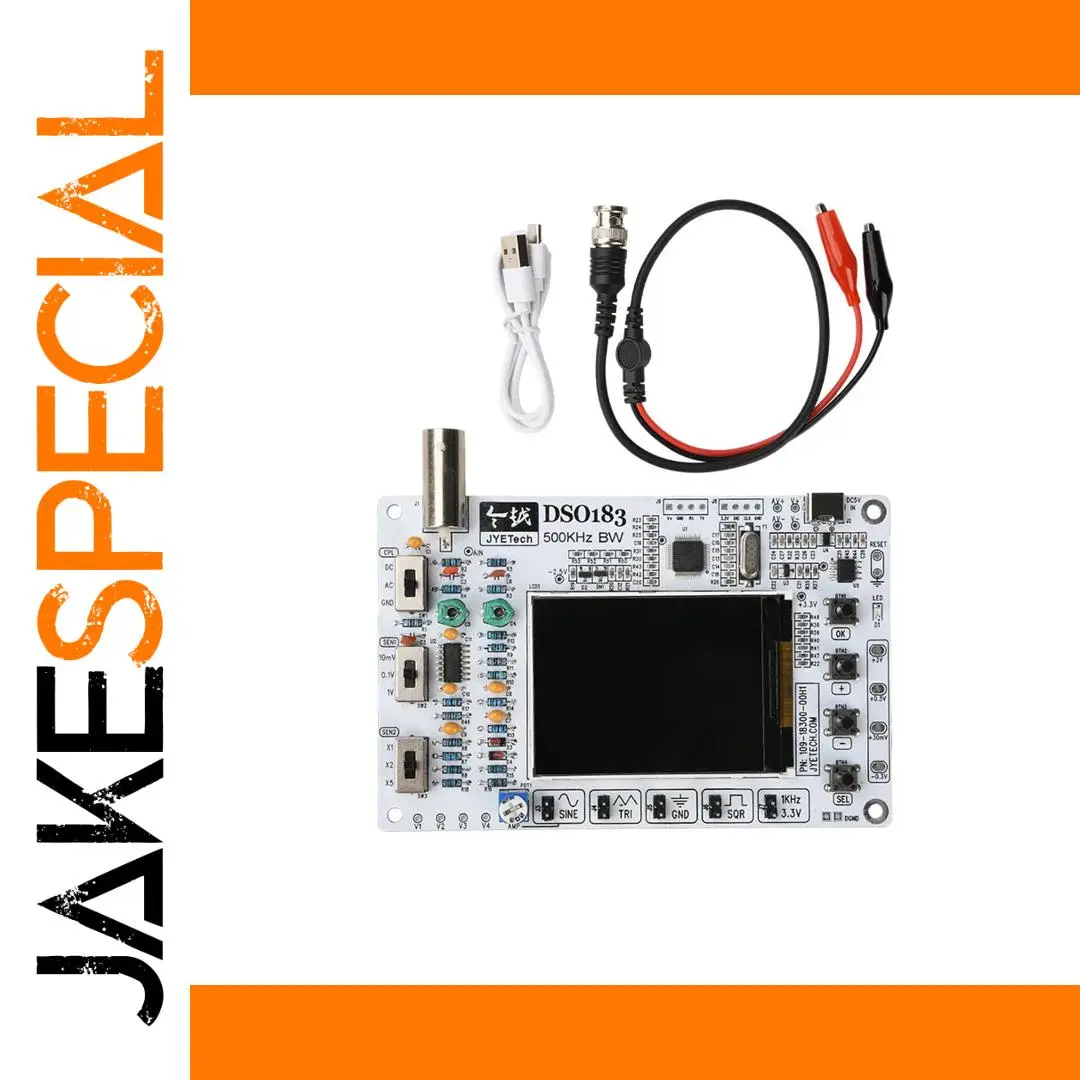

Experience precise signal analysis with this compact DC 5V digital oscilloscope module featuring a 500KHz bandwidth, 12-bit ADC resolution, and a real-time sampling rate of 1.5Msps. Measuring 118×76×12mm, it offers a vertical sensitivity range from 10mV/div to 5V/div, input impedance of 1MΩ, and maximum input voltage of 50V peak. Equipped with waveform storage, a built-in signal generator for sine and triangle waves, and versatile trigger modes (auto, conventional, single), it’s ideal for electronic testing, circuit analysis, and learning. Powered via USB Type-C, this module combines high performance with a sleek, modern design, perfect for professionals and enthusiasts alike.
This sleek digital oscilloscope module for testing

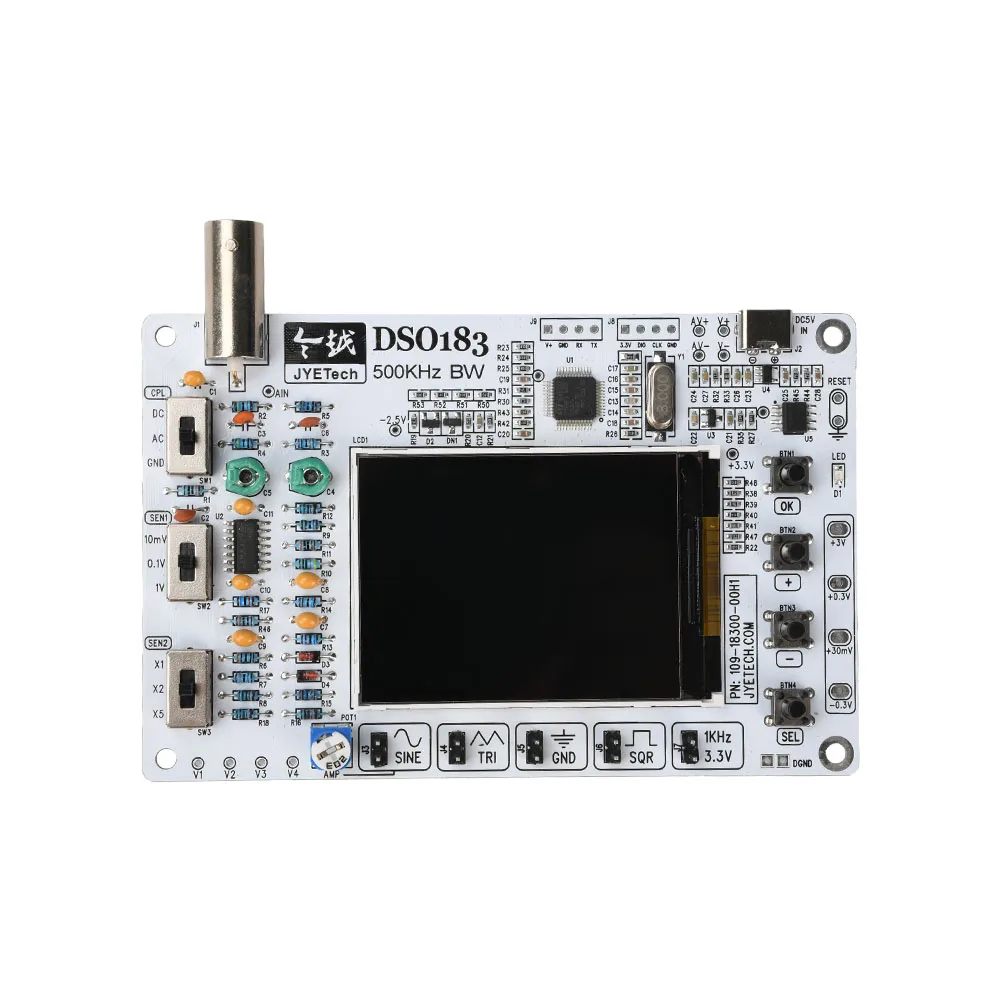

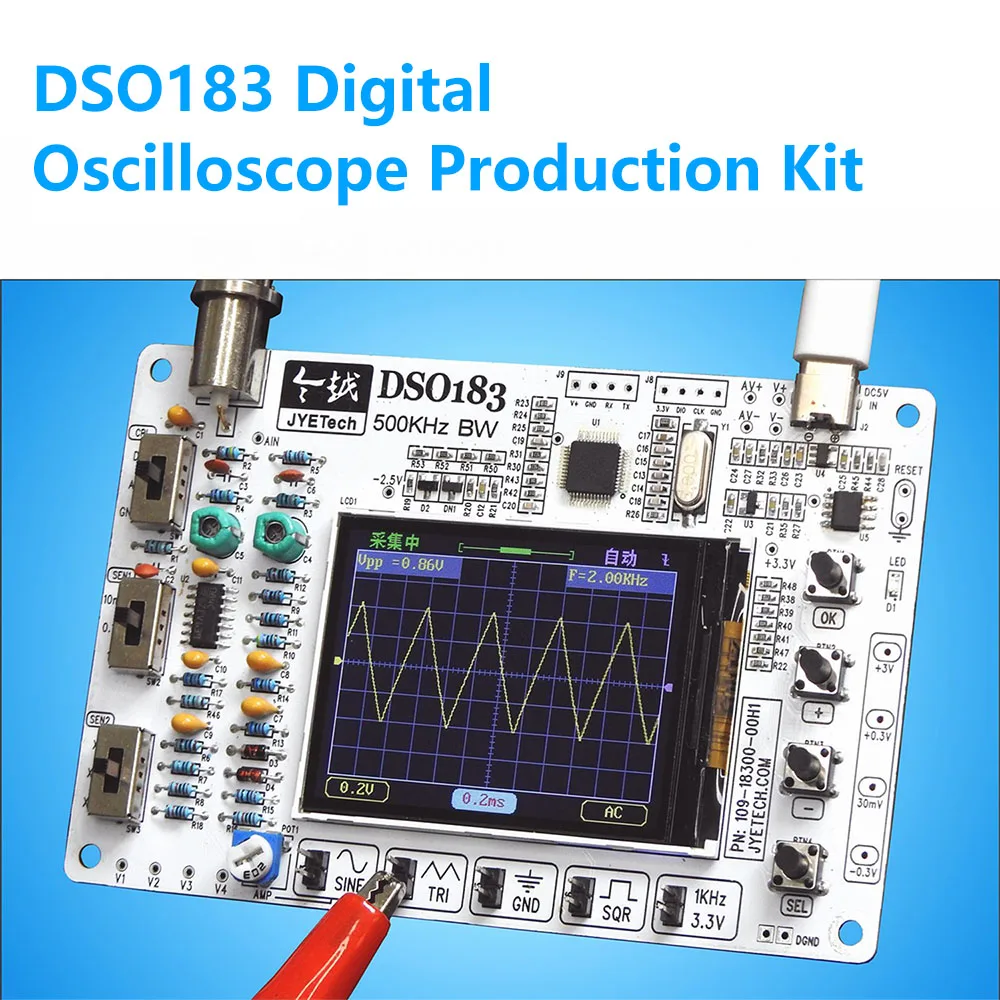

Experience precise signal analysis with this high-performance digital oscilloscope module. Designed for electronics enthusiasts and professionals, it features a compact, rectangular black casing that exudes a modern look. The large, glossy display offers clear waveform visualization against a matte circuit board. Its minimalistic control panel includes black push buttons with white labels, rotary knobs for detailed adjustments, and a white USB Type-C port that subtly contrasts with the dark design. Small, colorful electronic components along the densely populated PCB add visual interest while maintaining a sleek style. Whether you're conducting experiments, troubleshooting circuits, or learning electronics, this module's professional aesthetic and powerful features will enhance your workspace, blending technical efficiency with contemporary elegance.
Keys features of the this digital oscilloscope module
- Features a 500KHz bandwidth, 12-bit ADC resolution for detailed signal capture. Ideal for analyzing complex electronic signals with high accuracy and clarity.
- Real-time sampling rate of 1.5Msps and waveform buffer of 1024 points allow for precise, smooth waveform recording and visualization during testing or educational demonstrations.
- Vertical sensitivity ranges from 10mV/div to 5V/div with an input impedance of 1MΩ and maximum voltage of 50Vpk, ensuring versatile measurement capabilities across various applications.
- Supports DC, AC, and GND coupling modes, with a horizontal time base range from 1µs/div to 500s/div, plus auto, conventional, and single trigger options for flexible signal analysis.
- Powered via a sleek USB Type-C interface with a low power consumption of less than 100mA. Measures 118×76×12mm, making it ideal for portable setups and desktop use.
- Includes waveform storage and recall functions, along with a built-in signal generator for sine and triangle waves, perfect for repetitive testing, waveform comparison, and circuit troubleshooting.
This digital oscilloscope module – buy now to elevate your testing experience
Imagine effortlessly capturing and analyzing complex signals with this professional-grade oscilloscope module. Its sleek design and powerful features make it a versatile addition to your electronic toolkit. Whether you’re working on serious circuit projects or honing your skills, this device offers reliability and clarity in every measurement. Its compact size fits comfortably on your workspace, and the modern aesthetic complements any electronics lab or learning environment. Elevate your projects today by investing in this essential testing tool. Enhanced signal analysis, ease of use, and robust features await you — a smart choice for serious electronics enthusiasts and professionals alike.

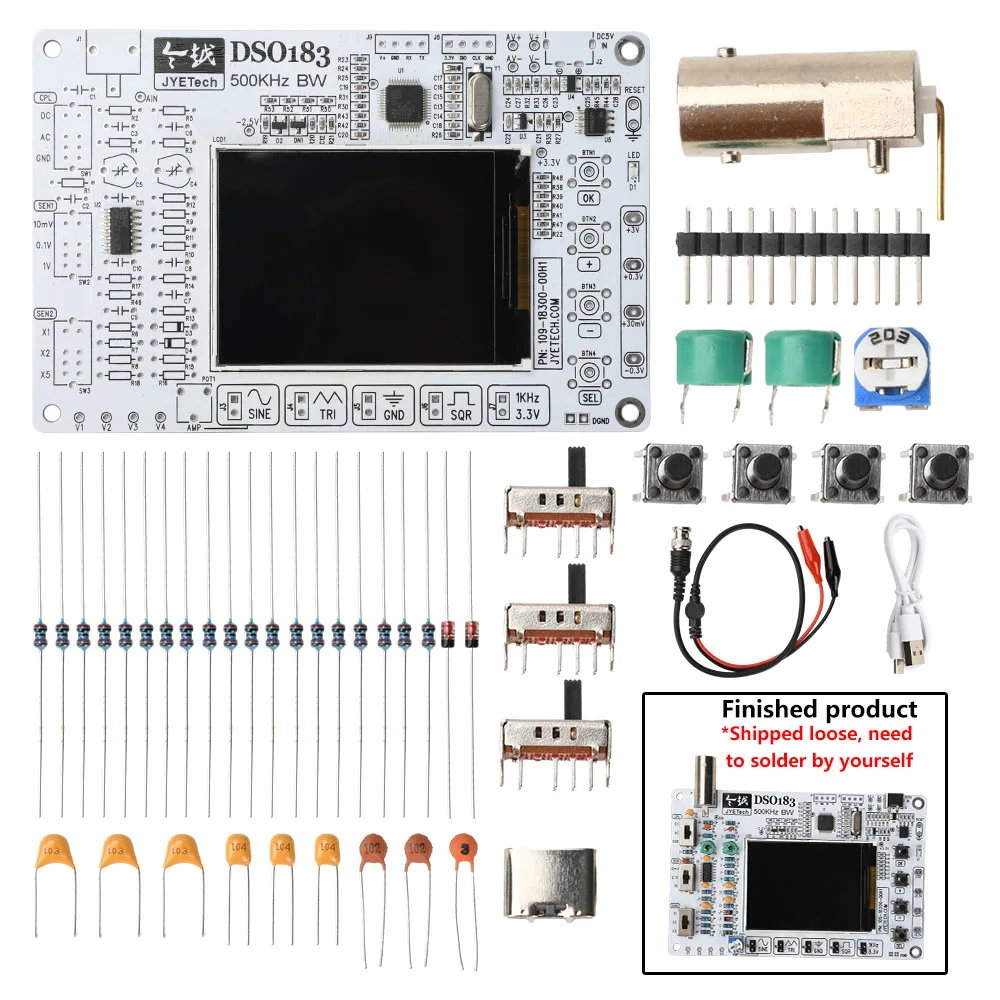

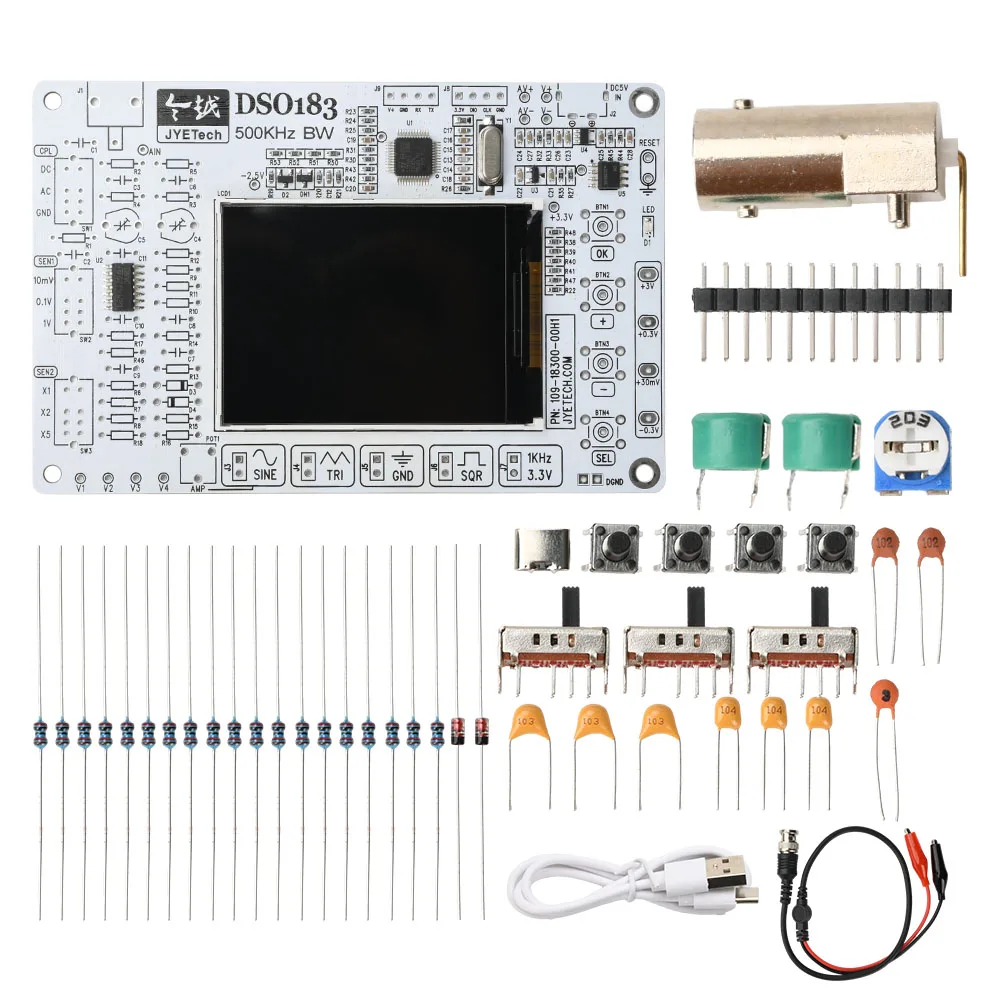

| Color | shell, DIY Kit |
|---|---|
| Condition | New |
| Warehouse | HK Warehouse – Hong Kong |
