DAC8563 16-Bit Dual Voltage Output Module
64.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake
This high-precision DAC8563 digital-to-analog conversion module features dual 16-bit voltage outputs with independent SMA interfaces, providing a voltage range of ±10V or 0-10V with a resolution of 16 bits. Powered by a DC 3V to 5V supply at up to 100mA, it boasts an internal 2.5V reference with initial accuracy of ±5mV, a fast voltage settling time of 10 microseconds, and an analog bandwidth of 100kHz. Equipped with an OPA1602 driver capable of delivering up to 20mA, it’s ideal for programmable voltage sources, instrumentation, sensor excitation, and motion control. Its compact size is 62mm x 50mm x 12mm, weighs 30g, and features anti-oxidation SMA connectors, a DC5.5V socket, and external reference input, ensuring durability and reliable performance for high-precision applications.
In stock
This Precise DAC8563 Digital to Analog Module

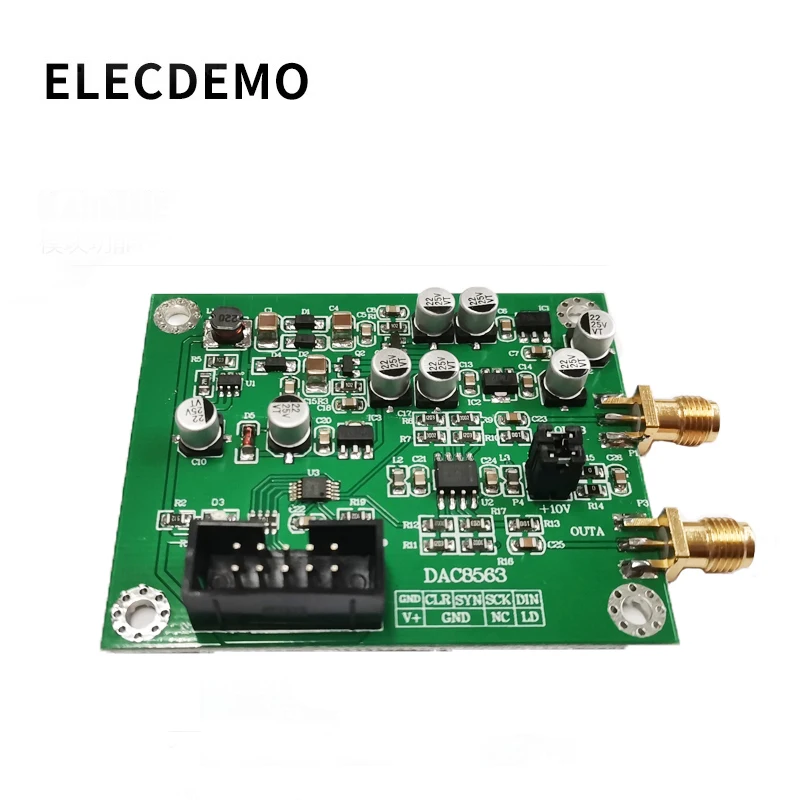

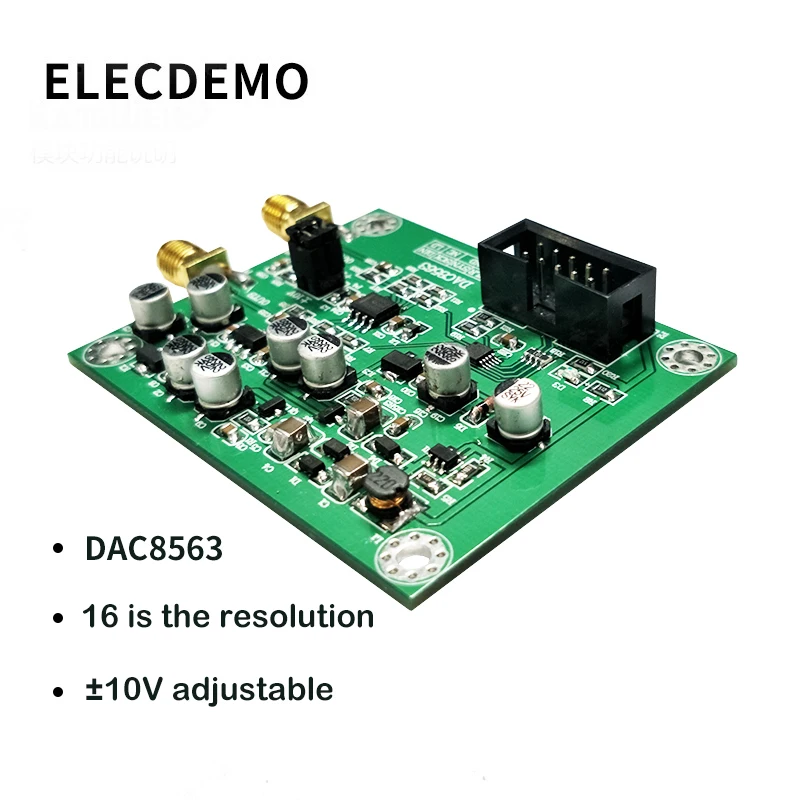

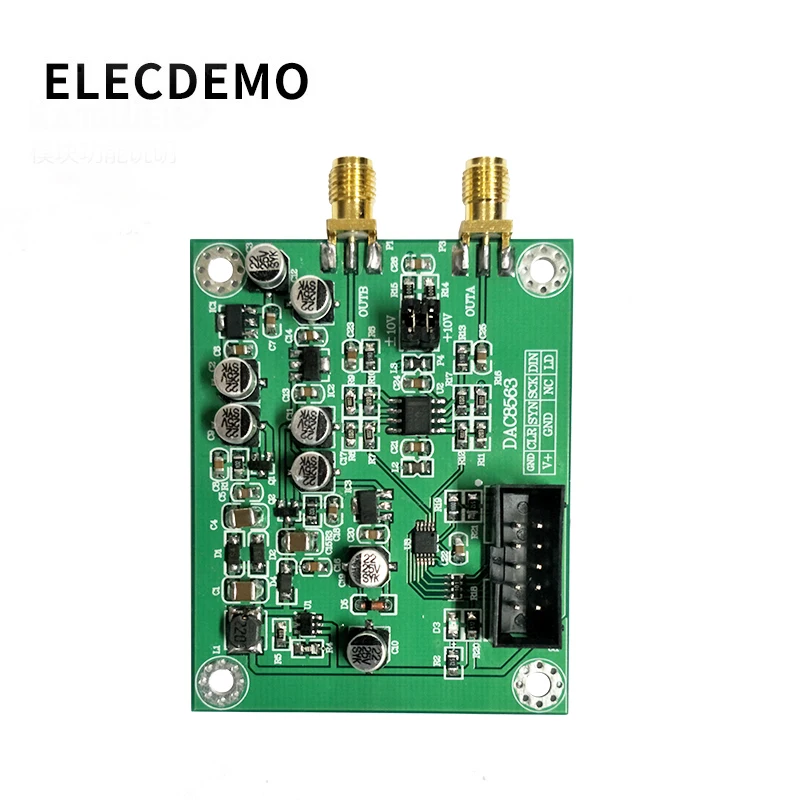

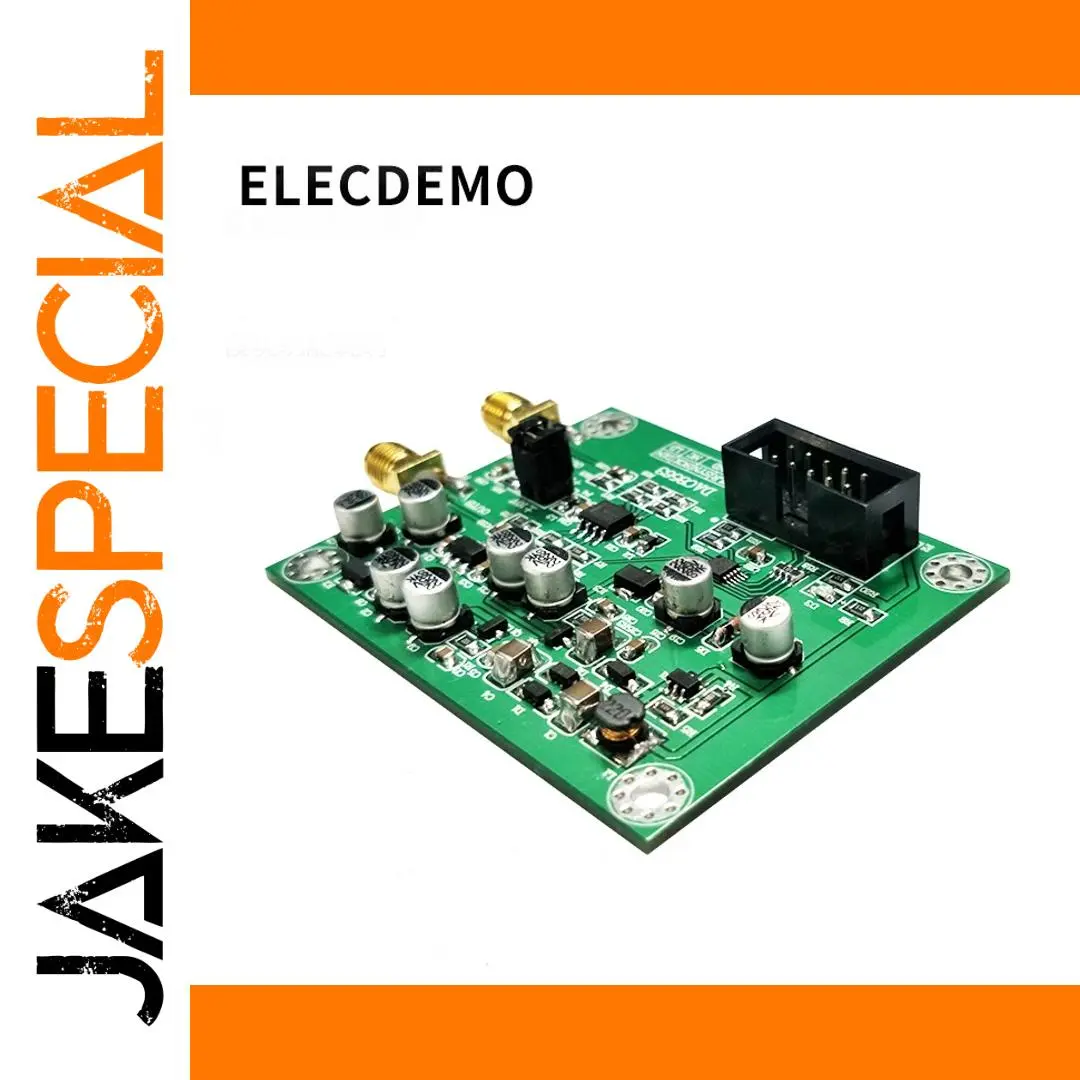

Imagine integrating this high-performance DAC8563 module into your project; its sleek green surface adorned with neatly organized silver capacitors, black ICs, and gold SMA connectors creates a visually appealing and reliable component. Designed for professionals, this dual 16-bit digital-to-analog converter offers stable, noise-minimized voltage output, perfect for sensitive instrumentation or motion control. Its compact 62mm x 50mm x 12mm size ensures easy integration into circuits, with a lightweight of approximately 30g. The module's robust design, including anti-oxidation SMA interfaces and a wide power supply range, guarantees durability and long-term performance. Handling delicate signals becomes effortless, allowing you to focus on innovation and precision in your projects.
Keys features of the DAC8563 digital-to-analog conversion module
- Dual 16-bit DAC channels with independent voltage outputs, providing high-resolution signal control for complex applications.
- Powered by a stable 3V to 5V DC supply at a maximum current of 100mA, ensuring low power consumption and reliable operation.
- Outputs with SMA interfaces, capable of delivering ±10V or 0-10V signals, driven by an OPA1602 chip supporting up to 20mA current capacity.
- Featuring an internal 2.5V reference voltage with an initial accuracy of ±5mV, supporting a voltage settling time of 10μs and an analog bandwidth of 100 kHz.
- Includes SPI serial communication protocol compatible with standard interfaces, supporting clock frequencies up to 50 MHz for fast data transfer.
- Built-in external reference input, DC5.5V power socket, anti-oxidation SMA output interfaces, and a compact 62mm x 50mm x 12mm PCB for seamless integration.
Get this DAC8563 module now to boost your projects with high precision!
Seize the opportunity to enhance your system’s accuracy and stability with this dependable DAC8563 digital-to-analog conversion module. Its advanced features and durable design make it ideal for programmable voltage sources, sensors, instrumentation, and motion control applications. Trust in its performance, and integrate it seamlessly into your setup for outstanding results. Whether you’re developing new electronic devices or upgrading existing systems, this module is your reliable partner for high-quality analog signal output. Make your projects more precise and efficient today!
