Compact Power Level Indicator Module 3.5V-12V
23.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake

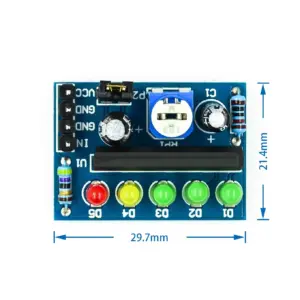

This compact power level indicator module features a KA2284 chip and measures 29mm by 21mm, designed for easy integration into various electronic systems. It supports a supply voltage range of 3.5V to 12V, with adjustable levels for precise tuning. The module can control both AC and DC signals via a simple jumper, making it versatile for use in computer and audio applications. Its sleek, densely populated PCB layout includes four bright green LED indicators for real-time level visualization, a black rectangular IC socket with a white rotor knob for adjustments, and mounting holes for secure installation. Perfect for enhancing your circuit’s power management and monitoring capabilities.
In stock
This Compact Power Level Indicator Module

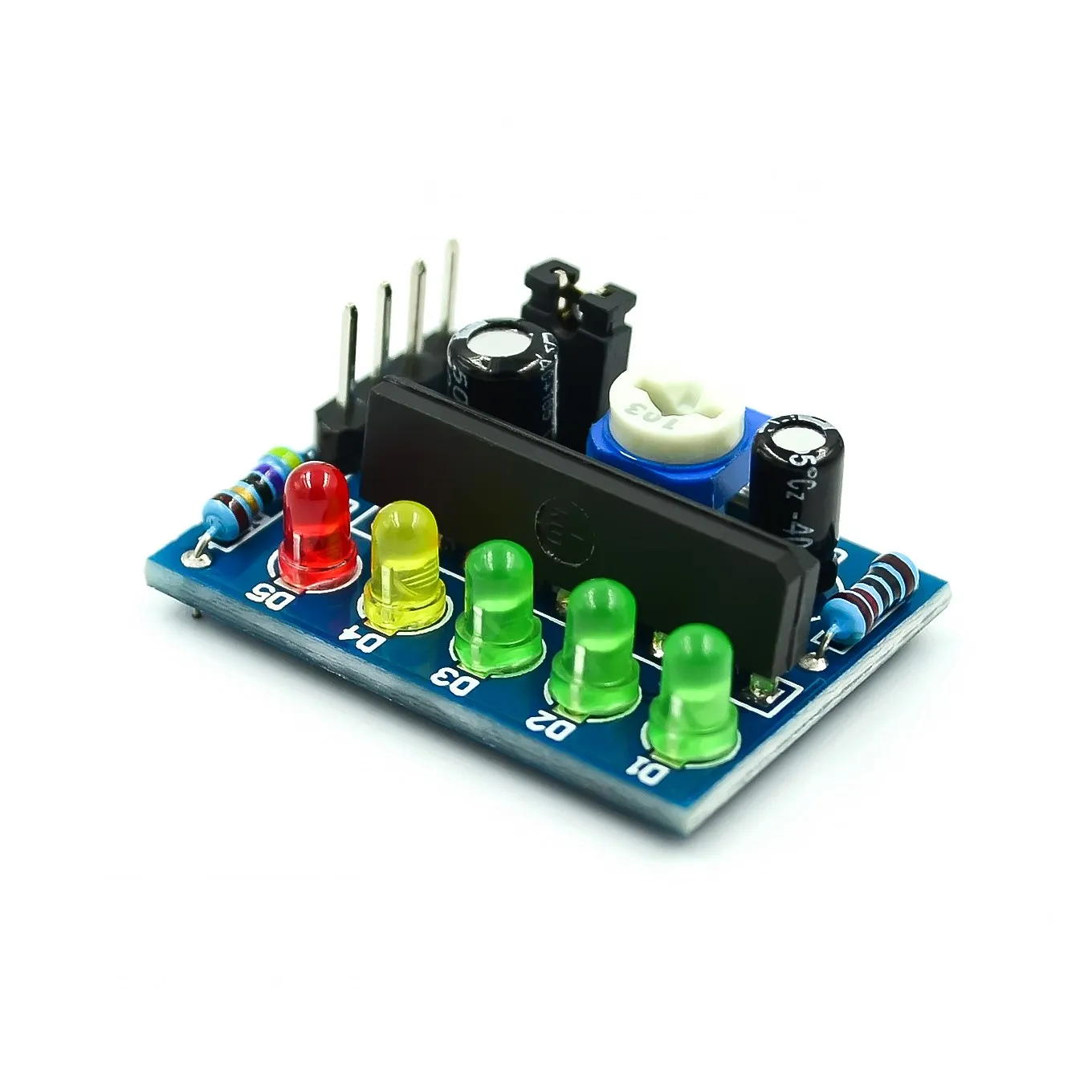

Experience precise power and battery level monitoring with this compact, blue PCB module. Measuring just 29mm by 21mm, it’s designed to seamlessly integrate into your electronic projects. The module features a KA2284 chip, supporting a voltage range of 3.5V to 12V, ensuring compatibility with various power sources. Four bright green LEDs clearly display status levels, while the adjustable potentiometer allows you to fine-tune the measurement. The device supports both AC and DC signals through a simple jumper configuration, making it incredibly versatile. Its dense layout includes a black IC socket, electrolytic capacitor, pin headers, and resistors, all mounted securely and easily accessible for maintenance or adjustments. Perfect for hobbyists and professionals seeking reliable power display solutions.
Keys features of the power level indicator module

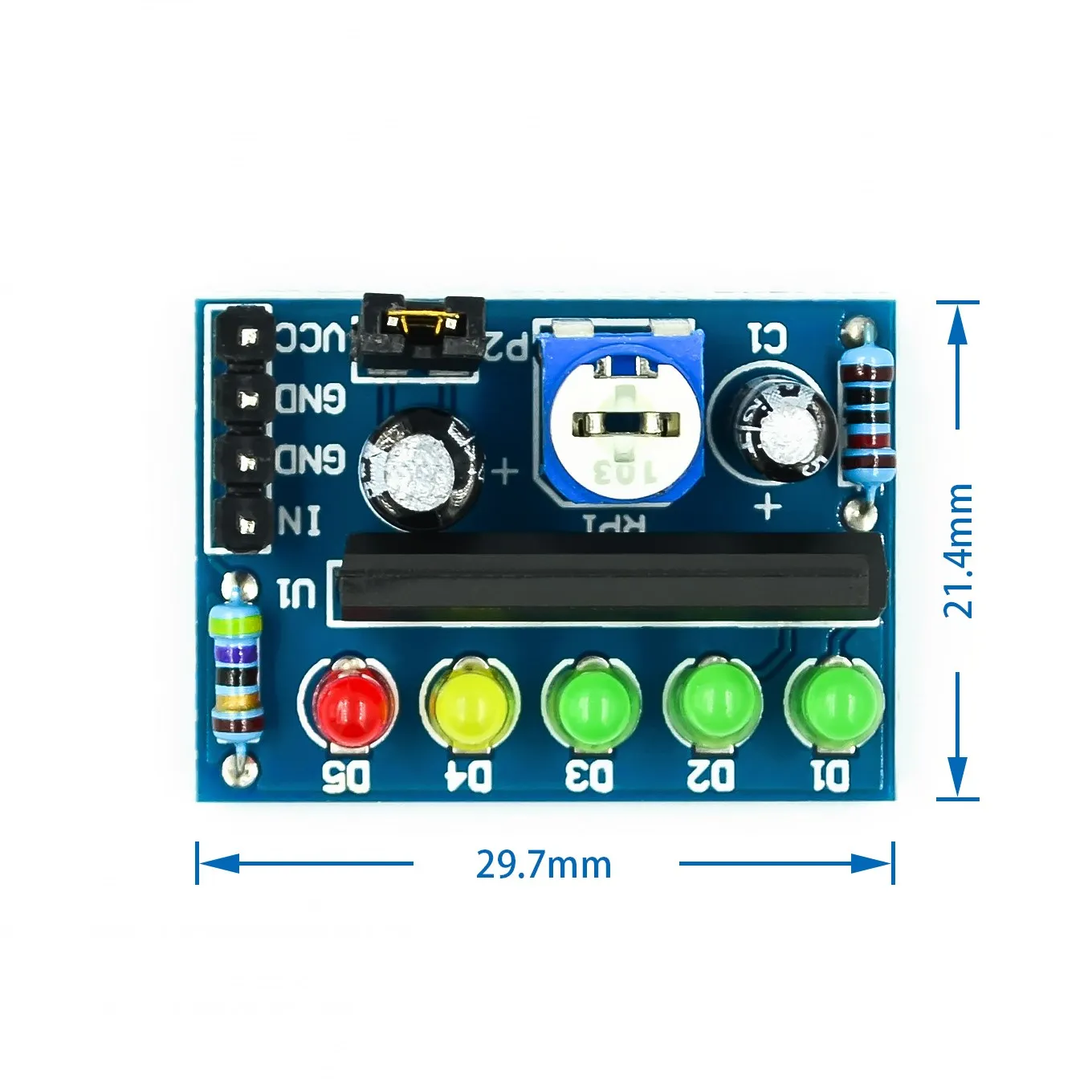

- This small module measures 29mm by 21mm with a vibrant blue PCB, perfect for compact electronic components and easy integration into various devices.
- Equipped with the KA2284 chip supporting a voltage input of 3.5V to 12V, providing flexibility for different power configurations and reliable performance.
- Includes four green LEDs for real-time visual indication of power or battery levels, adding clarity and immediacy to diagnostics.
- Features an adjustable potentiometer with a white rotor knob, enabling precise level adjustments for optimal accuracy in your applications.
- Supports both AC and DC signals via a jumper, making it suitable for a broad range of electronic projects and power monitoring tasks.
- Built with a carefully arranged layout, including black components, resistor arrays, and mounting holes, ensuring durability and easy installation in custom setups.
- Technical specs include: KA2284 chip, input voltage: 3.5V to 12V, dissipation power: 1 unit, compatibility with various computer and electronic devices.
Get this power level indicator module today for reliable monitoring
Add peace of mind to your electronics with this versatile and easy-to-use power level indicator. Whether you're working on a custom project or professional setup, this module offers essential functionality with precise visual feedback. Its adjustable features and broad signal compatibility mean you can rely on it for accurate readings every time. Ordering now ensures you have a high-quality component ready to enhance your device's performance. Invest in dependable power monitoring—your projects deserve the best precision and clarity, and this module delivers it effortlessly.
