Compact AD9854 DDS Signal Generator Module
151.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake
This compact AD9854 DDS signal generator module measures 80mm x 50mm x 24mm and operates within a 7-9V DC power range. Featuring a 300 MHz internal clock, it supports various modulation modes including FSK, BPSK, PSK, LFM, and AM. It provides two low-pass filtered sinusoidal wave outputs with adjustable peak voltage up to 700 mV and a programmable duty cycle square wave output. Equipped with two 12-bit DACs, two 48-bit frequency registers, and two 14-bit phase offset registers, it can generate frequencies up to 100 MHz with 1 Hz resolution. Controlled via an onboard STM32 microcontroller, it boasts high spectral purity, RMS jitter of about 3 ps, and SFDR up to 80 dB at 100 MHz, making it ideal for broadband, narrowband, and frequency modulation applications.
In stock
This Compact AD9854 DDS Signal Generator Module

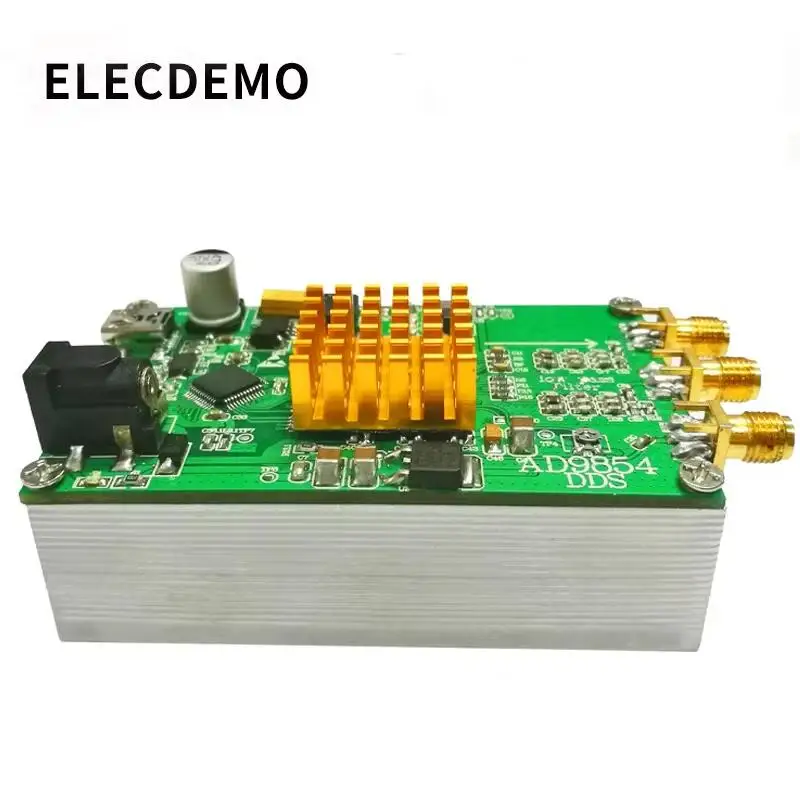

Step into advanced signal generation with this This AD9854 DDS module, designed for professionals and enthusiasts alike. Boasting a sleek green PCB with black connectors and red labels, it combines modernity with precise craftsmanship. Its small but powerful size—80mm by 50mm by 24mm—belies its extensive capabilities, including a 300 MHz internal clock, multiple output modes, and high-resolution frequency control. The yellow heat sink adds a vibrant touch, highlighting the module’s critical high-speed circuitry. Easily connect via USB or power it with 7-9V DC, and access a wealth of functions such as linear FM, FSK, BPSK, and more. Built for versatility, reliability, and cutting-edge performance, this module is your ideal choice for RF testing, frequency sweeping, and communication projects.
Key Features of This AD9854 DDS Signal Generator
- Equipped with a 300 MHz internal clock, supporting frequencies from 1 Hz up to 100 MHz with 1 Hz resolution for precise control.
- Supports multiple operation modes including FSK, BPSK, PSK, LFM, and AM, perfect for complex modulation and frequency sweeping applications.
- Features two integrated 12-bit DACs and dual 14-bit programmable phase offset registers, enabling high-fidelity output signals with adjustable phase and amplitude.
- Provides two low-pass filtered sinusoidal wave outputs with peak voltage up to 700 mV, with programmable amplitude in 4096 levels for dynamic accuracy.
- Includes an adjustable square wave output with duty cycle control, supporting programmable reference clock multipliers from 4x to 20x to optimize frequency generation.
- Powered by advanced CMOS technology with a stable 3.3V single power supply, measuring only 80mm * 50mm * 24mm for easy integration into complex systems.
- Features high dynamic performance with SFDR up to 80 dB at 100 MHz, RMS jitter of approximately 3 ps, ensuring signal purity and stability for demanding RF applications.
Order Now and Boost Your Signal Generation Capabilities
Experience the precise, versatile, and reliable performance of this AD9854 DDS module. Let it be the centerpiece of your RF testing and communication setups. Its technical prowess and compact design make it suitable for a broad range of professional and experimental uses. Imagine effortlessly controlling and customizing your signals, confident that this module will deliver clean, stable, and accurate outputs every time. Whether you’re working in radar, telecommunications, or research, this module will enhance your projects. Don't wait—bring this powerful signal generator into your toolkit today and take your applications to the next level with advanced digital control, superb spectral purity, and flexible signal outputs.
