Compact 150MHz DDS Signal Generator Module
89.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake

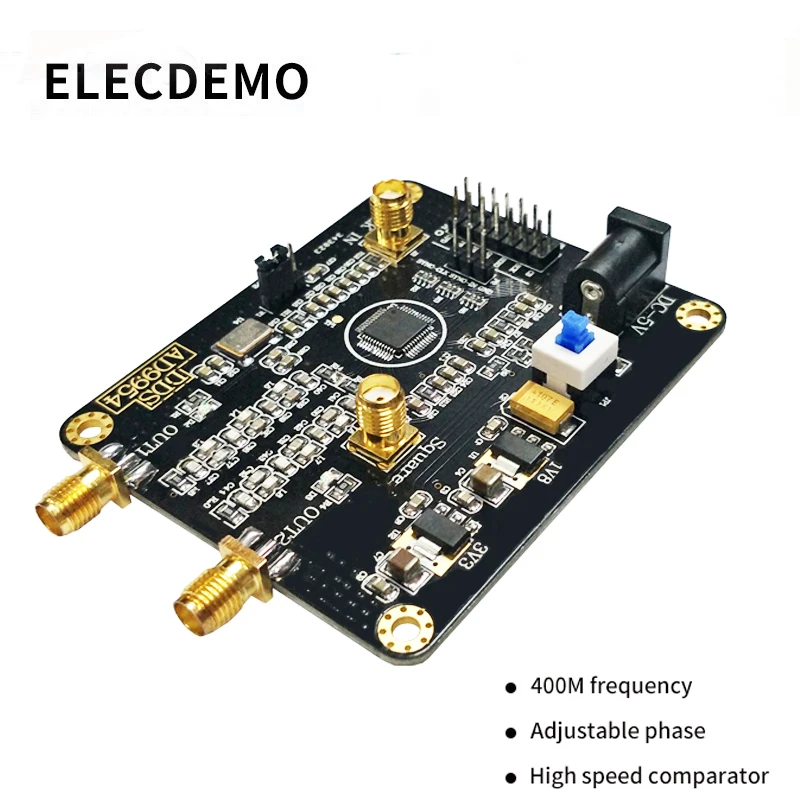

This compact black DDS signal generator module features a 70mm x 60mm x 12mm design and weighs 35g, built around the AD9954 chip. It provides high-frequency signals up to 150MHz with a 14-bit DAC resolution and a 32-bit phase accumulator, supporting a maximum main frequency of 400MHz. Equipped with two complementary sine wave outputs (1Hz to 140MHz, up to 200mVpp amplitude) and a 180-degree phase-shifted square wave output (1Hz to 120MHz, up to 3.3Vpp), it connects via SMA for signals and external clock input. Powered by DC 5V (max 100mA), it interfaces through SPI and includes routines compatible with STM32F103RCT6 for precise frequency sweep and phase modulation, making it ideal for advanced RF, testing, and research applications.
This Compact DDS Signal Generator by ElecDemo
Experience precise frequency control with this sleek, black ElecDemo DDS signal generator module, built around the powerful AD9954 chip. Designed for high-performance applications, it offers output signals up to 150MHz with stunning 14-bit resolution via its DAC. The module features two complementary sine wave outputs, a dedicated 150MHz low-pass filter, and a phase-shifted square wave output, providing versatile waveform generation. Its compact size of 70mm by 60mm ensures easy integration into various systems, while the high-quality SMA connectors guarantee reliable high-frequency signal transfer. As you explore this product, picture yourself effortlessly generating complex RF signals for your projects, confident in its robust technical specifications and professional design.
Keys features of the this ElecDemo DDS module
- High-frequency output reaching 150MHz with precision; supports sine wave and square wave signals with phase control for diverse RF applications.
- 14-bit DAC resolution combined with a 32-bit phase accumulator allows for ultra-fine frequency tuning, with maximum main frequency of 400MHz.

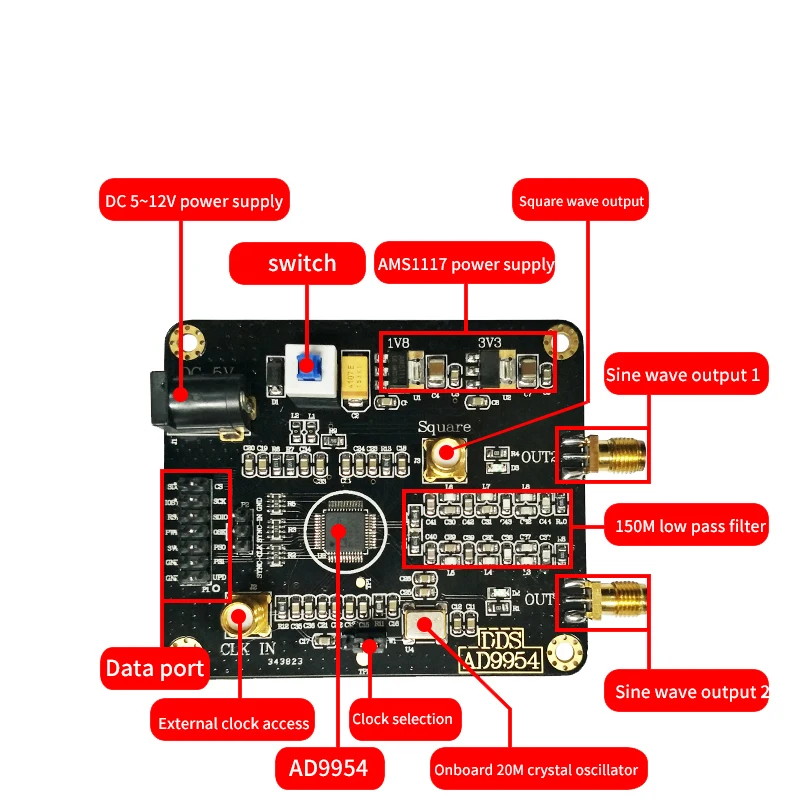

- Dual complementary sine wave outputs with 180° phase difference; includes a 150MHz low-pass filter for cleaner analog signals.
- Input power supply from DC 5V with a maximum current of 100mA; consumes about 48-92mA depending on operation mode; features SMA signal output for high fidelity.
- Interface via SPI serial protocol; external clock input via SMA or 5.5mm DC socket; supports frequency sweep and phase modulation, compatible with STM32F103RCT6 routines.
- Measuring just 70mm long, 60mm wide, and 12mm high; lightweight at 35g; constructed with durable components for long-term stable performance.
This ElecDemo DDS signal generator is perfect for advanced RF testing—buy now to elevate your projects!
Step into a new realm of signal generation with this professional-grade DDS module. Whether you're conducting experiments, testing RF circuits, or developing high-frequency systems, this product offers reliable precision and versatile features. Its robust technical specifications ensure it meets demanding requirements, giving you confidence in your setups. Investing in this module means empowering your work with a high-performance tool that’s both compact and easy to integrate. Enjoy seamless control over waveforms and frequencies, and unlock new possibilities in your RF and electronic research. Don't wait—enhance your toolkit today!
