BMS 3S 12.6V Lithium Battery Protection Board
Price range: 30.99 € through 38.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake

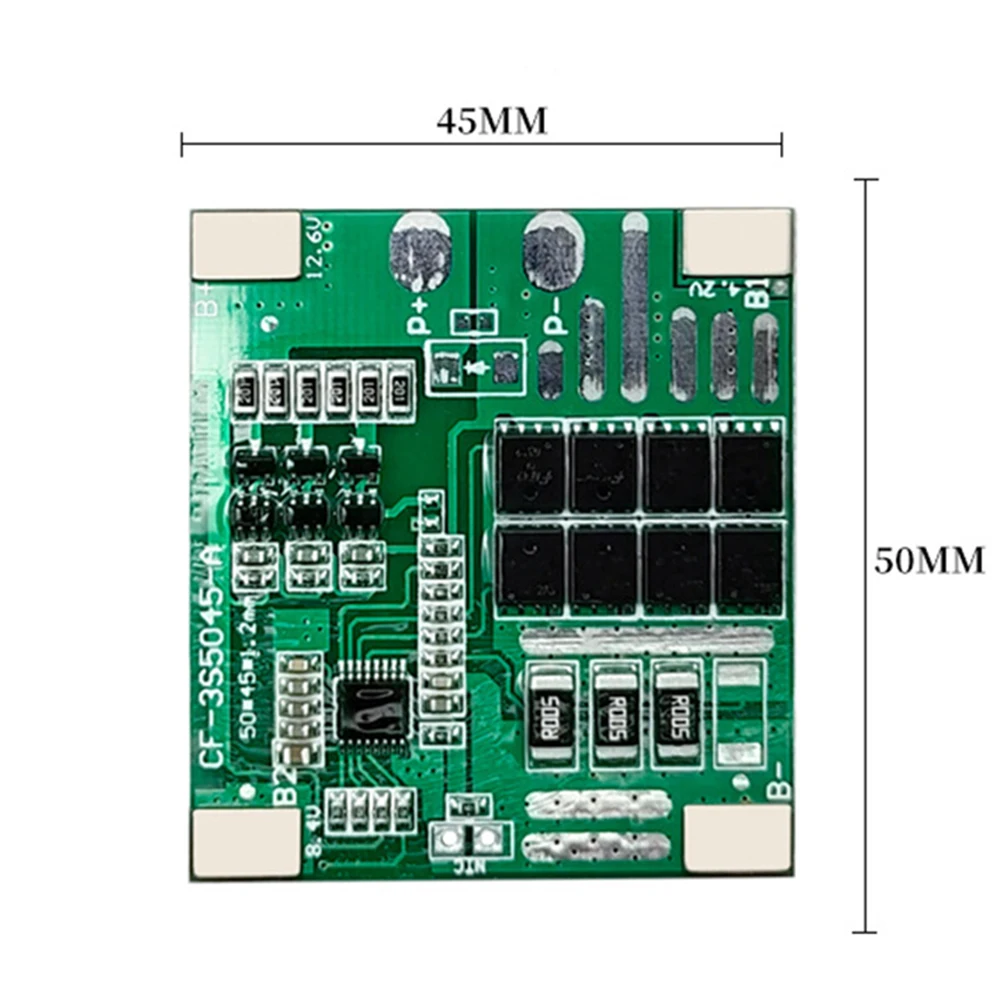

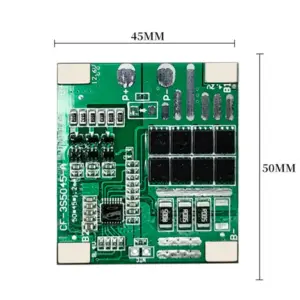

This highly reliable BMS 3S 12.6V protection board measures 56×45×1.2mm and supports discharge currents of 6A, 12A, and 25A, with a maximum charging current of up to 25A via the same port. It features overcharge detection at 4.15±0.05V and over-discharge detection at 2.7±0.08V, along with balancing capabilities at 4.2±0.025V and a current of 42±5mA. The device offers overcurrent protection at 10±2A with a 1000ms delay and short circuit protection within 250μs, operating efficiently within a temperature range of -30°C to +80°C. Perfect for protecting and balancing 3-cell lithium-ion battery packs.
This is the BMS 3S 12.6V Protection Board
Experience reliable battery management with this high-performance BMS 3S 12.6V protection board. Designed to safeguard lithium-ion battery packs, this sleek PCB features a vibrant green solder mask and a clean, minimalist layout that emphasizes precision and durability. Its thin profile of only 1.2mm ensures it remains unobtrusive in various applications. Equipped with multiple protective functions—overcharge, over-discharge, overcurrent, short circuit, and balance—this device offers comprehensive battery safeguarding. The component organization and white silkscreen labels facilitate easy installation and maintenance. Whether you're building power tools, battery packs, or DIY energy projects, this protection board ensures maximum safety and efficiency in a compact, modern design.
Key features of the BMS 3S 12.6V Protection Board
- This green PCB measures 56×45×1.2mm, with a sleek, minimalist design ideal for space-constrained applications and easy integration within various battery packs and DIY projects.
- Supports discharge currents of 6A, 12A, and 25A, as well as a maximum charging current of 25A, enabling flexible power management for different lithium-ion battery configurations.
- Key protection functions include overcharge detection at 4.15±0.05V, over-discharge at 2.7±0.08V, overcurrent protection at 10±2A, and short circuit triggering within 250 microseconds, ensuring system safety.
- Features a balance function operating at 4.2±0.025V with a balance current of approximately 42±5mA to optimize battery longevity and performance across three cells.
- Designed with a low internal resistance of ≤25mΩ; consumes ≤30 microamps during operation and ≤10 microamps in standby mode, with a wide operating temperature range of -30°C to +80°C.

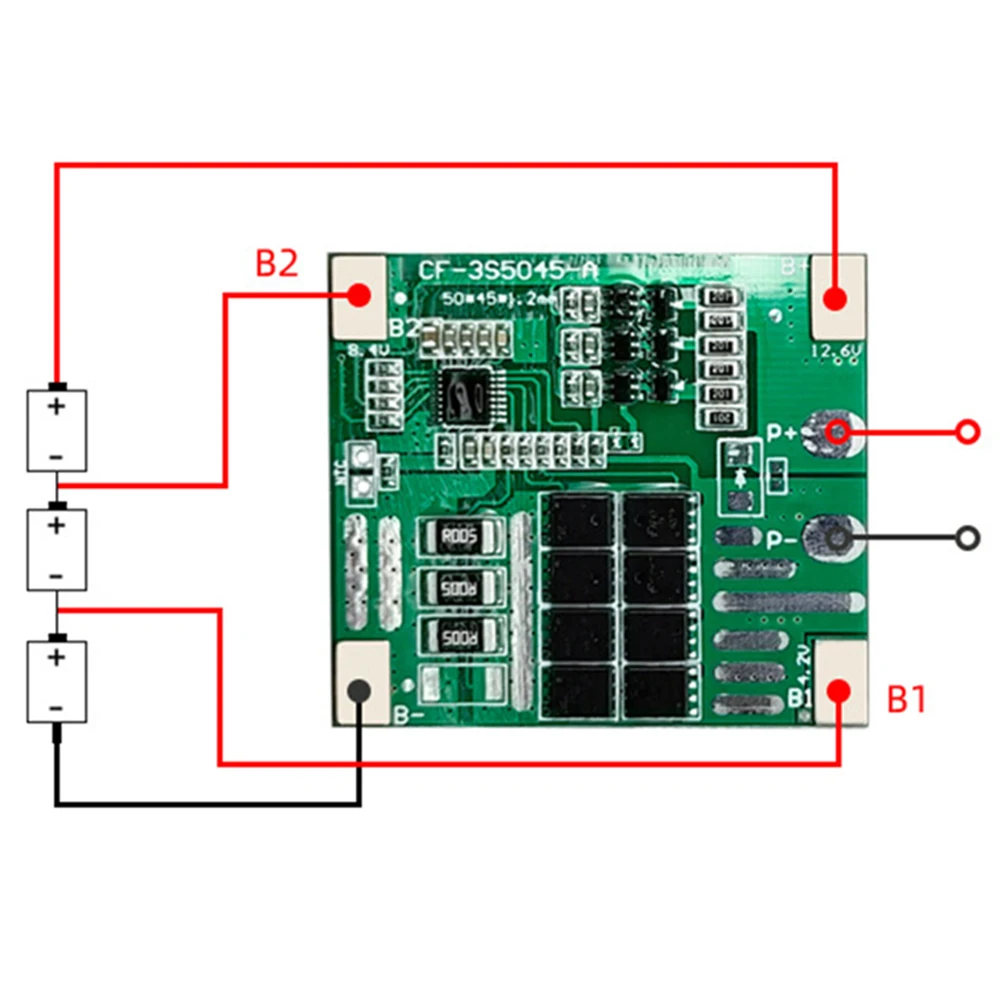

- Includes multiple connection points such as battery terminals, P+ and P-, with clear silkscreen labels “B1,” “B-,” “B+,” “P-,” “P+,” and “B-1,” facilitating accurate installation and secure connections.
This BMS 3S 12.6V protection board is a must-have—order now for safe, reliable power storage!
Enhance your lithium-ion battery projects with this precision-engineered protection board. Its compact design, robust safety features, and versatile current support make it a dependable choice for power tools, DIY energy systems, and battery management solutions. Trust in this device to deliver optimal performance, safety, and longevity for your batteries. Once installed, you'll have peace of mind knowing your battery pack is protected against common electrical issues, ensuring long-term efficiency and safety. Elevate your project today with this advanced, reliable BMS protection board.
| Current | 25A, 12A balance, 25A balance, 12A no balance, 6A no balance |
|---|---|
| Condition | New |
| Warehouse | HK Warehouse – Hong Kong |
