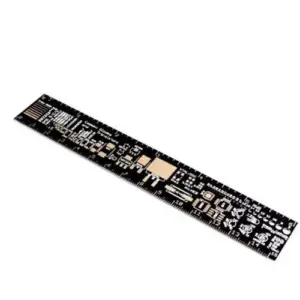

Black PCB Measurement and Design Reference Ruler
Price range: 25.99 € through 29.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake

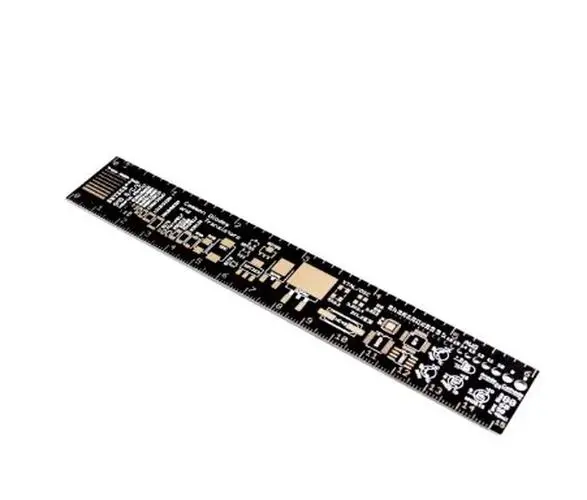

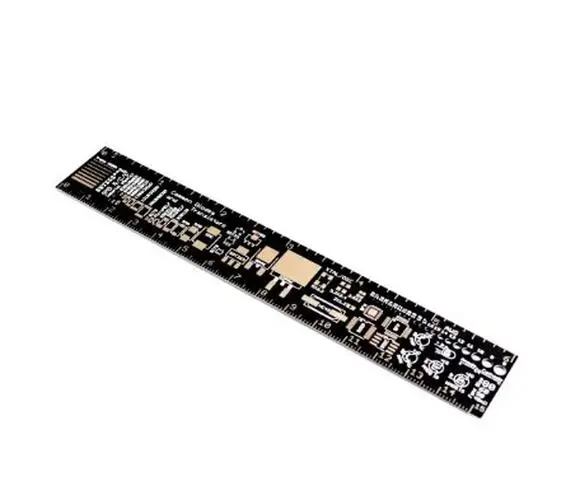

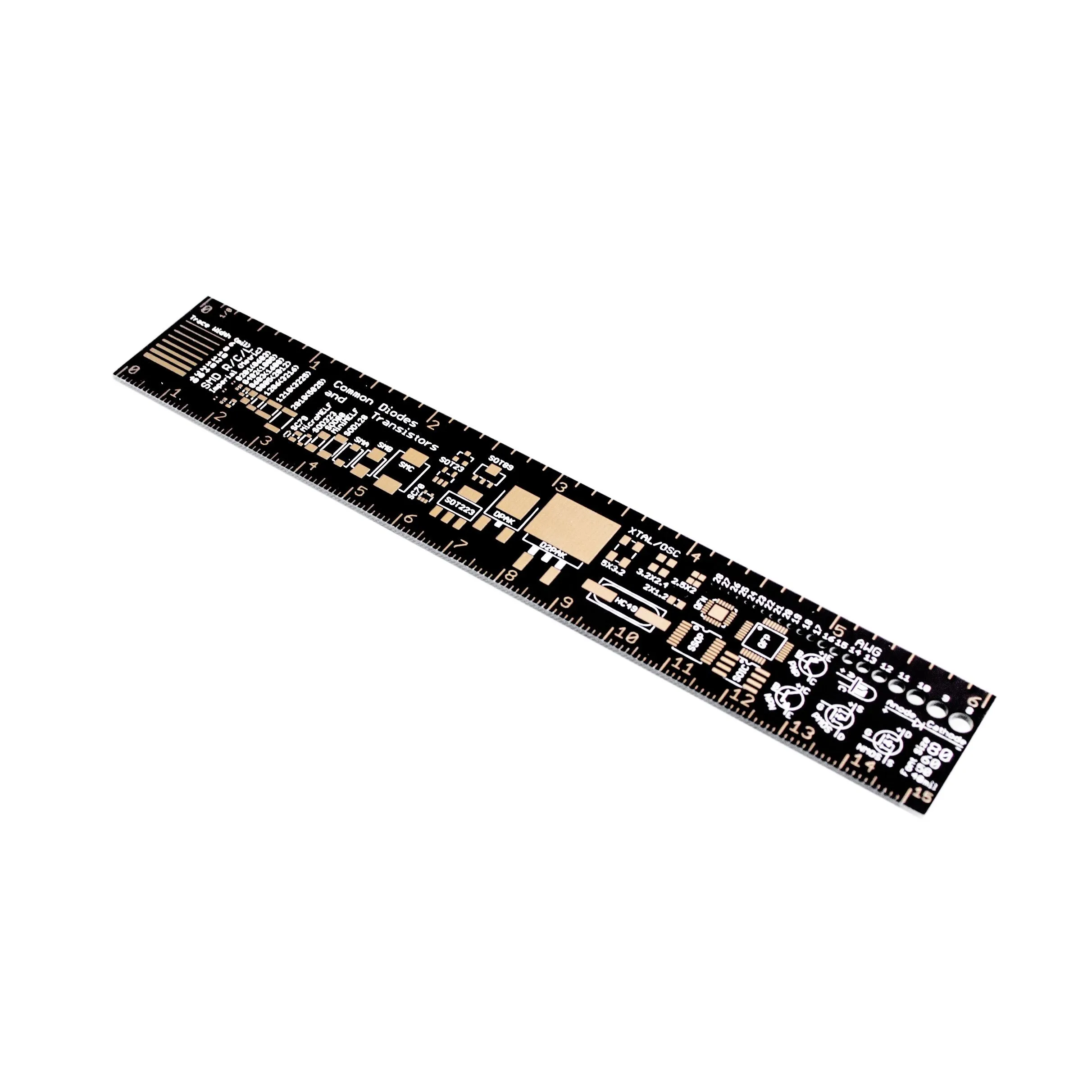

Enhance your PCB design process with this high-quality black reference ruler available in 15cm, 20cm, and 25cm lengths, featuring precise 0.1cm measurement markings and high-contrast light tones. Crafted from durable, gold-plated FR-4 PCB material, it incorporates comprehensive design aids including angle gauges, IC pin spacing tables, resistor and capacitor package sizes (0201 to 6032), diameter reference drills (0.4 to 3.0 mm), and line width references. The 20cm version measures 7.8″, and the 25cm version measures 10″, seamlessly supporting a range of common device packages such as SOT89, SOP16, TQFP64, and more, making it an essential tool for electronic engineers and PCB enthusiasts.
This precise black PCB reference ruler for engineers
Enhance your electronic design workflow with this high-quality black PCB reference ruler, available in 15cm, 20cm, and 25cm lengths. Crafted from durable, gold-plated FR-4 material, it offers sharp contrast with white or gold markings for excellent readability. The ruler features intricate measurement marks at 0.1cm intervals, along with detailed diagrams including angle gauges, device layouts, IC pin spacing tables, and component sizes. Its sleek design provides a modern, professional aesthetic while remaining highly functional. Whether you're laying out PCBs, measuring component distances, or referencing drill sizes, this tool ensures accuracy and efficiency. Its well-organized layout and smooth matte finish make it an essential addition to any electronic technician's toolkit, combining precise measurement with comprehensive design aids.
Key features of the black PCB reference ruler
- Made from sturdy, wear-resistant, gold-plated FR-4 PCB for durability and high-end appearance, resistant to wear and tear during frequent use.
- Available in three lengths: 15cm, 20cm (7.8″), and 25cm (10″), with measurement marks at 0.1cm intervals for precise dimensions in metric and imperial units.

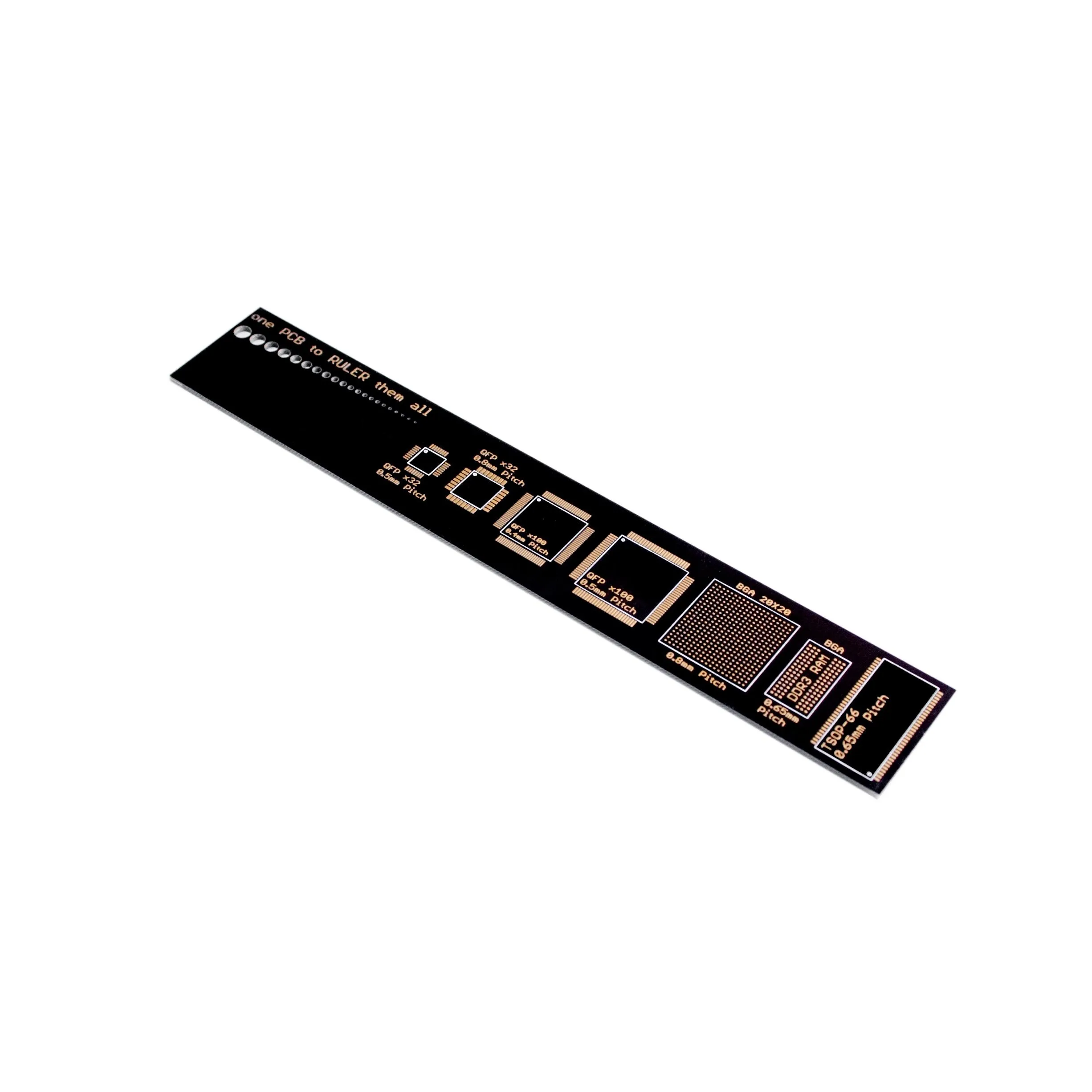

- Includes detailed total station diagrams, angle gauges, device layouts, and IC pin spacing tables (0.5mm, 0.635mm, 0.65mm, 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm).
- Feature reference hole diameters in millimeters: 0.4, 0.5, 0.8, 1.0, 1.5, 2.0, 2.5, 3.0mm, aiding in hole size measurement and preparation.
- Incorporates common package sizes such as SOT89, SOT8, SOP16, SOT363, 3225, SOD80, TQFP64, and resistor/capacitor sizes like 0201, 0402, 0603, 0805, 1206, 1812, and more.
- Back features line width references, angular measurements, and device footprint data, suitable for comprehensive PCB and component design work.
This PCB reference ruler is your ideal design companion—order now and streamline your electronics projects!
By choosing this high-quality PCB reference ruler, you gain a versatile, professional tool that elevates your accuracy and efficiency in designing and assembling electronic circuits. Its meticulous markings and extensive design aids are perfect for hobbyists and professionals alike. Imagine confidently measuring, referencing, and laying out PCB components with ease—this tool makes it possible. Durable and stylish, it complements your workspace while providing essential technical support. Don't miss the chance to enhance your electronics toolkit with this essential reference ruler designed for precision and durability. Invest in your projects today and experience seamless design workflow improvement.
| Color | 1 Set, 15cm, 20cm, 25cm |
|---|---|
| Condition | New |
| Warehouse | HK Warehouse – Hong Kong |
