ADS8688 16-Bit Data Acquisition Module
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake
The ADS8688 is a compact, 16-bit SAR ADC module supporting a maximum sampling rate of 500kSPS across 8 channels via SPI communication. Powered by a stable 5V supply, it consumes less than 2.2mA and features an internal 4.096V low-drift reference. The module offers selectable bipolar (±10.24V, ±5.12V, ±2.56V) and unipolar (0V-10.24V, 0V-5.12V) input ranges, with each channel having a programmable gain amplifier for independent configuration. Measuring approximately 50mm x 50mm and weighing 13g, it includes overvoltage protection up to ±20V and features a dual-row pin interface for easy connection—ideal for automation, power management, and process control applications.
This Precision ADS8688 Data Acquisition Module

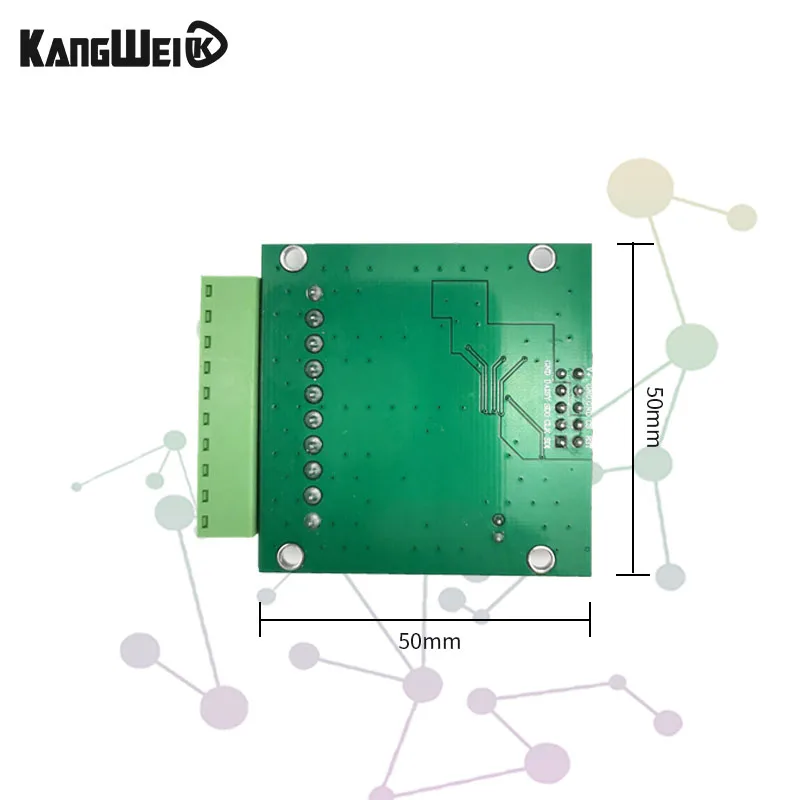

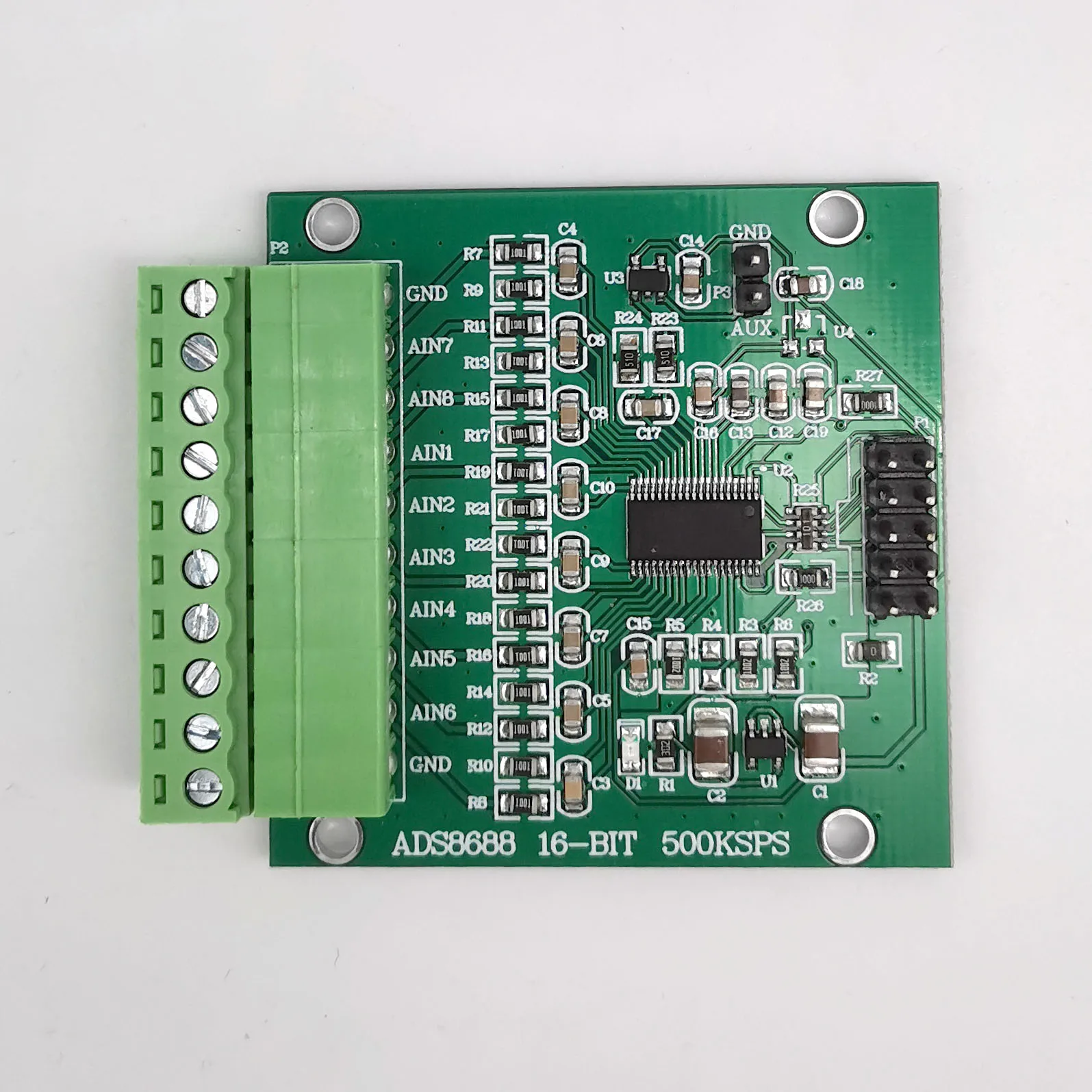

Experience high-precision analog-to-digital conversion with this state-of-the-art ADS8688 module. Built on a compact 50mm x 50mm green PCB, it boasts a dense array of high-quality surface-mount components, such as resistors, capacitors, and a central black ADC chip. The sleek, professional design is complemented by organized input terminals on the left and clean pin headers on the right, facilitating seamless integration into your projects. Its robust construction and refined aesthetic showcase its reliability and performance-focused engineering. This module is perfect for powering automation systems, factory automation, and process control, giving you confidence in accurate data collection. Visualize yourself using this sleek device easily connecting with your setup, ensuring precise measurements every time.
Keys features of the ADS8688 data acquisition module
- Supports 16-bit resolution with a maximum sampling rate of 500kSPS, ensuring highly accurate and fast data acquisition, ideal for real-time applications and high-speed signal analysis.
- Equipped with 8 input channels, each featuring a programmable gain amplifier (PGA) with independent configuration for input range and polarity, supporting bipolar and unipolar voltages up to ±10.24V or 0V to 10.24V respectively.
- Powered by a single 5V power supply, consuming less than 2.2mA of static power, perfect for energy-efficient, low-power digital systems while maintaining excellent stability and low temperature drift, thanks to its low-noise internal reference voltage of 4.096V.
- Features a resistive input impedance of 1MΩ to ensure minimal loading and signal integrity, with overvoltage protection up to ±20V, safeguarding your measurements against unexpected surges or voltage spikes.

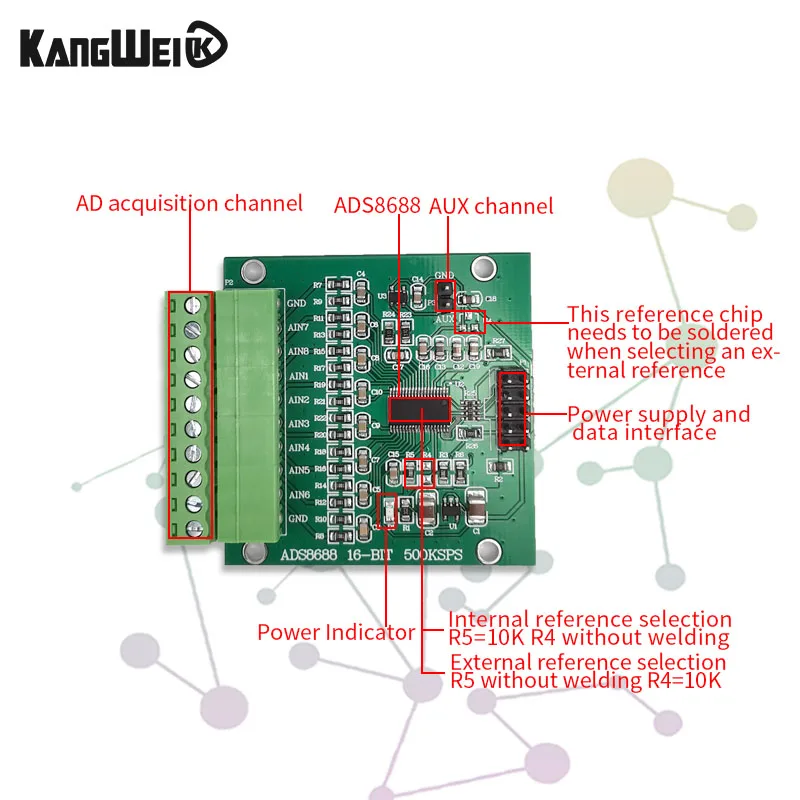

- Includes a robust interface with a 3.81-8P socket or XH2.54 double row pin headers for SPI communication, auxiliary connections, and power, enabling straightforward integration into diverse control systems and automation setups.
- Consistent, precise performance for applications such as electric power automation, device protection, factory automation, and process control, providing reliable data for critical decision-making.
This ADS8688 module—Enhance your automation and control systems today
Seamlessly incorporate this high-precision ADS8688 data acquisition module into your project and enjoy consistent, reliable measurements. Its compact size, low power consumption, and versatile input options make it an excellent choice for demanding industrial environments. Whether you’re developing automation solutions or conducting detailed signal analysis, this module offers the accuracy and stability you need. Imagine the confidence you’ll have knowing your system is backed by advanced technology designed specifically for precision — get yours now and elevate your projects to the next level.
Your work deserves the best tools for accurate data collection. With this ADS8688 module, you gain a reliable, high-performance component that integrates effortlessly into your existing systems. Trust in its technical excellence to deliver consistent results over the long term, helping you achieve flawless performance in your automation and measurement tasks.
