ADL5511 RF Envelope & RMS Detector Module
101.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake

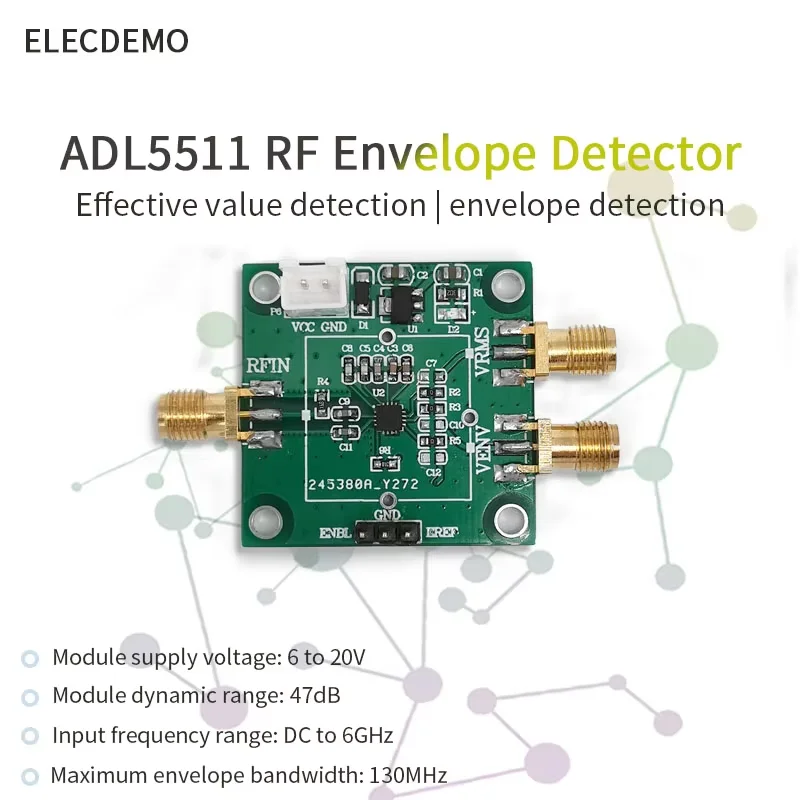

Experience precise RF measurement with the ADL5511 RF envelope and RMS detector module, capable of operating from DC to 6GHz with a 130MHz envelope bandwidth. This compact 35mm x 34mm shielded module draws just 22mA at a supply voltage of 6V to 20V and features a 75-ohm input impedance. It offers a dynamic range of 47dB with input power handling up to +20dBm, making it ideal for broadband power measurement, envelope detection, and RF linearization in complex waveforms such as LTE and W-CDMA. Equipped with JSMA and XH2.54 interfaces, reverse protection, and a lightweight design of 9g, this high-precision module perfectly combines advanced functionality with an organized, professional aesthetic.
In stock

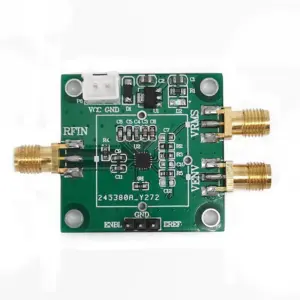

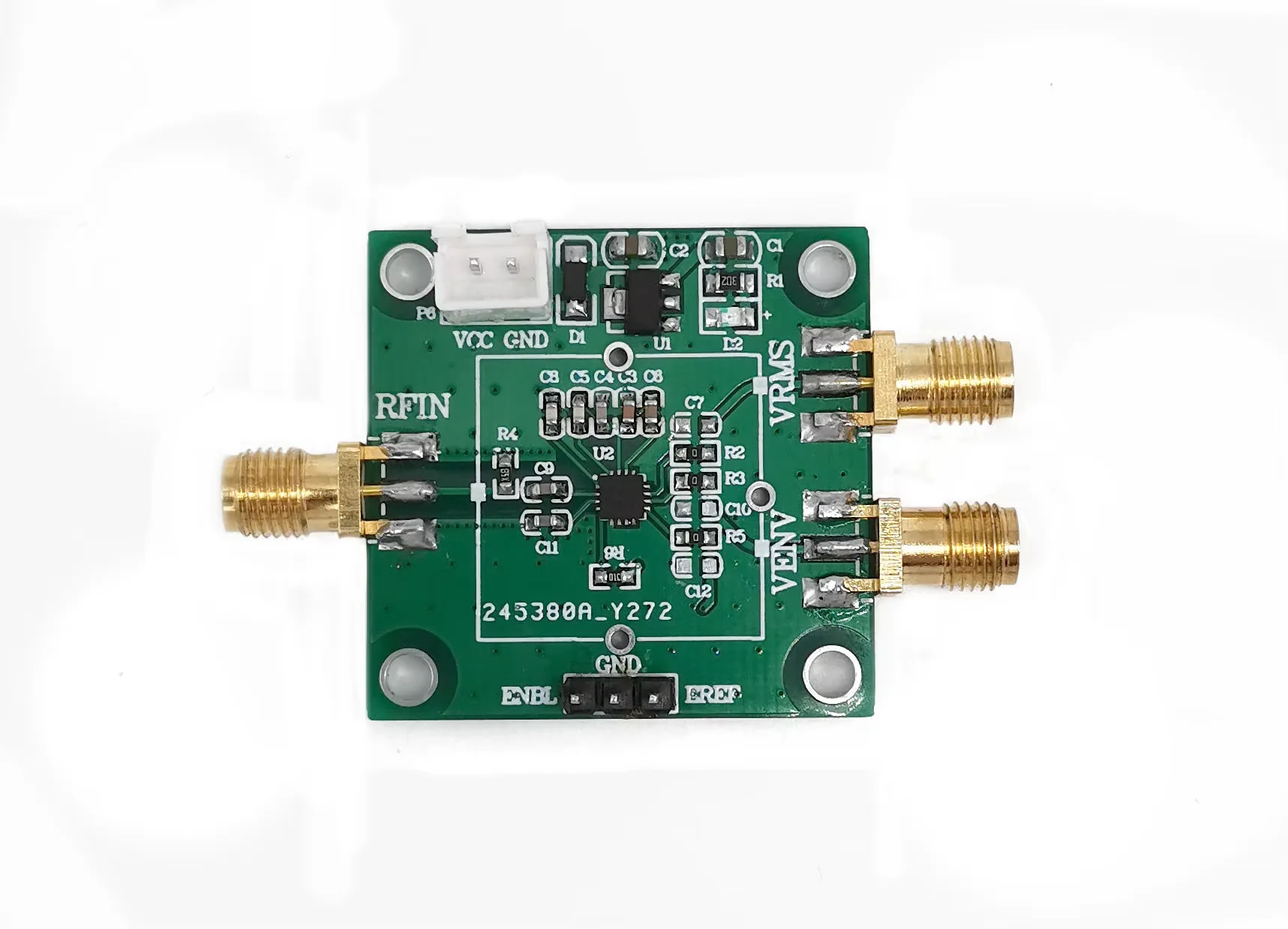

This ADL5511 RF Envelope and RMS Detector Module
Experience precise RF measurement with this compact and efficient ADL5511 detector module. Designed for professional applications, it seamlessly captures envelope and RMS signals from DC up to 6GHz bandwidth, making it ideal for broadband waveforms in LTE, W-CDMA, and CDMA2000 systems. Its 130MHz envelope bandwidth and 47dB dynamic range ensure accurate readings and swift response times. Housed in a sleek, shielded 35mm x 34mm board weighing just 9 grams, this module is built for durability and easy integration. With simplified JSMA and XH2.54 interfaces, it offers dependable performance for high-frequency power measurements and linearization. Whether optimizing RF amplifiers or monitoring complex signals, this module elevates your measurement precision and system efficiency effortlessly.
Key Features of this ADL5511 RF Detector Module
- Operates from 6V to 20V DC supply with only 22mA current, suitable for various power setups and portable systems.
- Offers a frequency response from DC to 6GHz with an envelope bandwidth of 130MHz for detailed signal analysis.
- Designed with 75-ohm input impedance, ensuring broadband matching and minimal signal loss across applications.
- Provides linearly proportional output voltages: approximately 0–4V for RMS and 1–4V for envelope, calibrated for high accuracy.

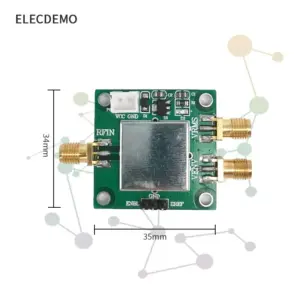

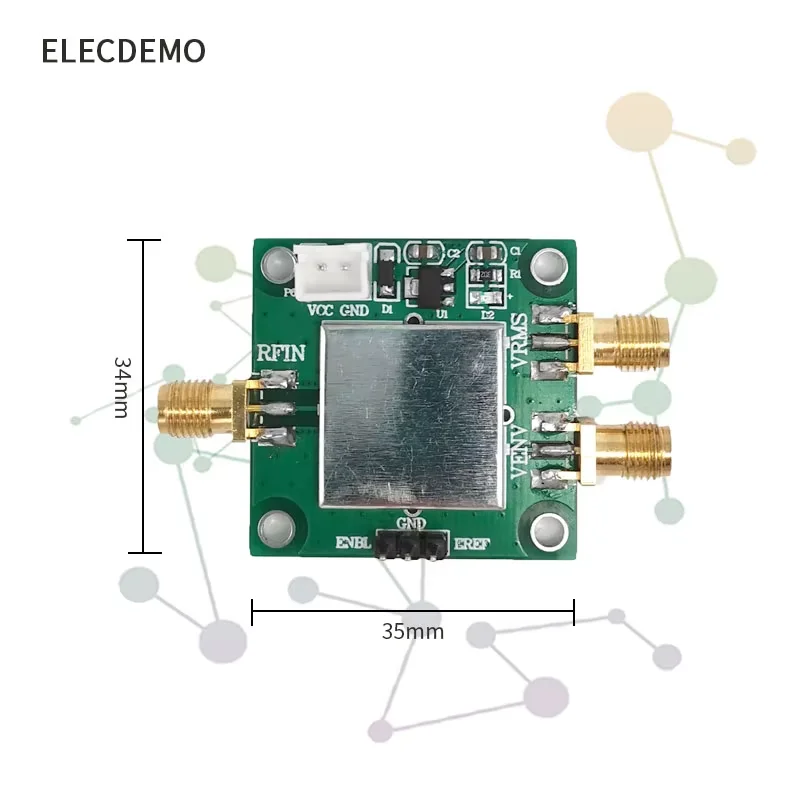

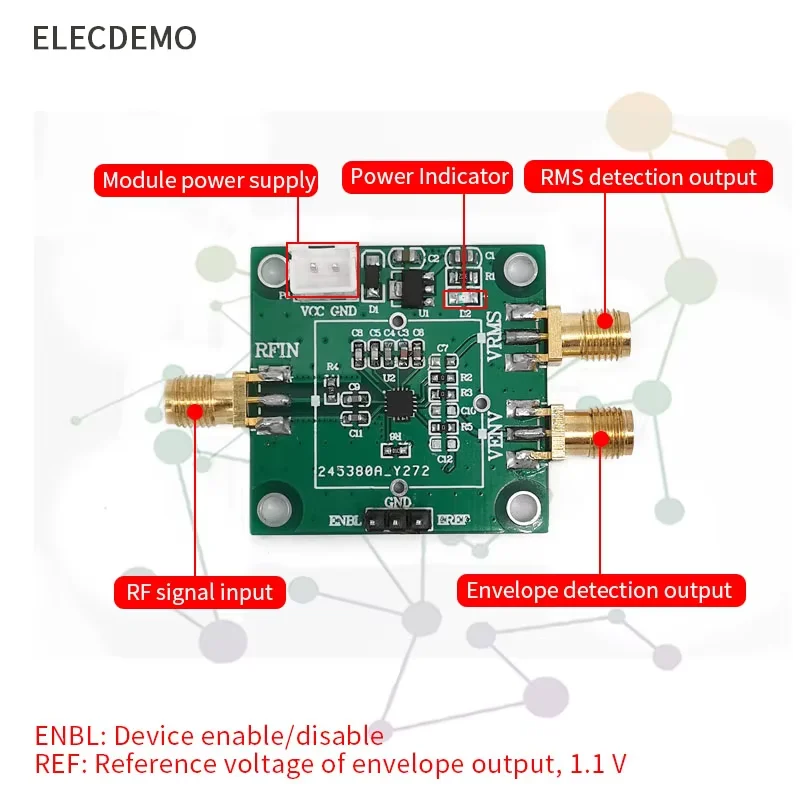

- Features a compact, shielded PCB with surface-mount components, black shielding cover, and clearly labeled SMA and XH2.54 interfaces for durability and stability.
- Built-in reverse connection protection and robust construction make it reliable for continuous RF measurement tasks in complex waveform environments.
Order now to enhance your RF measurement capabilities today!
Transform your RF testing setup with this trusted ADL5511 detector module. Its high precision, fast response, and rugged design make it perfect for integrating into professional measurement systems. Whether you're working on signal linearization, efficiency optimization, or broadband power measurement, this module enables you to achieve accurate results quickly. Its straightforward interface reduces setup complexity, while the technical specifications ensure reliable performance under demanding conditions. Don't miss out on refining your RF analysis — add this module to your toolkit and experience superior measurement quality firsthand.
