ADL5350 RF Mixer Module for 4 GHz Systems
58.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake
Experience high-performance signal conversion with the ADL5350 Mixer Module, measuring 46mm x 42mm and operating on a 5V DC supply at 19mA. Designed for cellular base station applications, this compact module offers a frequency conversion loss of 6.8dB, a noise figure of 6.5dB, an input IP3 of 25dBm, and a P1dB of 19dBm. It supports broadband RF, LO, and IF ports up to 4 GHz with a single-ended design and an LO input level of 20dBm. Encased in an 8-pin small LFCSP package, this RoHS-compliant device combines precision, durability, and high linearity ideal for advanced RF systems.
In stock
This ADL5350 Mixer Module for High-Frequency Applications

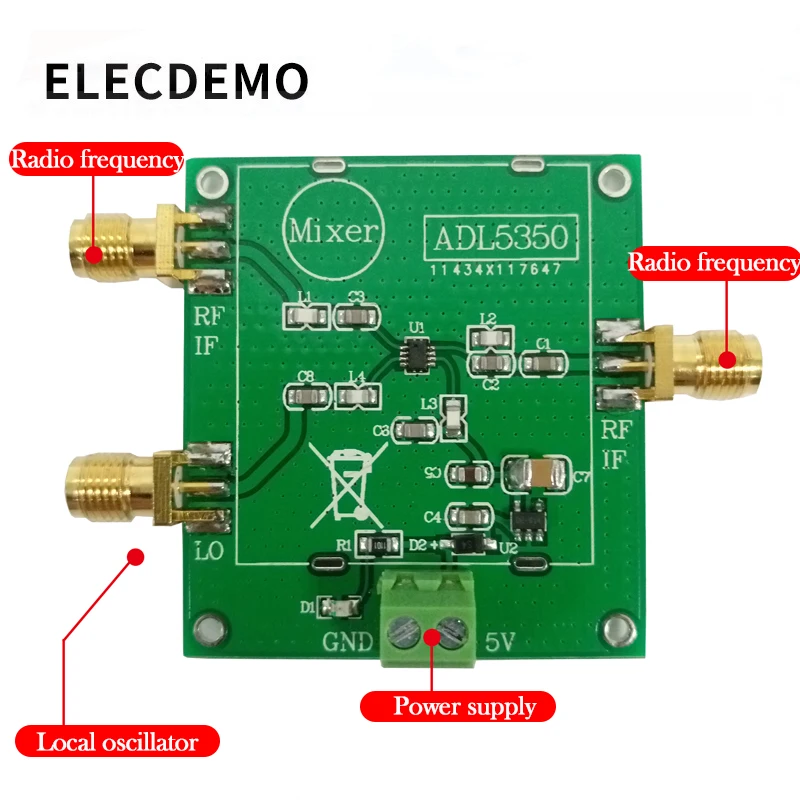

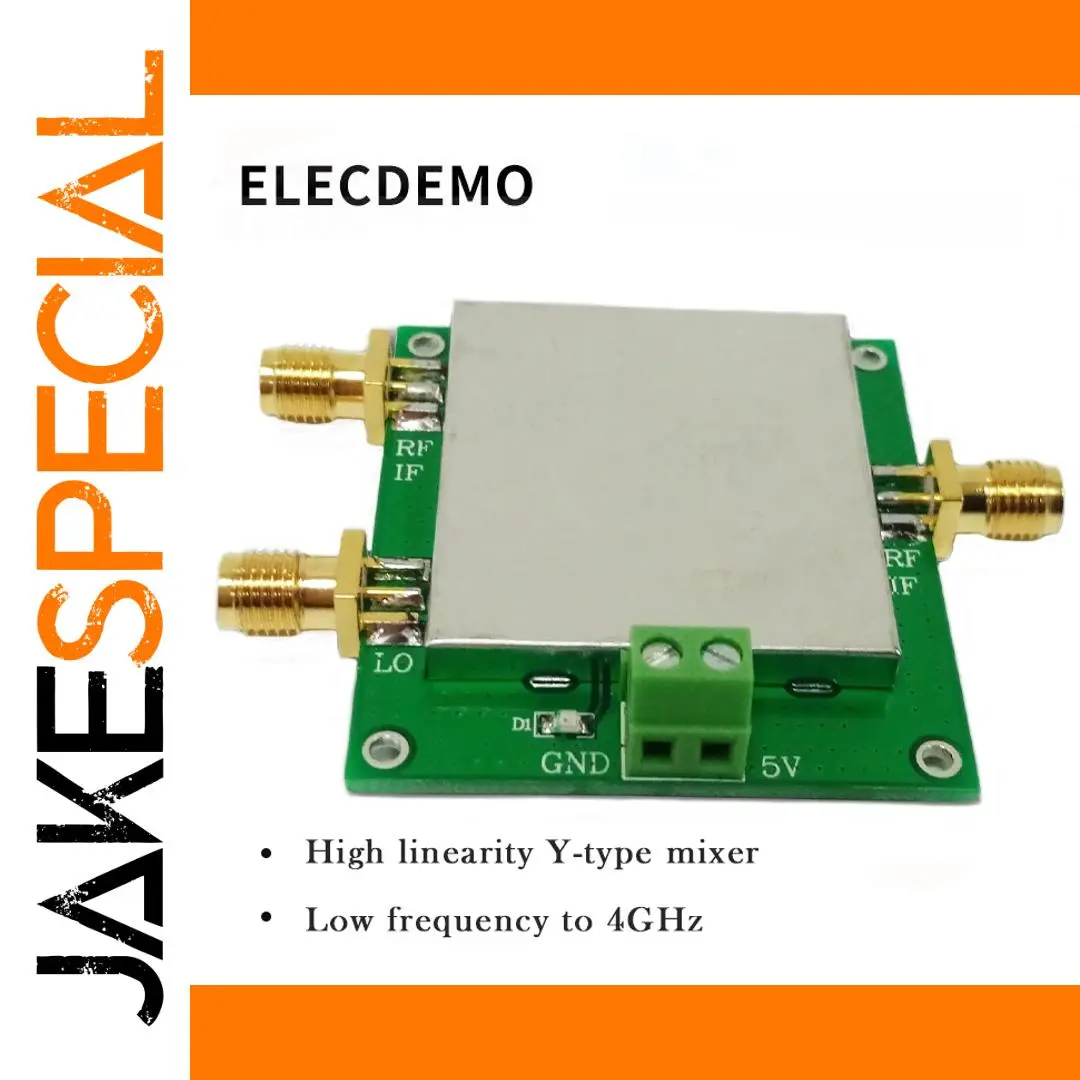

Experience precision with this high-performance ADL5350 Mixer Module, designed for versatile RF applications up to 4 GHz. Its compact 46mm x 42mm green PCB features a sleek, professional look, highlighted by a smooth, silver metallic shielding that covers the core circuitry. The shiny, gold-plated RF connectors on each edge add a touch of sophistication and ensure secure, reliable connections. The module’s minimalist layout includes green terminal blocks and a small black component, blending form and function seamlessly. Built for high sensitivity and immunity, it offers a reliable solution for cellular base stations and advanced RF systems, combining technical excellence with durability, making it an essential component for your high-frequency projects.
Keys features of the ADL5350 Mixer Module
- Measures 46mm x 42mm, runs on DC 5V with 19mA current, suitable for various RF applications up to 4 GHz.
- Supports broadband RF, IF, and LO ports with a conversion loss of 6.8dB and a noise figure of 6.5dB for high-quality signal processing.
- Features high input IP3 of 25dBm and P1dB of 19dBm, ensuring robust performance in cellular base station designs requiring high linearity.
- Single-ended design with a 20dBm LO input level, housed in an efficient 8-pin small LFCSP package for easy integration.
- Built in compliance with RoHS standards, combining durability, safety, and environmental responsibility in your RF setup.
- Designed for simplicity and efficiency without a balanced-unbalanced converter, optimized for high sensitivity and immunity in demanding environments.
This ADL5350 Mixer Module—Order Yours Today for Superior RF Performance
Imagine enhancing your RF system with this reliable and compact mixer module, providing excellent linearity and low noise for your high-frequency needs. It’s an ideal addition to advanced cellular base stations, test equipment, or RF research projects. As you incorporate this high-quality module, you'll save time and effort, knowing it’s designed for durability and high performance. Make a confident investment in your projects today; your RF systems will function more efficiently, delivering clearer signals and higher stability. Elevate your technology setup with this dependable, expertly crafted mixer module now!
