Adjustable RF Amplifier Module 30kHz-200MHz
83.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake
This adjustable gain amplifier module offers a wide bandwidth of 30 kHz to 200 MHz, with 0.5 dB step gain adjustments from 0 to 65 dB powered by ±5V. It supports input signals from 2 mVpp to 2 Vpp, with specific requirements for frequencies below and above 1 MHz—exceeding 10 mV for sub-1 MHz and a minimum of 2 mV for higher frequencies. In its default configuration, it achieves a maximum gain of 65 dB at 50 MHz with a 2 mV input, providing an output close to 4100 mV. Compatible with CNC boards, it includes source code for seamless integration and customization.
In stock
This this adjustable gain amplifier module enhances RF signals

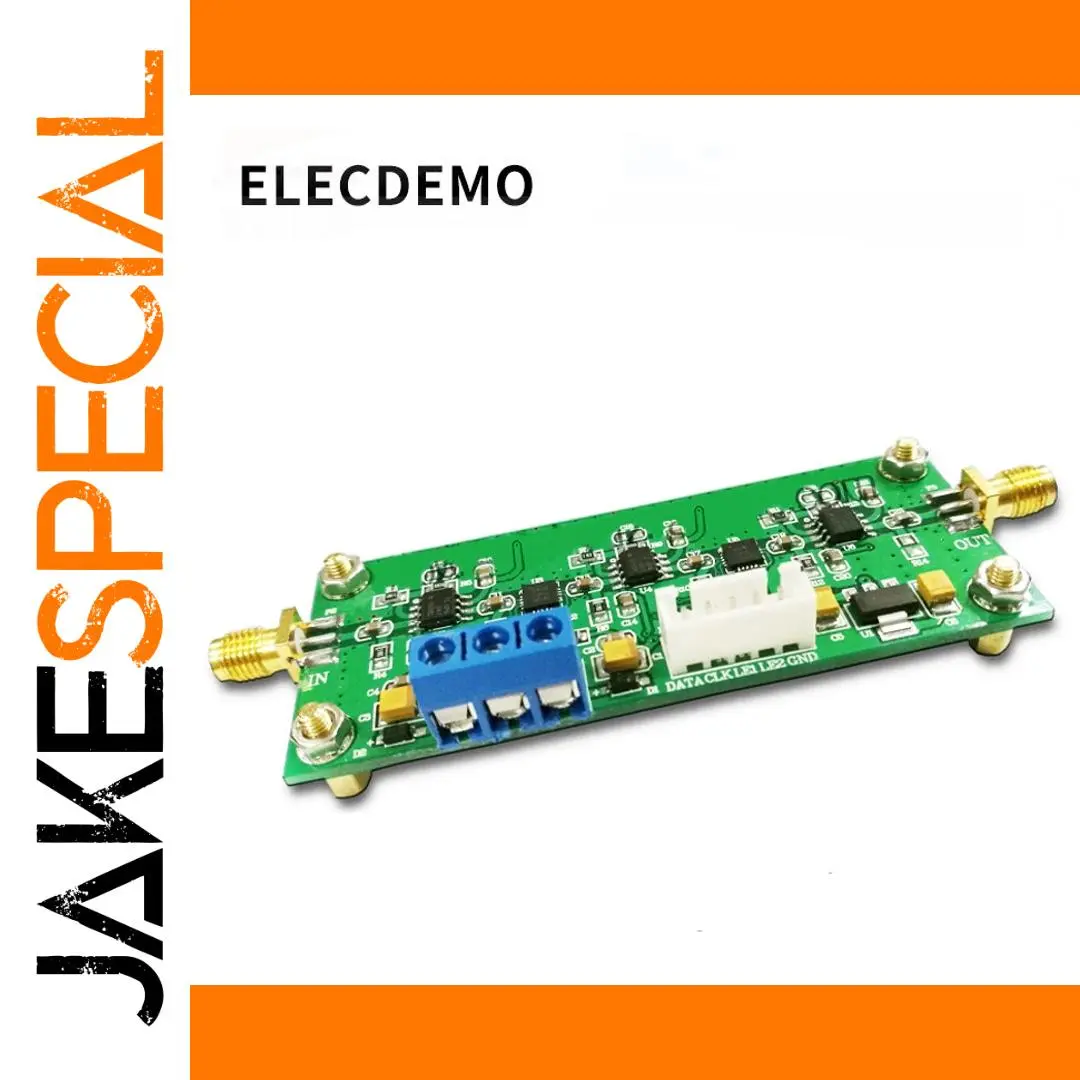

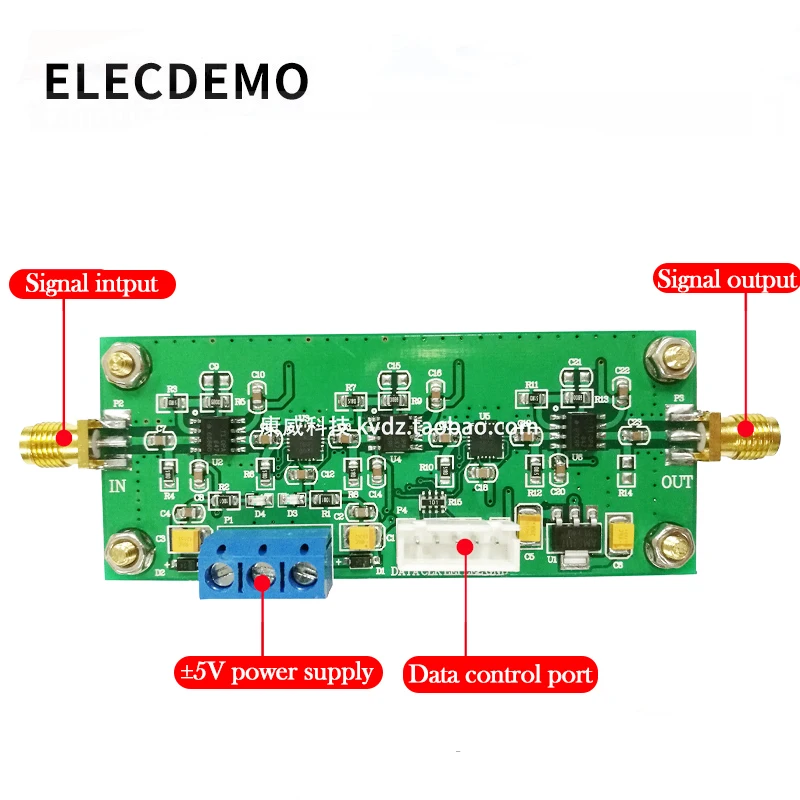

Experience precise signal amplification with this adjustable gain amplifier module, designed for broad frequency coverage from 30 kHz to 200 MHz. Its compact, industrial-inspired rectangular design features a vibrant green PCB with neatly organized surface-mounted components. Gold-colored SMA connectors provide durable, high-quality signal input and output ports, while white plastic connectors and a blue terminal block add subtle color contrast and functionality. The module’s sleek appearance emphasizes technical reliability and ease of integration into larger systems. Perfect for RF signal processing, it offers adjustable gain up to 65 dB in 0.5 dB steps, ensuring you can customize amplification to your specific needs. Its robust design is ideal for experiments, prototype development, or system integration requiring consistent performance at various frequencies.
Keys features of this adjustable gain amplifier module
- The module supports a frequency bandwidth from 30 kHz to 200 MHz, with default configuration, adjustable via coupling capacitor changes for lower frequencies.
- It handles input signals from 2 mVpp to 2 Vpp, with a maximum gain of 65 dB achievable at 50 MHz and 2 mV input voltage.
- The gain is finely adjustable in 0.5 dB increments between 0 and 65 dB, allowing precise control over amplification levels for various applications.
- Powered by a stable ±5V power supply, the module ensures consistent operation and optimal performance across all supported frequencies.
- Includes source code for seamless integration with compatible CNC boards, simplifying deployment in automated or digital systems.
- The module's components include surface-mounted black integrated circuits, resistors, capacitors, gold SMA connectors, white plastic pin connectors, and a blue terminal block, all arranged for optimal compactness and efficiency.
This this adjustable gain amplifier module is ready for your system
By choosing this adjustable gain amplifier module, you are investing in reliable, high-precision RF signal processing. Its versatile bandwidth, detailed adjustability, and seamless integration make it perfect for your experimental setups, system upgrades, or prototype projects. Enhance your electronic projects today and experience improved signal fidelity and control. With its sturdy construction and comprehensive technical features, this module is designed to meet your demanding RF amplification needs reliably.
