AD9850 DDS Signal Generator Module
127.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake
Experience precise signal generation with this compact AD9850 high-speed DDS module, measuring 100mm x 60mm and powered by a 6-9V supply. It supports a 125 MHz clock rate, phase modulation, and a 32-bit frequency tuner for versatile applications. The module features an onboard high-performance DAC and comparator, achieving DAC SFDR > 50 dB at 40 MHz output, and consumes just 380 mW at 5V or 155 mW at 3.3V. Designed for seamless integration, it offers simplified control via parallel or serial interface, and is compatible with STM32F103RCT6 microcontrollers. Ideal for advanced signal synthesis and RF projects requiring accuracy and low power consumption.
In stock
This AD9850 DDS Module for Precise Signal Generation

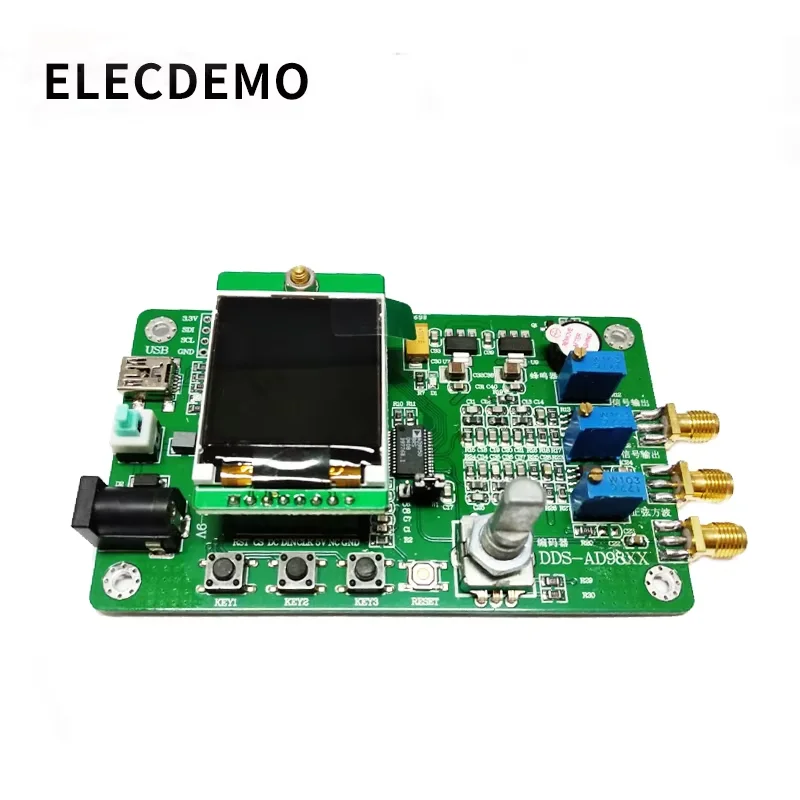

Imagine harnessing the power of a high-speed Direct Digital Synthesis (DDS) signal generator with this this AD9850 DDS module. Designed with advanced DDS technology, it features a 125 MHz clock rate, supporting phase modulation and a 32-bit frequency tuner for exceptional frequency precision. Its onboard high-performance DAC and comparator deliver a DAC SFDR greater than 50 dB at 40 MHz output, ensuring clean and stable signals. Compact at 100mm x 60mm, it operates efficiently with low power consumption—only 380 mW at 125 MHz (5V) and 155 mW at 100 MHz (3.3V). Compatible with STM32F103RCT6 microcontroller, it is ideal for labs, testing, and RF applications. Its sleek green PCB design includes essential connectors, a TFT display, and control buttons, offering a seamless user interface for versatile usage.
Keys features of the AD9850 DDS Module
- Supports a maximum clock rate of 125 MHz, enabling high-frequency signal output for versatile applications in RF and communication fields.
- Includes phase modulation capabilities and a 32-bit frequency tuner for precise, dynamic frequency synthesis across various projects.
- Equipped with onboard high-performance DAC and comparator, achieving SFDR > 50 dB at 40 MHz output for high-quality waveform generation.
- Powered by 6-9V power supply, with low power consumption—380 mW at 125 MHz using 5V or 155 mW at 100MHz with 3.3V, ensuring energy-efficient operation.
- Features simplified control interfaces via parallel byte or serial load formats, facilitating easy integration with microcontrollers like STM32F103RCT6.

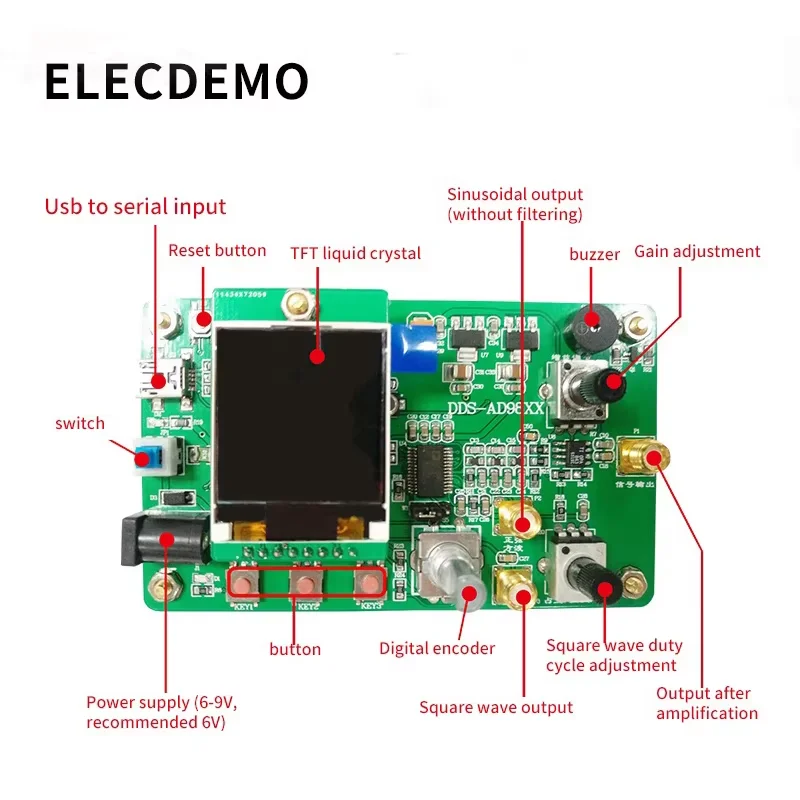

- Designed with a compact form factor (100mm x 60mm), robust connectors, TFT display interface, and control buttons for user-friendly operation.
This AD9850 DDS Module—Enhance your projects now
Imagine the possibilities with this high-performance DDS module, empowering your experiments, prototypes, and professional testing. Its precise frequency control, elegant design, and versatile connectivity make it a trusted choice for engineers and hobbyists alike. Whether you're working on RF projects, signal analysis, or educational demonstrations, this module offers reliable, stable output in a compact package. Don't miss the chance to elevate your electronic toolkit with this advanced signal generator. Secure yours today and start creating superior waveforms with confidence and ease!
This AD9850 high-speed DDS module is an excellent addition to your electronic setup. Its precise digital frequency synthesis, low power profile, and user-friendly control make it an ideal choice for RF design, testing, or experimentation. Make your projects more accurate and productive—order now to experience the benefits of this sophisticated signal generation tool.
