AD8015 Transimpedance Amplifier Module 240MHz
52.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake
This AD8015 integrated transimpedance amplifier module measures 41mm by 28mm and is designed for optical fiber receiver applications such as FDDI and SONET/SDH, supporting data rates up to 155 Mbps. It features a wide bandwidth of 240 MHz, differential output, low input current noise of 3.0 pA/Hz at 100MHz, and total input RMS noise of 26.5 nA at 100MHz. Operating at 5V with low power consumption of 25mA, it boasts a pulse width modulation of 500 ps, rising/falling times of 1.5 ns, and a peak input current of ±350 μA. The device functions reliably within a temperature range of -40°C to +85°C.
In stock
This this AD8015 Transimpedance Amplifier Module

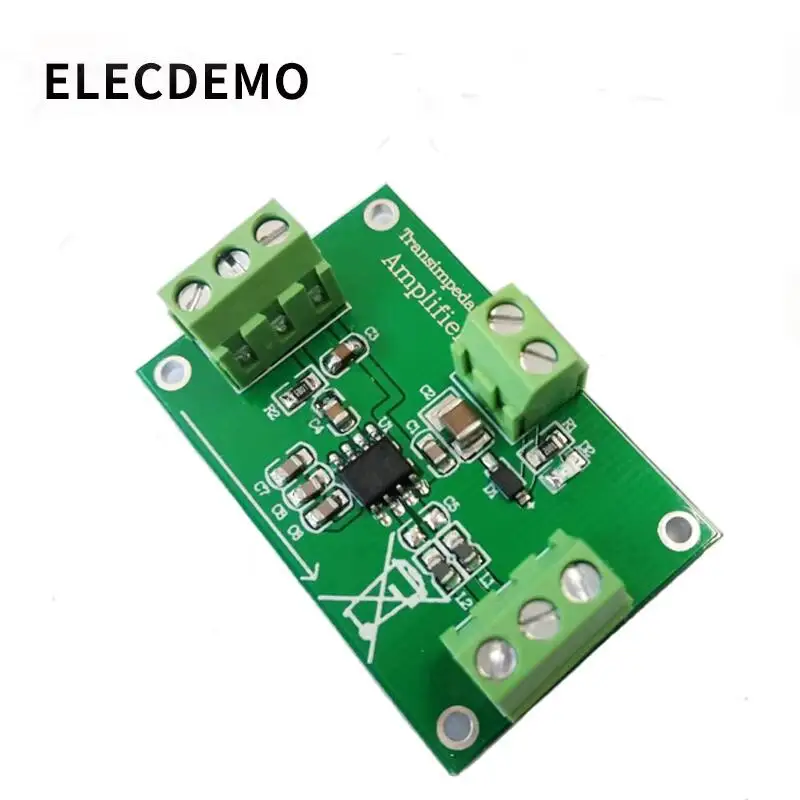

Experience precise signals with this sleek, compact AD8015 integrated transimpedance amplifier module designed for optical fiber receiver systems. Measuring 41mm by 28mm, it features a vibrant green solder mask that highlights its clean, organized layout. At the center, a bold black rectangular chip contrasts sharply with the bright background, surrounded by neatly positioned surface-mounted resistors and ceramic capacitors. The module boasts practical green screw terminal blocks on each side for secure wiring, while white printed markings and directional arrows facilitate easy setup. Its modern design not only ensures durability but also offers a professional aesthetic suited for high-performance electronic systems. Trust this module to enhance your optical communication projects with reliability and style.
Keys features of the this AD8015 Transimpedance Amplifier Module
- Supports a bandwidth of 240 MHz, enabling high-speed optical signal processing up to 155 Mbps, ideal for FDDI and SONET/SDH receiver applications.
- Operates on a 5V power supply with an ultra-low current of only 25mA, ensuring energy efficiency in your system setup.
- Provides differential output with very low noise levels: input current noise of 3.0 pA/Hz at 100MHz, and total input RMS noise of 26.5 nA at 100MHz, for clean signal fidelity.
- Features pulse width modulation of 500ps, rising and falling times of 1.5ns, capable of handling peak input currents of ±350 μA, perfect for high-speed optical data conversion.
- Dimensions of 41mm x 28mm with a wide operating temperature range from -40°C to +85°C, making it versatile for various demanding environments.
- Neatly arranged surface-mounted resistors and ceramic capacitors around the central chip, with a durable green solder mask and clear printed markings for easy installation and troubleshooting.
This enhanced AD8015 Amplifier Module—Order Now for Optical Precision
Imagine upgrading your optical fiber receiver system today with this highly reliable and efficient amplifier module. Its robust design and superior noise performance ensure your signals are clear and accurate. Whether you're working on telecommunications, data transmission, or advanced electronics projects, this AD8015 module offers the perfect mix of technical excellence and easy integration. Take the step now—enhance your technology setup with confidence and experience the difference quality makes in high-speed optical communication.
