AD606 RF Logarithmic Detector Module 70MHz
46.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake
The AD606 logarithmic detector module is a compact RF device measuring approximately 42mm x 35mm x 15mm, designed for frequencies from 100Hz to 70MHz. It operates at 5V DC with a current of 16mA and offers an impressive 80dB dynamic range, accepting -75dBm to +5dBm input signals with 50Ω impedance. The module provides an adjustable output voltage from 0.5V to 3.5V, with voltage gain exceeding 90dB and phase stability within ±3°. Its fast response time of 1.5ns and low power consumption of 65mW make it ideal for transmitter power and receiver strength measurements, featuring SMA connectors for easy interfacing.
In stock
This Precise AD606 Logarithmic Detector Module

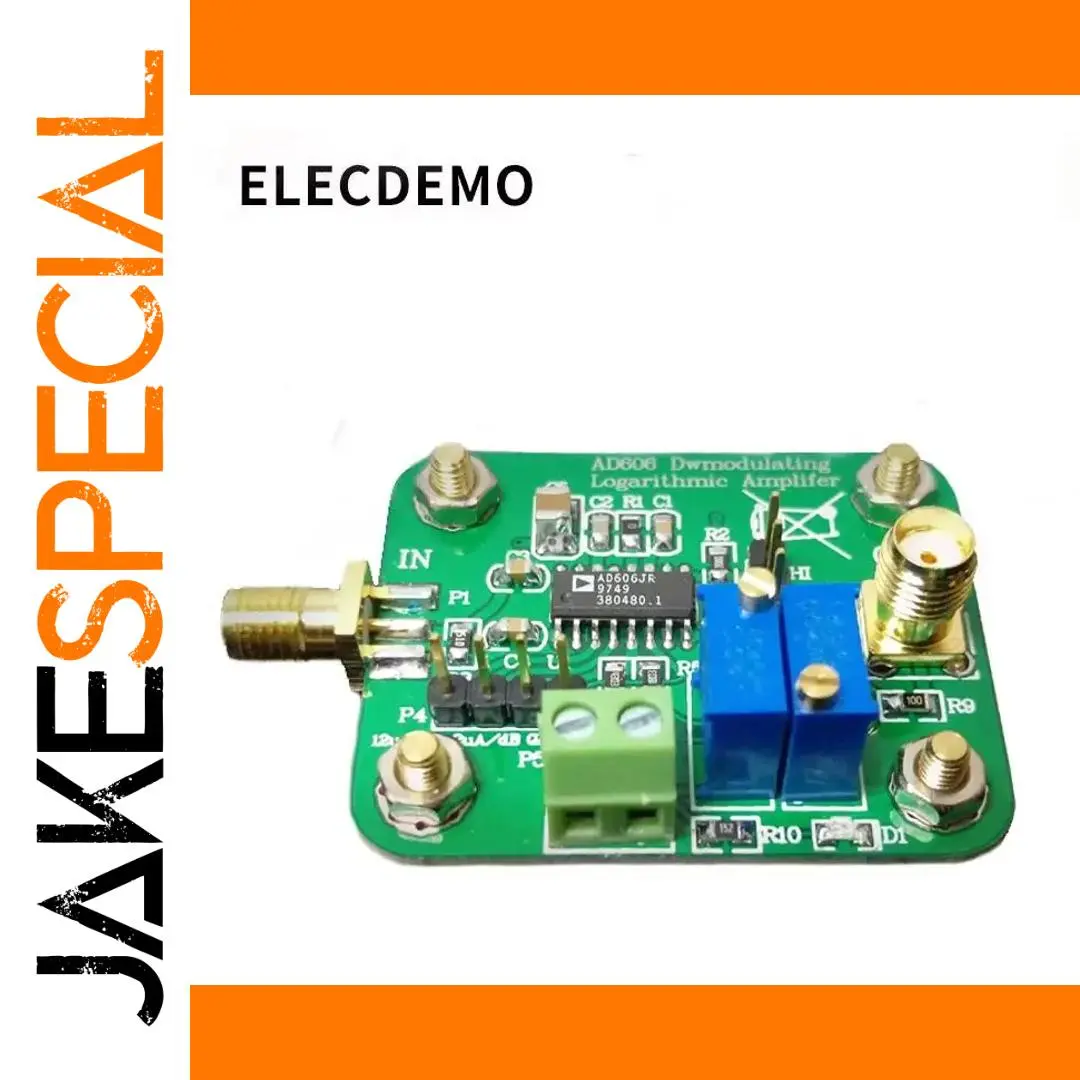

Experience the reliability of this AD606 RF logarithmic detector module, design-ready for applications demanding accurate signal measurement at frequencies from 100Hz to 70MHz. With its compact 42mm x 35mm x 15mm size and industrial-grade performance, this module offers an 80dB dynamic range, making it ideal for transmitter power and receiver strength measurements. Its sturdy green PCB with clear silkscreen labels provides easy integration into your systems. Visualize seamless operation with a sleek black IC, SMA connectors for input and output, and a green terminal block for power connection. Whether you're tuning RF signals or conducting precision testing, this module is built for dependable, professional use, backed by supportive documentation and technical support.
Keys features of the AD606 logarithmic detector module
- Operating frequency from 100Hz to 70MHz with a 50 ohm input impedance for stable RF signal measurement.
- Logarithmic output voltage adapts from +0.1V to +4V DC, with a linearity within ±0.4dB across the dynamic range of -75dBm to +5dBm signals.
- Low power consumption at approximately 65mW, powered by a stable +5V DC supply, ensuring efficiency and safety for continuous operation.
- Fast response time of less than 5μs and a transition time at 10.7MHz of 1.5ns, providing precise signal analysis with phase stability within ±3°.
- Includes a limiter output capable of differential current ±1.2mA, loadable through a 200Ω resistor, offering high-gain signals for complex RF testing setups.
- Constructed in a durable 16-pin plastic package (size approx. 42 x 35 x 15mm), designed without shielding, exposing all components for easy troubleshooting and integration.
This AD606 detector module—order now for accurate RF measurement
Imagine how this module will elevate your RF testing and measurement tasks—delivering precise, reliable data every time you need it. Its straightforward interface and robust performance make it a trusted companion for professional engineers and hobbyists alike. Once integrated into your setup, you'll notice smoother operation, less calibration hassle, and clearer signal insights. Add this essential component to your toolkit today and experience the difference that quality RF detection can make in your projects and experiments.
This AD606 logarithmic detector module is an essential tool for anyone serious about RF signal analysis. Built with precision, durability, and ease of use, it fits seamlessly into your measurement systems, empowering you to achieve detailed insights with confidence. Let it become your go-to solution for consistent, high-accuracy RF measurements.
