AD605_VGA Dual Gain Amplifier Module 40MHz
58.99 €
🆓 FREE SHIPPING with tracking number!
✅ No Import Taxes on delivery!
🏷️ Condition: New
🚚 Ships from: HK Warehouse – Hong Kong (China)
↩️ Easy Returns within 30 days of receipt
🙋 Any questions? Contact Jake
Experience precise signal amplification with this dual-channel voltage-controlled gain amplifier module, measuring 50mm x 50mm and powered by a 5V single supply. Offering a bandwidth of 40MHz, it features two channels with adjustable gain from 14 dB to 48 dB, controlled via a voltage input between 0.12V and 2.9V. The module’s maximum output peak amplitude reaches 3.2 VPP, with gain control voltage optimized for stable performance. It provides versatile short-circuit gain ranging from -14 dB to -34 dB during feedback conditions, and from 0 dB to 48 dB under normal operation. Ideal for high-frequency and precision amplification in professional electronic systems.
In stock
This premium AD605_VGA dual amplifier module

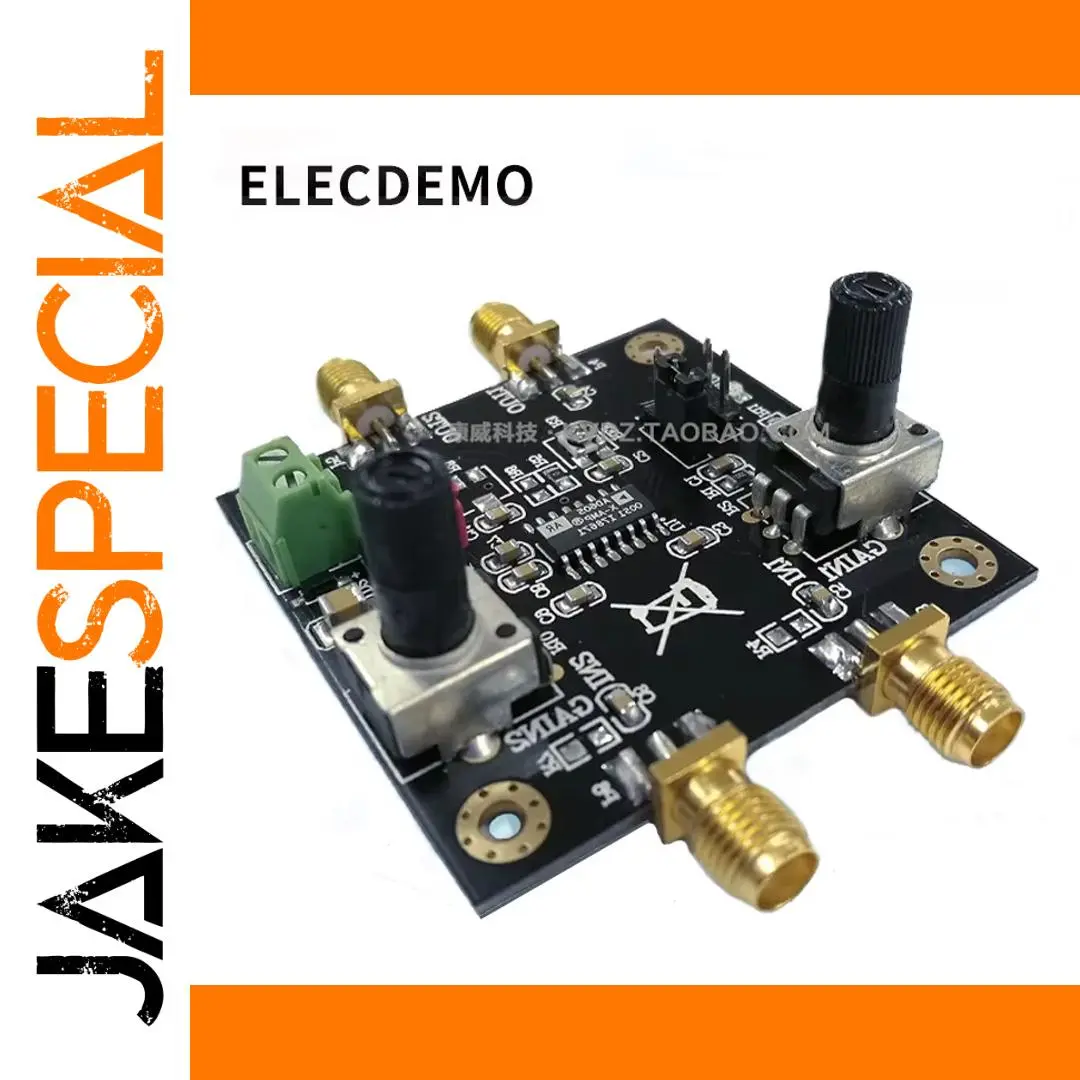

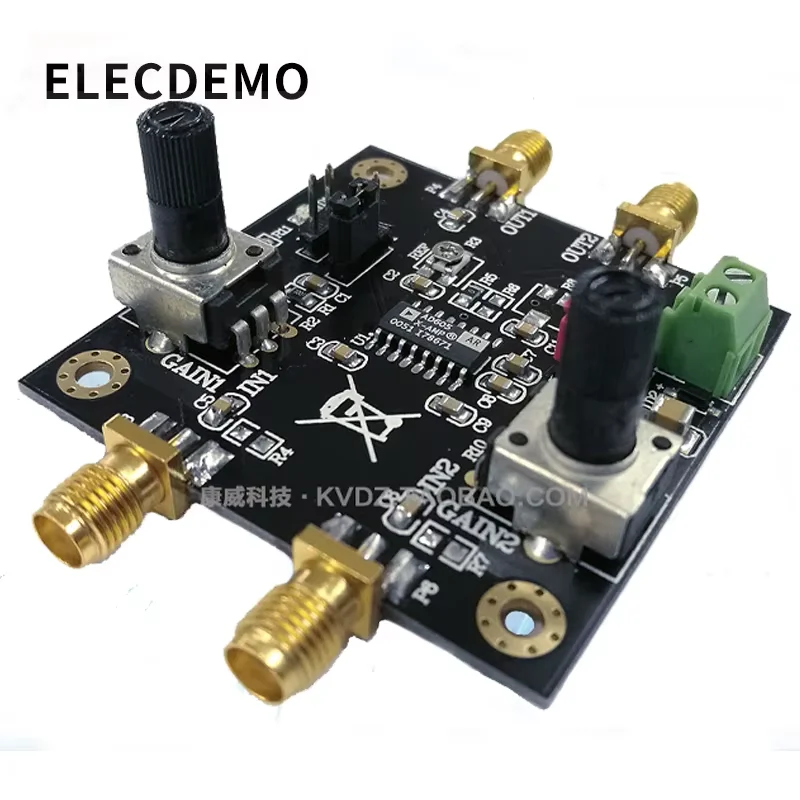

Experience precise control and high performance with this AD605_VGA dual-channel voltage-controlled gain amplifier module. Featuring a compact 50mm by 50mm black matte PCB, it combines sleek design with advanced functionality. The module's gold-plated SMA connectors offer high-quality signal input and output, while the bright green terminal ensures easy connection. The black rotary potentiometer allows smooth, fine-tuned adjustments of gain settings, making it ideal for professional and laboratory applications. With a bandwidth of 40MHz, this module supports high-frequency signals, maintaining signal integrity. Its durable build and clear labeling reinforce its reliability. Designed for seamless integration into electronic systems, this module delivers powerful and flexible gain control, perfect for demanding projects that require precision. Trust in its high-quality construction and proven performance for your next project.
Keys features of the AD605_VGA dual amplifier module
- Compact design measuring 50mm x 50mm with a professional matte black PCB surface for a sleek, modern appearance.
- Dual channels with adjustable gain from 14dB to 48dB, controlled via a voltage input from 0.12V to 2.9V, suitable for high-precision applications.
- Supports a bandwidth of 40MHz, ensuring high-frequency signals are amplified without distortion or loss.

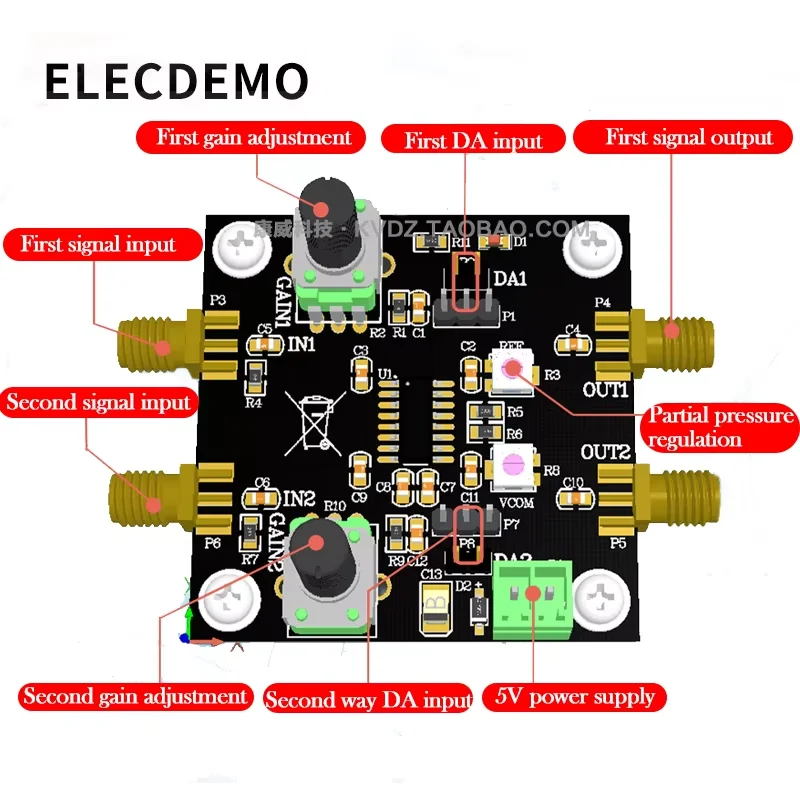

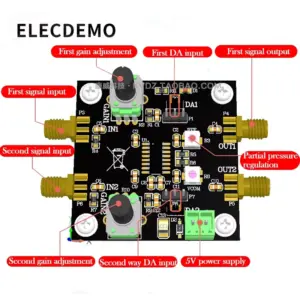

- Includes two gold-plated SMA connectors for superior signal integrity, plus a green terminal for power and control connections.
- Maximum output peak amplitude of 3.2 VPP, with a short-circuit gain range from -14dB to -34dB and normal operation gain up to 48dB.
- Technical specifications include a single 5V power supply, with a schematic PDF available for easy implementation and troubleshooting.
This AD605_VGA module is ready for your high-frequency projects—order now
Imagine integrating this high-performance dual-channel gain amplifier into your electronics setup and enjoying precise, reliable signal control. Its sleek aesthetic and robust technical features make it a perfect addition for professional labs or advanced hobby projects. Whether you're fine-tuning audio, RF signals, or instrumentation, this module delivers steady and adjustable gain with ease. It's designed for those who demand quality and finesse in their electronic components. Add it to your toolkit today and elevate your projects with confidence, knowing you have a top-tier component engineered for excellence.
